Discontinued

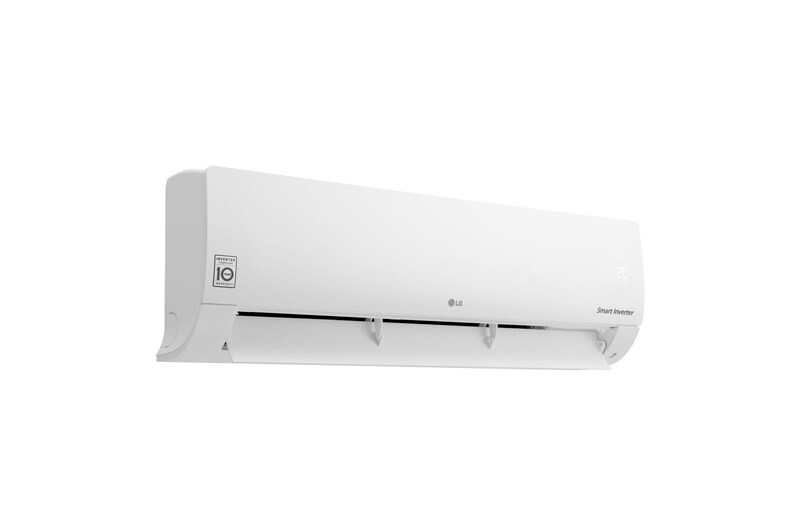

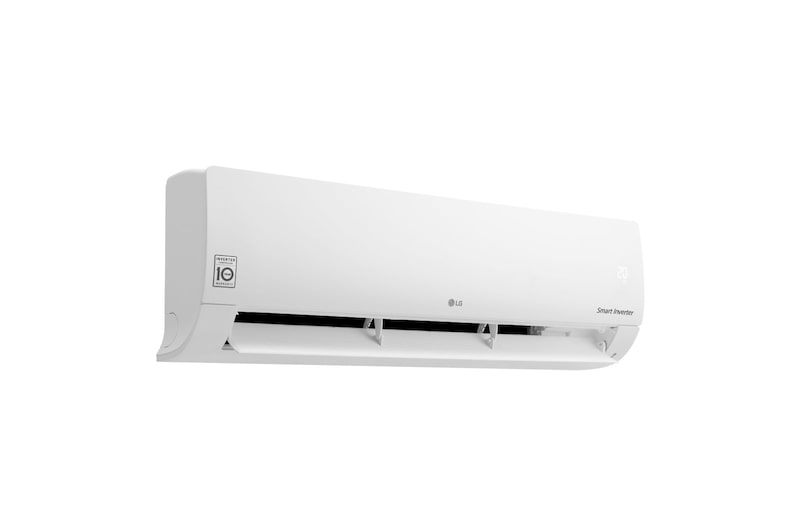

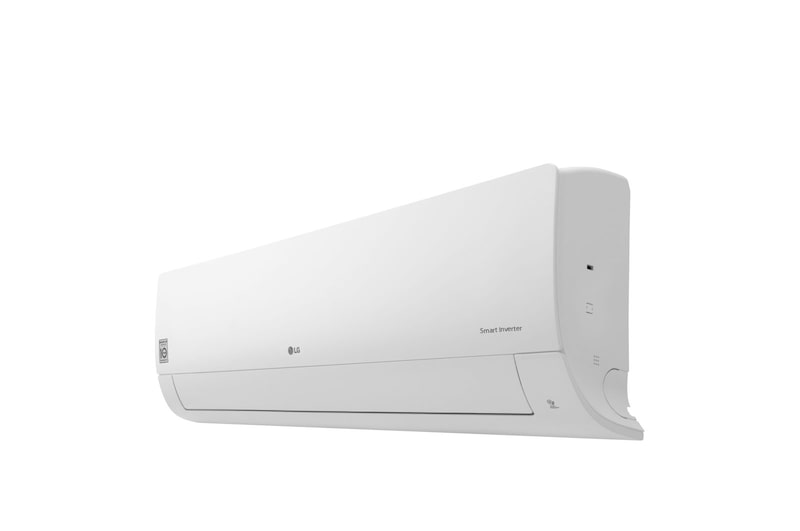

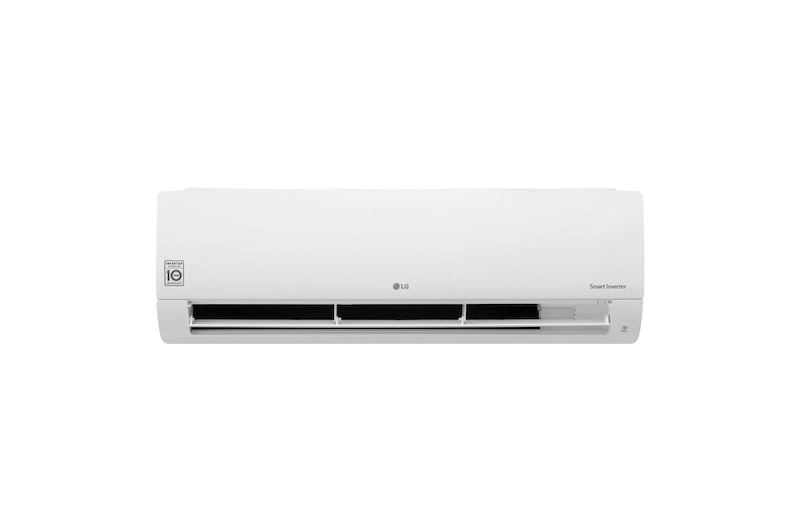

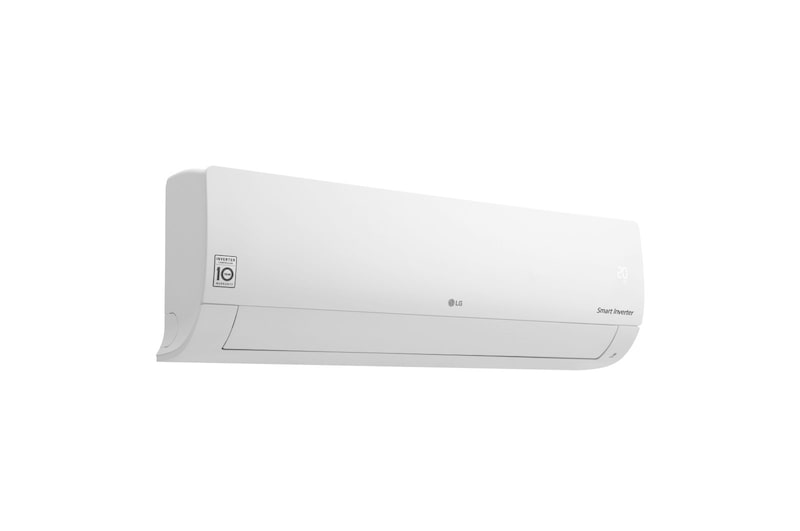

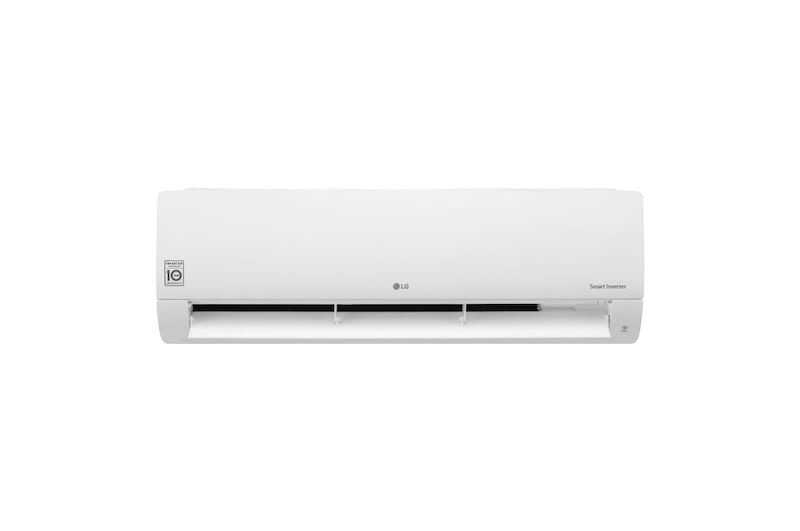

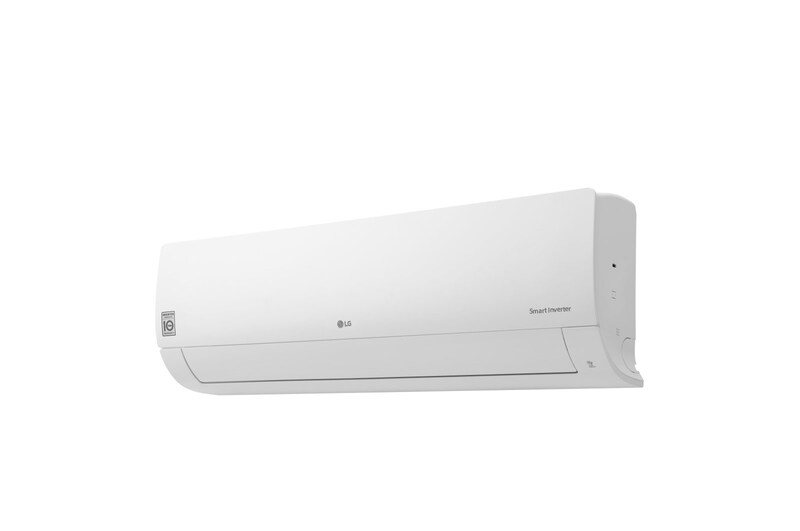

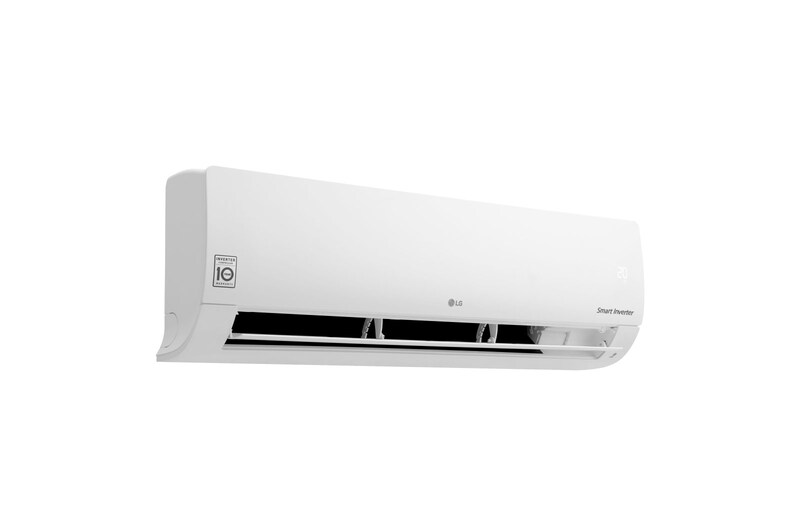

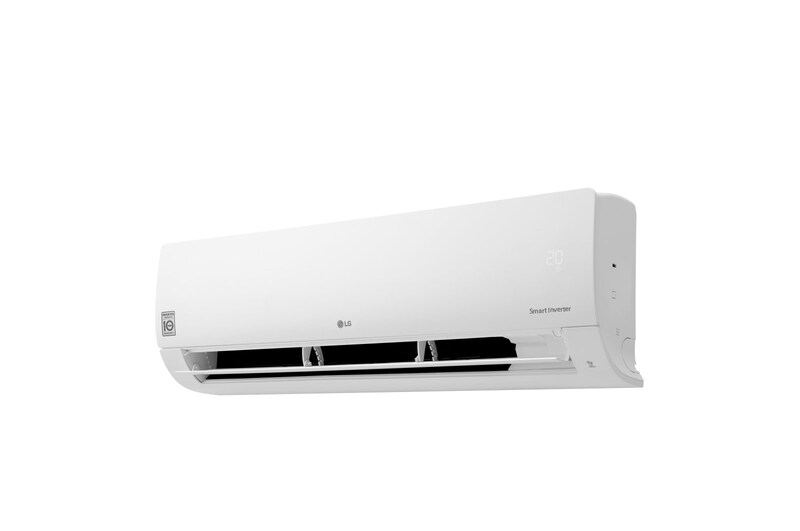

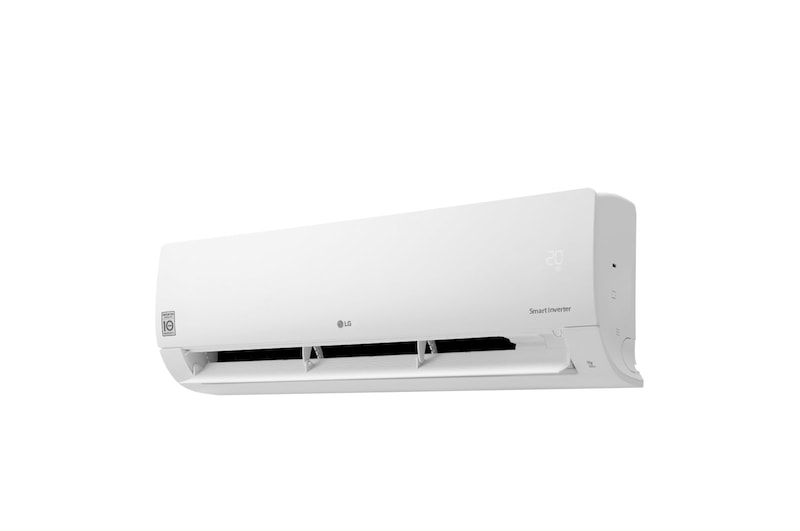

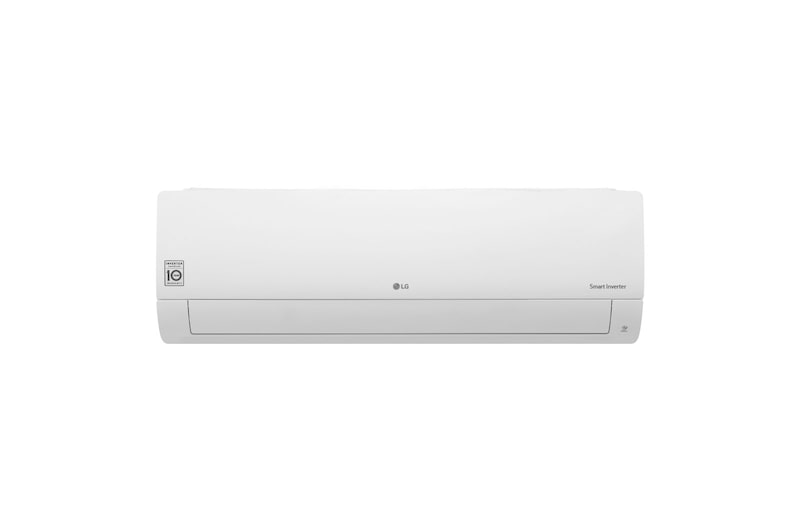

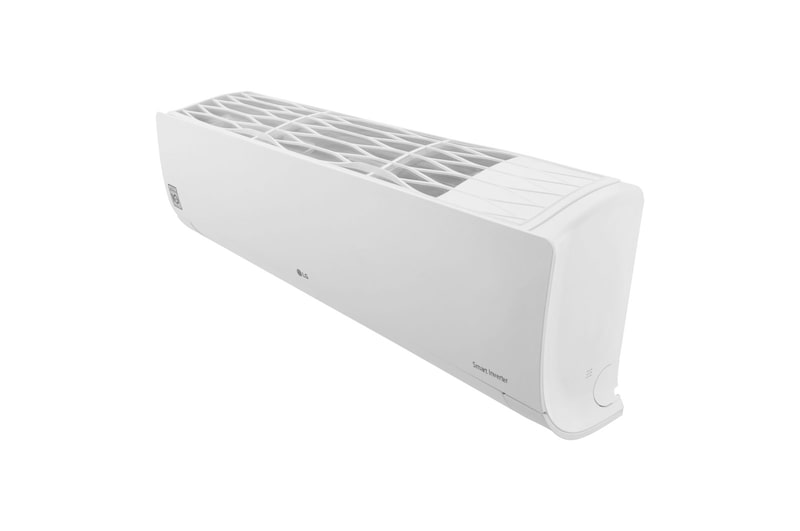

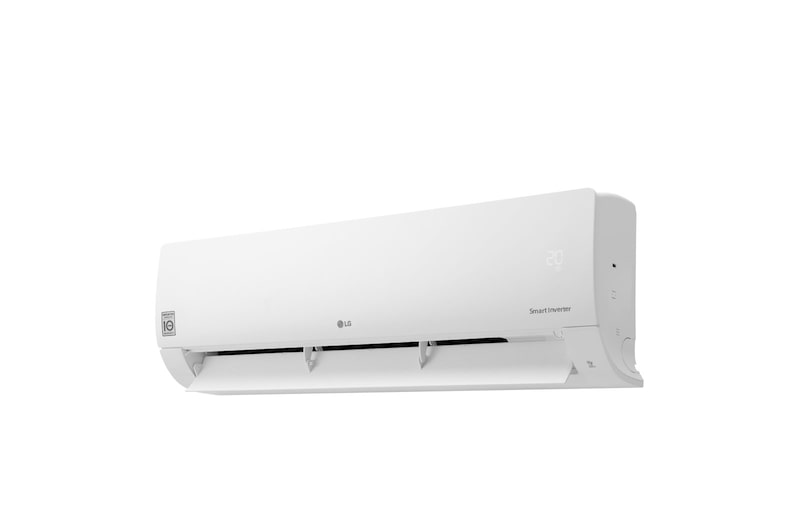

ES-W186K3A2
Fast Cooling & Energy Saving
  • Fast Cooling & Energy Saving
  • 10 Year Warranty
  • Dual Inverter Compressor™
  • Simple and Modern Design with Hidden display
  • Auto Cleaning
Fast Cooling & Energy Saving

GENERAL SPECIFICATION

  • Cooling Capacity(Min ~ Rated ~ Max)
    900 ~ 5000 ~ 5525 W
    Heating Capacity(Min ~ Rated ~ Max)
    900 ~ 5800 ~ 6438 W
  • Heating Capacity
    3800 W
    Power Input - Cooling
    1587 W
  • Power Input - Heating
    1611 W
    EER
    3.15 W/W
  • S.E.E.R.
    6.5
    P design C
    5.0 kW
  • COP
    3.60 W/W
    S.C.O.P.
    4.0
  • P design H
    3.9 kW
    Annual Energy Consumption - Cooling
    269 kWh
  • Annual Energy Consumption - Heating
    1365 kWh
    Sound Pressure - Cooling(Sleep ~ Low ~ Medium ~ High)
    31 ~ 34 ~ 39 ~ 44 dBA+1
  • Sound Pressure - Heating(Low ~ Medium ~ High)
    34 ~ 39 ~ 44 dBA+1
    Sound Power - Cooling(High)
    60 dBA
  • Air Flow Rate - Cooling(Sleep ~ Low ~ Medium ~ High ~ Max (Power))
    8.0 ~ 10.5 ~ 13.0 ~ 14.5 ~ 18.0 ㎥/min
    Air Flow Rate - Heating(Low ~ Medium ~ High)
    11.0 ~ 13.5 ~ 16.0 ㎥/min
  • Dehumidification Rate
    1.8 l/h
    Running Current - Cooling(Rated ~ Max)
    6.9 ~ 9.0 A
  • Running Current - Heating(Rated ~ Max)
    7.1 ~ 9.5 A
    Starting Current - Cooling(Rated)
    6.9 A
  • Starting Current - Heating(Rated)
    7.1 A
    Power Supply
    1 / 220-240 / 50 (Φ / V /Hz)
  • Circuit Breaker
    20 A
    Power Supply Cable
    3 x 1.5 N x mm²
  • Power and Transmission Cable
    4 x 1.0 (Including Earth) N x mm²
    Net Weight - Indoor
    12.5 kg
  • Fan Motor Output
    30 W
    Operation Range - Cooling(Min~Max)
    -15~48 °CDB
  • Operation Range - Heating(Min~Max)
    -10~24 °CWB→°CDB
    Sound Pressure - Cooling
    53 dBA+1
  • Sound Pressure - Heating
    55 dBA+1
    Sound Power - Cooling
    65 dBA
  • Air Flow Rate
    35 ㎥/min
    Piping - Length (Odu/Idu) (MIn ~ Max)
    3 ~ 20 m
  • Piping - Elevation (Odu/Idu) (Max)
    10 m
    Piping Connection - Liquid(OD(Outside))
    6.35 mm ~ (1/4) inch
  • Piping Connection - Gas(OD(Outside))
    12.7 mm ~ (1/2) inch
    Piping Connection - Drain(OD(Outside))
    21.5 mm ~ 0.85 inch
  • Refrigerant - Type
    R410A
    Refrigerant - Charge at 7.5m
    1200 g
  • Refrigerant - Additional charge
    20 g/m
    Fan Motor Output
    43 W
  • Compressor Type
    Twin Rotary
    Net Weight
    35.5 kg
