Discontinued
S4-W12JA3AA

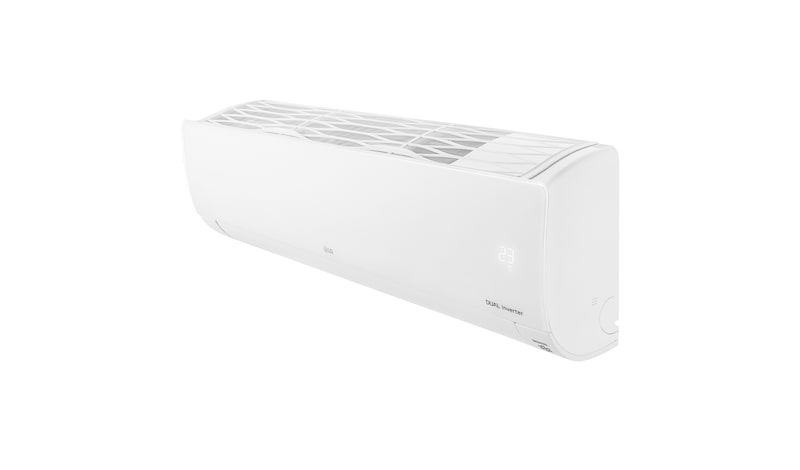

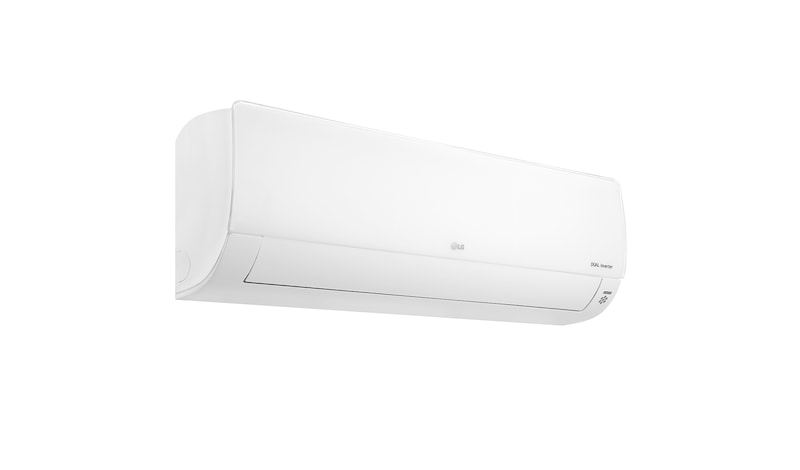

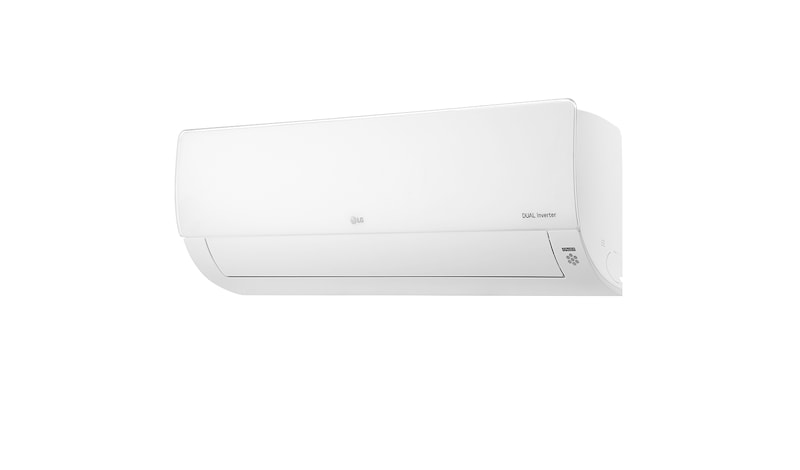

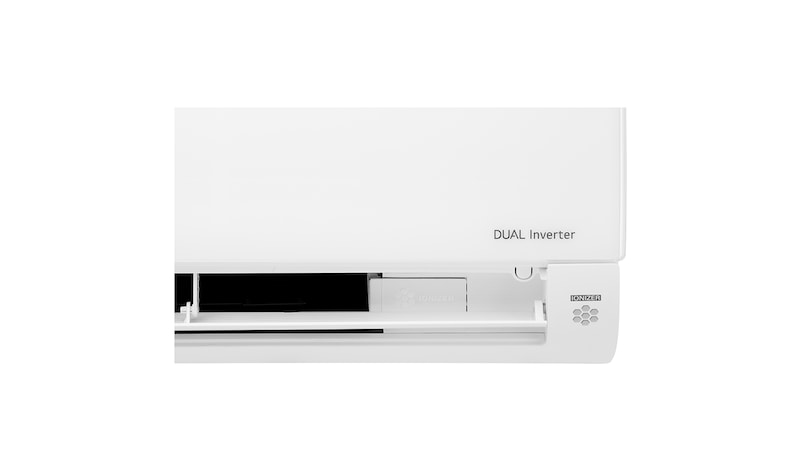

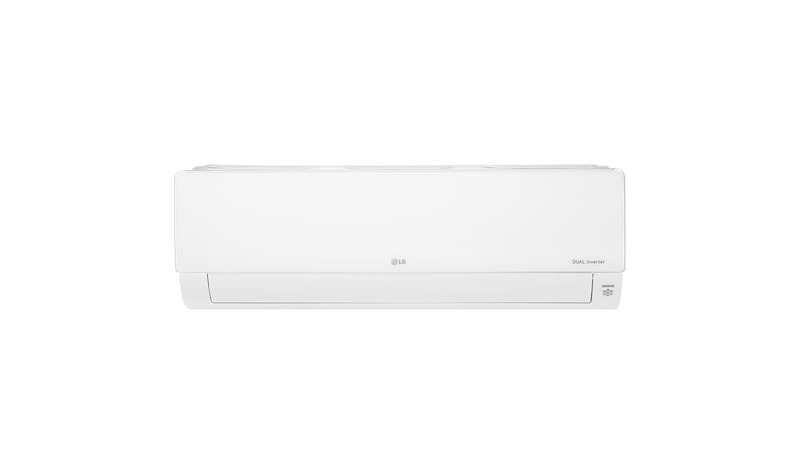

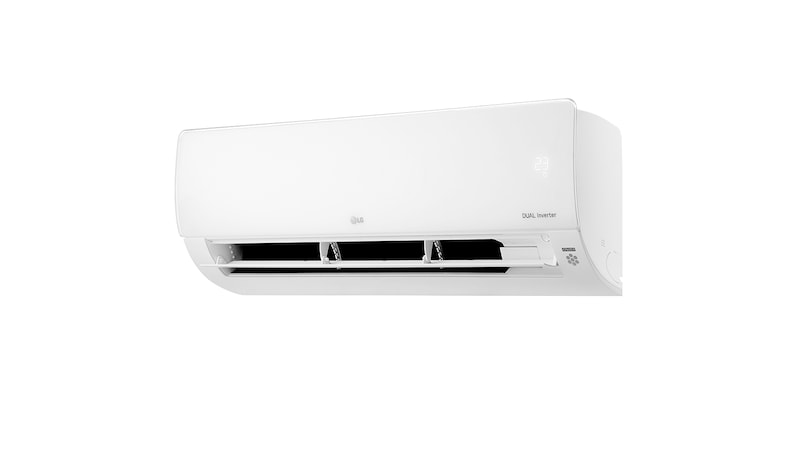

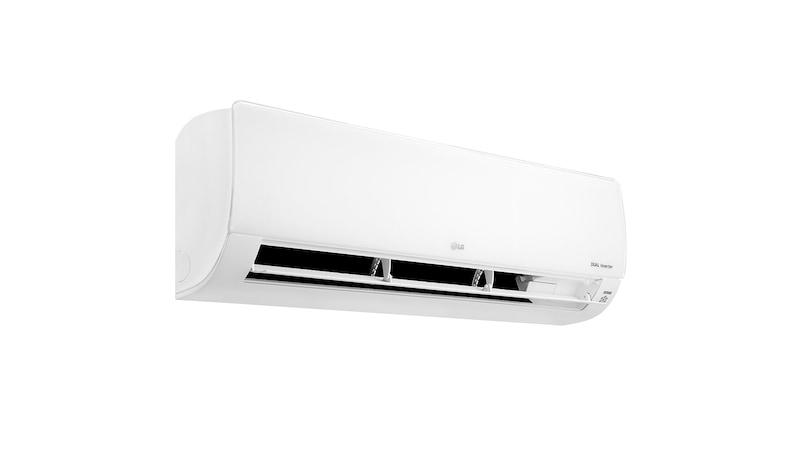

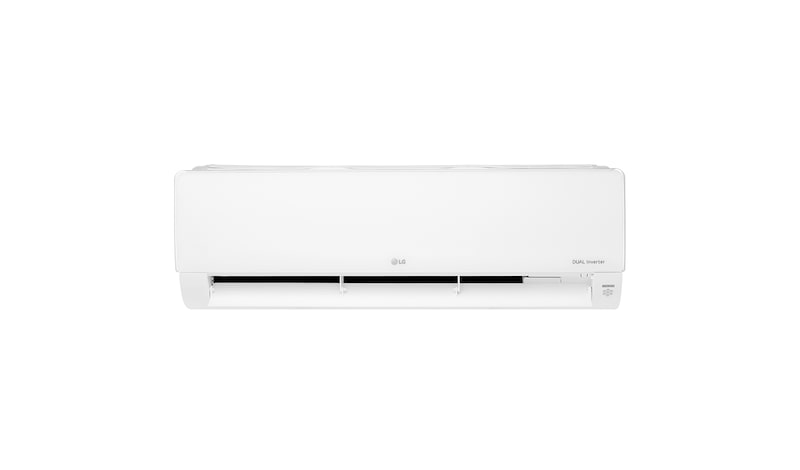

DUALCOOL Inverter Cooling & Heating AC, 12000 BTU, Energy Saving, Fast Cooling, Quiet Cooling
  • 60% Energy Saving
  • 30% Fast Cooling
  • Dual Inverter CompresserTM
DUALCOOL Inverter Cooling & Heating AC, 12000 BTU, Energy Saving, Fast Cooling, Quiet Cooling

Dimensions

W12JA3AA W12JA3AA

GENERAL SPECIFICATION

  • Cooling Capacity (Min ~ Rated ~ Max)
    0.88 ~ 3.33 ~ 3.87 KW
    3,000 ~ 11,352 ~ 13,200 Btu/h
    Heating Capacity (Min ~ Rated ~ Max)
    0.88 ~ 3.52 ~ 4.04 KW
    3,000 ~ 12,000 ~ 13,800 Btu/h
  • Power Input - Cooling (Min ~ Rated ~ Max)
    140 ~ 1,060 ~ 1,350 W
    Power Input - Heating (Min ~ Rated ~ Max)
    140 ~ 975 ~ 1,350 W
  • Running Current - Cooling (Min ~ Rated ~ Max)
    0.80 ~ 6.00 ~ 7.20 A
    Running Current - Heating (Min ~ Rated ~ Max)
    0.80 ~ 5.50 ~ 7.20 A
  • EER
    4.00 W/W
    13.60 (Btu/h)/W
    COP
    3.61 W/W
    12.30 (Btu/h)/W
  • Energy Label Grade - Cooling/Heating
    A
    Power Supply
    1/220/50 (Φ/V/Hz)
  • Available Voltage Range
    187 ~ 276 V
    Power Factor - Cooling/Heating
    80%/80%
  • Indoor - Air Flow Rate (Cooling, Max/H/M/L)
    12.5m³/min
    Indoor - Air Flow Rate (Heating, Max/H/M/L)
    12.5m³/min
  • Indoor - Sound Pressure Level (Cooling, H/M/L/SL)
    42/36/28/21
    Indoor - Sound Pressure Level (Heating, H/M/L)
    42/36/31 dB(A)
  • Indoor - Dimensions (W × H × D) - Net
    837 × 302 × 189 mm
    Indoor - Dimensions (W × H × D) - Shipping
    905 × 383 × 261 mm
  • Indoor - Weight (Net)
    8.9kg
    Indoor - Weight (Shipping)
    10.6kg
  • Outdoor - Air Flow Rate (Max)
    27 m³/min
    Outdoor - Dimensions (W × H × D) - Shipping
    836 x 321 x 540 mm
  • Outdoor - Dimensions (W × H × D) - Net
    717 x 483 x 230 mm
    Outdoor - Weight (Net)
    25.8kg
  • Outdoor - Exterior Color Code
    Munsell 7.5BG 10/2
    Compressor - Type
    Twin Rotary
  • Circuit Breaker
    15A
    Power Supply Cable
    3 x 1.0 No. x mm²
  • Power Supply to Unit
    Outdoor
    Piping - Size (Liquid)
    Ø 6.35mm
  • Piping - Size (Gas)
    Ø 9.52mm
    Piping - Connections Method (Indoor/Outdoor)
    Flared/Flared
  • Drain Hose Size (O.D, I.D)
    21.5, 16.0 mm
    Between Indoor & Outdoor - Piping Length (Min/Standard/Max)
    3/7.5/15 m
  • Between Indoor & Outdoor - Max. Elevation Difference
    7m
    Refrigerant - Type
    R410A
  • Refrigerant - Pre Charge
    850g
    Refrigerant - Additional charge
    20g/m
