1428 x 803 Touch Overlay Kit

Especificaciones

Soporte

Recurso

1428 x 803 Touch Overlay Kit

1428 x 803 Touch Overlay Kit

KT-T320
(5)
  • Vista frontal de 1428 x 803 Touch Overlay Kit KT-T320
  • LG 1428 x 803 Touch Overlay Kit, KT-T320
  • LG 1428 x 803 Touch Overlay Kit, KT-T320
  • LG 1428 x 803 Touch Overlay Kit, KT-T320
  • LG 1428 x 803 Touch Overlay Kit, KT-T320
  • LG 1428 x 803 Touch Overlay Kit, KT-T320
  • LG 1428 x 803 Touch Overlay Kit, KT-T320
  • LG 1428 x 803 Touch Overlay Kit, KT-T320

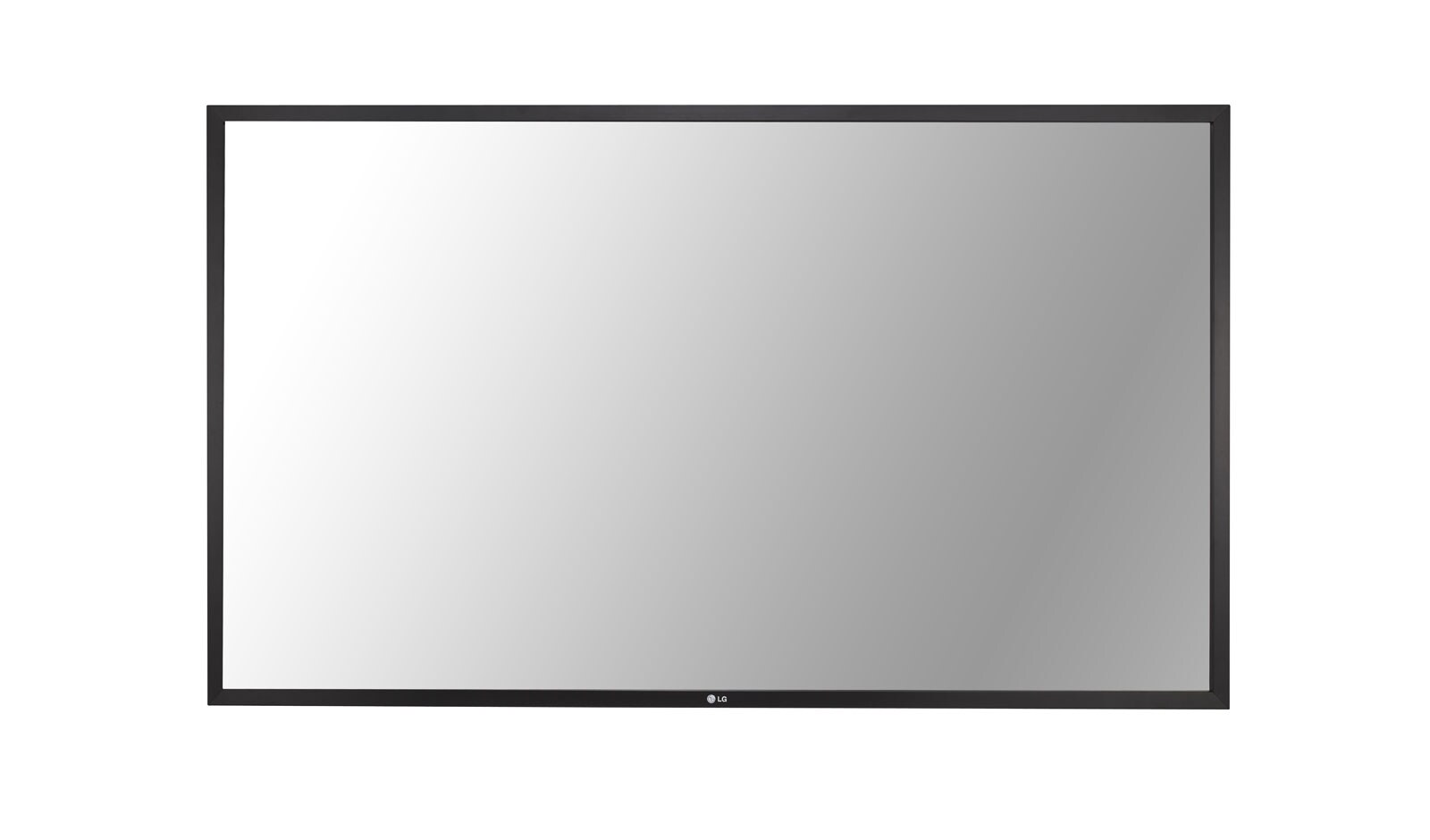

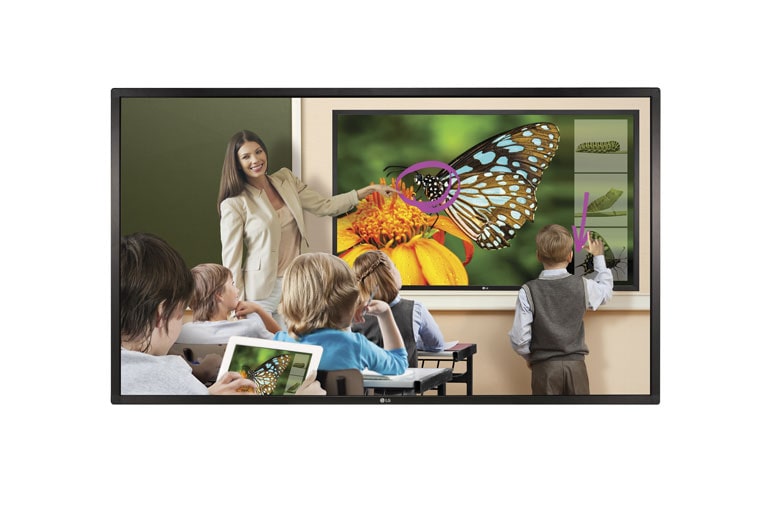

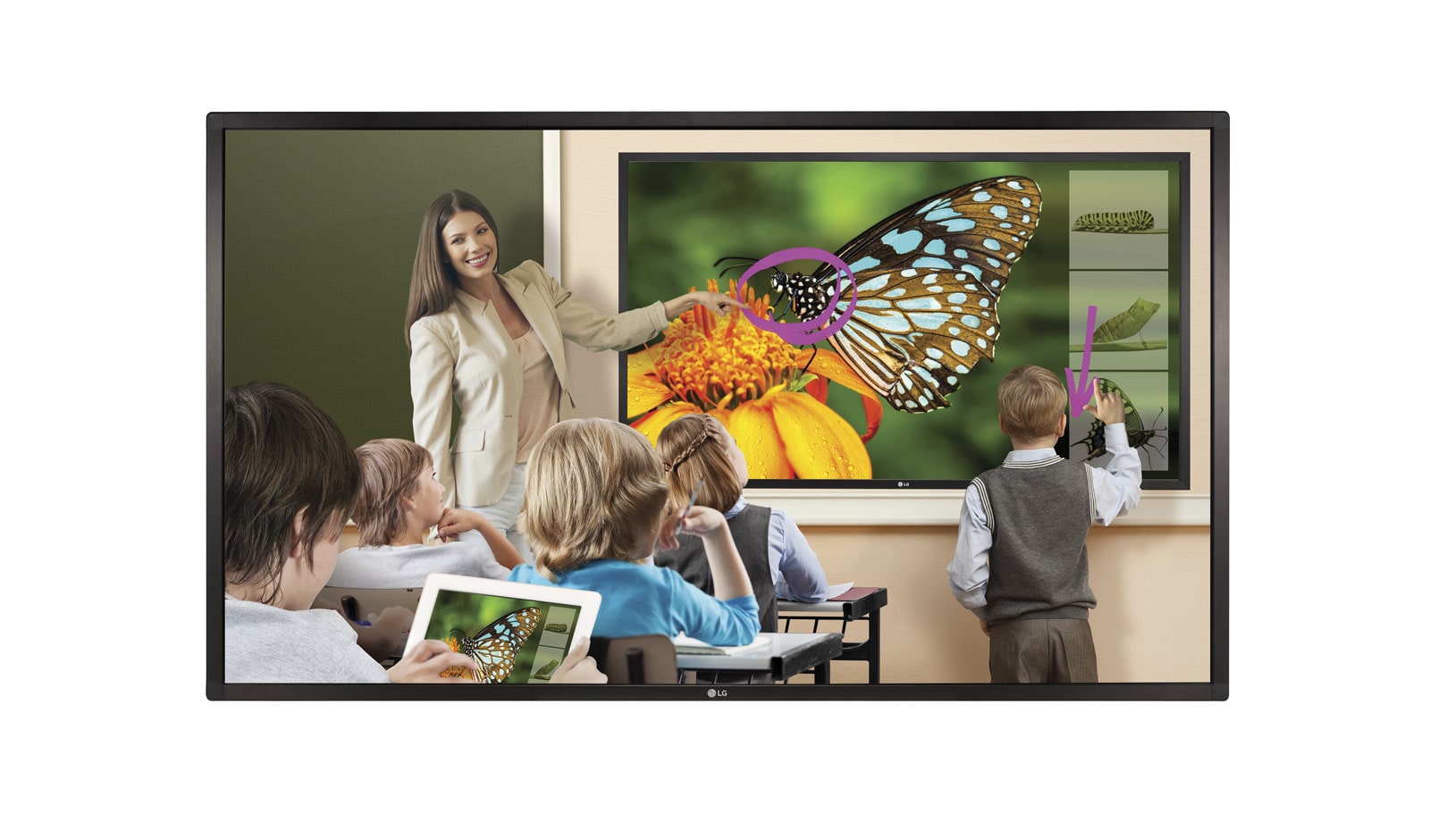

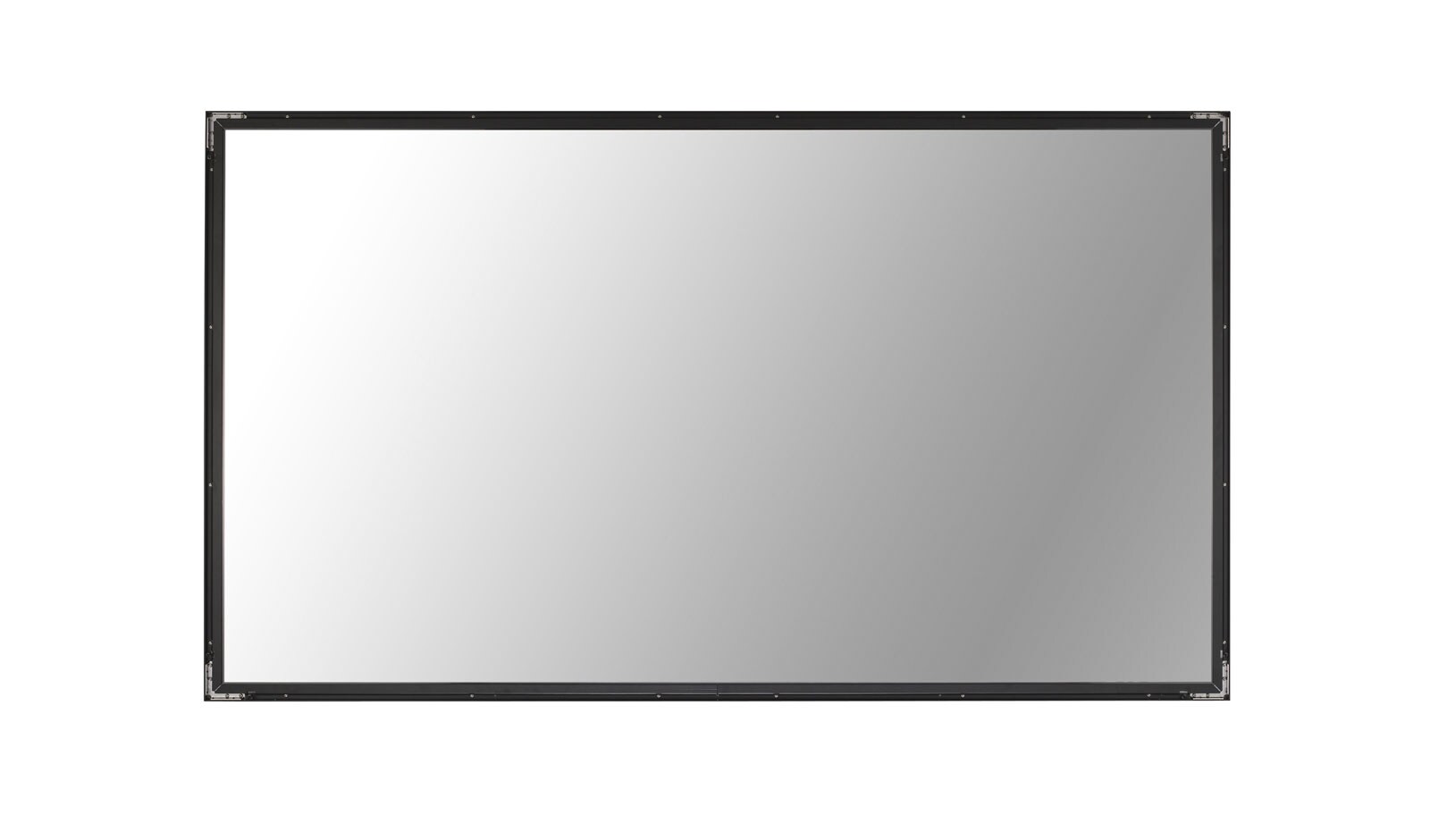

Vista frontal de 1428 x 803 Touch Overlay Kit KT-T320

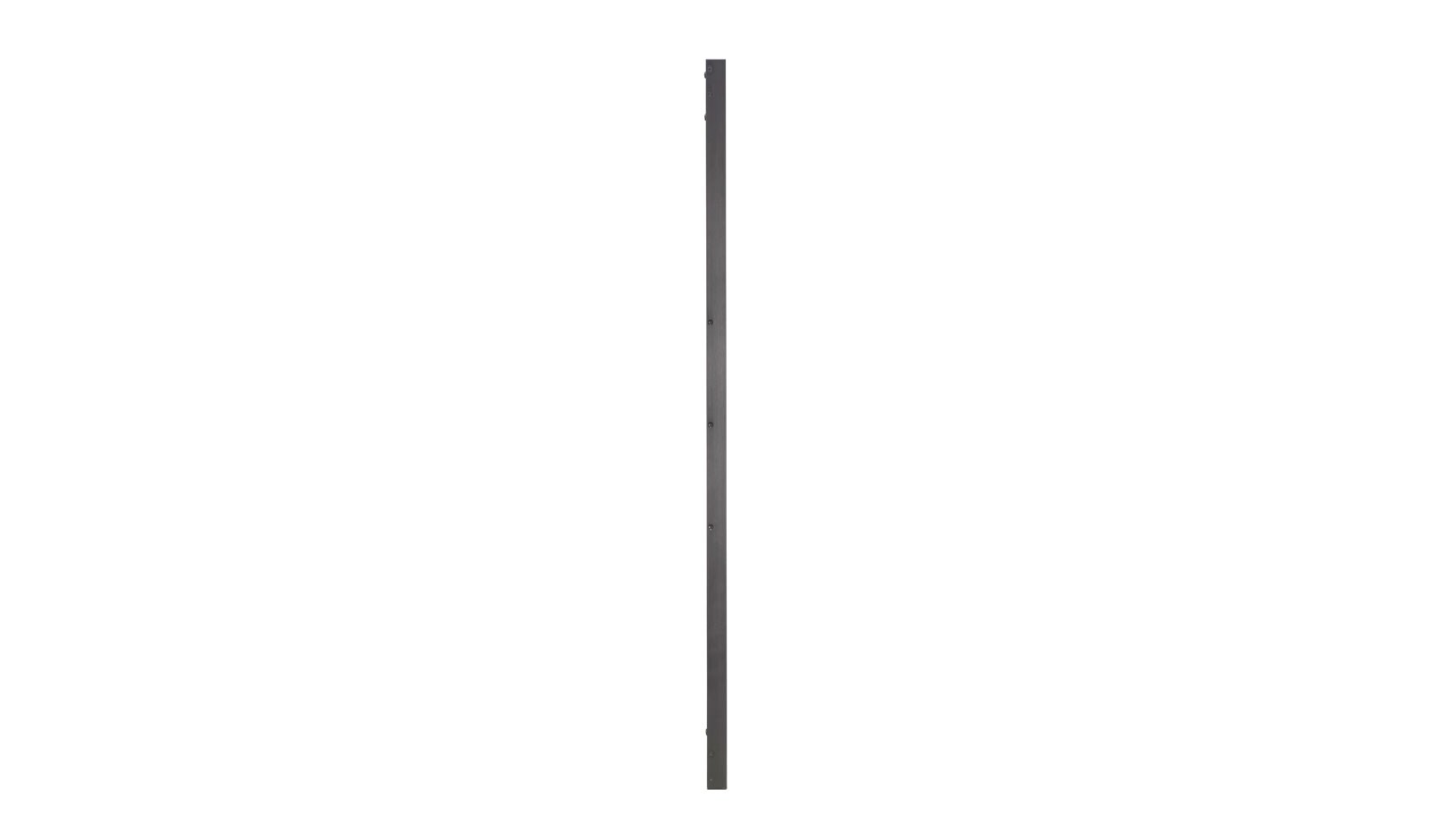

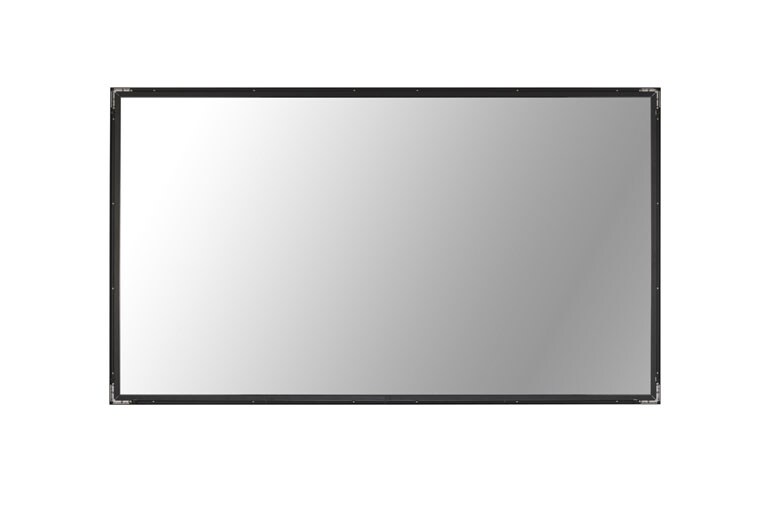

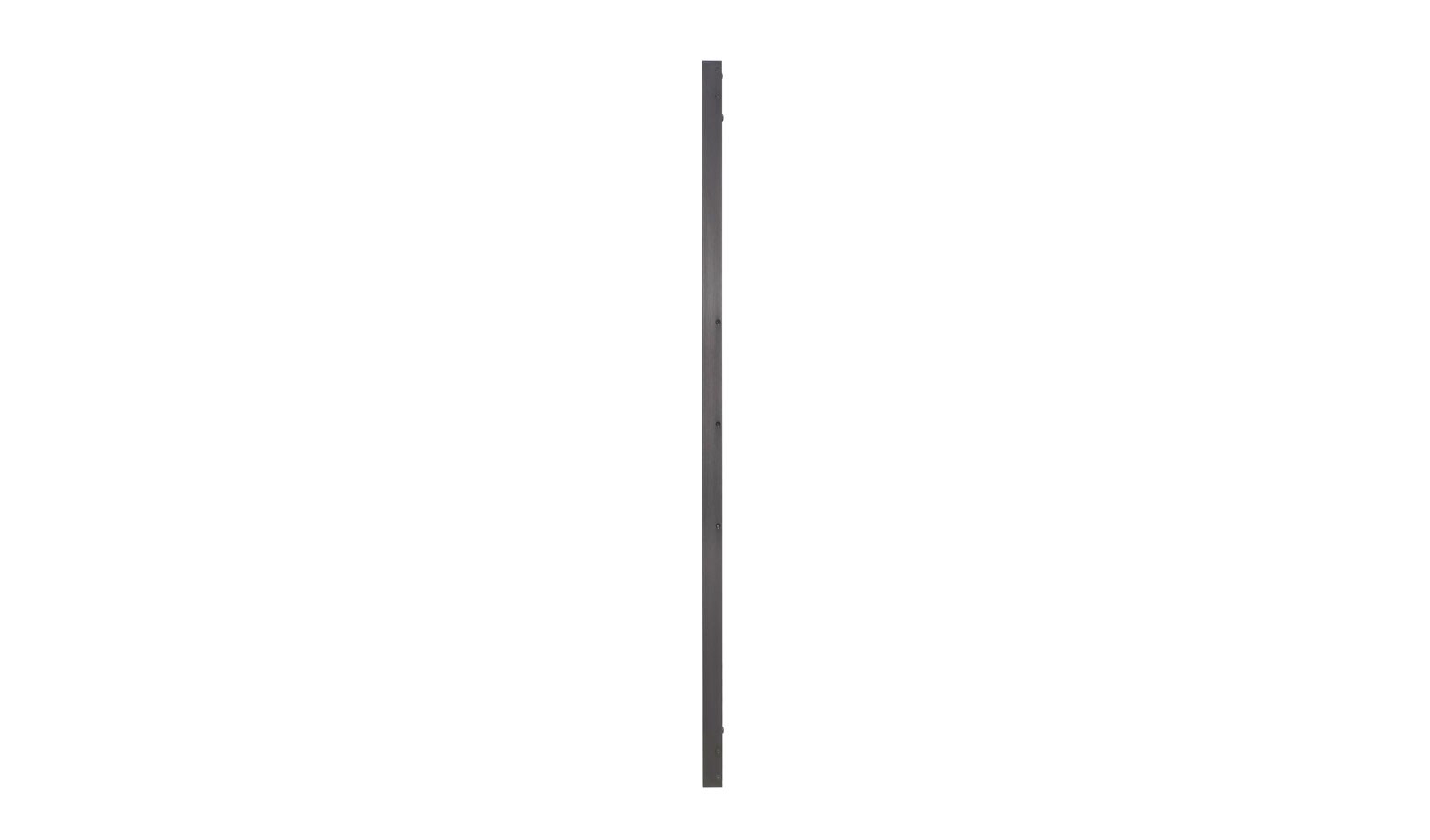

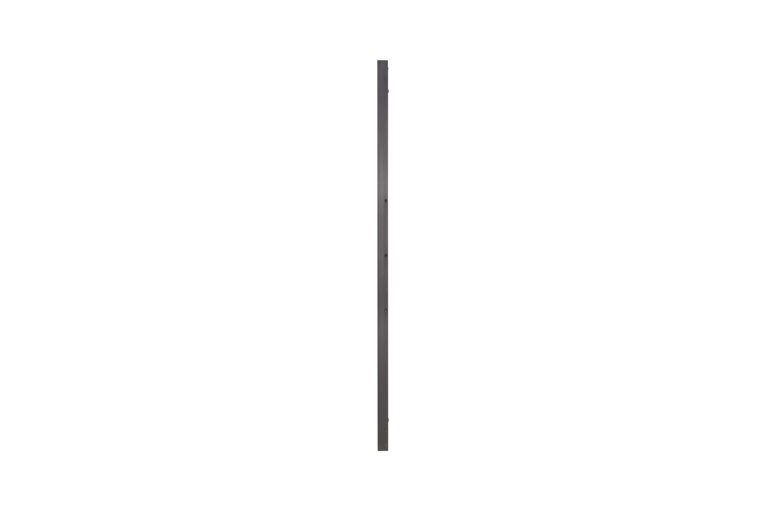

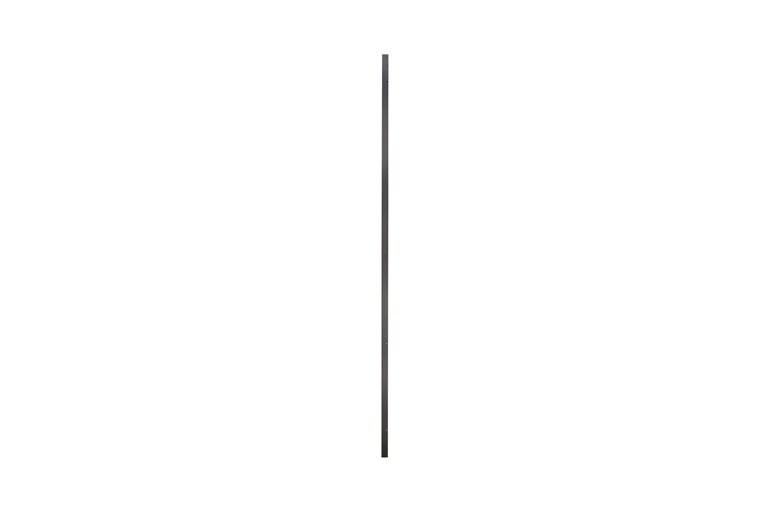

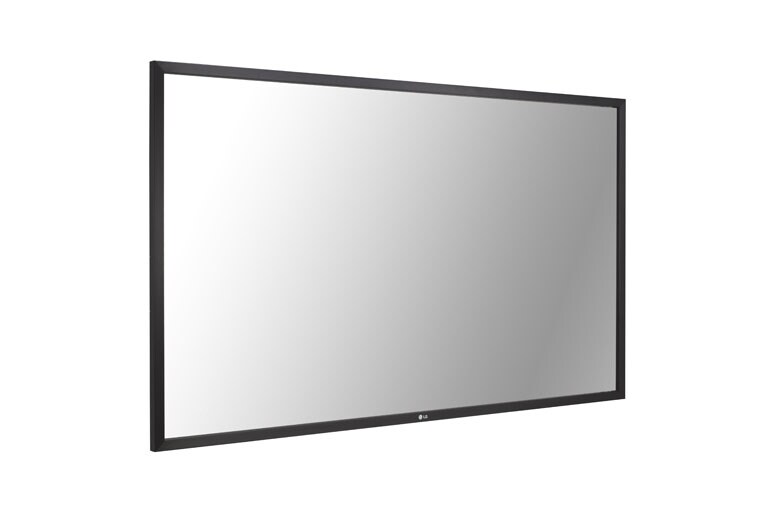

LG 1428 x 803 Touch Overlay Kit, KT-T320

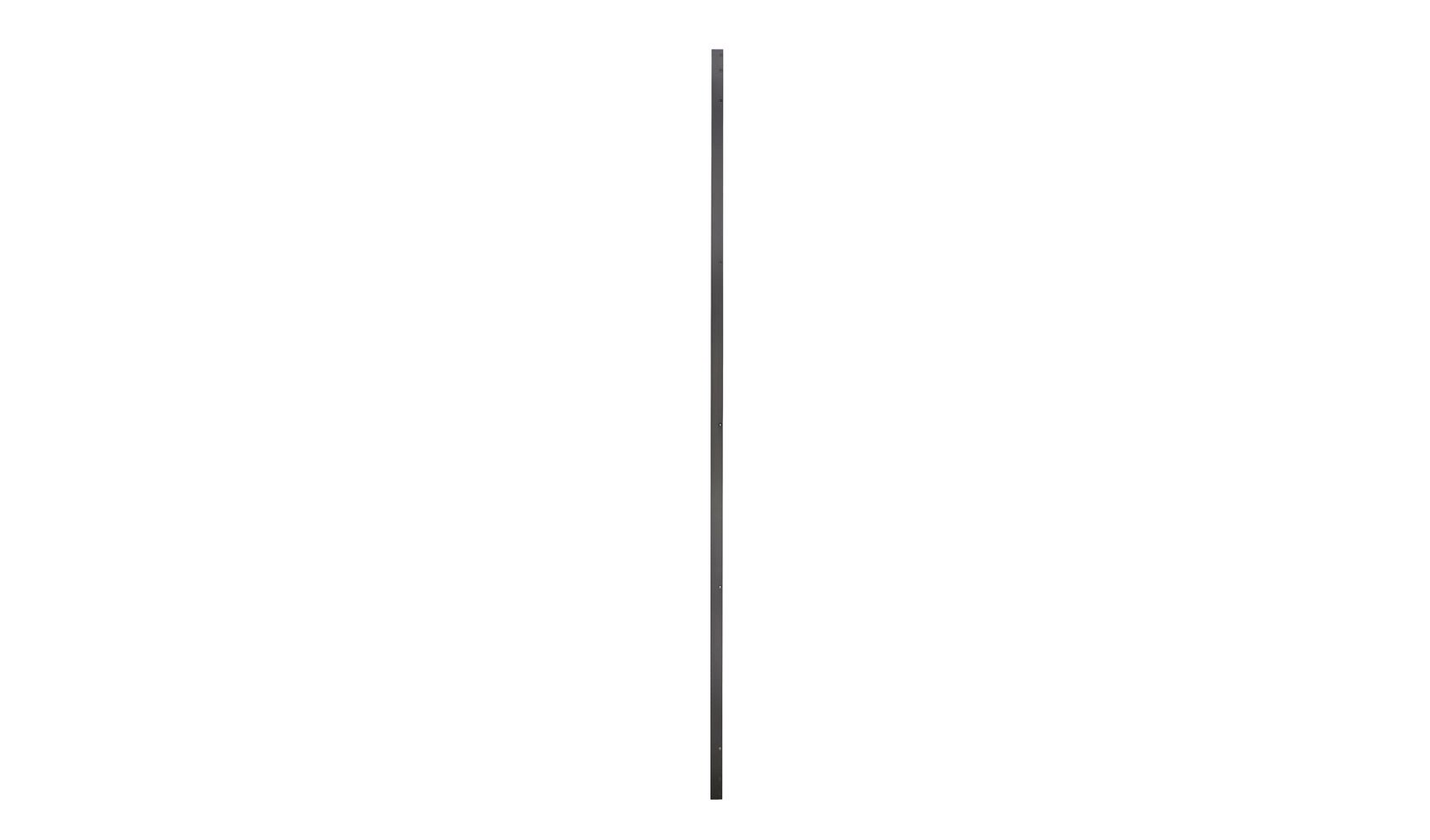

LG 1428 x 803 Touch Overlay Kit, KT-T320

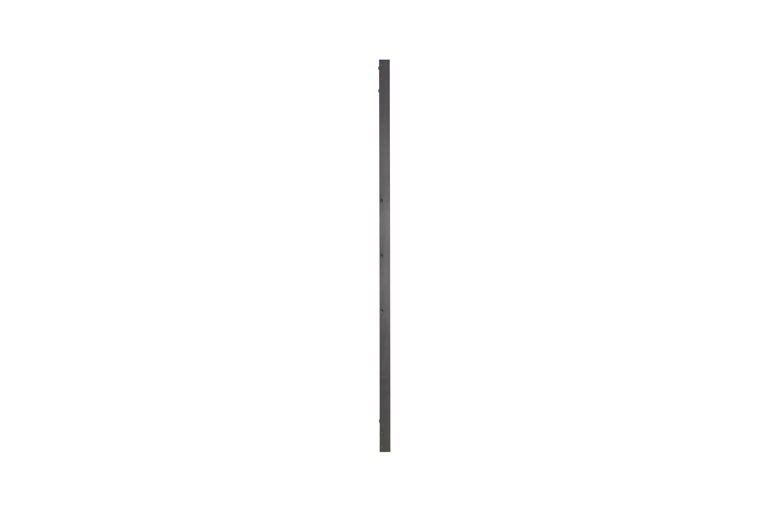

LG 1428 x 803 Touch Overlay Kit, KT-T320
LG 1428 x 803 Touch Overlay Kit, KT-T320
LG 1428 x 803 Touch Overlay Kit, KT-T320
LG 1428 x 803 Touch Overlay Kit, KT-T320
LG 1428 x 803 Touch Overlay Kit, KT-T320

Características clave

  • Compatible Base Models
  • 32SE3B, 32SM5B, 32SE3KB, 32SM5KB, 32SM5C
Imprimir

Todas las especificaciones

TÁCTIL

  • Tipo de táctil

    IR (Rayos Infrarrojos) Spread

  • Tamaño del objeto disponible que admite el táctil.

    Ø 8 mm

  • Tiempo de escaneo

    8 ~ 13 ms

  • Precisión

    1 mm

  • Interfaz

    USB 2.0

  • Grosor del vidrio protector

    2.8 T (Antirreflejante)

  • Sistema operativo admitido

    Windows 7, Windows 8 / Mac OS X (10.7 o posterior) / Android / Linux (Kernel 3.9 o posterior)

  • Punto multitáctil

    Máximo de 10 puntos

  • Resolución de la pantalla táctil

    1428 x 803

PANEL

  • Tamaño de pantalla

    32"

  • Productos compatibles

    32SE3B, 32SM5B, 32SE3KB, 32SM5KB

  • Orientación

    Horizontal y vertical

CONECTIVIDAD

  • Entrada

    USB

CARACTERÍSTICAS FÍSICAS

  • Ancho del bisel

    27,0 mm

  • Dimensión de la pantalla superpuesta (anch. x alt. x prof.)

    756 x 449 x 23,5 mm (máx. 75,7 mm)

  • Peso (cabezal)

    4,1 kg

CONDICIONES AMBIENTALES

  • Rango de Temperatura

    0 °C a 40 °C

  • Rango de Humedad

    10 % a 80 %

ENERGÍA

  • Suministro de energía

    USB

  • Típico

    1,31 W

COMPATIBILIDAD DEL SOFTWARE

  • Software de pizarra interactiva

    No

ACCESORIOS

  • Básico

    Manual (Pantalla superpuesta), Accesorios de instalación

Para obtener más documentación técnica y descargas, visita la página del Portal para socios de negocios entre empresas de LG.
