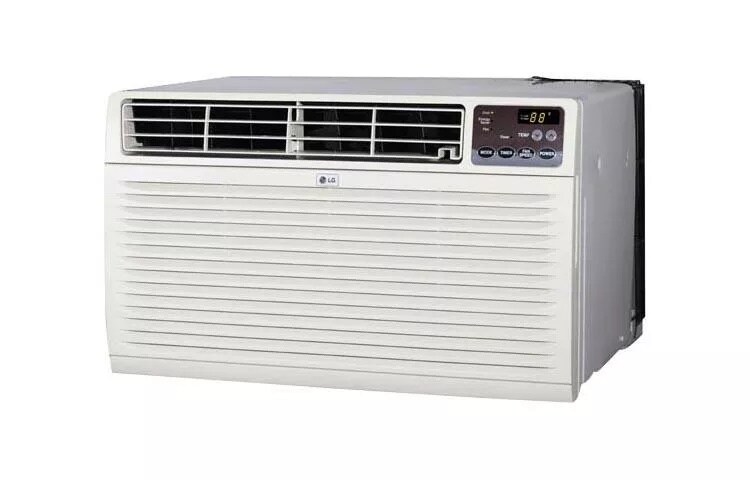

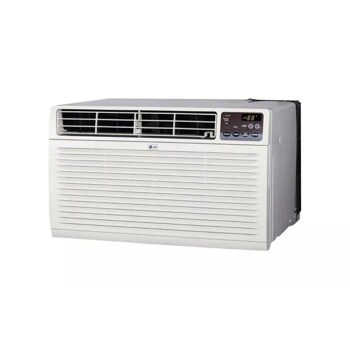

9,800 BTU Thru-the-Wall Air Conditioner with remote

  • LT101CNR

Key Features

  • Universal Fit for Sleeve
  • Gold Fin Anti-Corrosion
  • 3 cooling and fan speeds with Auto Cool
  • 4-way air direction
PERFORMANCE
EER 8.8
Dehumid. (Pts/Hr) 3.2
Dry Air Flow (CFM) 285
dBA Level (Indoor / Outdoor) 51 / 60
BTU Performance Cooling 9,800
DIMENSIONS
Net Weight (lbs.) 78
Shipping Weight (lbs.) 84
Carton Height (inch) 17 13/32
Carton Width (inch) 27 23/32
Carton Depth (inch) 22 13/32
Dimension Height (inch) 14 13/32
Dimension Width (inch) 24
Dimension Depth (inch) 20 3/32
FEATURES
Thermostat Control Thermistor
Air Deflection 4-Way
Remote Control Yes
Energy Saver Function Yes
Programmable Timer 24Hr, On/Off
Fan Speed: Cooling (Heating) 3
Compressor Rotary
Indoor Fan Type Turbo
Type Air Discharge Top
Outdoor Vent / Exhaust Yes
Chassis Type XB
Auto Restart Yes
Fan Only 3
Real Grille Yes
ELECTRICAL RATINGS
Voltage / 60 Hz 115
Watts (Cooling) 1,110
Rated Amps (Cooling) 10.2
WARRANTY
Warranty 1 Year Parts and Labor(Limited In-Home Service)

What People Are Saying

Rated 2.3 out of 5 by 3 reviewers.
Rated 1 out of 5 by Very disappointing This unit is way too loud, it rattles the house through 3 rooms when the condenser goes on. All of the outside plastic coverings make noise, too. Don't waste your money. September 29, 2014
Rated 5 out of 5 by Overall best buy for the cost. This product provides excellent uniform cooling. The remote control is extremely convienent. Definetly recommend this AC unit. July 3, 2012
Rated 1 out of 5 by Noise Level This machine is very loud. I would not buy LG air conditioner anymore. July 30, 2011
  • 2015-08-27T13:35:22.506-05:00
  • bvseo_lps, prod_bvrr, vn_prr_5.6
  • cp-1, bvpage1
  • co_hasreviews, tv_3, tr_3
  • loc_en_US, sid_MD00000066, prod, sort_default
1-3 of 3

We're here to support you with our product.

Contact us for any purchasing inquiries.

Product Support

ASK & ANSWER

Ask your questions. Share your answers.

6 Questions & 5 Answers

Ask Your Questions, Share Your Answers

Ask your questions. Share your answers.



« Back


Has staff answer
Has expert answer

1 answer

Is this a quiet air conditioner?

This is being installed thru the wall in our bedroom so we want to make sure it is quiet before purchasing it.
Category: I do not own this product
4 years, 3 months ago
User Name:
Leah
Farmingville, NY
0points
0out of 0found this question helpful.
HelpfulNot Helpful

Answers

Answer:
Hello and thank you for inquiring. Our specifications are subject to change at any moment without notice; however, this unit operates on a decibel rating of 51/60 [indoor/outdoor]. The lowest limit of ambient noise is 40dB, so you can imagine the low level of noise. To further express the noise level, you can refer to a bird call which is 44 db.
4 years, 2 months ago
User Name:
CustomerAdvocacy2

Please wait while more information about CustomerAdvocacy2 is loaded.
Additional information about CustomerAdvocacy2 could not be loaded.
-1point
0out of 1found this answer helpful.
HelpfulNot Helpful
Has staff answer
Has expert answer

1 answer

how to install air conditioner with brackets

4 years, 2 months ago
User Name:
Anonymous
ct
0points
0out of 0found this question helpful.
HelpfulNot Helpful

Answers

Answer:
The unit does not have brackets nor need brackets to install. The items that come with the installation kit are:

PLASTIC GRILLE 1
HORIZONTAL INSULATION STRIPS 2
AROUND INSULATION STRIPS 2
SUPPORT BLOCK 2
BAFFLE 1
TRIMFRAME 2
SHIM 2
PLASTIC NUTS AND WASHER SCREWS 4

The LG wall sleeve is necessary to properly install the air conditioner.

Design, features and specifications subject to change without notice.
Gender: female
4 years, 2 months ago
User Name:
AmandaB

Please wait while more information about AmandaB is loaded.
Additional information about AmandaB could not be loaded.
0points
0out of 0found this answer helpful.
HelpfulNot Helpful
Category: I do not own this product
3 years, 10 months ago
User Name:
Anonymous
0points
0out of 0found this question helpful.
HelpfulNot Helpful

Answers

Answer:
Hello, thank you for your question.

Manual of the LG LT101CNR Air Conditioner, Page 11:

INSTALLATION REQUIREMENTS
"If you use an existing wall sleeve, you should
measure its dimensions.
Install the new air conditioner according to these
installation instructions to achieve the best
performance. All wall sleeves used to mount the new
air conditioner must be in good structural condition
and have a rear grille to securely attach the new air
conditioner. (FIG. 1)
With the LG sleeve (optionally supplied with
your unit), you can maintain the best performance of
the new air conditioner. (FIG. 2)"

Manual Link:
http://www.homedepot.com/catalog/pdfImages/52/523e6b7b-e832-44b1-bd16-122d836c3f87.pdf

Please let us know if this answer is helpful to you.
We wish you lots of Halloween fun this weekend!
User submitted photo

Products related to my answer



3 years, 9 months ago
User Name:
Nadine

Please wait while more information about Nadine is loaded.
Additional information about Nadine could not be loaded.
0points
0out of 0found this answer helpful.
HelpfulNot Helpful
3 years, 3 months ago
User Name:
ricktlee

Please wait while more information about ricktlee is loaded.
Additional information about ricktlee could not be loaded.
0points
0out of 0found this question helpful.
HelpfulNot Helpful

Answers

Answer:
I cannot recommend to do so, you need a specific installation kit to fasten an A/C in the window frame and a wall unit is not compatible with it since it is designed to sit inside a wall sleeve.
3 years, 3 months ago
User Name:
Nadine

Please wait while more information about Nadine is loaded.
Additional information about Nadine could not be loaded.
0points
0out of 0found this answer helpful.
HelpfulNot Helpful
Has staff answer
Has expert answer

1 answer

How can I purchase replacement installation hardware for my units?

Plastic Grille, Support Blocks and Shims
Category: I own this product
Interested in: Troubleshooting

Products related to my question



2 years, 2 months ago
User Name:
bwander
Yonkers, NY, USA

Please wait while more information about bwander is loaded.
Additional information about bwander could not be loaded.
0points
0out of 0found this question helpful.
HelpfulNot Helpful

Answers

Answer:
Accessories can be obtained through our parts distributor, MCM Electronics. Their contact number, for placing orders, is 800-824-9491. You can also use their website, at http://www.mcmelectronics.com/conte.... The part number for the front grille is 3530A10272A, and the Install Parts Kit is 3127A20017E.
2 years, 2 months ago
User Name:
NeilE

Please wait while more information about NeilE is loaded.
Additional information about NeilE could not be loaded.
0points
0out of 0found this answer helpful.
HelpfulNot Helpful
