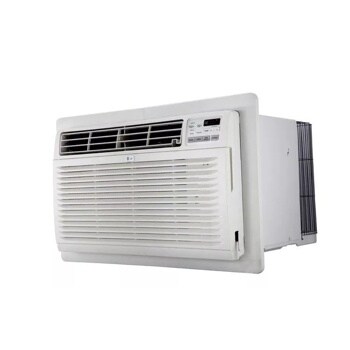

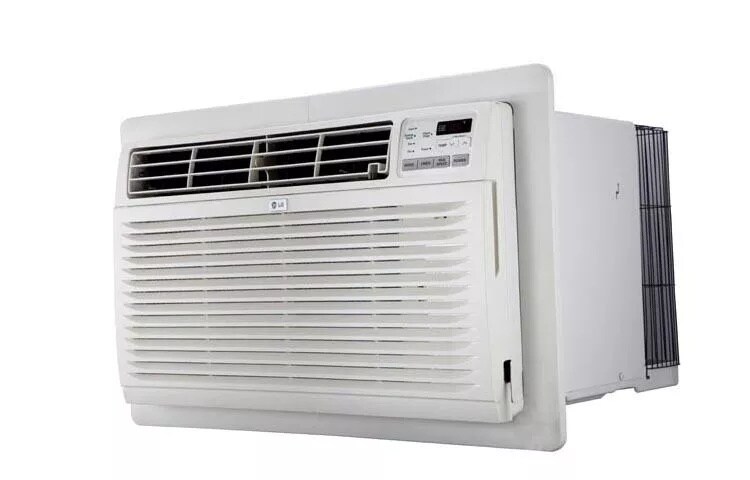

13,000/12,600 BTU Thru-The-Wall Air Conditioner

  • LT1434CNR

Key Features

  • 13,000/12,600 BTU
  • Cooling EER (BTU/Watts) 8.5/8.5
  • Universal Fit for Sleeve
  • Gold Fin™ Anti-Corrosion
BTU Performance 13,000/12,600
EER 8.5/8.5
Dehumid. (Pts/Hr) 4.0
Dry Air Flow (CFM) 310
dBA Level (Indoor / Outdoor) 57/64
Est. Cooling Area (Sq. Ft.) 800
Product (WxHxD) 24" x 14 13/32" x 20 3/32"
Shipping (WxHxD) 27 23/32" x 17 13/32" x 22 13/32"
Net Weight (lbs.) 87
Shipping Weight (lbs.) 97
Stuffing Quantity (40ft) 339
Thermostat Control Thermistor
Air Deflection 4-Way
Remote Control Yes
Energy Saver Function Yes
Fan Speed: Cooling 3
Fan Only Speed 3
Compressor Rotary
Indoor Fan Type Turbo
Type Air Discharge Top
Outdoor Vent / Exhaust Yes
Chassis Type XB
Auto Restart Yes
Available Colors White
Voltage / 60 Hz 230/208
Watts 1,530/1480
Rated Amps 7.0/7.5
Wall Sleeve AXSVA1
Wall Sleeve with Stamped Aluminum Grille AXSVA4
Stamped Aluminum Grille AXRGALA01
Limited Warranty 1 Year Parts and Labor
UPC 048231 372916

What People Are Saying

  • bvseo_sdk, java_sdk, bvseo-
  • CLOUD, getReviews, 202ms
  • bvseo-msg: The resource to the URL or file is currently unavailable.;

We're here to support you with our product.

View LT1434CNR Product Support

Contact us for any support inquiries.


Ask your questions. Share your answers.
Please first review the detailed product information and help guides in the Product Support section for this product prior to posting a question.

Do the wall sleeves come with the air conditioners?

Can you buy a wall sleeve for a window air conditioner or does it have to be a through the wall air conditioner?
Asked by: sdix

Can I use this unit to keep a 600 square foot room above freezing

I am looking to purchase this or a similar unit to install in a 600 sq foot, insulated, detached garage for the main purpose of keeping it from going below freezing on occasional days when the temp can get as low as 10 degrees. I don't need it to be able to heat to living room temps. (I will also use the A/C when I am working in that space in the summer). Should this unit work for that pupose (as opposed to having to spend more for a PTAC type unit.)
Asked by: RoninNC

Does LG make any thru the wall air conditioners 208V having 14000 btu or greater but still fitting a sleeve og 24w 20 1/2 high and 14 inch or deeper?

Asked by: rboykin12
