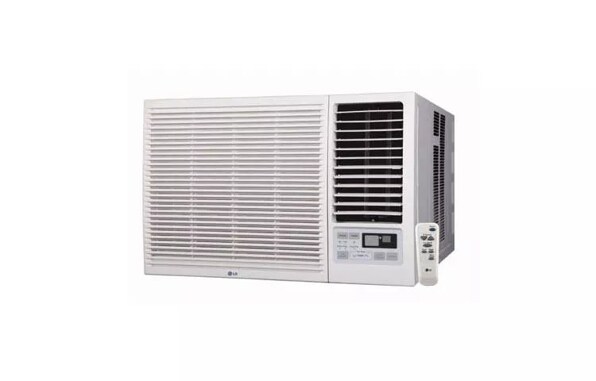

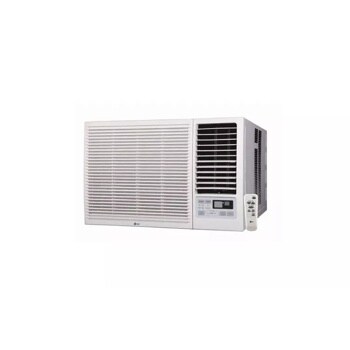

Window Air Conditioner

  • LW2414HR

Key Features

  • 23,000/23,500 BTU Cooling
  • 9,400/11,600 BTU Heating
  • Seasonal Heating & Cooling
  • Multiple Cooling/Heating Speeds
PERFORMANCE
EER 8.5/8.5
Dehumid. (Pts/Hr) 6.5
Dry Air Flow (CFM) 560
dBA Level (Indoor / Outdoor) 64/69
Est. Cooling Area (Sq. Ft.) 1440
BTU Performance Cooling 23,000/23,500
BTU Performance Heating 9,400/11,600
DIMENSIONS
Product (WxHxD) 25 1/2" x 16 27/32" x 30 1/2"
Shipping (WxHxD) 29 3/8" x 21 3/16" x 33"
Net Weight (lbs.) 146
Shipping Weight (lbs.) 160
Stuffing Quantity (20ft/40ft) 84/176
FEATURES
Thermostat Control Thermistor
Air Deflection 4-Way
Auto Swing Yes
Energy Saver Function Yes
Fan Speed: Cooling (Heating) 2(2)
Fan Only Speed 2
Compressor Rotary
Indoor Fan Type Blower
Type Air Discharge Side by side
Outdoor Vent / Exhaust Yes
Chassis Type Slide In-Out
MATERIALS/FINISHES
Available Colors White
ELECTRICAL RATINGS
Voltage / 60 Hz 208/230
Watts (Cooling) 2,700/2,760
Watts (Heating) 3,750/3,770
Rated Amps (Cooling) 13.2/12.2
Rated Amps (Heating) 15.0/16.0
WARRANTY
Limited Warranty 1 Year Parts and Labor
UPC 048231 372855

What People Are Saying

We're here to support you with our product.

Contact us for any purchasing inquiries.

Product Support

ASK & ANSWER

Ask your questions. Share your answers.

2 Questions & 1 Answer

Ask Your Questions, Share Your Answers

Ask your questions. Share your answers.



« Back


Category: I do not own this product
Interested in: Specifications
1 year, 3 months ago
User Name:
peewee
south carolina

Please wait while more information about peewee is loaded.
Additional information about peewee could not be loaded.
0points
0out of 0found this question helpful.
HelpfulNot Helpful

Answers

Answer:
It is uncertain to which “code” you are referring. According to our product specifications, this air conditioner provides 23,500 Cooling BTUs, and about 9,400 Heating BTUs. As such, this device will most likely be considered supplemental heating.
