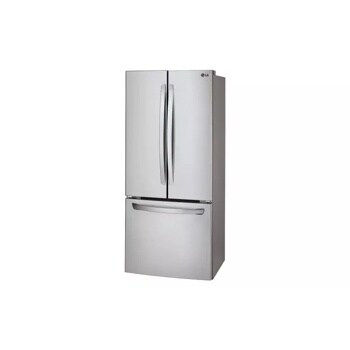

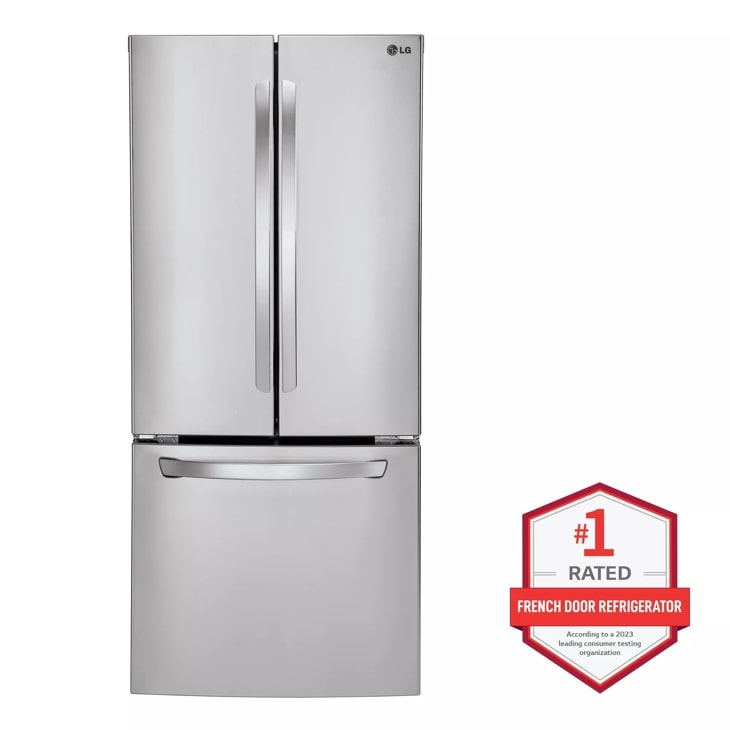

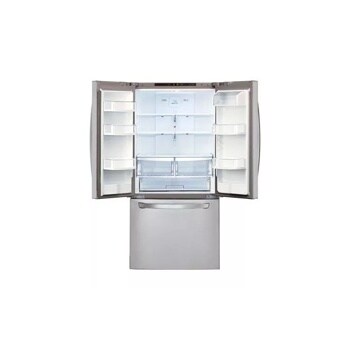

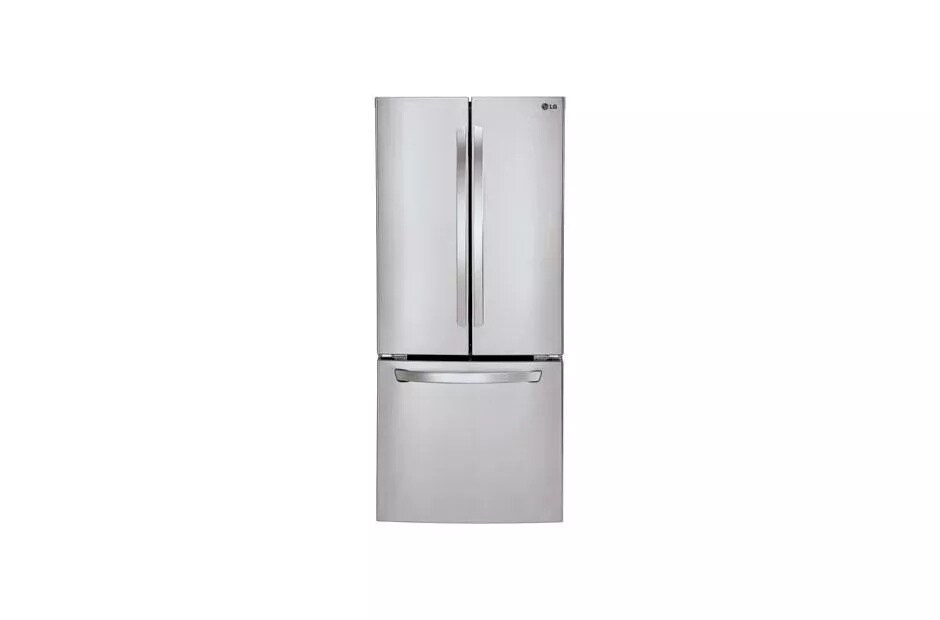

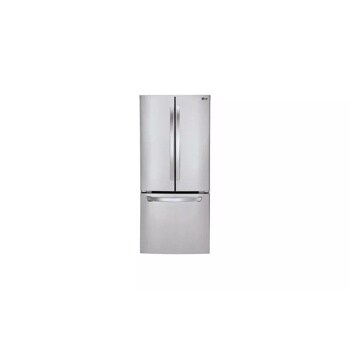

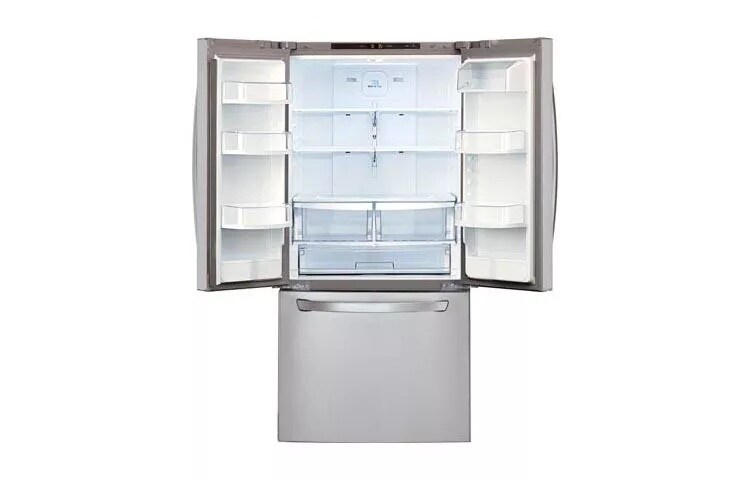

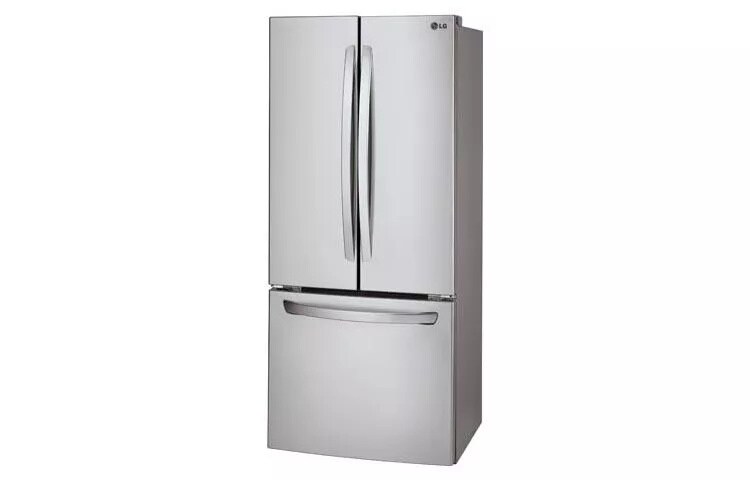

22 cu. ft. Large Capacity 30" Wide 3-Door French Door Refrigerator

  • LFC22770ST

  • Stainless Steel

Key Features

  • 22 cu. ft. Capacity
  • Premium LED Interior Lighting
  • 4 Spill Protector Tempered™ Glass Shelves
  • Smart Cooling® System

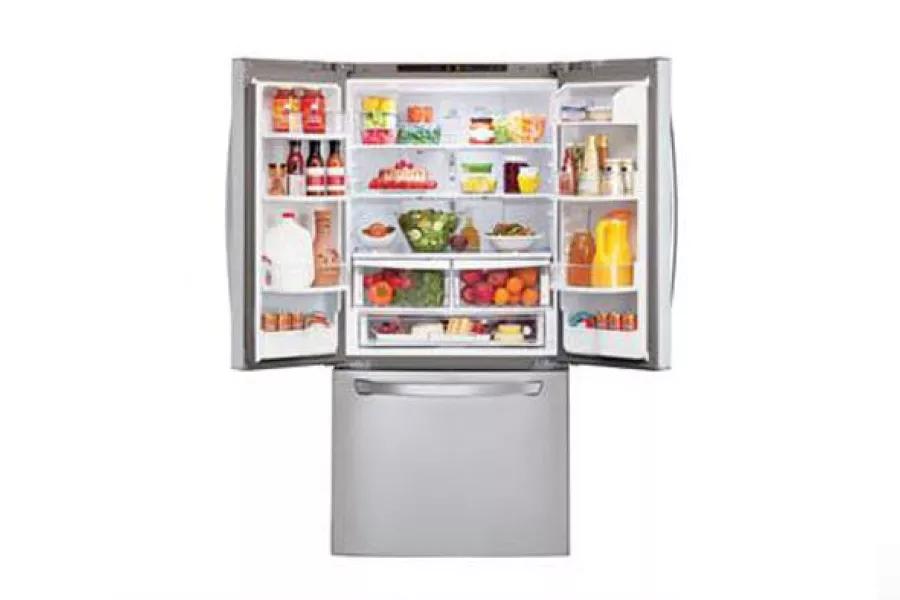

Largest Capacity.*

Largest Capacity.*

Get the space you need in a refrigerator that's right for your kitchen. With 22 cu. ft.of space, this largest capacity bottom mount refrigerator offers ample room to meet your storage needs.

Fresher is better.

Fresher is better.

Smart Cooling® system is designed to maintain superior conditions within the refrigerator. The Linear Compressor reacts quickly to temperature fluctuations and helps keep your food fresher, longer. Meanwhile, strategically-placed vents in every section surround your food with cool air no matter where you put it.

Easy in. Easy out.

Easy in. Easy out.

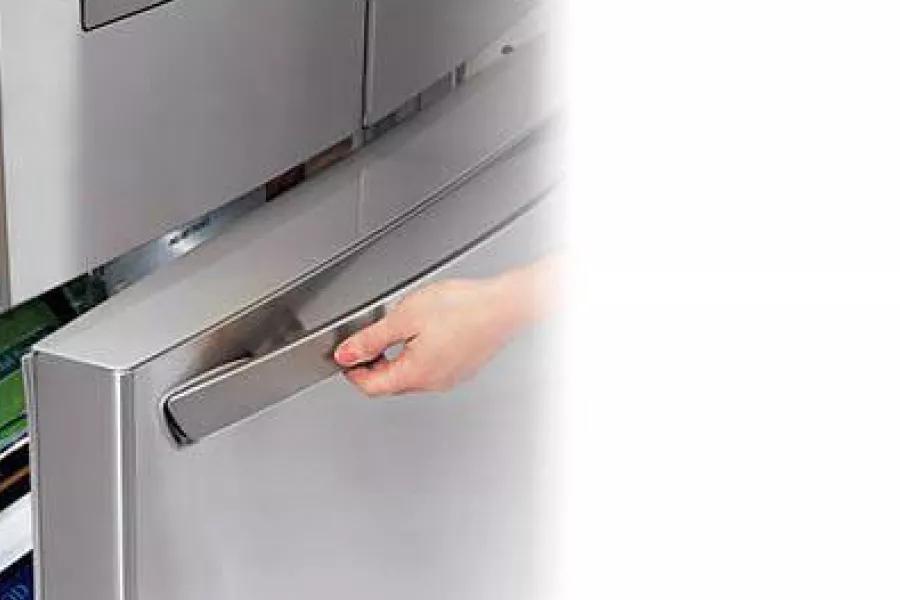

The Smart Pull® handle makes opening and closing the freezer quick and easy. All it takes is a simple lift of the handle for effortless access to your freezer.

Peace of Mind

Peace of Mind

When you buy a refrigerator, you don't want to worry that it won't last. Because the Linear Compressor uses fewer moving parts and operates more efficiently, LG confidently backs the Linear Compressor with a 10-year limited warranty.

Keep it crisp.

Keep it crisp.

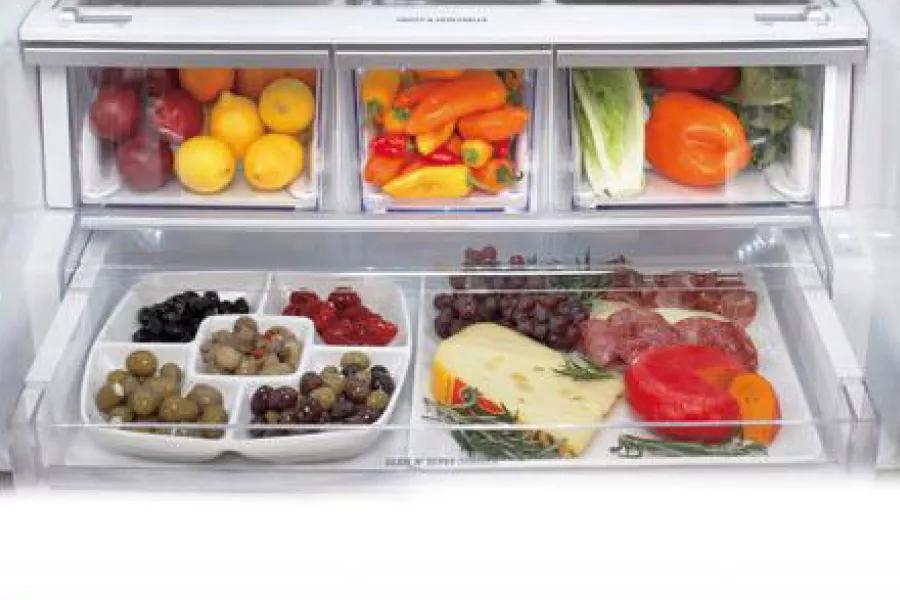

Humidity-controlled crispers help maintain humidity levels, to help extend the life of your fruits and vegetables.

SUMMARY
Door Type French 3-Door
CAPACITY
Refrigerator 14.5 cu. ft.
Freezer 7.3 cu. ft.
Total 21.8 cu. ft.
FEATURES
ENERGY STAR® Qualified Yes (587 kWh/Year)
Dispenser Type Vertical
Ice System Factory Installed Ice Maker
Daily Ice Production 2.8 lbs / 3.1 lbs (IcePlus)
Ice Storage Capacity 12 lbs
Smart Cooling® System Yes
Multi-Air Flow Cooling Yes
Temperature Sensors 4
Linear Compressor Yes
Display Type Membrane (White 88 LED)
CONVENIENCE
Temperature Controls Digital
Door Alarm Yes
LoDecibel™ Quiet Operation Yes
SmartDiagnosis™ Yes
Auto Closing Door Hinge Yes
Child Lock Yes
REFRIGERATOR
No. of Shelves 4 Split
Cantilevered Shelves Yes, Hybrid Cantilevered
Shelf Construction SpillProof™ Tempered Glass
Crisper Bins 2-Humidity Crispers
Glide N’ Serve® Yes
Refrigerator Light Premium LED (Recessed)
REFRIGERATOR DOOR
No. of Shelves/Bin 8 Total (5 Gallon Sized, 1 Dairy, 2 Half)
Door Bin Construction Clear, White Deco
Dairy Corner Yes
FREEZER
Drawers 2
Handle Smart Pull®
Ice Bin Yes
Freezer Light Premium LED
MATERIALS AND FINISHES
Contour Door Yes
Hidden Hinges Yes
Surface Coated Metal, Stainless Steel
Back Flush & Metal Cover Over Mechanical Parts
Available Colors Stainless Steel (ST), Smooth White (SW) and Smooth Black (SB)
Handles Matching Commercial Handles
SPECIFICATIONS
Depth with Handles 35 1/2"
Depth including Door 29"
Depth without Handles 33"
Depth (Total with Door Open) 44 3/4"
Height to Top of Case 67 1/4"
Height to Top of Door Hinge 68 1/2"
Width 29 3/4"
Width (Door Open 90° with Handle) 38 1/4"
Width (Door Open 90° without Handle) 33 1/4"
Door Edge Clearance with Handle 4 1/4"
Door Edge Clearance without Handle 2"
Installation Clearance Sides 1/8", Top 1", Back 1"
Weight (Unit/Carton) 237 lbs. / 259 lbs.
Carton Dimensions (WxHxD) 31 1/2" x 69 3/8" x 37 3/4"
WARRANTY
Limited Warranty 1 Year Parts and Labor, 7 Years on the Sealed System, 10 Years on Linear Compressor
UPC 048231784894

What People Are Saying

Rated 4 out of 5 by from Beautiful and bright inside! Home Depot just installed my new refrig yesterday .Delivery was perfect and as expected. Everything from my old 22 cubic ft side by side transferred with room to spare. My only disappointment was I had to remove a shelf to accommodate taller items like my Britta and 2 wine bottles and OJ containers and gallon of Milk. Didnt work in the door shelves which is what I tried at first. I will have to wait now to buy milk until I completely run out...cuz another gallon will not fit.
Date published: 2017-07-13
Rated 4 out of 5 by from Instructions say to store milk on internal shelves but shelves don't adjust enough to allow tall containers. Back to the door. One of only 3 french door fridges that fit into my 69" space.
Date published: 2017-07-10
Rated 5 out of 5 by from Best choice for a small space Best choice for a smaller space. This refrigerator actually has more room than our old one. It looks stylish and it isn't loud. We don't use the ice maker, thank you for putting it where it doesn't take up freezer space but the bucket holds a lot of smaller items.
Date published: 2017-07-02
Rated 5 out of 5 by from Great features except I can't find how to raise freezer temperature from minus 2 to zero.
Date published: 2017-06-14
Rated 1 out of 5 by from It is horrible It leaks and there is ice buildup on the platform below the freezer. LG service is clueless. I went on line to find a u-tube video to try to fix the leak. I found one but the suggestion didn't work.
Date published: 2017-06-07
Rated 5 out of 5 by from Nice Frig for a small space Have been looking to replace a 20 year old frig. I could only fit in a 30" space so most of what I was seeing either was to wide or a small capacity. This LG model fit perfectly making the most use of the space I had. It runs so quietly I hardly hear it. Looks beautiful too in stainless steal. It is nice not to have to bend over to see what is inside. Wish I had bought this model sooner.
Date published: 2017-06-07
Rated 4 out of 5 by from Solid, quiet and roomy Just got this ...lots of room for little space . 30 in and 22 cf . happy so far.
Date published: 2017-05-25
Rated 4 out of 5 by from Good 3-door for its size I would have given this 5 stars if the shelf adjusting was a little more user friendly. There are two tiny shelf bins on the bottom of the doors which I have not yet found anything to fit there. The picture online shows milk on the door, but you are not supposed to store milk on the door. We found milk just fits on the top shelf, you cannot adjust the shelves if they are not together, not functional, but I think it is because of its height and the large pull out drawer, which I love. All in all you can store a lot. I do wish the upper drawer in the freezer could extend fully when open and option without the ice maker would have been nice so that the drawer did not have the grooves that it has.
Date published: 2017-05-20
  • y_2017, m_7, d_25, h_2
  • bvseo_bulk, prod_bvrr, vn_bulk_1.0.0-hotfix-1
  • cp_1, bvpage1
  • co_hasreviews, tv_1, tr_130
  • loc_en_US, sid_MD05098901, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_lg
  • bvseo_sdk, java_sdk, bvseo-2.3.0.0
  • CLOUD, getReviews, 4ms
  • REVIEWS, PRODUCT

We're here to support you with our product.

View LFC22770ST Product Support

Contact us for any support inquiries.

ASK & ANSWER

Ask your questions. Share your answers.
Please first review the detailed product information and help guides in the Product Support section for this product prior to posting a question.

How change temperature

Asked by: Bonni
We appreciate your interest in this refrigerator. The temperature settings are on loop control. Continue pressing the REFRIGERATOR button until it reaches its lowest setting. Press it again, and the setting should jump to its HIGHEST setting. The same would work for the FREEZER.
Answered by: NeilE
Date published: 2017-05-04

What is the dimension from the back of the unit to where the hinges start. I have clearance for the case height up to a certain depth. I need to know the distance from the back of the unit to where the hinges are on the top.

Asked by: DeputyCave64
The covers for the hinges on the ENERGY STAR® Qualified LG 22 cu. ft. Large Capacity 30" Wide 3-Door French Door Refrigerator, Model # LFC22770ST are about 4 inches long. Regrettably, the exact length is not given in the product's specifications. The refrigerator has a depth of 33" to the front of the door which is where the hinge starts and an installation clearance spacing of 1 inch is recommended in the back of the unit so you should have a clearance of 30 inches from the hinges to the back wall. If you have standard upper kitchen cabinets, those will typically have a depth of 12" and the exception is refrigerator cabinets which can be 24" deep and custom built cabinets often being 14" deep so the hinges would not be an obstruction...^IFV
Answered by: LGJoel
Date published: 2017-03-29

If I were to set the refrigerator temperature to 40°F and the freezer to 0°F, how much would these temperatures vary, assuming that the doors remained closed?

Asked by: Kingfisher500
Regrettably, there is no way to determine how much the set temperatures for both the freezer and refrigerator compartments in the 22 cu. ft. Large Capacity 30" Wide 3-Door French Door Refrigerator will vary even if we were to assume that the doors remain closed because the amount of food stored will affect the temperature variance as will the environment in which the refrigerator is installed. You may get more of a temperature variance in warmer weather than you would in cooler weather, so the external temperature will also be a factor...^IFV
Answered by: LGJoel
Date published: 2017-01-19

How do I remove glass from above crisper without breaking it

Asked by: Kab2
Our offices, in the United States, do not have product information for Canada. In order to obtain such information, it is recommended to check our subsidiary’s website, at http://www.lg.com/ca_en/index.jsp. You may also contact our Canada offices at 1-888-542-2623.
Answered by: NeilE
Date published: 2017-01-10

We have ice that is stuck in the ice tray and will not dump out when it rotates. How can we take the tray out to get the ice out so we can continue to make ice?

Asked by: ShelbyP
I have the same problem with the ice not fully being dumped out. I've tried the blow drier trick but the ice is back to the same problem. What is causing this? How can we fix it?
Answered by: NickC
Date published: 2017-01-06

LG Refrigerator, model #LFC22770. Today it stop working for a few hours and then started to work again. It had power.The LED display indicator showed "FF" on the freezer and "E" on the refrigerator.Can you say what was the problem?

Asked by: rupee
Our offices, in the United States, do not have specific product information units released in Trinidad and Tobago. In order to obtain such information, it is recommended to check our subsidiary’s website, at http://www.lg.com/pa_en/support/contact-customer-support.
Answered by: NeilE
Date published: 2016-12-29

How do I winterize the ice maker in the lower draw. The fridge is in my camp in the winter with no heat

Asked by: roger lab
If the ambient temperature will drop below freezing, have a qualified technician drain the water supply system to prevent serious property damage due to flooding caused by ruptured water lines or connections.
Answered by: NeilE
Date published: 2016-09-29

how filter water for ice maker?

Asked by: mlml
We appreciate your interest in this refrigerator. According to our information, this particular model was not designed with a water filter for any purposes. If a filter is desired, for the ice machine, then a filter will have to be added to the water line before it connects to the water valve of the refrigerator itself.
Answered by: NeilE
Date published: 2016-07-08
