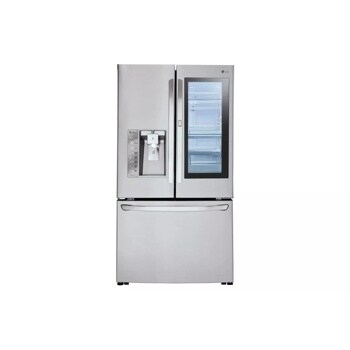

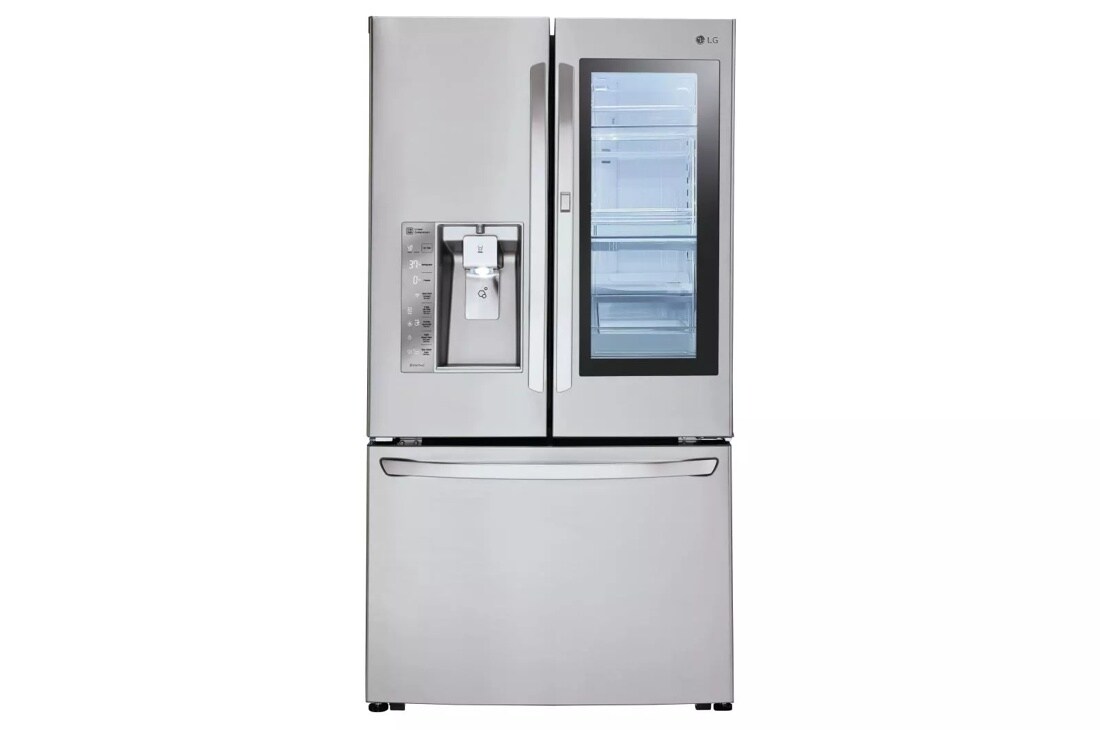

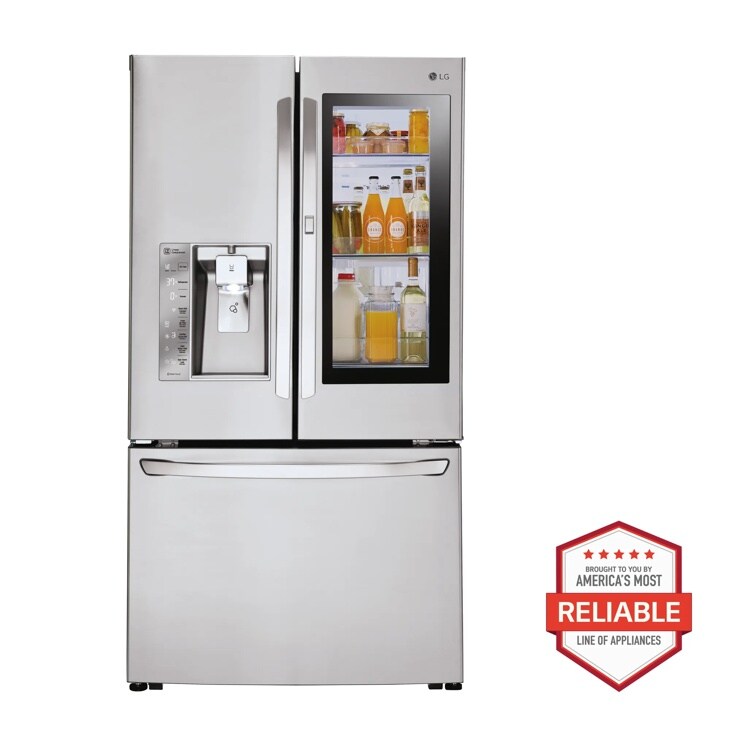

30 cu. ft. InstaView™ Door-in-Door® Refrigerator

  • LFXS30796S

  • Stainless Steel

Key Features

  • 30 cu. ft.
  • InstaView™ Door-in-Door®
  • ColdSaver™ Panel
  • Slim SpacePlus® Ice System

Raid the Fridge
Without Losing Your Cool

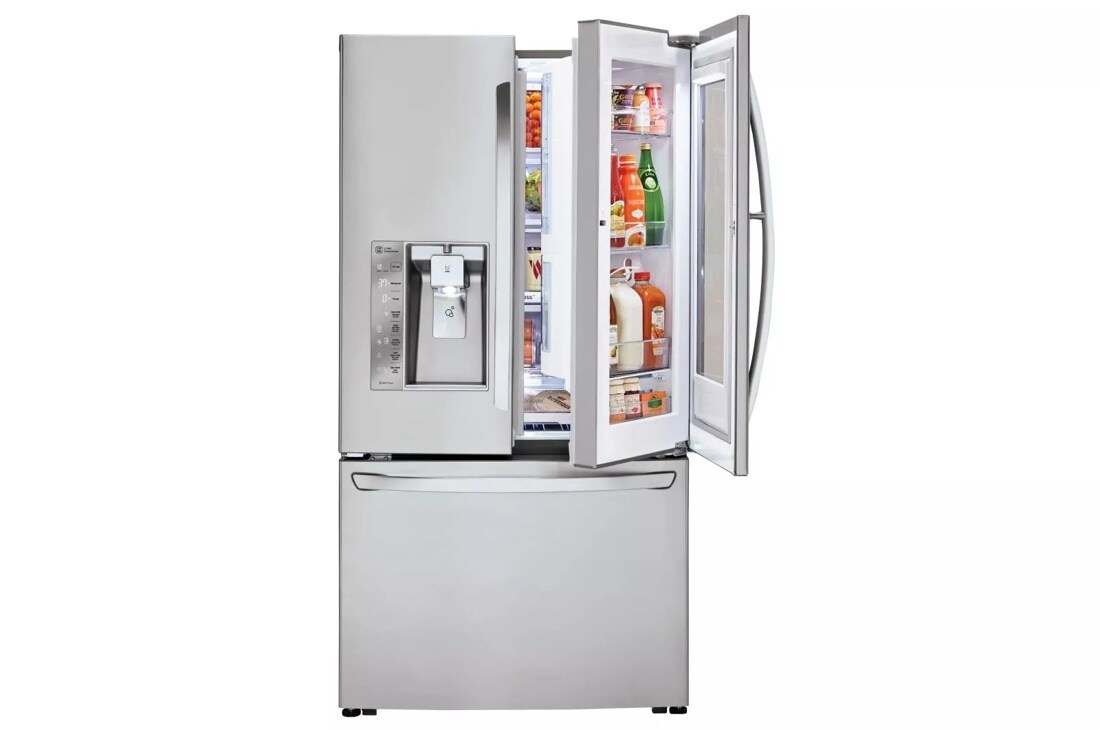

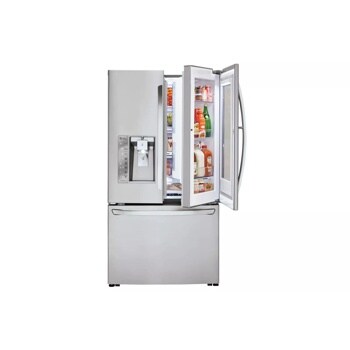

InstaView™ Door-in-Door® refrigerators have a sleek glass panel that allows you to see inside the easy access door without letting the cold air out. Simply knock twice on the glass to illuminate the contents within.

Most shelf space.*

Ice makers are great, but not if it means you can't fit all of your food in the fridge. The Slim SpacePlus® Ice System provides more shelf space and allows even more space for door bins.

*Standard width french door refrigerator, excludes other LG manufactured products

Fresher is better.

Smart Cooling® Plus technology is designed to maintain superior conditions within the refrigerator. The Linear Compressor and Dual Evaporators react quickly to humidity and temperature levels and help keep your food fresher, longer. Strategically-placed vents in every section help surround your food with cool, fresh air.

SAVE MONEY. SAVE ENERGY.

SAVE MONEY. SAVE ENERGY.

This ENERGY STAR® certified LG refrigerator exceeds new 2016 federal energy standards to positively impact your energy bill and your energy consumption.

SUMMARY
Door Type French 3-Door
Refrigerator Type InstaView™ Door-in-Door®
TYPE
Type 3-Door Counter Depth French Door
CAPACITY
Refrigerator 19.50 cu. ft.
Freezer 10.10 cu. ft.
Total 29.6 cu. ft.
FEATURES
Door-in-Door® Yes
InstaView™ Door-in-Door® w/ ColdSaver™ Panel Yes (w/ Glass Panel)
ENERGY STAR® Qualified Yes (784 kWh/Year)
Ice & Water Dispenser Yes
Dispenser Type Integrated Tall Ice & Water Dispenser®
Ice System Slim SpacePlus®
Daily Ice Production 4.5 lbs/4.9 IcePlus
Ice Storage Capacity 3.0lbs + 4.0lbs
Smart Cooling Plus System Yes
Multi Air Flow Cooling Yes
Temperature Sensors 8
Linear Compressor Yes
Fresh Air Filter Yes, Air Filter LT120F
Dual Evaporator Yes
Display Type Smooth Touch Control (White LED)
CONVENIENCE
Temperature Controls Electronic/Digital
Door Alarm Yes
Child Lock Yes
LoDecibel™ Quiet Operation Yes
SmartDiagnosis™ Yes
Auto Closing Door Hinge Yes
REFRIGERATOR
No. of Shelves 4 Split (3 Fixed/1 Folding)
Folding Shelf Yes
Cantilevered Shelves Yes
Shelf Construction Spill Protector™ Tempered Glass
Crisper Bins 2 Crispers/1 Bonus Drawer
Glide N’ Serve® Drawer Yes
Glide N' Access® Shelf Yes
Refrigerator Light Premium LED (Ceiling and Side)
REFRIGERATOR DOOR
No. of Shelves/Bin 7 Total (Including Door-in-Door®)
Door Bin Construction Clear , Opaque, Silver Deco
Dairy Corner Yes
FREEZER
Door Type Pull Drawer
Drawers 3-Tier Organization®
Handle SmartPull® Freezer Handle
DuraBase™ Solid Drawer Base Yes
Drawer Divider Yes
Ice Bin Yes (1 Extra Ice Bin)
Freezer Light Premium LED
MATERIALS AND FINISHES
Contour Door Yes
Hidden Hinges Yes
Surface Coated Metal
Back Flush & Metal Cover Over Mechanical Parts
Available Colors Stainless Steel (S)
Handles Matching Commercial Handles
DIMENSIONS/CLEARANCES/WEIGHTS
Depth with Handles 36 1/4"
Depth without Handles 33 3/4"
Depth without Door 29 1/2"
Depth (Total with Door Open) 48 1/8"
Height to Top of Case 68 7/8"
Height to Top of Door Hinge 70 1/4"
Width 35 3/4"
Width (Door Open 90˚ with Handle) 44 1/4"
Width (Door Open 90˚ without Handle) 40"
Door Edge Clearance with Handle 4 1/4"
Door Edge Clearance without Handle 2 1/8"
Installation Clearance Sides 1/8", Top 1", Back 2"
Weight (Unit/Carton) 360 lbs / 393 lbs.
Carton Dimensions (WxHxD) 38" x 73" x 39"
LIMITED WARRANTY
Limited Warranty 1 Year Parts and Labor, 7 Years on the Sealed System, 10 Years on Linear Compressor
UPC
LFXS30796S Stainless Steel 048231 788830

What People Are Saying

Rated 5 out of 5 by from Love it!!!! Have had this refrigerator for almost two months. We absolutely love it.Only thing I really could have used is a second ice maker, If four and a half stars were an option I would have picked that loosing 1/2 star for having to plan in advance for extra ice and empty the main ice bin which is small into the extra storage bin on bottom. Besides that we absolutely love it!!! Lots of bins, and great views of everything/less hunting for things. Plenty of space and organization is easy. The door in the door is great, makes easy access to most common items without wasting energy opening the whole thing. Didn't think we would use the insta view feature as much as we do. Freezer is much better than the last french door bottom freezer we had. I can find my items and much less digging and wasted food that used to get forgotten at the bottom.
Date published: 2017-04-15
Rated 5 out of 5 by from What a refrigerator! My family was offered a chance to receive and review this refrigerator and after reviewing all the features, we were excited to get such an awesome appliance! My other appliances are black so the dark finish fits right in. The finish is fingerprint resistant and looks great even with four people in and out of it all day. I was a bit concerned about how I would use the freezer space. I didn't want a big hole for things to get lost in. No worries there! Lots of freezer space that is well divided and drawers so you can get to everything. The door in door feature is probably our favorite! Just put the things you use most in that space and you can easily grab them. If you have young kids, you could put snacks and drinks there for them. The water dispenser has a much higher flow rate than our previous fridge. Cups are filled really fast! There are different setting options for the drawer-meat, deli, and produce. Multiple lights help you see every part of the space. And there is an air filter for the space as well so no more boxes of baking soda to absorb odors are needed!
Date published: 2017-02-10
Rated 5 out of 5 by from Excellent quality, well engineered & beautiful Quality engineering pays off. There is no sound of ice cubes dropping. This unit is blissfully QUIET. The door in door feature will save electricity. Our frequently used items are used in a compartment in the right door, so only that section is opened to grab a single item. It's almost fun to knock a couple times to turn the light on. The vegetable bins are well organized & transparent, so won't "lose" expensive fruits and veggies. There's a nice drawer for cheeses and lunch meats, unlike many less featured units with just a big unorganized box. We love the black stainless steel finish. The exterior of the unit is nicely finished and doesn't require all the polishing of the usual stainless steel. It saves cleaning bi-level nose marks from our greyhound & small terrier that we found on our previous stainless frig. The LG has it all--looks, engineering & organization. Thanks, LG, for developing this refrigerator "system".
Date published: 2017-02-04
Rated 5 out of 5 by from Room to spare! I had to replace a still good ten year old refrigerator that my family had just outgrown. I amazed how technology has creeped into some as simple as a refrigerator. Air filter, water filter, Wi-Fi connected. Led lights, even in the freezer! Doors within a door. So quiet, so stylish, so BIG! Lots of room, and I finally get a water and ice dispenser!
Date published: 2017-01-24
Rated 5 out of 5 by from Excellent Features I took delivery of my new LG French Door-In-Door fridge two weeks ago and I am very happy. So many great features, I get excited each time I use one! I'm very pleased with how the color, Black Stainless Steel, coordinates with my other white appliances, it’s beautiful and works well in my kitchen. The most unique feature is the InstaView Door-In-Door, where you can store frequently used items such as beverages and snacks. When you want to access one of them you simply push the exterior button found on the right door handle and you can reach inside without opening the standard exterior door. Also, when you knock twice on the InstaView Door-In-Door a light comes on inside the refrigerator and you can easily see what you need to add to your grocery list without opening the exterior door. I’m also enjoying the in-door ice and filtered water dispenser, which offers both cubed and crushed ice. It’s so much more user friendly than my last fridge, which frequently spilt water or small pieces of ice when filling a glass. It’s a lot quieter too. If you need a large amount of ice you can access the ice bin, which is located inside the refrigerator door. Just pull a handle located on the left interior door of the refrigerator, which exposes the ice bin, and you can easily remove the entire bin. The ice cubes are smaller than the more standard size my last refrigerator had which I wasn’t sure I would like. However, I’m very happy with the smaller size cubes, which dispense more easily, and are great for filling smaller vessels such as refillable water bottles. Another nice feature is the fridge is equipped with great interior lighting. Bright LED lights illuminate the entire interior of both the refrigerator and freezer making it so easy to see what is inside. I highly recommend the LG French Door-In-Door Refrigerator!
Date published: 2017-01-20
Rated 4 out of 5 by from Lots of Room, Features and a Flawless Finish! We received an invitation from LG to review the LFXS30796 30 cu. ft. InstaView Door-in-Door Black Stainless Steel Refrigerator. My husband had been wanting to swap our side-by-side for a french door refrigerator for quite some time. So we jumped on the opportunity. The refrigerator looks nice in our kitchen and goes well with the other appliances which are a combination on stainless steel and black. The black stainless steel finish looks so nice that my husband says we now need to replace or refinish all of the cabinets because they now look shabby and outdated. This should not be perceived as a con it is just the refrigerator looks that good. Things noticed upon delivery of the refrigerator: -Construction of the unit is very solid -The door hinges and doors seem to be very sturdy -The doors have been relatively easy to adjust. While we are still working on the right side door, I believe that is related to the delivery (doors had to be removed) rather than the construction and fit of the door. Fit and finish of the refrigerator: -All the doors fit well -Finish upon unboxing was pristine, there were no marks, no fingerprints, no scratches -Everything inside the refrigerator was well secured. It took quite awhile to remove all of the packing materials and tape after delivery. -Shelving is sturdy and easily adjusted -There is one folding (sliding) shelf that allows you to fit tall items inside of the refrigerator instead of having to place on a door shelf or the item on its side. -Drawers are very sturdy. Operate extremely smooth (they glide as if on silk). -There is a large drawer that goes the width of the refrigerator that has adjustable settings. You have the ability to select Meat, Deli or Produce. This is a great feature as it controls the temperature based on what you select. We use this for Deli mostly. -LG touts the fact that the Black Stainless Steel does not show fingerprints. This is very accurate. The refrigerator has survived two holiday parties and there is not a fingerprint on it. Except for one instance that I will cover in the con portion of my review. -There are two sliding drawers in the freezer allowing you to place small or frequently used items for easy access.. -Lighting is very bright in both the fridge and freezer allowing you to easily see what you are looking for. Operation: -The refrigerator once set and allowed to cool down has operated flawlessly. There have been no warm spots. The temperature is evenly distributed. The freezer holds food well without having cold spots like a side-by-side where if you put the ice cream in the wrong spot it is harder than a rock. Our ice cream will now be edible without having to sit on the counter to thaw for 10 minutes or be placed in the microwave to soften for 10 seconds. -The controls are intuitive and easy to use. -The ice maker works amazingly well. It consistently dispenses whole cubes not pieces like we experienced with our old refrigerator. It is easy to change from cube to crushed and vice versa. -The water dispenser is one of the best features. You can place any height container and still get water. You don’t have to fight to get water in a pitcher or in a pot if you need it. Additionally, you don’t get water all over the kitchen when filling these large containers. -The see through door, on the front, is very convenient. If you strategically place items in it you can not only see what is contained within the door but you can see the right side of the refrigerator as well. With just a couple of knocks on the glass everything is visible. -The water filter is very easy to install and replace. -The drawers and shelves are easily adjusted and removable for cleaning. -You can place a large pizza box inside, which we couldn’t do with the side-by-side. The box lays flat and there is still plenty of space around it. Cons and Things We Would Like to See: -Lack of an iOS App to use the Smart Features of this refrigerator. I contacted LG and they said it is currently in beta so hopefully we will get one soon. Lack of this App has hampered our ability to test out the Smart Feature and provide a review on them. -The cold saver door has a tendency to open on its own. Which if you don’t happen to notice it's open could lead to the door being damaged. -The only place on the refrigerator that appears to attract fingerprints are the control panel and the paddles for water and ice dispensing. -The shelves on the left side door, because of the ice maker, are only able to hold very small items and are not adjustable. -It would be nice to have a second folding shelf. -On the temperature adjustable large drawer, it would be nice if you had the ability to set a specific temperature. We had this feature on our previous unit and it also provided a quick cool mode. Overall, we are very satisfied with this refrigerator; however, we are knocking 1 star off for the lack of an iOS App and the other things listed under Cons. Unfortunately, LG wouldn’t allow us to give a 4 1/2 star review so we are reluctantly giving it a 4. This unit gives us so much more space that we are having trouble filling and organizing it. We took everything that was in our side-by-side and placed it inside and the unit still looks empty. Once the iOS App comes out we will attempt to update this review with the Smart Features. We will enjoy using this fridge for many years.
Date published: 2017-01-20
Rated 5 out of 5 by from This is my second LG refrigerator I can't say enough about this 30 cubic Ft. refrigerator. but I have included a video that my wife helped me with, that will show some of the features of this refrigerator. The two most outstanding features is the third door for most used items which will help retain the cool air inside the unit and second is the ice maker. They really improved this part. Inside the Ice container is an additional arm that will keep the ice from becoming a solid piece of ice. The arm keeps the ice loose so that it will dropped thru the front of the unit.
Date published: 2017-01-20
Rated 5 out of 5 by from Best refrigerator I've ever had! We received this the day of my work Christmas party that we were hosting. Immediately it became the center of attention at the party! Everyone was asking about it and loved it. At first I wasn't quite sure how I felt about the black stainless, but it just looks SO clean! My favorite feature is the viewing window in the door that opens for easy access. I've never had a refrigerator with so much available space (fridge or freezer)! And I love the fact that you can customize the main crisper drawer (produce/meats/cheeses)! Also, finally we have a fridge where the ice maker doesn't take up half of a shelf. My wife loves it completely, and to be honest we have yet to find anything about it that we don't like!
Date published: 2017-01-14
  • y_2017, m_4, d_24, h_9
  • bvseo_bulk, prod_bvrr, vn_bulk_1.0.0-hotfix-1
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_12
  • loc_en_US, sid_MD05790869, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_lg
  • bvseo_sdk, java_sdk, bvseo-2.3.0.0
  • CLOUD, getReviews, 4ms
  • REVIEWS, PRODUCT

We're here to support you with our product.

View LFXS30796S Product Support

Contact us for any support inquiries.

ASK & ANSWER

Ask your questions. Share your answers.
Please first review the detailed product information and help guides in the Product Support section for this product prior to posting a question.

Hello i like to know do u have a brochure of this item. And may i get a brochure sent to me please.

Asked by: blackknight 56
Your interest in the ENERGY STAR® Qualified LG 30 cu. ft. InstaView™ Door-in-Door® Refrigerator, Model # LFXS30796D is very much appreciated. Product brochures for LG products are usually only available at trade shows or at CES. The Specification sheet for the refrigerator and all the information that is typically given in brochures such as features and technical specifications can be found and printed out from the company site, www.lg.com/us...^IFV
Answered by: LGJoel
Date published: 2017-03-27

Has there been any problems with the fridge leaking water or condensation leaking from the bottom of the fridge?

Asked by: Kmann45
We are not aware of any reported issues with leaking or condensation leaking from the bottom of the ENERGY STAR® Qualified LG 30 cu. ft. InstaView™ Door-in-Door® Refrigerator, Model # LFXS30796. If you are experiencing such issues, please contact our Support Center at (800) 243-0000. The refrigerator may need a repair service...^IFV
Answered by: LGJoel
Date published: 2017-02-15

Can you give me some kind of direction on how to adjust the left door it's not closing correctly.

Asked by: Auntielulu
We regret the trouble you have experienced with this refrigerator. Use the wrench provided with the product in order to adjust the lower bolt hinge on the left door. More details can be found on page 25 of the owner’s manual.
Answered by: NeilE
Date published: 2017-01-26

I have a 24qft top freezer that continues to pop the GMI breaker when the compressor starts?

Asked by: Flying Dutchman
We regret the trouble you have experienced with this refrigerator. It is recommended to check the fuse to which this refrigerator is connected. This unit should be on a dedicated circuit, with no other devices drawing away from the 15 to 20 Amp draw on the current. If this does not resolve the matter, please contact our Customer Interactive Center at 800-243-0000 for additional assistance.
Answered by: NeilE
Date published: 2016-11-04

How much? And where can I purchase it?

Asked by: L_rain
Look above, pricing and link where to buy.
Answered by: Mr obvious
Date published: 2016-09-24

Don't want ice & water dispenser  Is it available with it? Cost? Where can we buy it!

Asked by: jdiazy

How much pork, beef and chicken will the freezer hold? That is to include various size packages please.

Asked by: Lu1891
