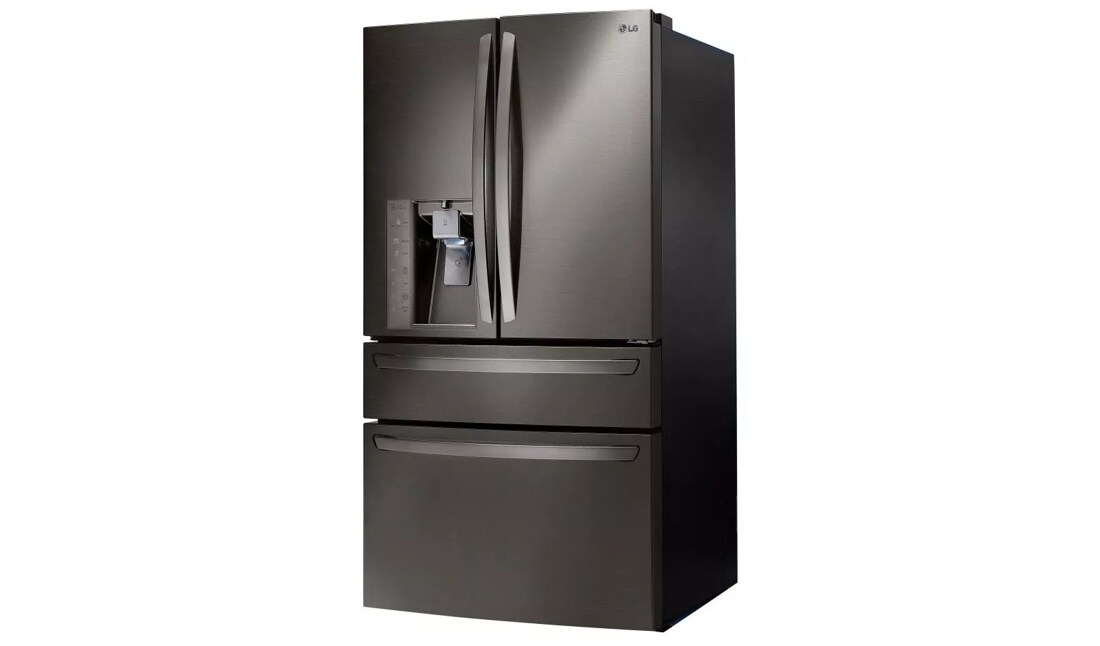

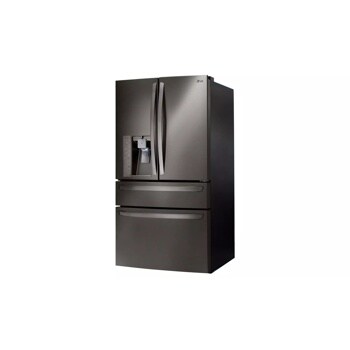

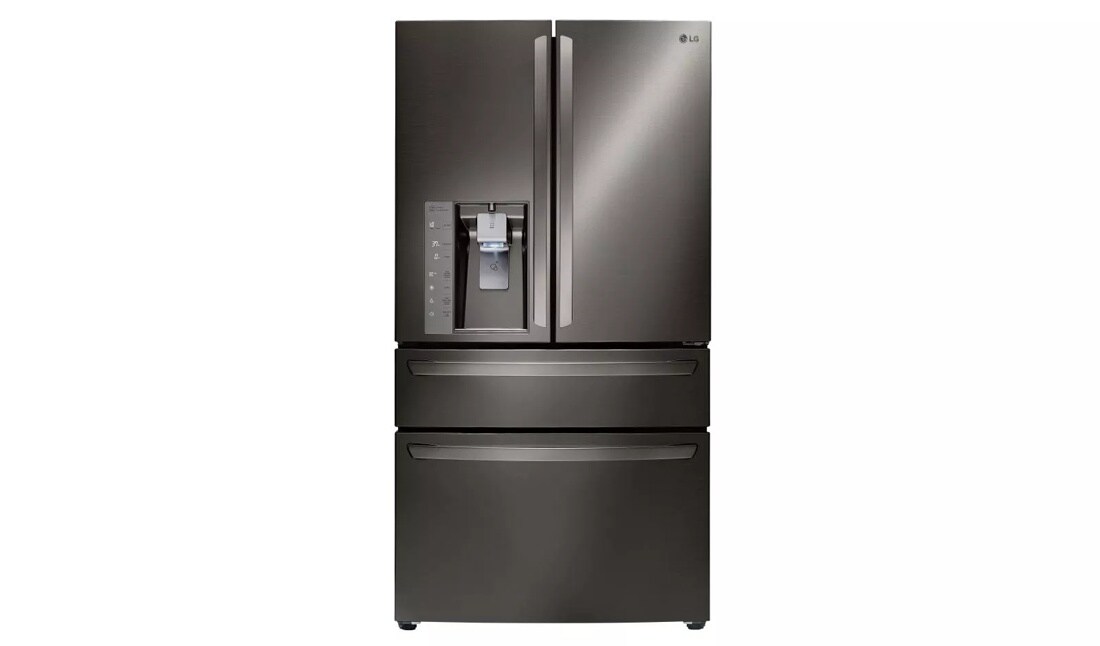

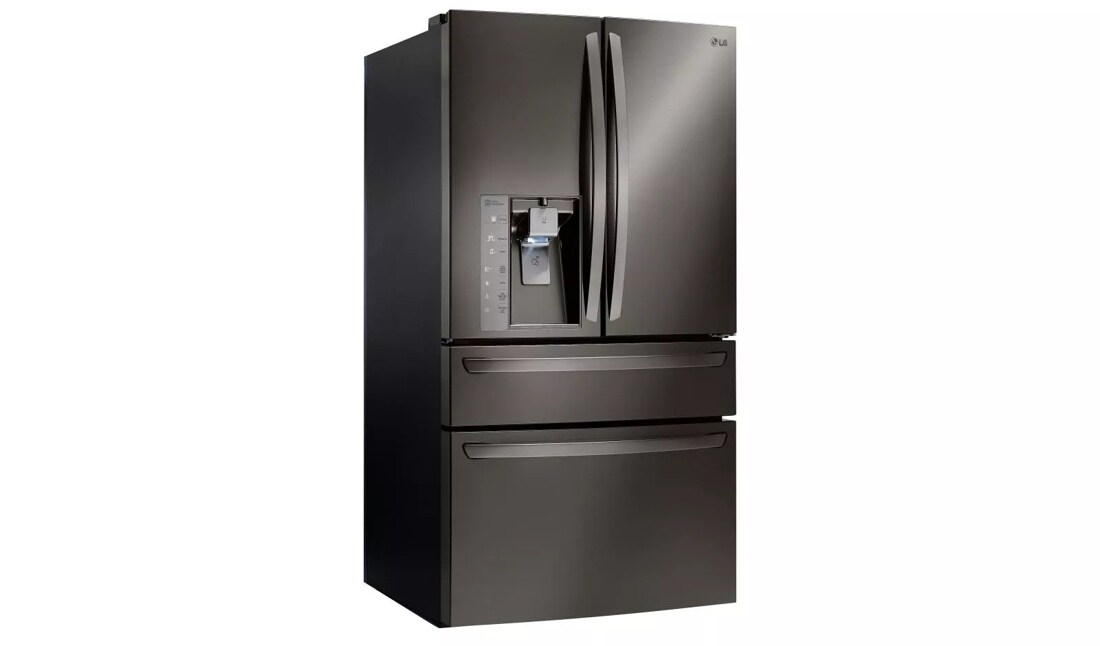

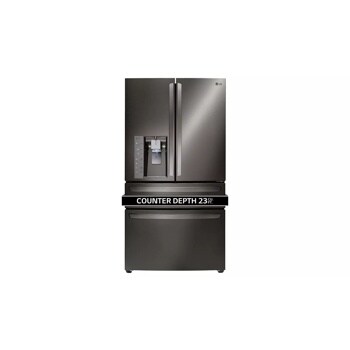

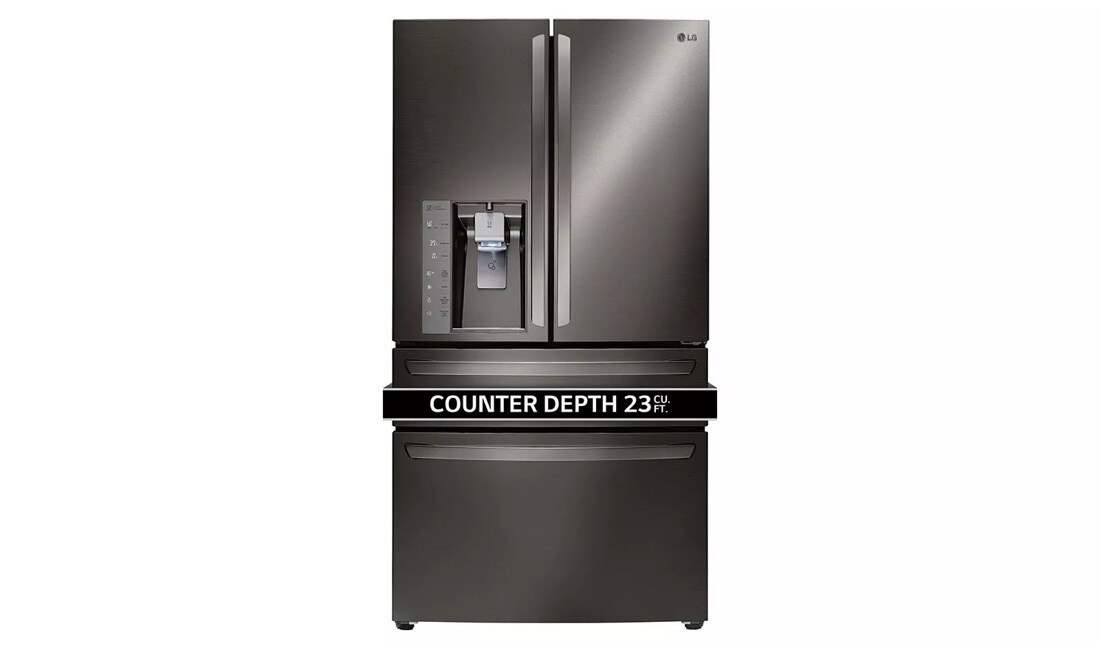

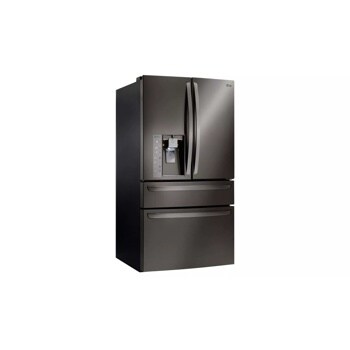

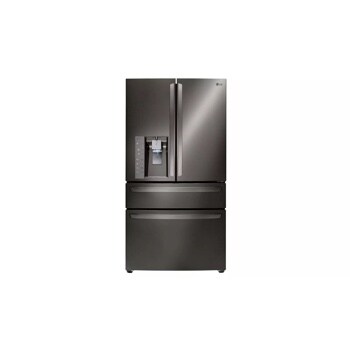

LG Black Stainless Steel Series 23 cu. ft. Counter-Depth 4- Door French Door Refrigerator w/ CustomChill® Drawer

  • LMXC23746D

  • Black Stainless Steel

Key Features

  • Fingerprint-Resistant Finish
  • 23 cu. ft. Capacity
  • Counter-Depth
  • Slim SpacePlus® Ice System
  • CustomChill® Drawer
  • Smart Cooling® Plus

What Is Counter-Depth?

LG counter-depth refrigerators align with countertops and cabinetry for a uniform profile, creating a sophisticated built-in look without the high-end price tag.

Design is all in the finish.

Channel your inner designer to create your ideal custom kitchen with the new LG Virtual Designer

Flawless new finish lets your style shine.

Deep yet brilliantly appealing, LG Black Stainless Steel Series brings an undeniable luster to kitchens. It elevates the traditional stainless steel look that's become the standard in today's homes with a satin-smooth, warm and sophisticated finish—a timeless expression that pairs beautifully with any style or color.

CustomChill™ Drawer

CustomChill® Drawer

This versatile drawer gives you additional refrigerator space when you need it. Featuring four temperature settings, it adapts to your needs and gives you the flexibility to store a range of foods from meats and fresh produce to cooking ingredients and cold drinks. Its adjustable dividers help with better organizing and accessing food.

Most shelf space.*

Ice makers are great, but not if it means you can't fit all of your food in the fridge. The Slim SpacePlus® Ice System provides more shelf space and allows even more space for door bins.

*Standard width french door refrigerator, excludes other LG manufactured products

Fresher is better.

Smart Cooling® Plus technology is designed to maintain superior conditions within the refrigerator. The Linear Compressor and Dual Evaporators react quickly to humidity and temperature levels and help keep your food fresher, longer. Strategically-placed vents in every section help surround your food with cool, fresh air.

CONVENIENT AUTOMATIC FILTER REPLACEMENT



Enjoy Fresh Water, Ice & Air with LG Filters.

Subscribe today and enjoy savings and maximum freshness. We’ll even ship your next refrigerator filter to you when you need it automatically.*

SUMMARY
Door Type French 4-Door
Refrigerator Type Counter Depth
CAPACITY
Refrigerator 13.50 cu. ft.
CustomChill® Drawer 2.80 cu. ft.
Freezer 6.40 cu. ft.
Total 22.7 cu. ft.
FEATURES
CustomChill® Drawer Yes
ENERGY STAR® Qualified Yes (665 kWh/Year)
Ice & Water Dispenser Yes
Dispenser Type Tall Ice & Water Dispenser®
Ice System Slim SpacePlus®
Daily Ice Production 3.5 lbs/3.8 IcePlus
Ice Storage Capacity 3.0 lbs
Water Filtration System Filter LT800P
Smart Cooling® Plus System Yes
Multi Air Flow Cooling Yes
Temperature Sensors 8
Linear Compressor Yes
Fresh Air Filter Yes, Air Filter LT120F
Dual Evaporator Yes
Display Type Smooth Touch Control (White LED)
CONVENIENCE
Temperature Controls Electronic/Digital
Door Alarm Yes
LoDecibel™ Quiet Operation Yes
SmartDiagnosis™ Yes
Auto Closing Door Hinge Yes
Child Lock Yes
REFRIGERATOR
No. of Shelves 4 Split (3 Fixed / 1 Folding)
Folding Shelf Yes
Cantilevered Shelves Yes
Shelf Construction SpillProtector™ Tempered Glass
Crisper Bins 2 Humidity Crispers/1 Bonus Drawer
EasyReach™ Bins Yes
Refrigerator Light Premium LED (Ceiling and Side)
REFRIGERATOR DOOR
No. of Shelves/Bin 6 Total
Door Bin Construction Clear , Opaque, Silver Deco
Dairy Corner Yes
CUSTOMCHILL® DRAWER
Dividers 2
Temperature Range 29˚, 33˚, 37˚, 42˚ F
Handle Smart Pull®
FREEZER
Door Type Pull Drawer
Drawers 3-Tier Organization®
Handle Smart Pull® Freezer Handle
DuraBase™ Solid Drawer Base Yes
Drawer Divider Yes
Freezer Light Premium LED
MATERIALS AND FINISHES
Contour Door Yes
Hidden Hinges Yes
Back Flush & Metal cover over mechanical parts
Surface Coated Metal, Stainless Steel / Coated Metal, Black Stainless Steel
Available Colors Stainless Steel (S), Black Stainless Steel (D)
Handle Matching Commercial Handles
SPECIFICATIONS
Depth with Handles 32 1/8"
Depth without Handles 29 5/8"
Depth without Door 24 3/4"
Depth (Total with Door Open) 44"
Height to Top of Case 68 7/8"
Height to Top of Door Hinge 70 1/4"
Width 35 3/4"
Width (Door Open 90° with Handle) 45"
Width (Door Open 90° without Handle) 40"
Door Edge Clearance with Handle 4 5/8"
Door Edge Clearance without Handle 2 1/4"
Installation Clearance Sides 1/8", Top 1", Back 2"
Weight (Unit/Carton) 331 lbs./364 lbs.
Carton Dimensions (WxHxD) 38" x 73" x 33"
WARRANTY
Limited Warranty 1 Year Parts and Labor, 7 Years on the Sealed System, 10 Years on Linear Compressor
UPC 048231786973

What People Are Saying

Rated 1 out of 5 by from As expected until.. 8 months into ownership and start hearing compressor clunk/bang and screech. Ice cube dispenser jams, freezer is set to -4 to freeze food. Serviceman states TSB to fix. 3 of 4 new LG appliances have failed within months of ownership in one way or another. As a side note, think long and hard about French door design. Was excited @ first, but after time becomes frustrating to have food stacked on top of each other when looking for.
Date published: 2017-07-17
Rated 3 out of 5 by from Great performance but falls short I bought these appliances for there appearance. Be prepared for the scratches. If you want to use them you can touch them. The light scratches will show everywhere. The ice maker is small also. Takes awhile to make new ice even in ice plus mode. Other then those issues they are great.
Date published: 2017-07-09
Rated 1 out of 5 by from BROKE DOWN compressor out, coils leaking coolent month 22 and the thing stopped. repair man said these are a problem. You pay a premium price for a cheap product. REALLY ?? Do not know what options I have. Personally I want a refund
Date published: 2017-07-08
Rated 1 out of 5 by from Disappointed It stopped cooling less than a year after I purchased it. It broke on 5/19/2017. As of today 7/4/2017 i am still waiting for a resolution to obtain another one or a credit. LG sent the repairman who changed the parts needed and it still would not work. The diagnosis by 2 of the repairmen they sent and my own that I paid out of my own pocket was a freon leak. The leak has not been able to be found after all parts were changed. I own all other major LG appliances and was very disappointed that this refrigerator broke. We have 7 members in our family with 5 being children and it has been extremely hard and difficult not having a working fridge for the past 7 weeks. I hope this gets resolved soon. My other LG appliances ( range, microwave, dishwasher) are great but I may have been sold a defective refrigerator. i should also mention that these appliances were upgrades of previous less expensive LG appliances. Not sure what happened with the refrigerator.
Date published: 2017-07-04
Rated 3 out of 5 by from Great for 11 months Fridge was amazing until month 11, got back from vacation and it was warm inside. All of our food spoiled and ice melted all over the floor. We are waiting on LG to send someone to repair it.
Date published: 2017-07-01
Rated 2 out of 5 by from Pretty good but.... 3 months into purchase and the ice maker stopped working...new unit installed under warranty. Now 3 months after warranty expires...a fan problem. Didn't things like this in the past consider the product a "lemon"? I expect a company like LG, known for its supposed quality, to pay for this repair.
Date published: 2017-06-30
Rated 5 out of 5 by from Great features We've only had this 10 days, and I am registering the warranty, so this could change. So far, so good. No complaints. Some complained about noise, ours is quiet. Much more spacious than our old frig. We can see everything in the frig. Love the chill drawer for storing some soda, cheese, and yogurt, it gets very cold even on the middle setting. Sad about not magnetic front for stuff- but the sides are magnetic, and one side is open and we stick stuff on it.
Date published: 2017-06-17
Rated 4 out of 5 by from Beautiful but...... We have now had this fridge a few months. First of all we order from Lowes on last year Black Friday sale and we didn't get all of our appliances until March. Took them almost 5 months. They said by beginning of the year. Would of never purchased them. The Pro's- beautiful,fits great in kitchen, drawer makes the fridge,lighting great, ice size is small. The Con's- ice compartment very small and you can run out quick, water from fridge is never very cold, freezer door does not shut easily and gets left open, not meant for a lot of food and will need extra fridge in garage (our fault due to ctop choice) took out a shelf for larger item space, drawers are tiny.
Date published: 2017-06-03
  • y_2017, m_7, d_25, h_2
  • bvseo_bulk, prod_bvrr, vn_bulk_1.0.0-hotfix-1
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_84
  • loc_en_US, sid_MD05200581, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_lg
  • bvseo_sdk, java_sdk, bvseo-2.3.0.0
  • CLOUD, getReviews, 4ms
  • REVIEWS, PRODUCT

We're here to support you with our product.

View LMXC23746D Product Support

Contact us for any support inquiries.

ASK & ANSWER

Ask your questions. Share your answers.
Please first review the detailed product information and help guides in the Product Support section for this product prior to posting a question.

When was this product LMXC23746D in black stainless first released? Was there more than 1 release?

Asked by: Aharr3
The ENERGY STAR® Qualified LG Black Stainless Steel Series 23 cu. ft. Counter-Depth 4- Door French Door Refrigerator w/ CustomChill® Drawer, Model # LMXC23746D is a recent release as Black Stainless Steel but the regular Stainless Steel was first available in the market on 09/01/2014...^IFV
Answered by: LGJoel
Date published: 2017-06-28

The highest freezer drawer gets ice crystals on it, and the ice cream bars get really soft.  What's wrong?

Asked by: Barbidoll100
We regret the trouble you have experienced with this refrigerator. The description provided suggests there may be an air leak near this upper drawer, allowing warm air into the freezer, allowing crystallization on the leaking humidity, and thawing of items near the leaking area. For additional help, please contact our Customer Interactive Center at 800-243-0000.
Answered by: NeilE
Date published: 2017-03-06

What is the power consumption for the LMXC23746S refrigerator?

Asked by: Jolind
The Energy Guide label attached to the ENERGY STAR® Qualified LG 23 cu. ft. Large Capacity Counter Depth French Door Refrigerator w/CustomChill® Drawer, Model # LMXC23746S lists the Estimated Yearly Electricity Use as being 665 kWh...^IFV
Answered by: LGJoel
Date published: 2017-02-27

The chill drawer sensor does not recognize when it's closed. Light stays on the bottom of the French doors along with display and alarm even though the door is completely closed. Please advise where the door closed sensor for chill and freezer drawer are?

Asked by: Vikingleif
We regret the trouble you have experienced with this refrigerator. As we are not technicians, it will not be possible to assist with the drawer sensors mentioned. To make service arrangements, you may either contact our Customer Interactive Center at 800-243-0000, or you can check our Repair Provider Lookup on our website, at http://www.lg.com/us/support/repair/support-repair-provider-lookup.jsp.
Answered by: NeilE
Date published: 2017-01-30

Need to know amperage. Or watts so I can calculate amperage. This is not the same as kw/year.

Asked by: Sammi Amm
We appreciate your interest in this refrigerator. According to our product documentation, this model should always be connected to an electrical outlet rated for 115V at 60Hz, and fused for 15 to 20 Amps. Such is required to guarantee sufficient amperage for the starting operation of the compressor system.
Answered by: NeilE
Date published: 2016-10-17

Does lg have counter depth refrig with drawer being freezer instead of refrigerator? ?

Asked by: Pugg
The CUSTOMCHILL® DRAWER in the ENERGY STAR® Qualified LG 23 cu. ft. Large Capacity Counter Depth French Door Refrigerator w/CustomChill® Drawer, Model # LMXC23746S is the drawer between the freezer compartment and the refrigerator compartment and has a variable temperature range of 29˚, 33˚, 37˚, 42˚ F. The other LG Counter Depth refrigerators that do not have that configuration just have a bottom mounted freezer and refrigerator compartment...^IFV
Answered by: LGJoel
Date published: 2016-09-26

Is this appliance available without the water/ice dispenser?

Asked by: Martha from Wisconsin
I would love for this to be true.  We like this refrigerator but are dismayed by all the negative feedback on the ice dispenser.  As of 7/2016, there is no option of this model/style without the dispenser.
Answered by: Tony P
Date published: 2016-07-31

Freezer drawer does not automatically close

Asked by: Kathwin
The refrigerator doors and freezer drawers close automatically when you push them slightly. (The door only closes automatically when it is open at an angle of less than 30°.)
Answered by: NeilE
Date published: 2016-07-05
