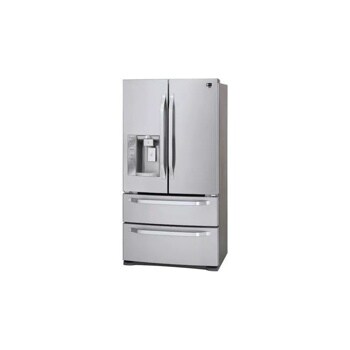

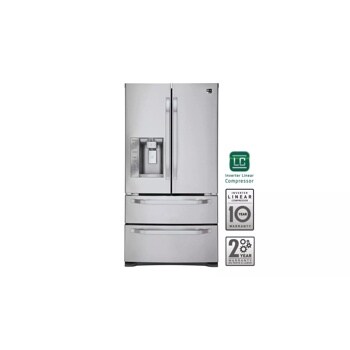

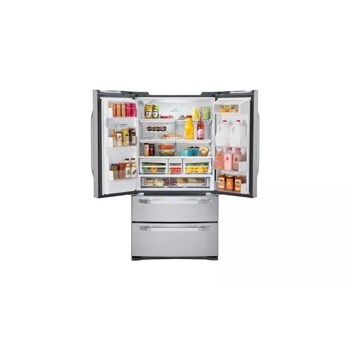

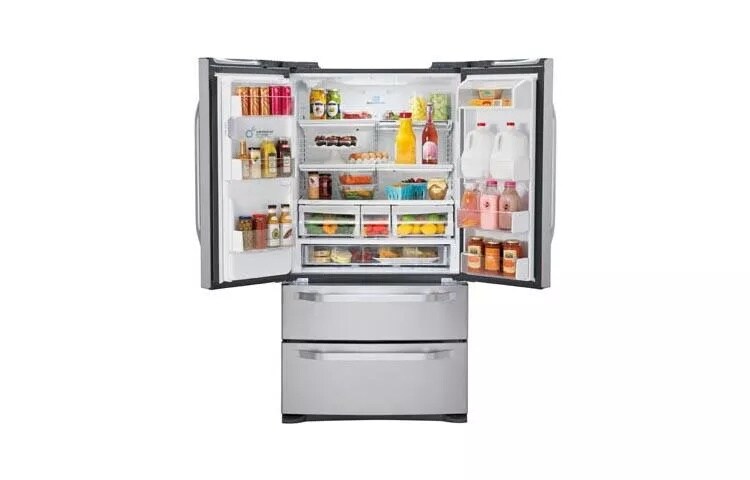

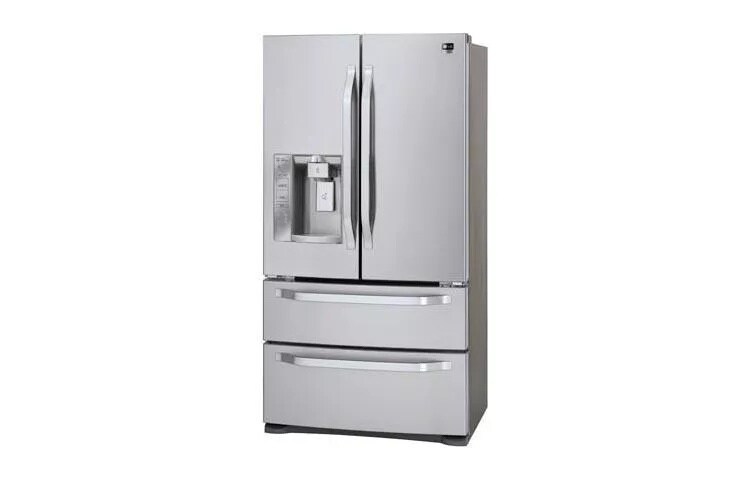

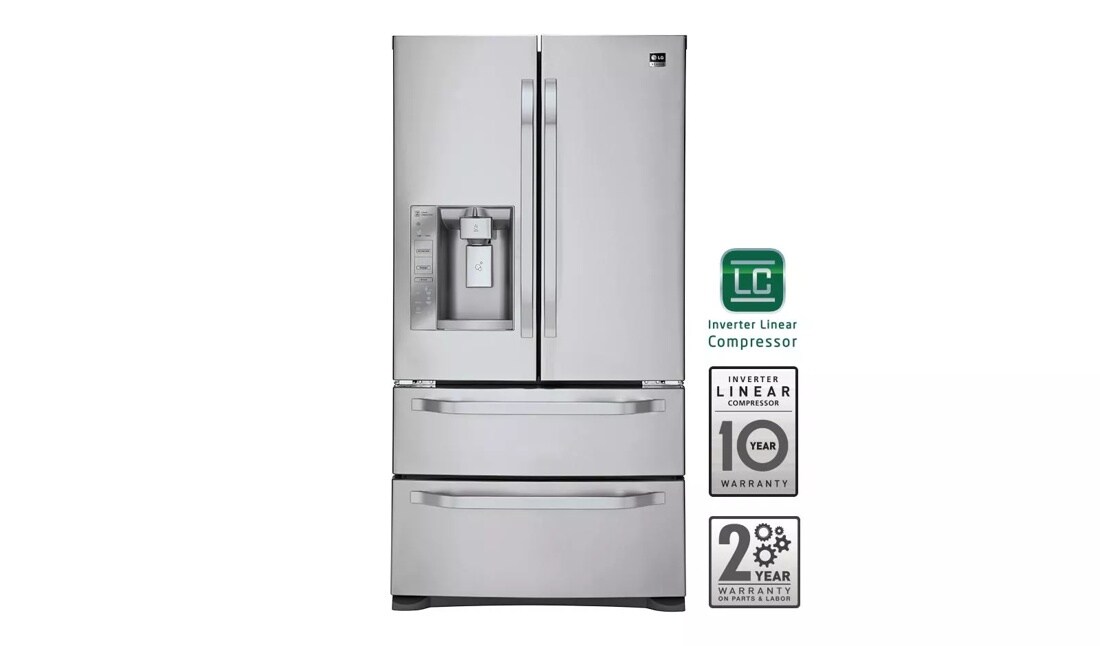

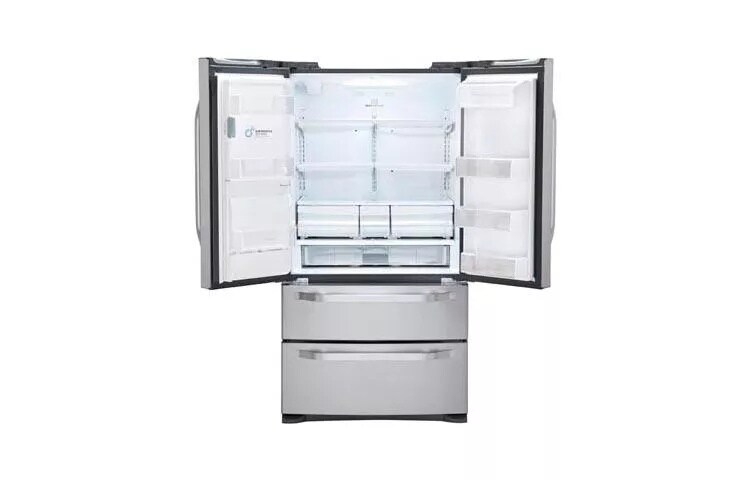

LG Studio - Large Capacity Counter Depth 4 Door French Door Refrigerator with Ice & Water Dispenser

  • LSMX211ST

  • Stainless Steel
  • Discontinued Product

Key Features

  • Counter-Depth
  • Double Freezer Drawers
  • Slim SpacePlus™ Ice System
  • 10 Year Manufacturer's Limited Warranty on Linear Compressor
Door Type French 4-Door
LG Studio Yes
Total Capacity 20.5 cu. ft.
Size (W x H x D) 35 3/4" x 69 3/4" x 30"
Counter Depth (in.) Yes
Color Stainless Steel
Refrigerator 14.7 cu. ft.
Freezer 5.8 cu. ft.
Total 20.5 cu. ft.
Energy Rating ENERGY STAR®/CEE Tier 1
Ice & Water Dispenser Yes
Dispenser Type Integrated Tall Dispenser
Ice System Slim SpacePlus™
Daily Ice Production 3.0 lbs
Ice Storage Capacity 2.8 lbs
Water Filtration System LT600P
Smart Cooling System Yes
Multi-Air Flow Cooling Yes
Temperature Sensors 5
Linear Compressor Yes
Display Type Icon Touch LED
Temperature Controls External White LED
Door Alarm Yes
Child Lock Yes
LoDecibel™ Operation Yes
SmartDiagnosis™ Yes
No. of Shelves 4 Split
Folding Shelf 1
Cantilevered Shelves Yes
Shelf Construction Spill Protector™ Tempered Glass
Crisper Bins 3 in 1 Crispers (2 Humidity) with Silver Trim Deco
Glide N’ Serve™ Drawer Yes
Refrigerator Light LED
No. of Shelves/Bin 6 (2 Adjustable Gallon Size)
Door Bin Construction Clear Bins with Deco
Dairy Corner Yes
Door Type Pull Drawer
Drawers 2
DuraBase™ Solid Drawer Base Yes
Ice Bin Yes
Freezer Light LED
Contour Door Yes
Hidden Hinges Yes
Toe Grille Yes
Surface Stainless Steel
Back Flush & Metal Cover Over Mechanical Parts
Available Colors Stainless Steel (ST)
Handles Matching Commercial Handles
Depth with Handles 30"
Depth without Handles 27 1/2"
Depth without Door 23 5/8"
Depth (Total with Door Open) 42 1/4"
Height to Top of Case 68 3/8"
Height to Top of Door Hinge 69 3/4"
Width 35 3/4"
Width (Door Open 90° with Handle) 44 1/4"
Width (Door Open 90° without Handle) 39 1/4"
Door Edge Clearance with Handle 4 1/2"
Door Edge Clearance without Handle 1 3/4"
Installation Clearance Sides 1/8", Top 1", Back 2"
Weight (Unit/Carton) 300 lbs./355 lbs.
Carton Dimensions (WxHxD) 38" x 73" x 33"
Limited Warranty 1 Year Parts and Labor, 7 Years on the Sealed System, 10 Years on Linear Compressor
UPC 048231793989
