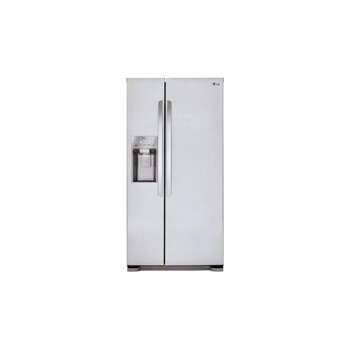

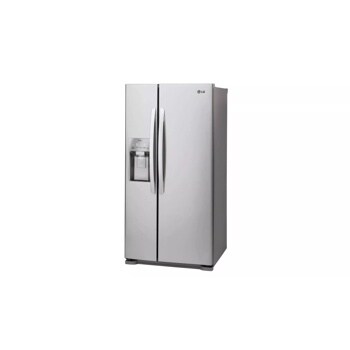

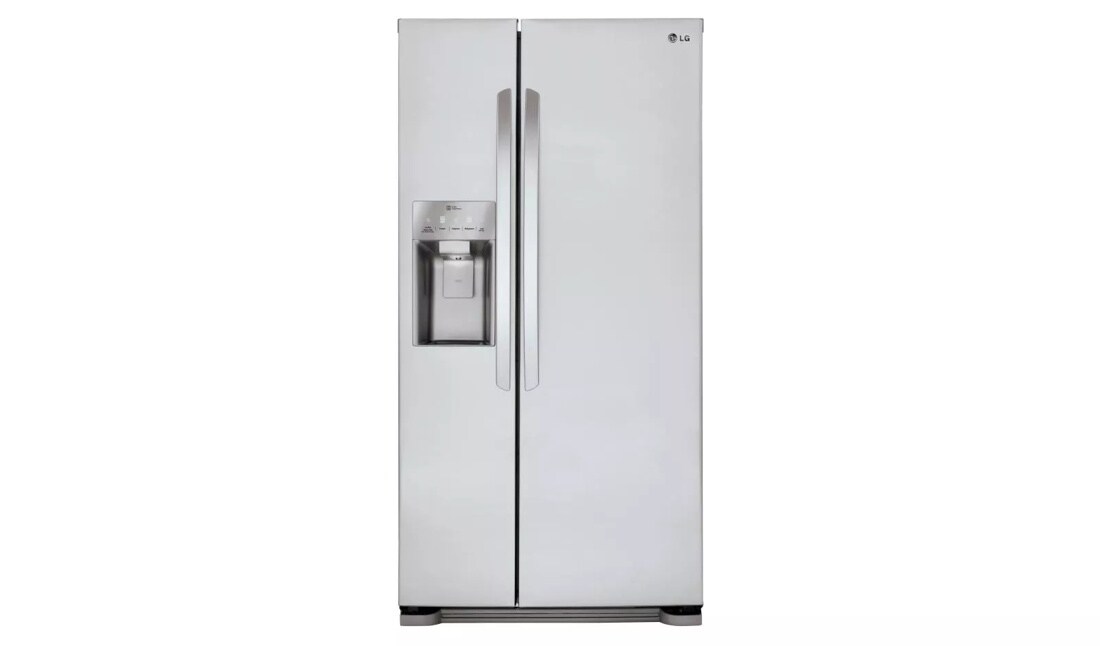

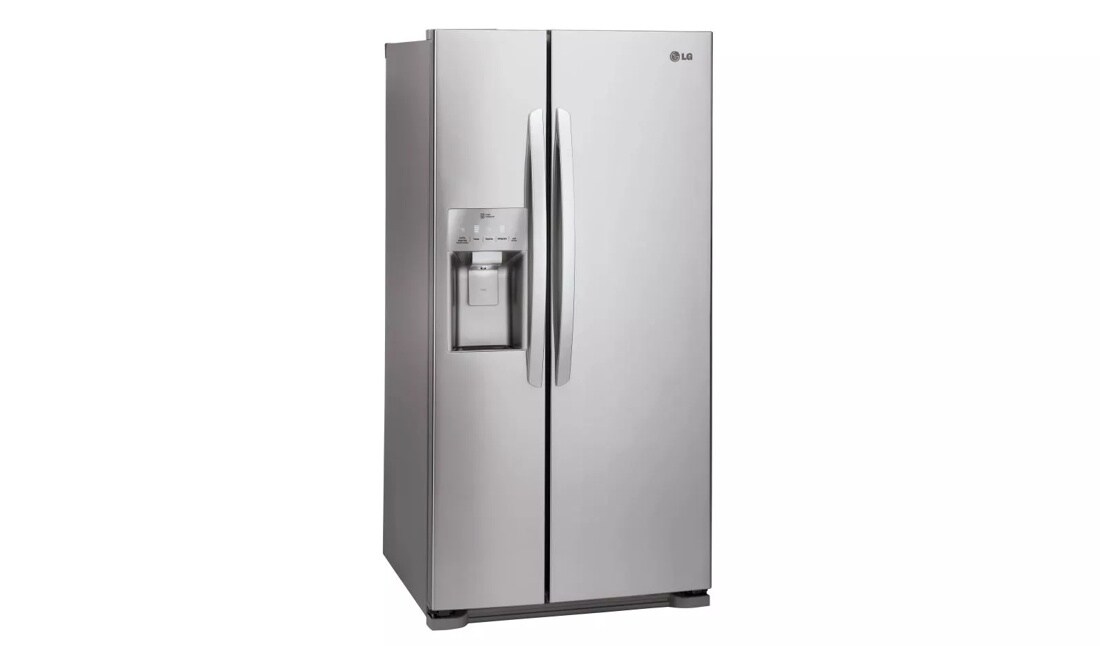

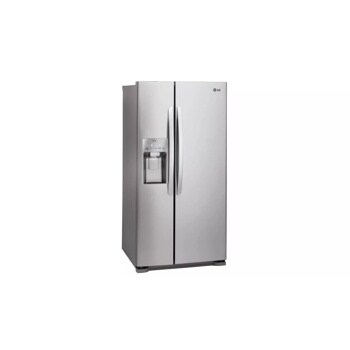

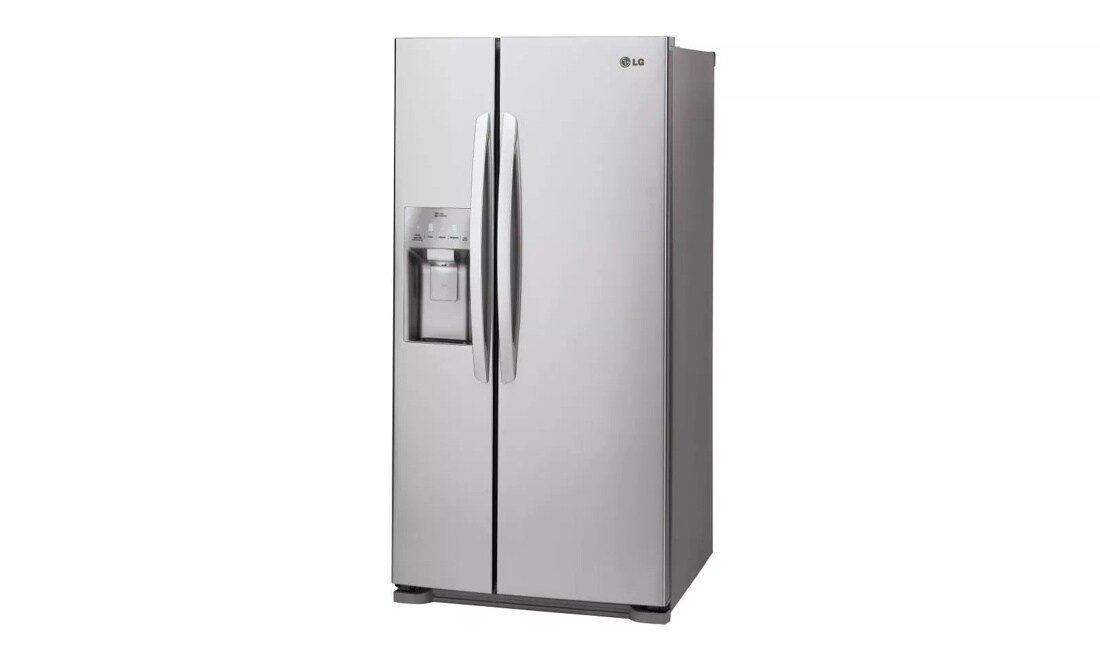

22 cu. ft. Side-by-Side Refrigerator (33” Width, Under 66” Height)

  • LSXS22423S

  • Stainless Steel

Key Features

  • 22 cu. ft. Capacity
  • Accommodating Under 66” Height and 33” Width for Specialized Kitchen Spaces
  • SpacePlus® Ice System
  • Tall Ice & Water Dispenser®

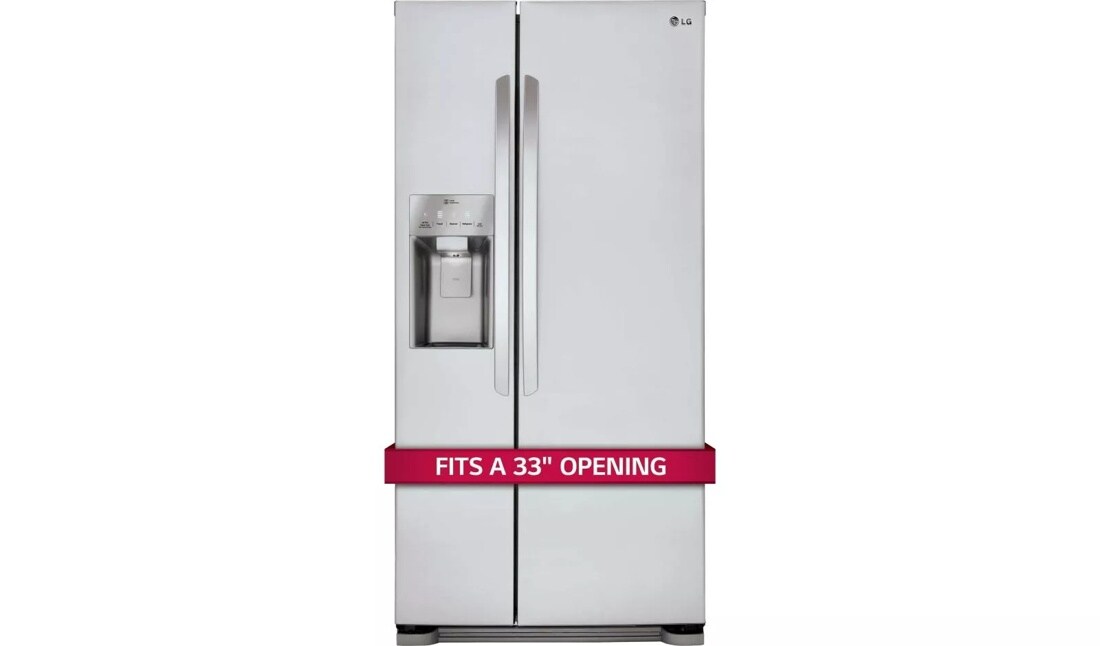

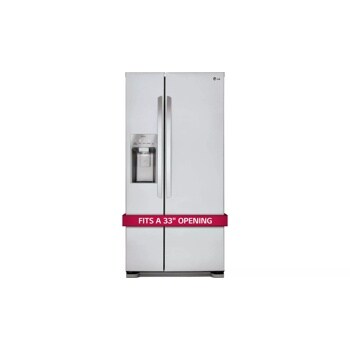

Large Capacity for 33

Large Capacity for 33" Width

If you feel like you never have enough space for your groceries, or find yourself cramming them in, it's time to discover the convenience of having a refrigerator with great capacity for its size. With 22 cu. ft. of space in a 33" wide refrigerator, you have plenty of room for plenty more.

Free up some space.

Free up some space.

The LG SpacePlus® Ice System is on the inside door, freeing up valuable space in the fresh food shelf compartments. More space means you can store more food.

Fresher is better.

Fresher is better.

Digital Temperature Controls designed to maintain superior humidity and temperature levels to help keep your food fresher, longer. Digital sensors constantly monitor conditions within the refrigerator to keep things cool.

Great Light.

Great Light.

LED panels located on the rear of the refrigerator provide an exceptionally bright interior and saves energy over traditional lighting.

SAVE MONEY. SAVE ENERGY.

SAVE MONEY. SAVE ENERGY.

This ENERGY STAR® certified LG refrigerator exceeds new 2016 federal energy standards to positively impact your energy bill and your energy consumption.

ADA - COMPLIANT REFRIGERATORS

ADA - Compliant Refrigerators*

To be considered ADA-compliant, a French Door refrigerator must have a minimum of 50% freezer space no more than 54 inches above the finished floor.

SUMMARY
Door Type Side-by-Side
CAPACITY
Refrigerator 15.01 cu. ft.
Freezer 6.85 cu.ft
Total 21.86 cu. ft.
FEATURES
Energy Rating ENERGY STAR® Qualified
ENERGY STAR® Qualified Yes (606 kWh/Year)
Ice & Water Dispenser Yes
Dispenser Type Tall Ice & Water Dispenser®
Ice System SpacePlus®
Daily Ice Production 3.0 lbs/3.3 IcePlus
Ice Storage Capacity 3.8 lbs.
Water Filtration System Filter LT800P
Multi-Air Flow Cooling Yes
Temperature Sensors 6
Display Type Membrane / Green LED
Temperature Controls Bar
Door Alarm Yes
Child Lock Yes
LoDecibel™ Quiet Operation Yes
Auto Closing Door Hinge Yes
ADA Compliant Yes
REFRIGERATOR
No. of Shelves 3
Snack Pan Yes
Shelf Construction Spill Protector™ Tempered Glass
Crisper Bins 2 Humidity Crispers
Refrigerator Light Ceiling LED
REFRIGERATOR DOOR
No. of Shelves/Bin 5
Door Bin Construction 1 piece (Opaque)
Dairy Corner Yes
FREEZER
Drawers/Shelves 5 Glass
Ice Bin Yes
No. of Shelves 6
Shelf Construction Wire
Freezer Light Premium LED
No. of Drawers 1 (Opaque)
Door Bins 3 (Opaque)
MATERIALS AND FINISHES
Contour Door Yes
Hidden Hinges Yes
Toe Grille Yes
Surface Stainless Steel/Coated Metal
Back Flush & Metal Cover Over Mechanical Parts
Available Colors Smooth White, Smooth Black, Stainless Steel
Handles Vista
SPECIFICATIONS
Depth with Handles 35 5/8"
Depth without Handles 34 1/3"
Depth without Door 28 5/8"
Depth (Total with Door Open) 49 1/2"
Height to Top of Case 65 5/8"
Height to Top of Door Hinge 66 3/4"
Width 32 3/4"
Width (Door Open 90° with Handle) 40 5/8"
Width (Door Open 90° without Handle) 35 5/8"
Installation Clearance 2"
Weight (Unit/Carton) 250 lbs./272 lbs.
Carton Dimensions (WxHxD) 34 5/8" x 67 5/8" x 36 3/8"
WARRANTY
Limited Warranty 1 Year Parts and Labor, 5 Years on the Sealed System (Parts & Labor), 5 Years on the Compressor (Parts & Labor), 6-10 Years on Linear Compressor (Parts Only)
UPC 048231786652

What People Are Saying

Rated 2 out of 5 by from Noisy Refrigerator The refrigerator is okay except that it is noisy. When it is running it sounds just like if you were standing next to your gas meter outside while gas is flowing through it. Annoying. Otherwise, the rest is okay.
Date published: 2018-02-16
Rated 4 out of 5 by from Larger than it looks We were limited by our opening and cautiously purchased this refrigerator as our old one was very tight for our needs and the reviews we read about the ice maker not being sufficient. After four weeks of use we find the storage capacity to be outstanding and well beyond our expectations and the ice maker does keep up with our need so far. The only down side is upon dealer installation we noticed scratches on the front of both doors. This must have happened at the factory because we watched the dealer's installer totally unpack the fridge from the original packaging. The installer called his boss (the dealer) immediately and they were going to correct the problem by replacing the doors. Two weeks plus later we have not had a call back yet to schedule that replacement.
Date published: 2018-02-15
Rated 5 out of 5 by from Looks fantastic in my kitchen Looks great and works great I love it altogether the water could be colder from the dispenser
Date published: 2018-02-14
Rated 3 out of 5 by from Keeps food cold Plus: keeps food cold, clear glass shelves help view contents Cons: shelves are not adjustable in freezer or fridge (I had to remove a shelf permanently in order to be able to put a gallon of milk in, not in door), LED lights are on front, makes it hard to see things in the back, you can hear condenser running (not especially loud, just a humming noise)
Date published: 2018-02-13
Rated 5 out of 5 by from ANOTHER AWESOME LG PRODUCT We are LG product owners, couple large screen TV'S among some other smaller products. The refrigerator is the latest addition ( about 3 weeks) and we love it! From the looks, to how quiet it is, along with it's performance to date we are sure glad we bought it and.....we know we made the right decision! Thanks LG!!
Date published: 2018-02-11
Rated 5 out of 5 by from Use the ice and water features all the time. Now I can remodel my Kitchen and have a lot more room
Date published: 2018-02-11
Rated 3 out of 5 by from A little noisy This refrigerator is a little noisier than we expected (advertised as “low decibel”). It also runs longer than our older fridge. Otherwise it is nice.
Date published: 2018-02-11
Rated 4 out of 5 by from LG frig This is my 1st LG ,an gota say worth it! $$was very good and I think bigger interior an quit in running ,big deal to me . I give nothing an excellent rating untill had a few years ,witch I believe will happen !
Date published: 2018-02-10
  • y_2018, m_2, d_19, h_2
  • bvseo_bulk, prod_bvrr, vn_bulk_2.0.7
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_157
  • loc_en_US, sid_MD05136300, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_lg
  • bvseo_sdk, java_sdk, bvseo-2.3.0.0
  • CLOUD, getReviews, 3ms
  • REVIEWS, PRODUCT

We're here to support you with our product.

View LSXS22423S Product Support

Contact us for any support inquiries.

ASK & ANSWER

Ask your questions. Share your answers.
Please first review the detailed product information and help guides in the Product Support section for this product prior to posting a question.

How do you get the come water out the door

Asked by: Juan99
If you are having troubles with your water dispenser please refer to the following help library article found here: http://www.lg.com/us/support/product-help/CT10000021-20150177934291-water-doesn't-dispense ^CP
Answered by: ChrisPSM
Date published: 2018-01-06

I have had this refrigerator plugged in for 2 days and it’s on the maximum coldest  setting and is still 41 degrees inside , will it get colder?

Asked by: This is 2
Yes the refrigerator should get slightly colder. Here are some factors that can make a refrigerator section too warm. • Door opened often. • Large amount of food added. • Room temperature very warm If you're still experiencing issues, head to our support page on Twitter, @LGUSSupport or on facebook at www.facebook.com/LGUSA and our specialists will be happy to look into it. ^CP
Answered by: ChrisPSM
Date published: 2017-12-02

do you make a 66"X33" counter depth side by side?

Asked by: Craig12
Hi Craig12. The LG 22 cu. ft. Side-by-Side Refrigerator (33” Width, Under 66” Height), Model # LSXS22423* (comes as *B-Smooth Black, *W-Smooth White and *S-Stainless Steel) is the only Side-by-Side refrigerator we make with those specifications, but not as a Counter Depth model. The Side-by-Side Counter-Depth models we make are the LSXC22386D, LSXC22336S, LSXC22326S, LSXC22486D and the LSXC22426S that have widths of 35 7/8" (36") and heights of 69 7/8" - 69 11/32"...^IFV
Answered by: LGJoel
Date published: 2017-12-27

DO YOU MAKE A FILTER BYPASS FOR LSXS22423S HAVE LOW VOLUME ON DOOR AND FILTER DOES NOT SHOW REPLACEMENT NEEDED,WAS TOLD THIS IS QUICK CHECK

Asked by: SANDYBR1
Hi SANDYBR1. Some of our older refrigerators required Bypass filter for when you had to replace a water filter that needed changing and were unable to find a replacement but had to use the refrigerator without a replacement water filter in place. The ENERGY STAR® Qualified LG 22 cu. ft. Side-by-Side Refrigerator (33” Width, Under 66” Height), Model # LSXS22423S is not such a model and does not require a bypass filter. If the water volume is low, you may need to change the water filter. Sometimes, when the water pressure gets low or when your refrigerator's ice production is less than usual, or the ice cubes are smaller than normal, are all indications that the water filter needs changing and that can happen before the 'Change Filter' light comes on. You will also want to check that the water lines behind the refrigerator are not clogged, kinked and that the water valve is fully open. Your water pressure for this refrigerator should be between 40 and 120 PSI (2,8 bar and 8,2 bar...^IFV
Answered by: LGJoel
Date published: 2017-11-21

What would the correct temptur of refrigerator be and also freezer temptur thank you

Asked by: Michele l
It is recommended that, when the unit is first installed, the freezer temperature should be set to 0 degrees Fahrenheit, while the refrigerator should be set to 37 degrees. Once the unit reaches these temperatures, you may change the setting to however you would prefer.
Answered by: NeilE
Date published: 2017-12-31

I just recently purchase my appliance used. I have water but will not make ice. What could be the problem?

Asked by: Pappa lee
We regret the trouble you have experienced with this refrigerator and its accessories. The lack of ice could be caused by many things, ranging from a less than freezing temperature in the freezer, to a frozen water line to the ice maker, or perhaps a jammed ice dispenser. If this does not resolve the matter, please contact our Customer Interactive Center at 800-243-0000 for additional assistance in this matter.
Answered by: NeilE
Date published: 2017-02-17

Need the part number for a replacement water/ice dispenser drip tray on the stainless steel model??

Asked by: RobTbby
We appreciate your interest in this refrigerator and its accessories. According to our information, there does not appear to be a part number available for a dispenser drip tray for this model.
Answered by: NeilE
Date published: 2016-09-06

I need to find the bolts that hold the door handles on a lsxs22423b where can I get them

Asked by: Reedy69
Accessories can be obtained through our parts distributor, MCM Electronics. Their contact number, for placing orders, is 800-824-9491. You can also use their website, at http://www.mcmelectronics.com/content/en-US/forms/lg_parts. The part number for the Screw Set is FAB30138101.
Answered by: NeilE
Date published: 2016-05-20
