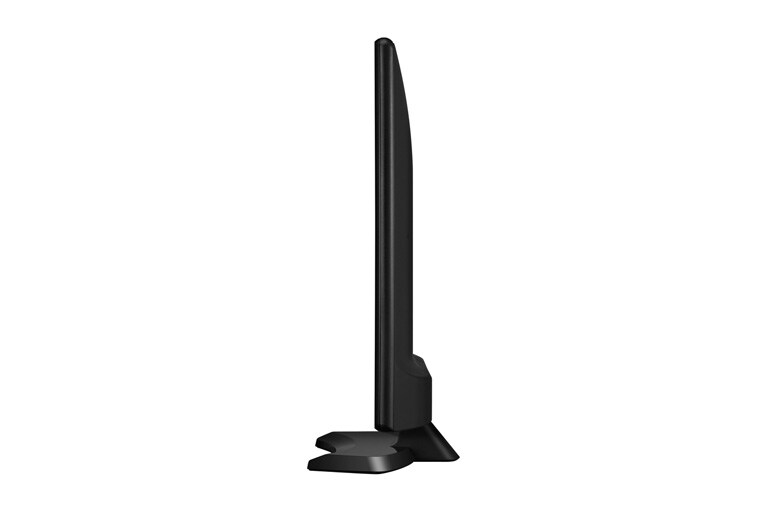

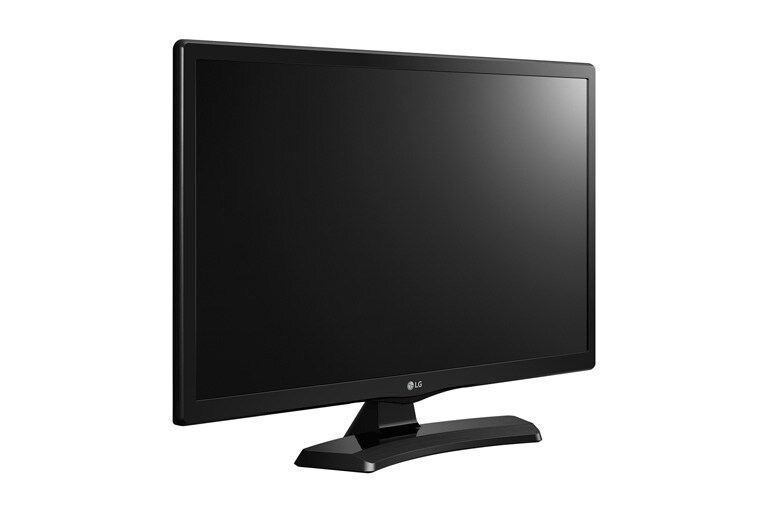

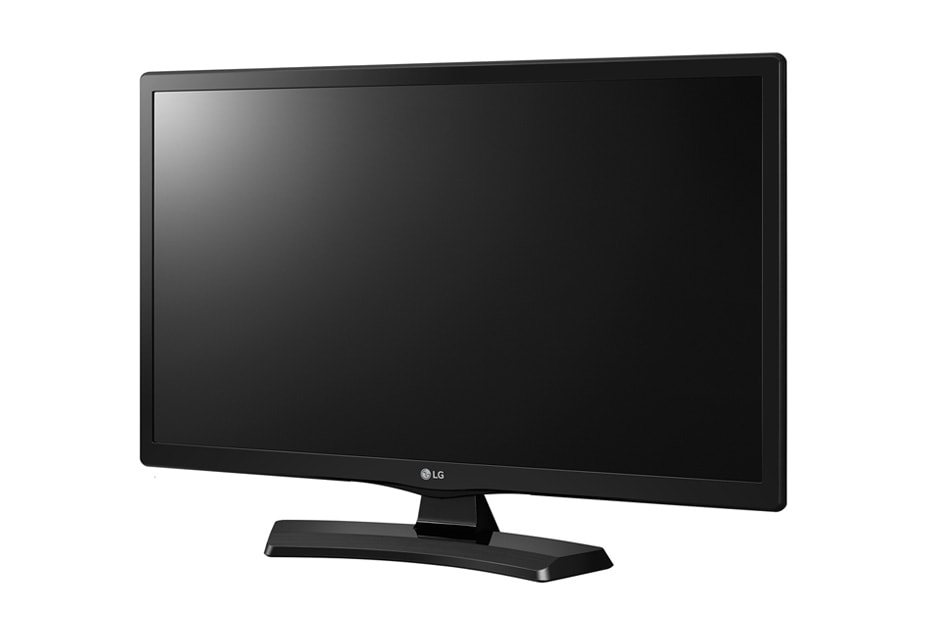

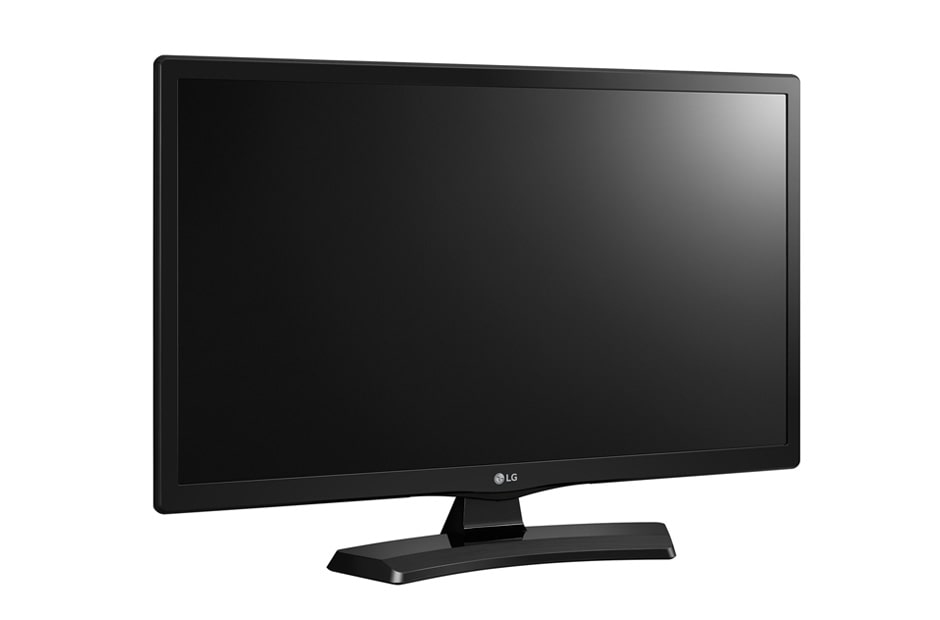

20MT48AF

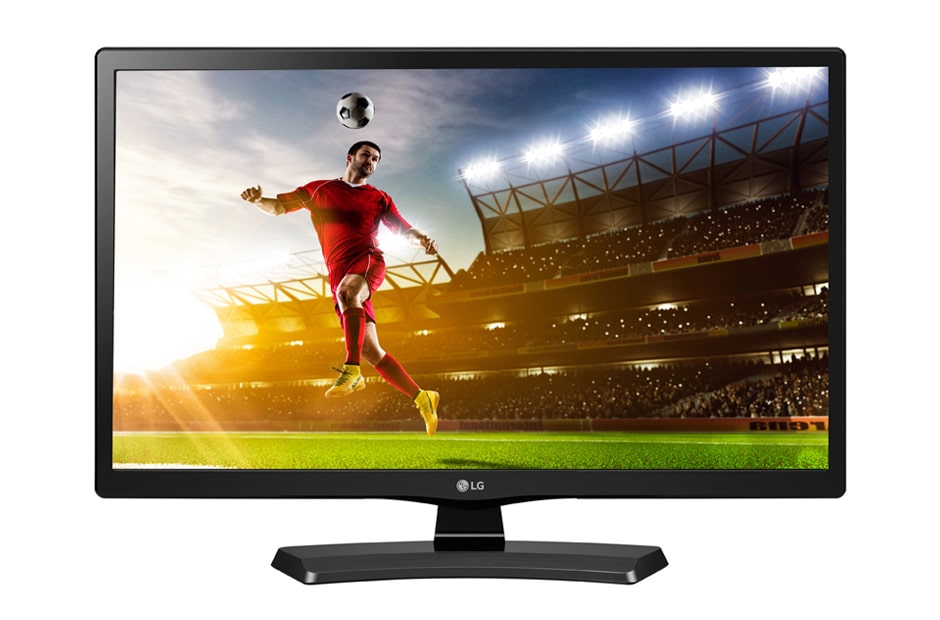

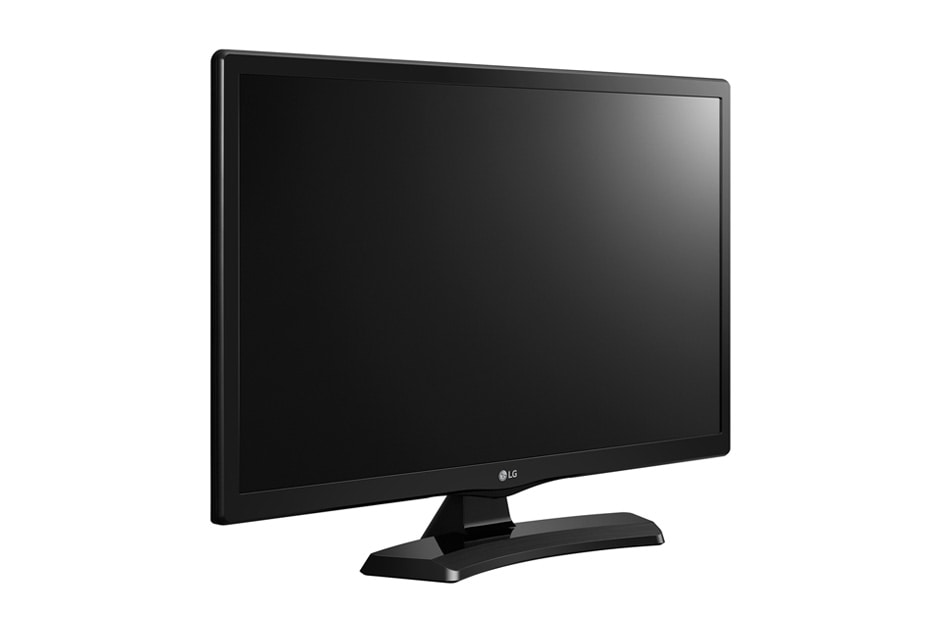

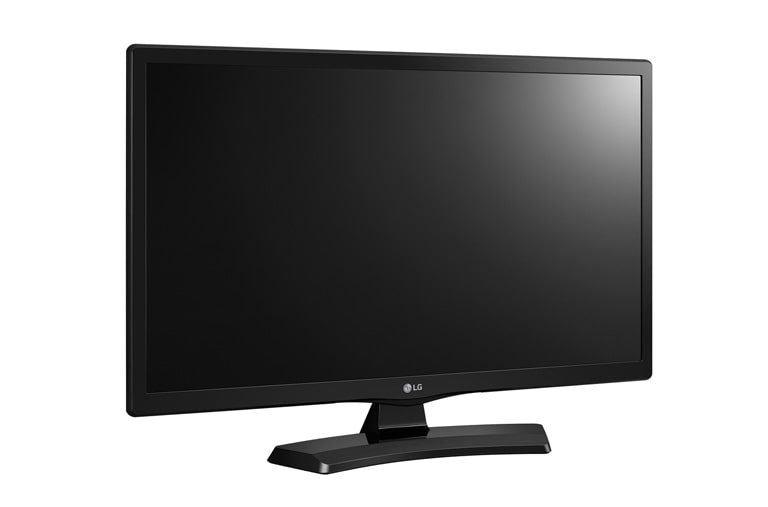

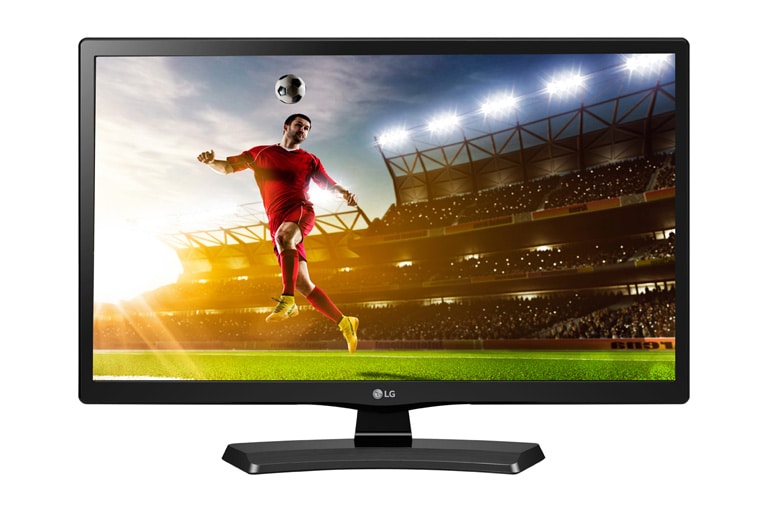

20'' Class C(19.5'' Diagonal) HD TV Monitor
  • Wide Viewing Angle

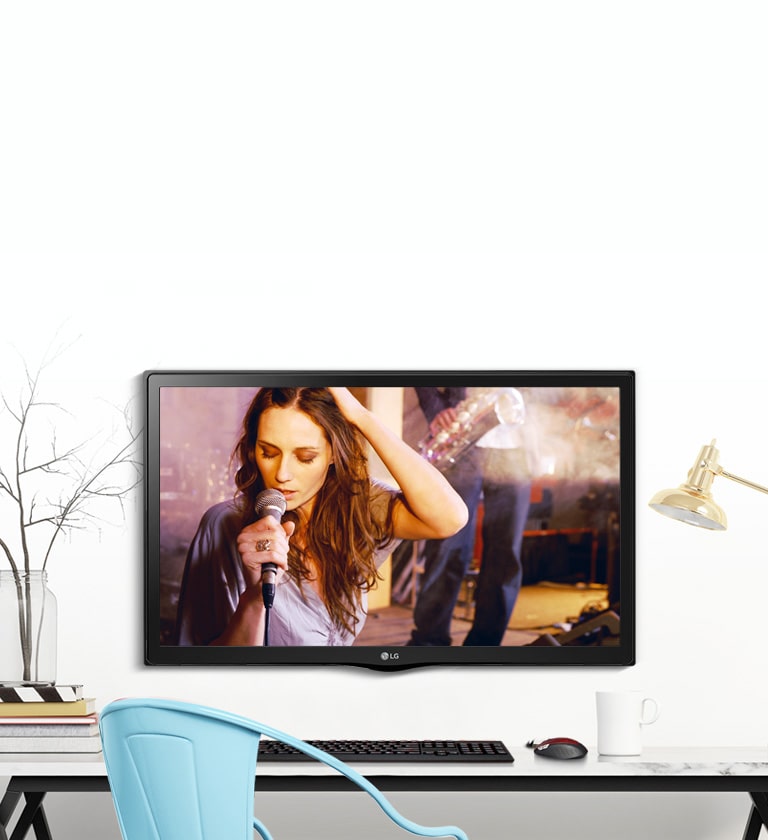

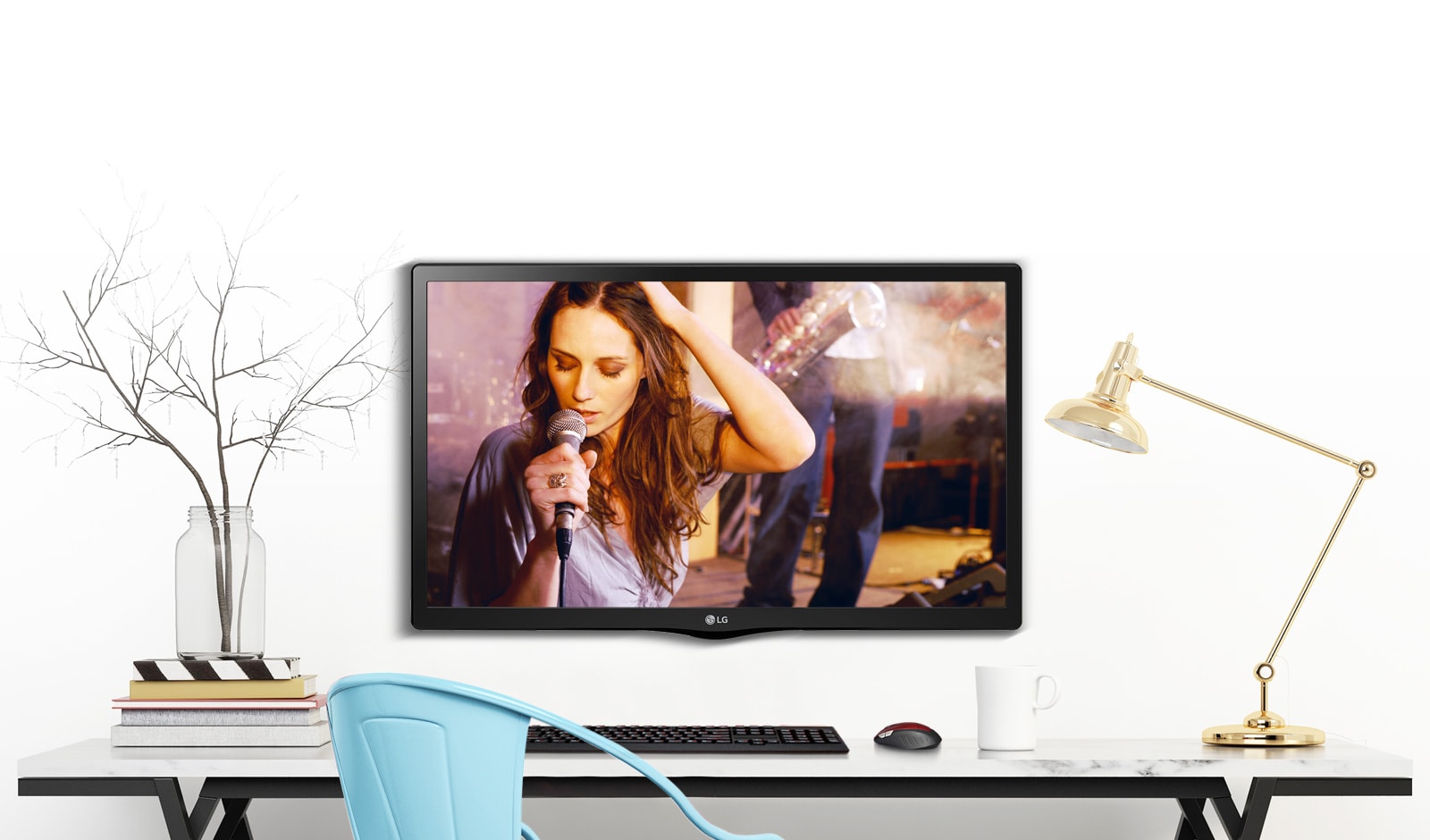

  • Wall Mount

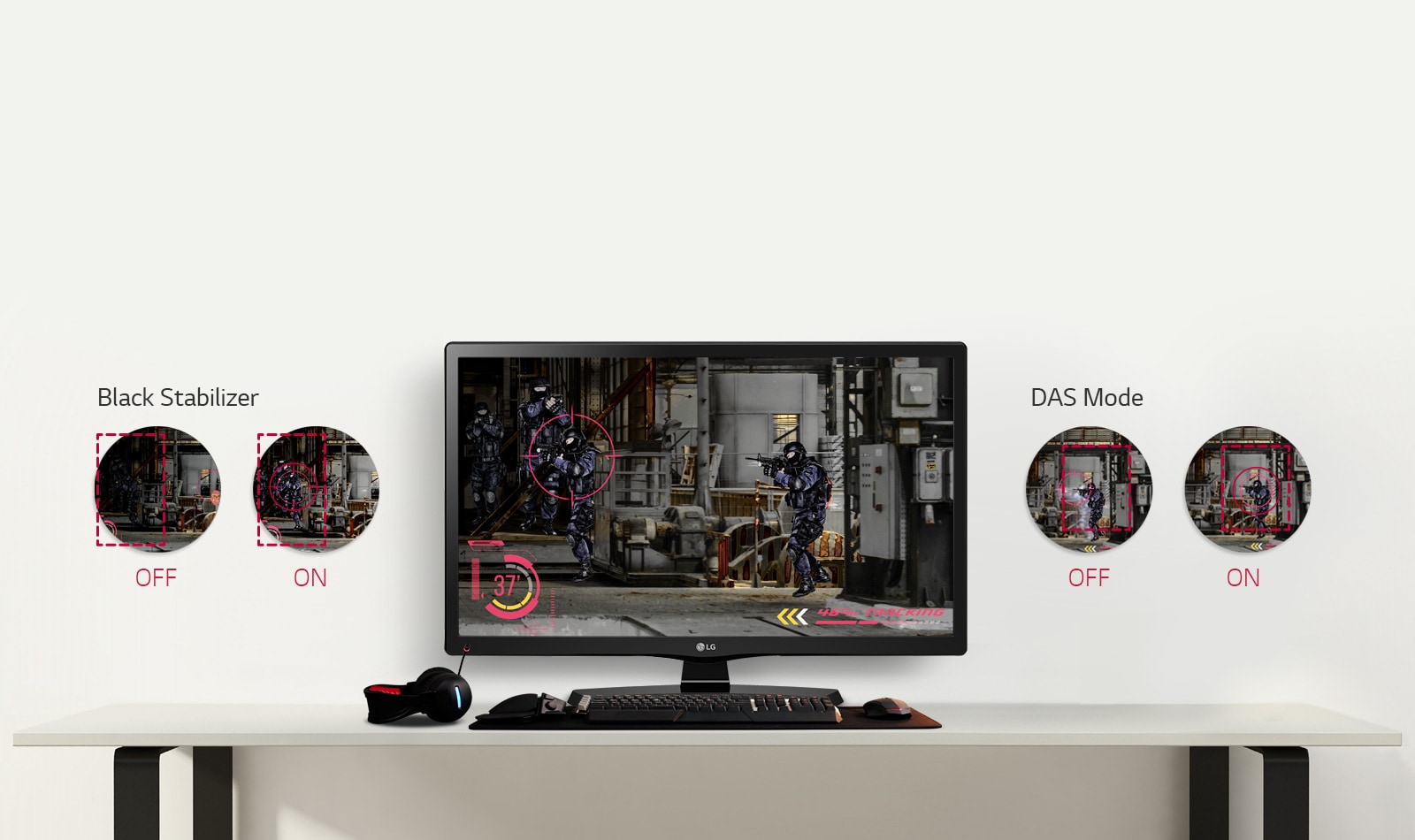

  • Gaming Mode (Black Stabilizer / Das mode)

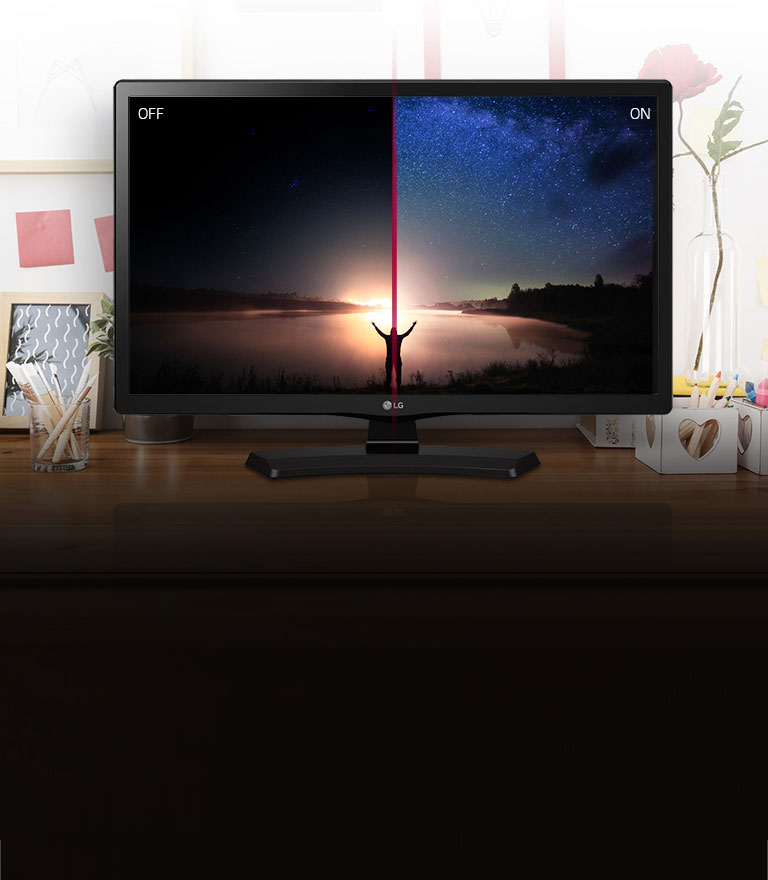

  • Cinema Mode
  • USB AutoRun

component-OBScountrySelectDesc

20" Class C(19.5" Diagonal) HD TV Monitor

GENERAL

  • Size( Inch / cm)
    19.5" / 49.4cm
    Panel Type
    TN
  • Color Gamut (CIE1931)
    68%
    Color Bit
    8bit (6bit+FRC)
  • Color Depth (Number of Colors)
    16.7M
    Pixel Pitch (mm)
    0.2712(H) x 0.2626(V) mm
  • Aspect Ratio
    16:9
    Resolution
    1366x768
  • Brightness(Typ.)
    200 cd/m2
    Brightness(cd/m2)
    200 (Typ.), 160(Min.)
  • Contrast Ratio (Original)
    600:1(typ.)
    Contrast Ratio (DFC)
    5M:1
  • Response Time_Typ. (on/off)
    5ms
    Viewing Angle(CR≥10)
    R/L 90 (Typ.), U/D 65 (Typ.)
  • Surface Treatment(Glare/non Glare)
    Hard coating(3H), Anti-glare

JACK INPUT/OUTPUT

  • Signal Input - D-Sub
    Yes
    Signal Input - Composite
    Yes
  • Signal Input - HDMI (Ver.)
    Yes (HDMI1.3)
    Signal Input - USB (Ver.)
    Yes (USB2.0)
  • Signal Input - Jack Location
    Rear/Side
    Audio Input - RCA
    Yes
  • Audio Input - Jack Location
    Rear
    Audio Output -RCA
    Yes
  • Audio Output - Jack Location
    Rear
    Tuner Input - Analog
    PAL Multi
  • Tuner Input - Jack Location
    Rear

SPEAKER

  • Type
    Internal
    Audio output
    3W x 2

POWER

  • Input / Output (Type (w/ Watt))
    Adapter (24W)
    Input / Output (Input)
    100~240V
  • Consumption (Normal On(Typ.))
    20W
    Consumption (DC Off(Max))
    0.5W

FREQUENCY

  • D-sub( H-Frequency)
    30kHz~69kHz
    D-sub( V-Frequency)
    56Hz~61Hz
  • HDMI (H-Frequency)
    30kHz~69kHz
    HDMI (V-Frequency)
    56Hz~61Hz

RESOLUTION

  • PC (D-sub)
    1366x768
    Video (HDMI)
    480p, 576p 720p, 1080i, 1080p
  • Video (Composit)
    480i/576i

CONTROL KEY

  • Key Number (Power Key Included)
    1 key
    Key Type
    JOYSTICK KEY
  • LED Color(On mode)
    Off
    LED Color(Standby)
    Red
  • Key Location
    Bottom

OSD

  • Number of Language
    18 Language (English/French/Spanish/Portuguese/Russian/Thai Malay/Indonesian/Hebrew/Farsi/Arabic/Kurd Vietnam, Hindi, Marathi, Telugu, Bengali, Tamil)

SPECIAL FEATURE

  • General Function - HDCP
    Yes
    General Function - Intelligent Auto
    Yes
  • General Function - Remote Control
    Yes
    General Function - Plug & Play
    DDC2B
  • General Function - Teletext
    Yes
    Special Function - Flicker Safe
    Yes
  • Special Function - Eye Comfort Mode
    Yes
    Special Function - Divx HD player (USB Media Player)
    Yes (Video, Music, Picture)
  • Special Function - USB Auto Play
    Yes
    Special Function - Smart Energy Saving
    Yes
  • Special Function - Motion Eye Care
    Yes
    Special Function - Built-in Game
    Yes (Egg Catcher, Space Wars, Cookie Cookie, Jungle Hunter, Bubble Pot)
  • Picture - Picture Mode
    Vivid, Standard, Cinema, Soccer, Game
    Picture - ARC-PC
    16:9, 4:3
  • Picture - ARC-Video
    16:9 - ATV, AV, RGB, HDMI
    Just Scan – HDMI
    Original - ATV, AV, HDMI
    4:3 - ATV, AV, RGB, HDMI
    14:9 - ATV, AV, HDMI
    Zoom - ATV, AV, HDMI
    Cinema Zoom - ATV, AV, HDMI
    Sound - AVL (Auto Volume)
    Yes
  • Time / Clock - Auto / Manual Clock
    Yes (Manual Only)
    Time / Clock - On/ Off Time
    Yes
  • Time / Clock - Sleep Timer
    Yes
    Time / Clock - Auto Off / Auto Sleep
    Yes
  • Hotel mode - Hotel Mode
    Yes

COLOR

  • Front
    Black Glossy
    B/Cover
    Texture
  • Stand
    Black Glossy
    Base
    Black Glossy

STAND

  • Base Detchable
    Detachable

DIMENSION(W*D*H)(MM)

  • Set (with Stand)
    467.0 x 146.3 x 330.5
    Set (without Stand)
    467.0 x 52.7 x 278.0
  • Box
    592 x 365 x 120
    Wall Mount
    75*75

WEIGHT(KG)

  • Set(with Stand)
    2.4
    Set(without Stand)
    2.2
  • Box
    3.6

STUFFING

  • Pallet(20ft/40ft/40ft HC)
    918 / 2040 / 2400

WRAP

  • Packing Material
    EPS
    Stacking Type
    Face down
  • Stand Packing Type
    Base Detach
    Box Printing Type
    Flexo 1 color
  • Handle
    No (Hand hole)

ACCESSORY

  • Power Cord
    Yes
    Remote Controller
    Yes
  • Others
    Adaptor
