22MP48

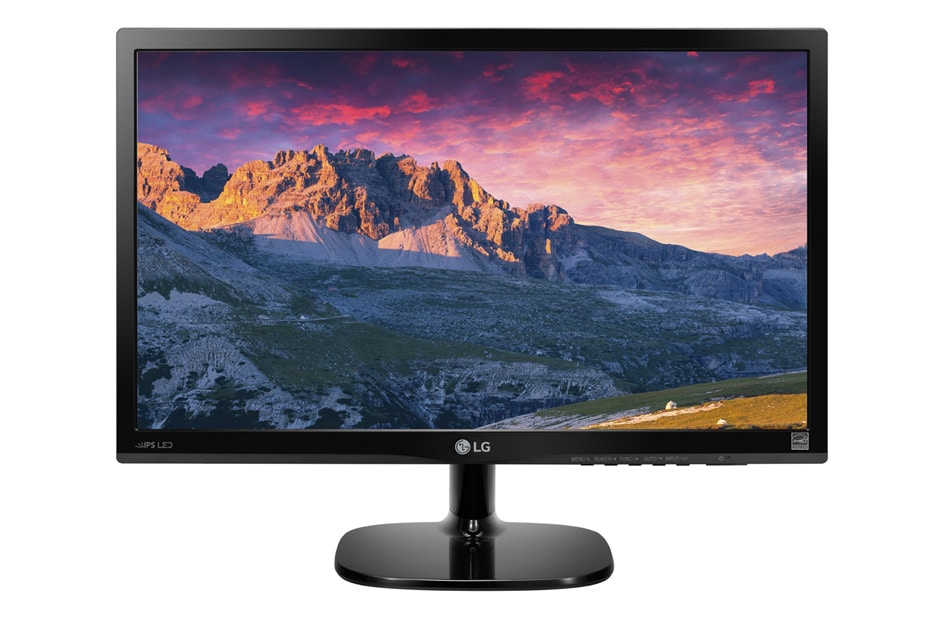

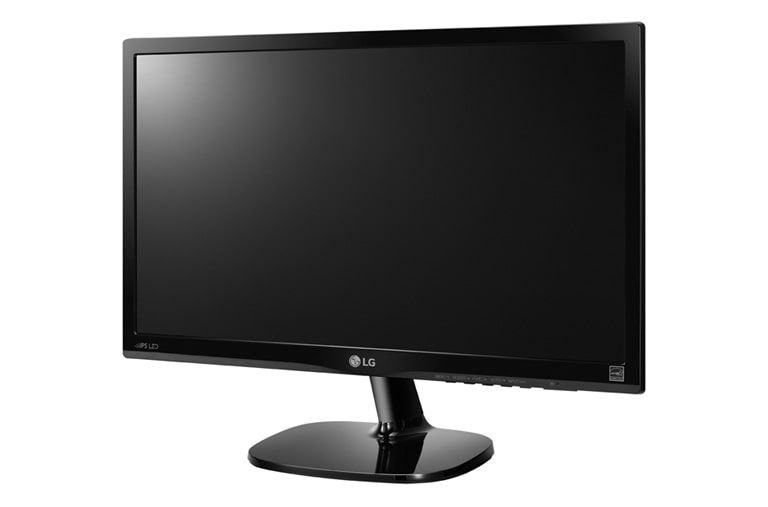

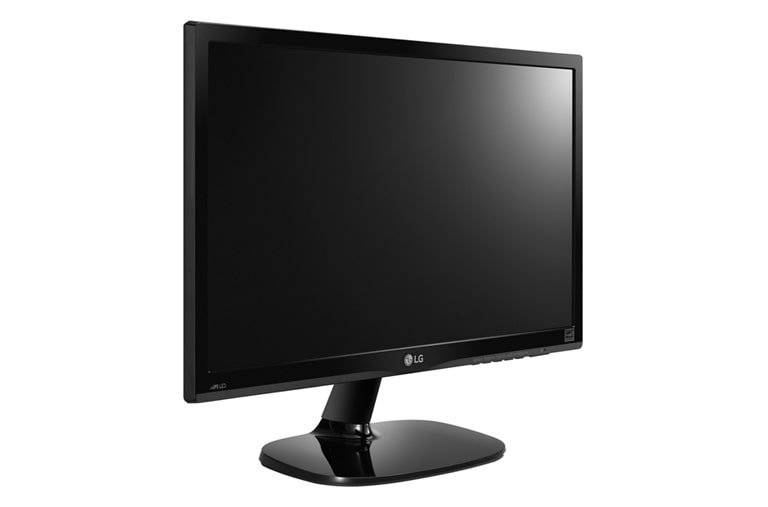

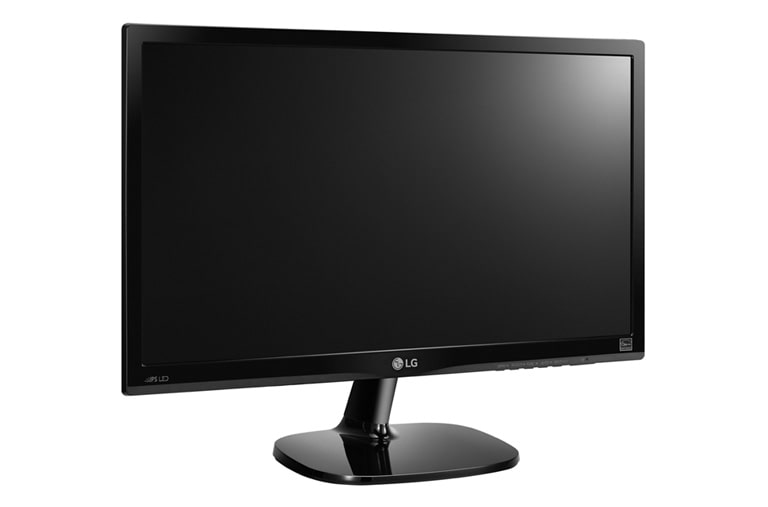

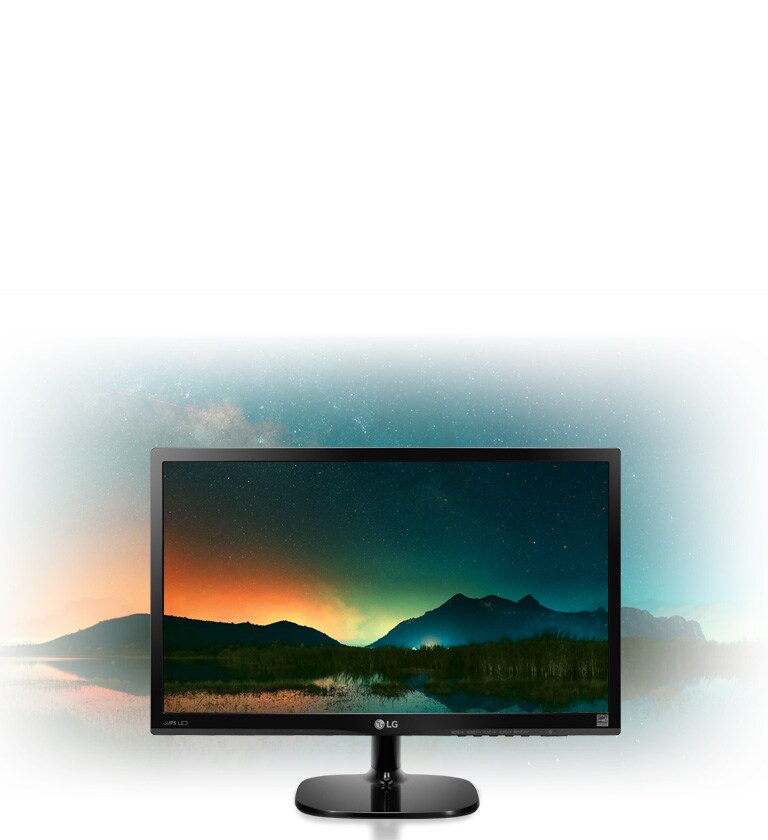

22'' Class Full HD IPS LED Monitor (22'' Diagonal)
  • IPS Display
  • Reader Mode / Flicker Safe
  • On Screen Control
  • Screen Split / PIP
  • Color Weakness Mode

component-OBScountrySelectDesc

22" Class Full HD IPS LED Monitor (22" Diagonal)
GENERAL
  • Size( Inch / cm)
    21.5“ / 54.6cm
    Panel Type
    IPS
  • Color Gamut (CIE1976)
    72%
    Color Depth (Num of Colours)
    16.7M colors
  • Pixel Pitch (mm)
    0.24795x0.24795
    Aspect Ratio
    16:9
  • Resolution
    1920*1080
    Brightness(Typ.)
    250cd/m2
  • Contrast Ratio(Original)
    1000:1
    (DFC)
    5M:1
  • (GTG)
    5ms
    Viewing Angle(CR≥10)
    178/178
  • Surface Treatment
    Anti-Glare,3H

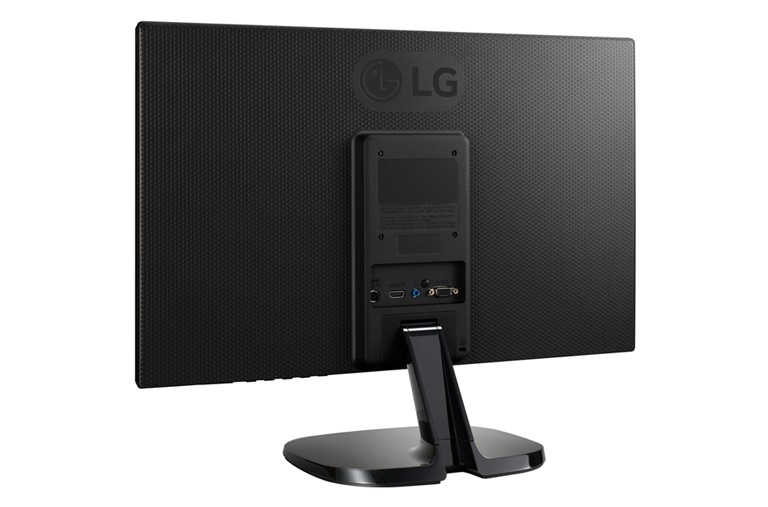

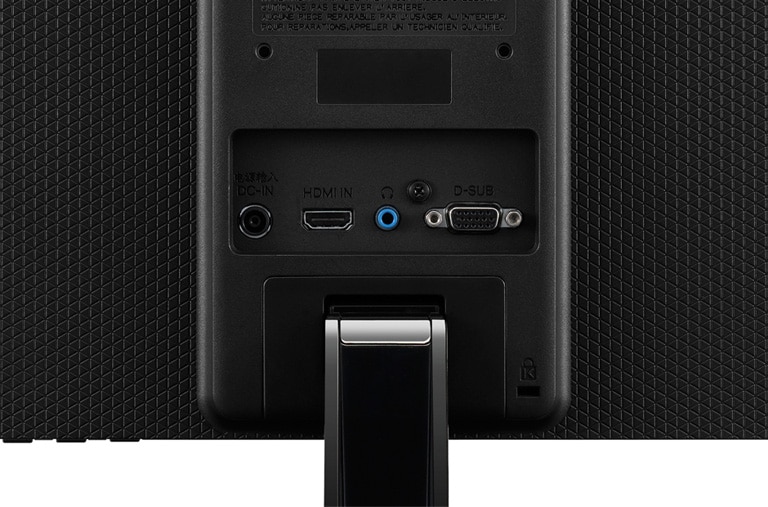

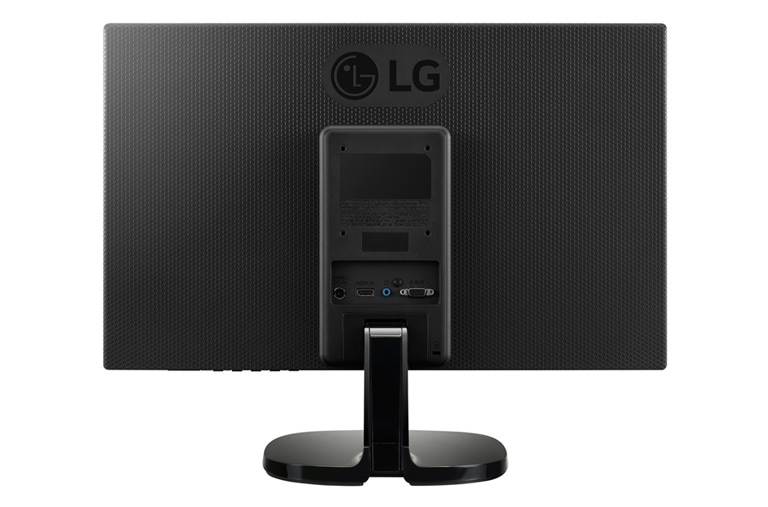

JACK INPUT/OUTPUT
  • Signal Input / D-Sub
    Yes
    Signal Input / HDMI
    Yes
  • Signal Input / Jack Location
    Back (horizontal)
    Audio Output / Jack Location
    Back
POWER
  • Input / Output (Type)
    Adapter
    Input
    100-240Vac, 50/60Hz
  • Output
    19V/1.3A
    Normal On(EPA)
    20W
  • Normal On (Typ.)
    23W
    Sleep Mode(Max)
    0.3W
  • DC Off(Max)
    0.3W
FREQUENCY
  • D-sub( H-Frequency)
    30~83kHz
    D-sub( V-Frequency)
    56~75Hz
  • HDMI H-Frequency
    30~83kHz
    HDMI V-Frequency
    PC : 56Hz ~ 75Hz AV : 50Hz ~ 61Hz
RESOLUTION
  • PC) D-sub
    1920*1080
    Digital (DVI-D / HDMI)
    1920*1080
  • Video / HDMI
    1080P
CONTROL KEY
  • Key Number (Power Key Included)
    6
    Key Type
    Tact type
  • LED Color(On mode)
    White
    LED Color(Power save mode)
    White Blinking
  • [Key Location]
    Bottom
OSD
  • Language/Country
    English, Germanic, French, Spanish, Italian, Swedish, Finnish, Portuguese, Polish, Russian, Greek, Chinese, Japanese, Korean, Ukrainian, Portuguese(Brazil), Hindi
    Number of Language
    17
SPECIAL FEATURE
  • Picture Mode
    Yes
    Reader Mode
    Yes
  • Original Ratio
    Yes
    DDC/CI
    Yes
  • HDCP
    Yes
    Intelligent Auto (Auto Adjustment)
    Yes
  • Key Lock
    Yes
    Plug & Play
    Yes
  • Response Time Control
    Yes
    Color weakness
    Yes
  • Flicker safe
    Yes
    Automatic Standby
    Yes
  • Six Axis Control
    Yes
    Smart Energy Saving
    Yes
  • True Color Pro
    Yes
    On Screen Control
    Yes
COLOR
  • Front
    Black high glossy
    B/Cover
    Black hairline + texture
  • Stand
    Black High glossy
    Base
    Black high glossy
  • Others
    Black Texture

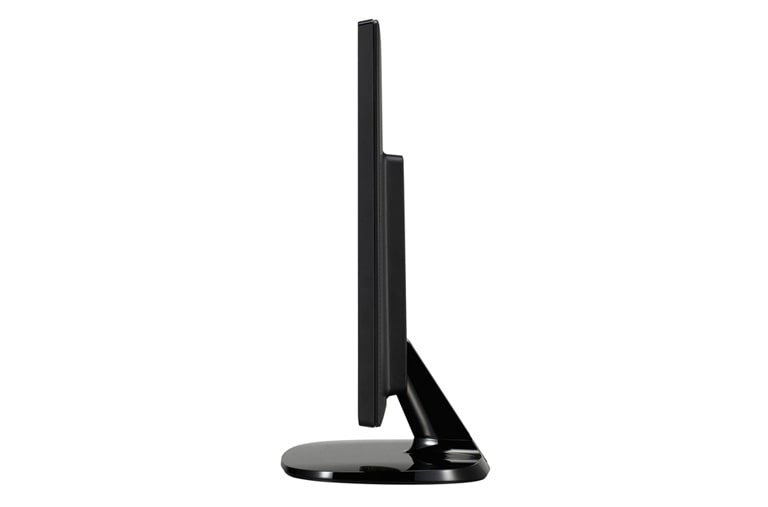

STAND
  • Base Detchable
    Yes
    Tilt (Angle)
    Yes / -5º (front) ~ 20º(rear)
DIMENSION (W * D * H)(MM)
  • Set (with Stand)
    508*187*387
    Set (without Stand)
    508*57*313
  • Box
    577x381x118
    Wall Mount size(mm)
    75 x75
WEIGHT(KG)
  • Set (with Stand)
    2.7kg
    Set (without Stand)
    2.5kg
  • Box
    4kg
WRAP
  • Packing Material
    EPS
    Stacking Type
    Face down
  • Box Printing Type
    Flexo
    Handle
    Hand hole
STANDARD
  • TCO 6.0
    Yes (6.0)
    UL(cUL)
    Yes
  • TUV-TYPE
    Yes
    FCC-B, CE
    Yes
  • EPA 6.0
    Yes
    ErP
    Yes
  • EPEAT
    Yes (Gold)
    Windows
    Yes (win10)
ACCESSORY
  • Power Cord
    Option
    D-Sub
    Option
  • HDMI
    Option
