Discontinued

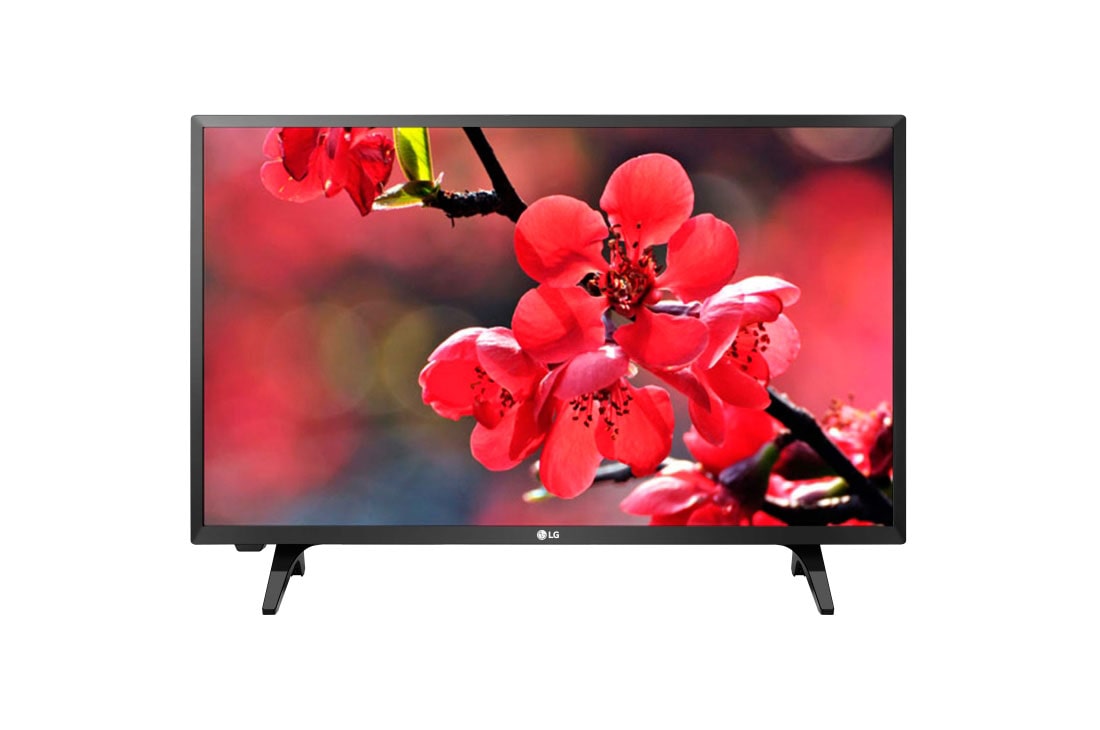

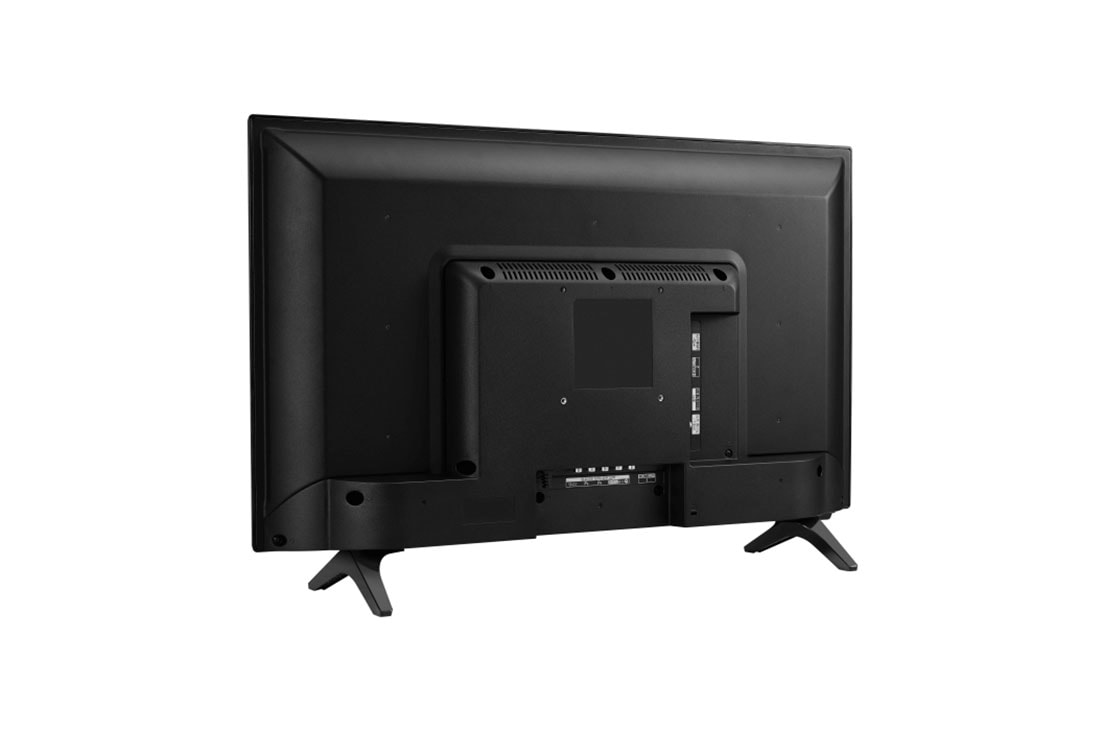

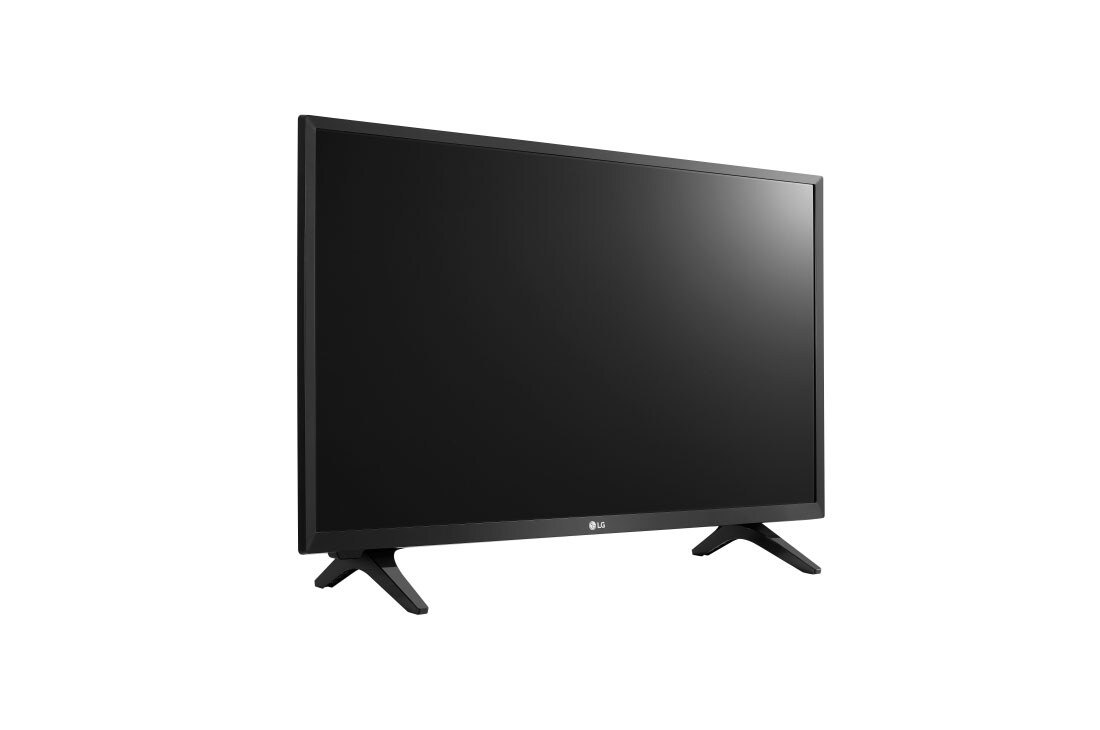

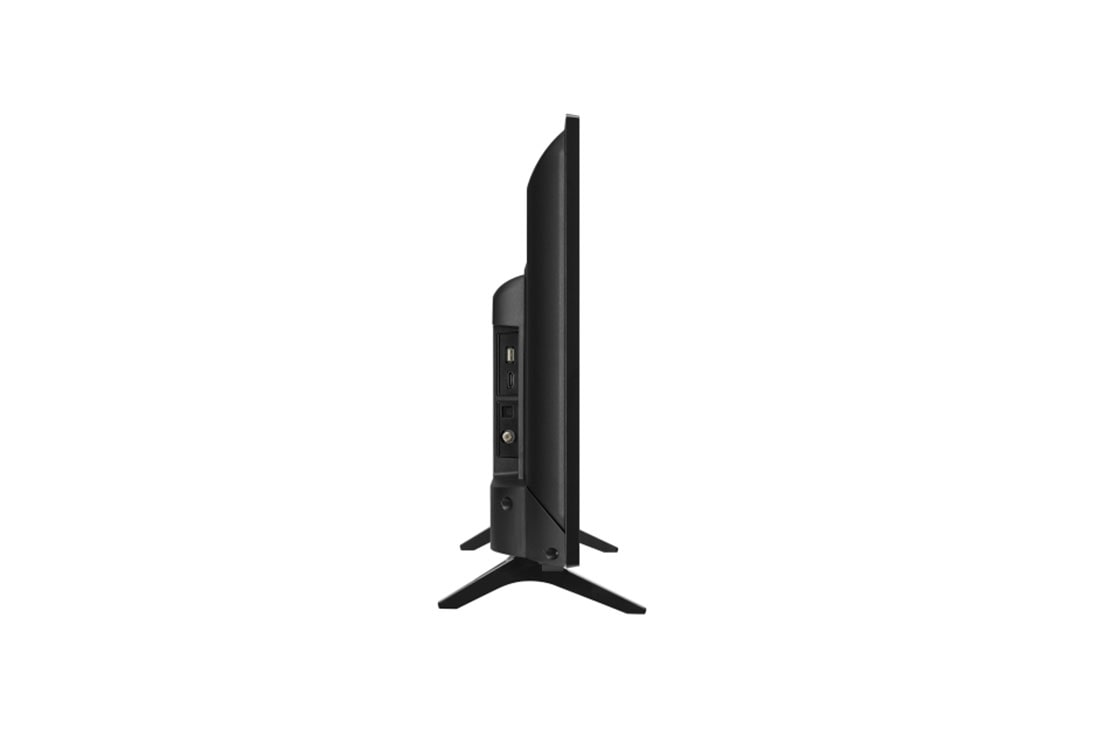

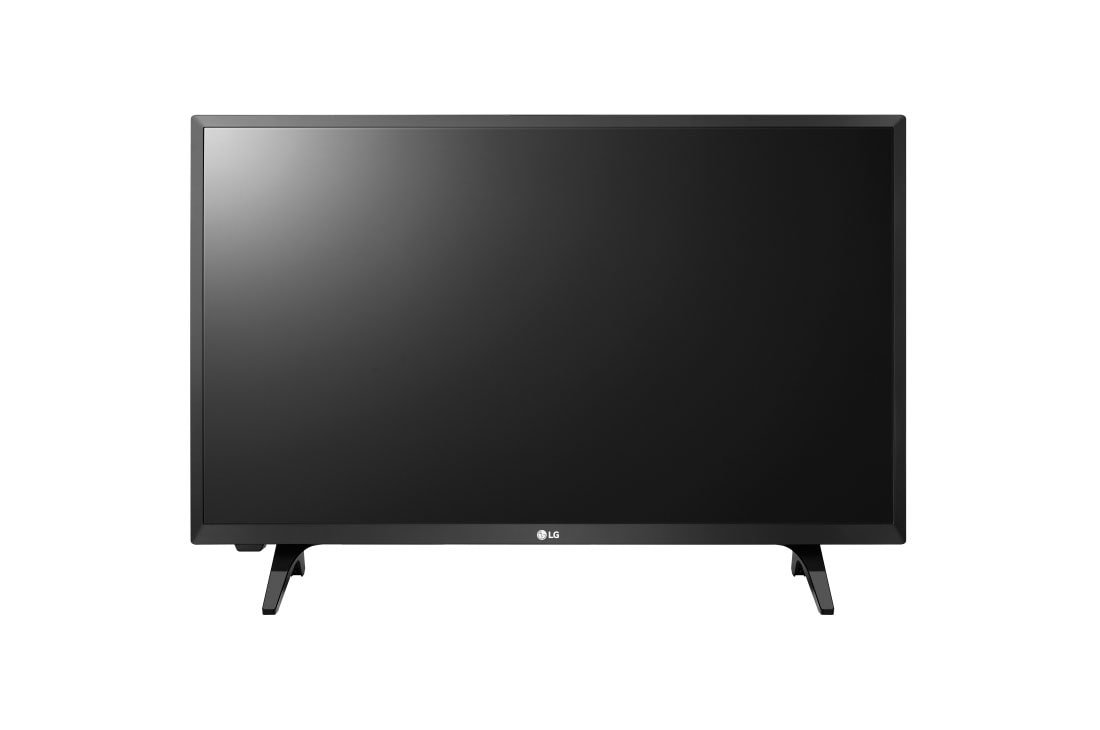

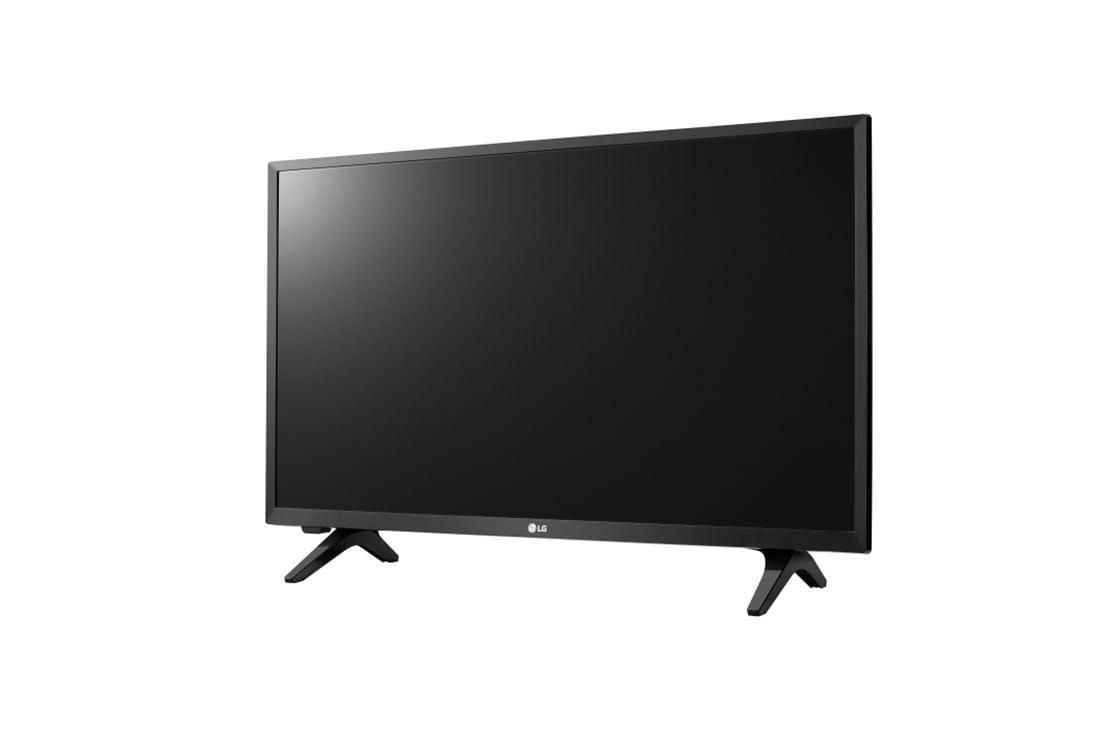

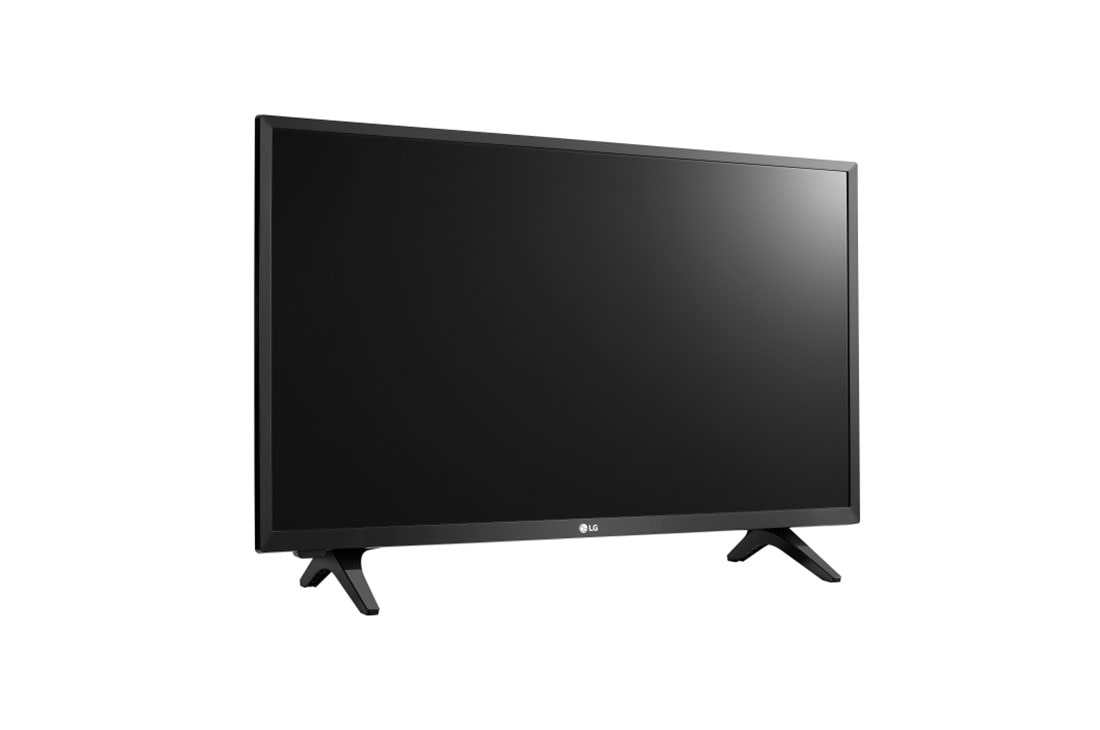

28TK430V-PT
Wide Viewing Angle Monitor
  • HDMI
  • USB Auto Run
  • Wide Viewing Angle
Wide Viewing Angle Monitor

FEATURE

  • Multi - Size (Inch/cm)
    27.5"/69.8cm
    Multi - Panel Type
    Wide Viewing Angle
  • Multi - Color Gamut (CIE1931)
    0.68
    Multi - Color Bit
    8bit
  • Multi - Color Depth (Number of Colors)
    16.7M
    Multi - Pixel pitch(mm)
    0.44475 x 0.44925
  • Multi - Aspect Ratio
    16:9
    Multi - Resolution
    1366 x 768
  • Multi - Brightness (Typ.)
    200 (typ.) 140 (Min.)
    Multi - Contrast Ratio (Original)
    1200:1 (typ.)
  • Multi - Response Time_Typ. (GTG)
    8ms
    Multi - Viewing Angle(CR≥10)
    178/178(CR≥10)
  • Multi - Surface Treatment(Glare/non Glare)
    Non Glare

JACK INPUT / OUTPUT

  • Signal Input - Composite
    Yes (1EA)
    Signal Input - Component
    Yes (1EA)
  • Signal Input - HDMI (Ver.)
    Yes (2EA, HDMI1.4)
    Signal Input - USB (Ver.)
    Yes (USB 2.0)
  • Signal Input - [ Jack Location ]
    Side/Bottom
    Audio Input - RCA
    Yes
  • Audio Input - [ Jack Location ]
    Bottom
    Audio Output - [ Jack Location ]
    Bottom
  • Tuner Input - Digital
    DVB-T/T2/C
    Tuner Input - Analog
    PAL BGIDK SECAM BGDK NTSC M
  • Tuner Input - [ Jack Location ]
    Side

SPEAKER

  • Type
    Internal
    Audio Output
    5W x 2

POWER

  • Input/Output - Type (w/ Watt)
    PSU (55W)
    Input/Output - Input
    100~240 V
  • Consumption - Normal On(typ.)
    45W
    Consumption - DC Off(Max)
    <0.5W

FREQUENCY

  • HDMI - H-Frequency
    15.63kHz ~ 67.5kHz
    HDMI - V-Frequency
    23.976Hz ~ 70Hz

RESOLUTION

  • PC - HDMI
    1366 x 768
    Video - HDMI
    480i, 576i, 480p, 576p 720p, 1080i, 1080p
  • Video - Component
    480i, 576i, 480p, 576p 720p, 1080i, 1080p
    Video - Composit
    480i, 576i

CONTROL KEY

  • Key Number (Power Key Included)
    1 Key
    Key Type
    Tact
  • LED Color(On mode)
    Off
    LED Color(Standby)
    Red
  • [ Key Location ]
    Bottom (side)

OSD

  • Language - Country
    8 Ghana, Indonesia, Kenya, Malaysia, Morocco, Thailand, UAE, Vietnam
    Language - Number of Language
    21 Arabic, Cantonese, English, French, German, Hebrew, Indonesian, Hindi, Italian, Japanese, Korean, Mandarin, Maori, Persian, Russian, Spanish, Vietnamese, Chinese, Bahasa Melayu, Thai, Tamil

SPECIAL FEATURE

  • General Function - HDCP
    Yes
    General Function - Remote Control
    Yes
  • General Function - Plug & Play
    Yes
    Accessibility - EPG
    Yes
  • Accessibility - Teletext
    Yes
    Accessibility - Audio Description (Visual Impaired)
    Yes
  • Special Function - Divx HD player (USB Media Player)
    Yes (without DivX codec)
    Special Function - Smart Energy Saving
    No (Energy Saving)
  • Picture - Picture Mode
    Vivid/Standard/APS/Cinema/Soccer/Game
    Picture - ARC-PC
    16:9, 4:3
  • Picture - ARC-Video
    Original/4:3/16:9/14:9/Zoom/Full Wide/Just Scan
    Sound - AVL (Auto Volume)
    Yes
  • Sound - Equalizer
    No (Treble/Bass)
    Time / Clock - Auto / Manual Clock
    Yes
  • Time / Clock - On/ Off Time
    Yes
    Time / Clock - Sleep Timer
    Yes
  • Time / Clock - Auto Off / Auto Sleep
    Yes

COLOR

  • Front
    Black Glossy
    B/Cover
    Texture
  • Stand
    Glossy+hair line
    Base
    Glossy+hair line

STAND

  • Base Detchable
    Detachable

SIZE / WEIGHT

  • Dimension (WxDxH) (mm) - Set (with Stand)
    TBD
    Dimension (WxDxH) (mm) - Set (without Stand)
    TBD
  • Dimension (WxDxH) (mm) - Box
    TBD
    Dimension (WxDxH) (mm) - Wall Mount
    100 x 100
  • Weight (kg) - Set (with Stand)
    TBD
    Weight (kg) - Set (without Stand)
    TBD
  • Weight (kg) - Box
    TBD
    Stuffing - Pallet(20ft/40ft/40ft HC)
    TBD

WRAP

  • Packing Material
    EPS
    Stacking Type
    Vertical
  • Stand Packing Type
    Base Detach
    Box Printing Type
    Flexo
  • Handle
    No (Hand hole)

ACCESSORY

  • Power cord
    Yes (attached)
    Remote Controller
    Yes
