LG DUALCOOL 1.5 ton Split AC, Dual Inverter

Key Features

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (I23TTB)
    AED
    AED
    LG Members Price
Total

component-OBScountrySelectDesc

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (I23TTB)
    AED
    AED
    LG Members Price
Total
LG DUALCOOL 1.5 ton Split AC, Dual Inverter
  •  Dual Inverter Compressor™1

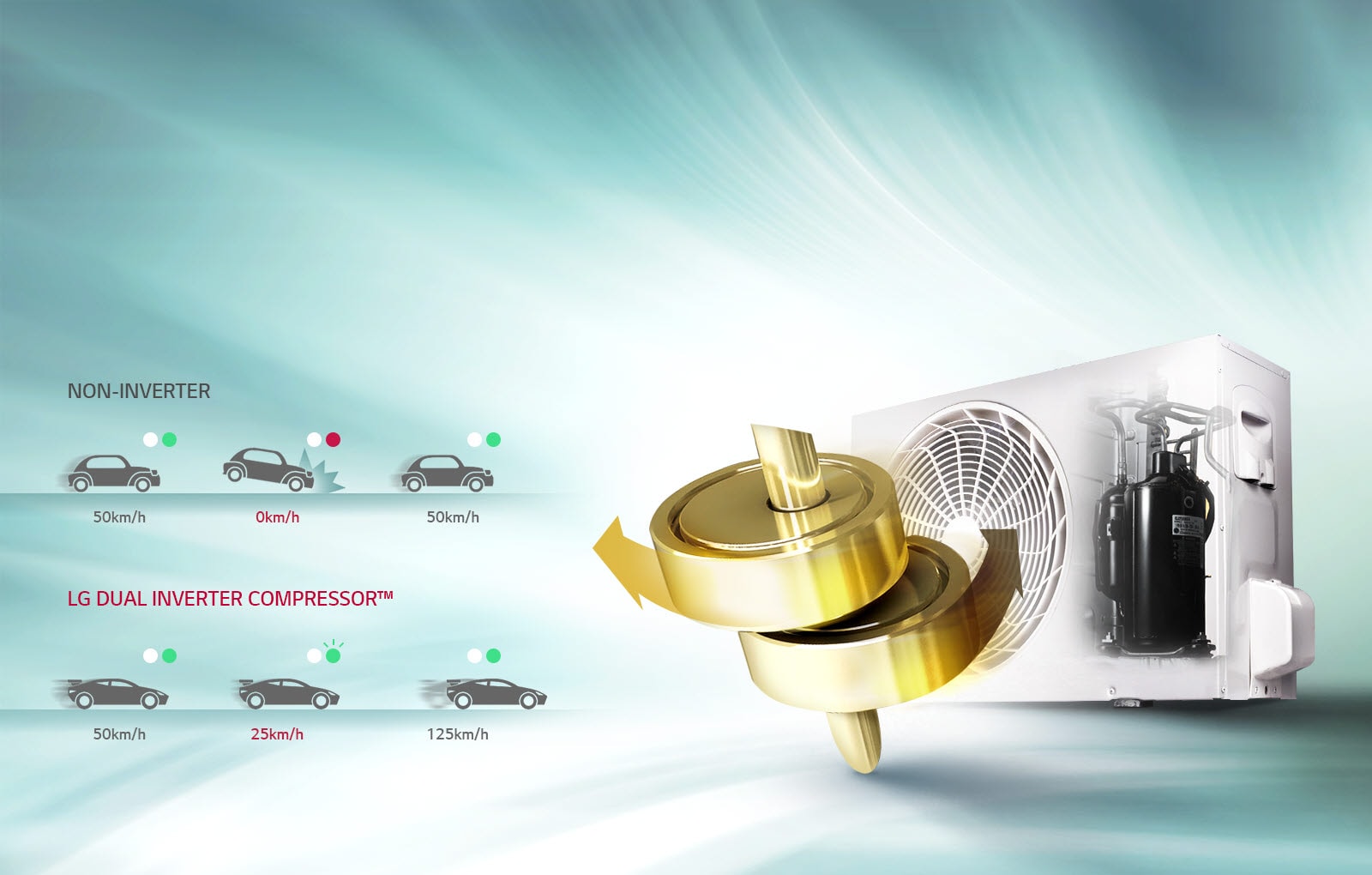

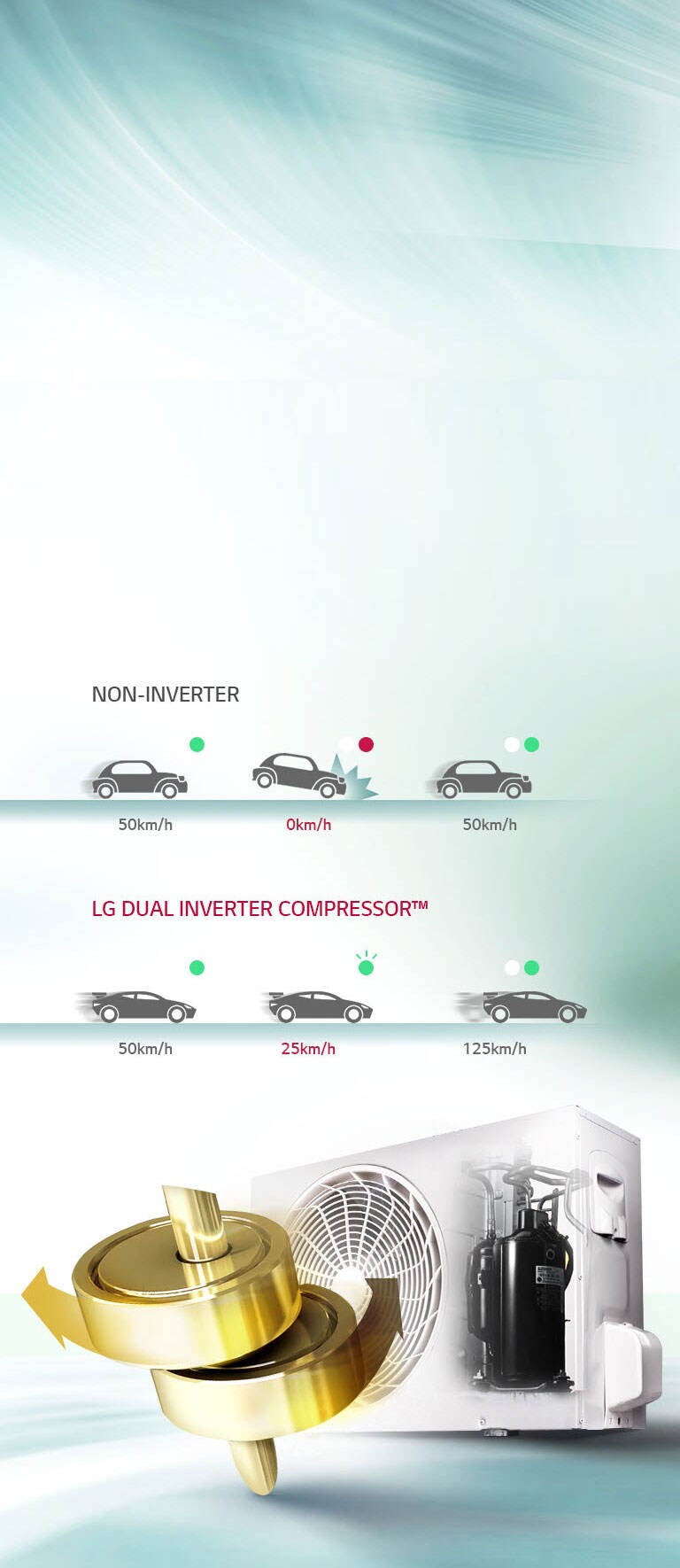

    Dual Inverter Compressor™

    A compressor with a wider rotational frequency saves more energy and has a faster cooling range

  • 10 Year Warranty1

    10 Year Warranty

    Verification obtained from TUV Rheinland for 10-year product life cycle

  • TUV Rheinland1

    TUV Rheinland

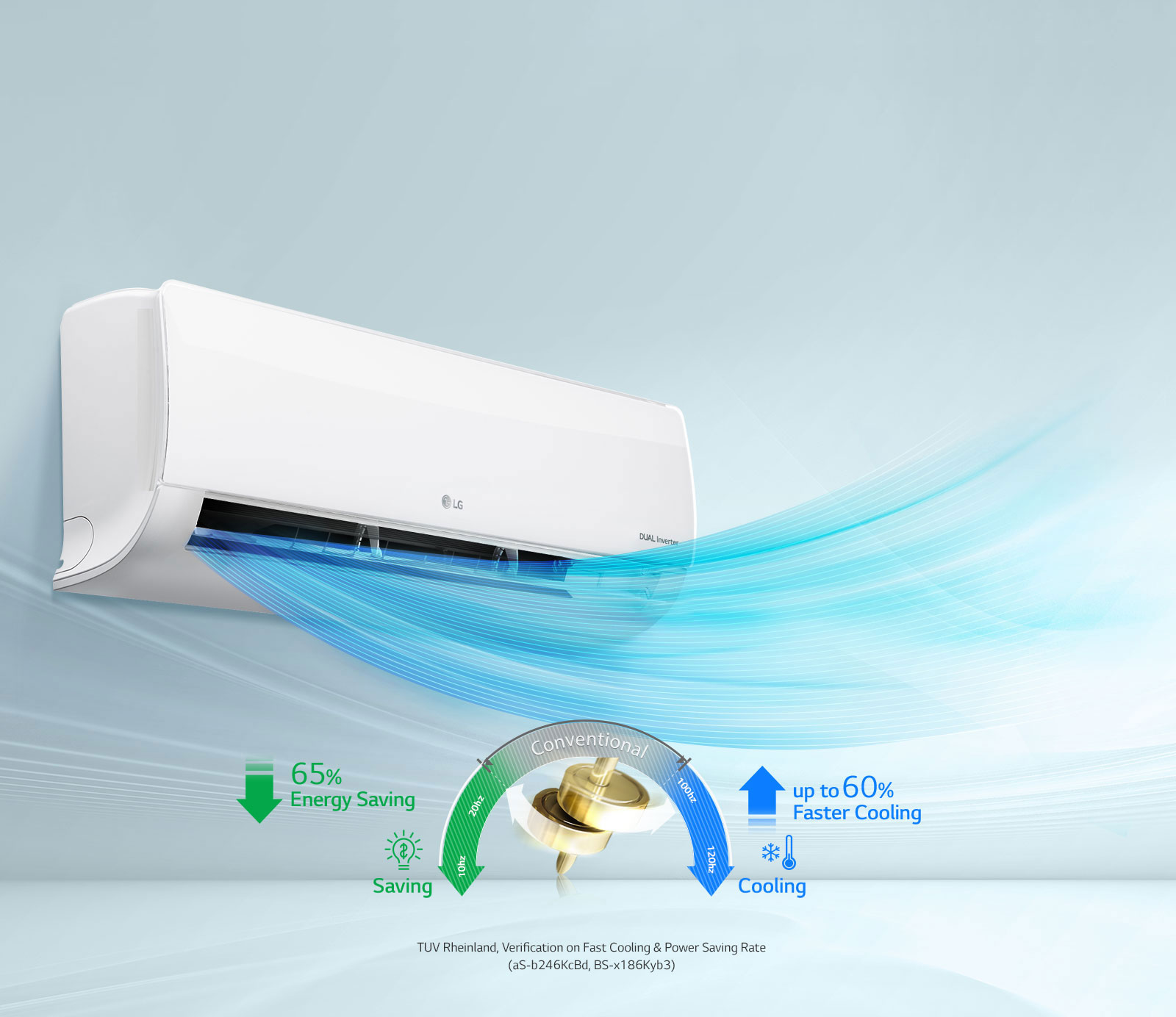

    TUV Rheinland, Verification on Fast Cooling & Power Saving Rate(aS-b246KcBd, BS-x186Kyb3)

4Way Swing1

4Way Swing

LG air conditioners deliver cool air to every corner of your room. The 4 way swing function blows the air quickly and efficiently in many direction.
  • Vertical 6 Steps Louver Control1

    Vertical 6 Steps Louver Control

    Users can choose the vane direction among 6 preset positions to meet the exact wind blow direction you desire.

  • Horizontal 5 steps Louver Control1

    Horizontal 5 steps Louver Control

    Direction of vertical louver can be adjusted from step 1 to 5, left & right, with full auto swing. This function also allows the air conditioner to cool specific areas in only a short period of time.

  • Comfort Sleep1

    Comfort Sleep

    Avail the utmost comfort sleep environment by automatically adjusting 3 different functions(Indirect airflow/7hr off time set/Soft wind & sleep time logic), with the simple click of button.

  • Gold Fin™1

    Gold Fin™

    The Gold Fin™ ensures that the surface is more resistant to corrosion and enhances the durability of heat exchanger for a much longer period.

  • Auto Cleaning1

    Auto Cleaning

    It prevents forming of bacteria & mold on the heat exchanger. Thus provides a pleasant environment.

  • Dual Protection Filter1

    Dual Protection Filter

    The Dual Protection Filter captures dust size over 10㎛ and bacteria.

  • Silent Mode1

    Silent Mode

    LG's unique new skew fan & low vibration compressor technology achieve world's lowest sound levels.

Recommended Products

  I23TCP I23SCP
I23TCP
I23SCP
Features
DUALCOOL Inverter AC 1.5 Ton, 65°Operation, 65% Energy Saving, 60% Faster cooling
DUALCOOL Inverter AC 1.5 Ton, 65°Operation, 65% Energy Saving, 60% Faster cooling
Capacity 1.5 Ton 1.5 Ton
Dimension Indoor 998 x 345 x 210 / Outdoor 870 x 650 x 330 Indoor 998 x 345 x 210 / Outdoor 870 x 650 x 330
Dual Inverter Compressor™ Yes Yes
Faster Cooling Yes Yes
ThinQ NA NA
  where to buy where to buy


Features
Capacity
Dimension
Dual Inverter Compressor™
Faster Cooling
ThinQ

I23TCP I23SCP
I23TCP
I23SCP
DUALCOOL Inverter AC 1.5 Ton, 65°Operation, 65% Energy Saving, 60% Faster cooling
DUALCOOL Inverter AC 1.5 Ton, 65°Operation, 65% Energy Saving, 60% Faster cooling
1.5 Ton 1.5 Ton
Indoor 998 x 345 x 210 / Outdoor 870 x 650 x 330 Indoor 998 x 345 x 210 / Outdoor 870 x 650 x 330
Yes Yes
Yes Yes
NA NA
where to buy where to buy

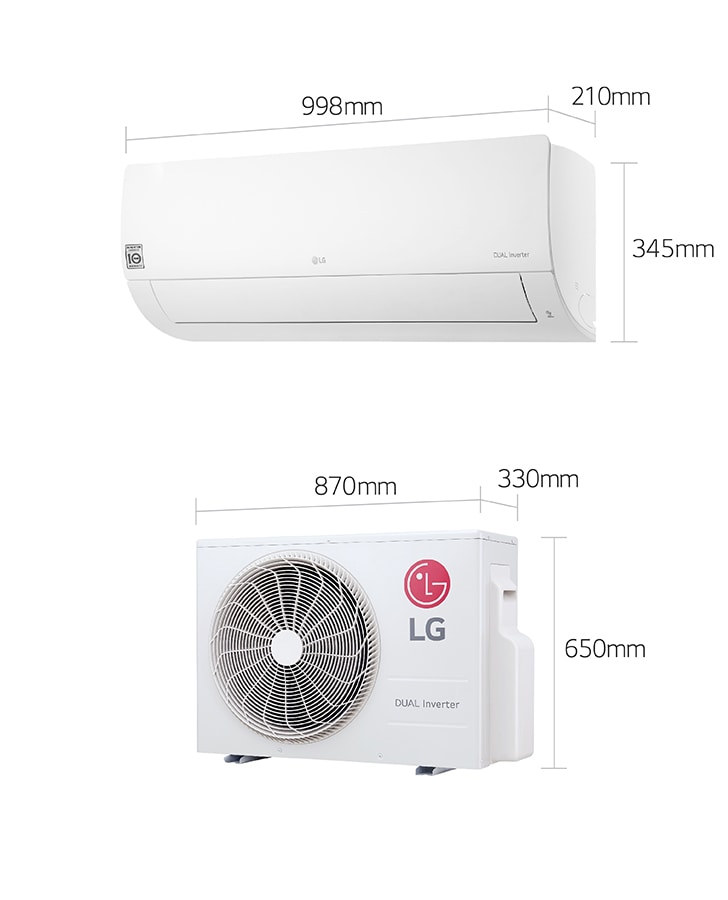

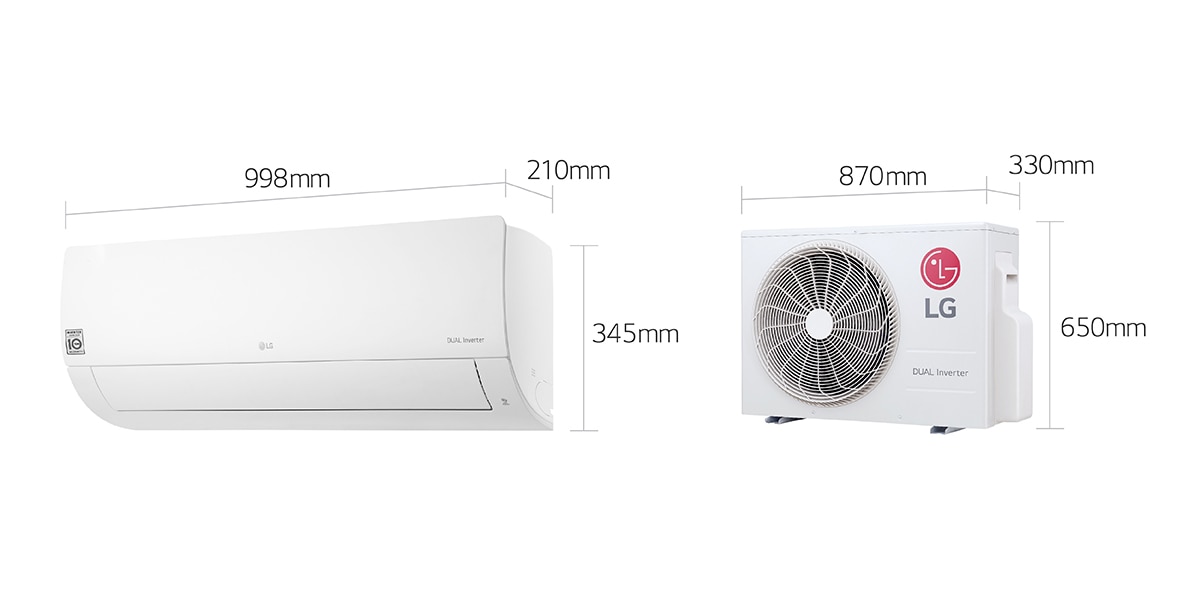

Dimensions
I23TTB I23TTB
SPEC SUMMARY
  • Capacity
    1.5 Ton
  • Dimension (W x H x D) mm
    Indoor 998 x 345 x 210 / Outdoor 870 x 650 x 330
  • Main Technology
    65°C Dual Inverter Compressor™
  • Additional Benefit
    10 Year Warranty
CAPACITY
  • Cooling - Min ~ Rated ~ Max(kW)
    0.90/5.28/6.89
    Cooling - Min ~ Rated ~ Max(Btu/h)
    3,070/18,000/23,500
  • Cooling (T3) - Min ~ Rated ~ Max(kW)
    0.79/4.5/6.15
    Cooling (T3) - Min ~ Rated ~ Max(Btu/h)
    2,700/15,300/21,000
POWER INPUT
  • Cooling - Min ~ Rated ~ Max(W)
    320/1452/2900
    Cooling (T3) - Min ~ Rated ~ Max(W)
    374/1759/2900
RUNNING CURRENT
  • Cooling - Min ~ Rated ~ Max(A)
    1.45/6.5/14
    Cooling (T3) - Min ~ Rated ~ Max(A)
    1.77/7.5/14
EER
  • EER(W/W)
    3.64
    EER((Btu/h)/W)
    12.4
EER(T3)
  • EER (T3)(W/W)
    2.56
    EER (T3)((Btu/h)/W)
    8.7
ENERGY LABEL GRADE
  • Cooling / Heating
    4
POWER SUPPLY
  • Ø / V / Hz
    1 , 220 ~ 240 ,50
AVAILABLE VOLTAGE RANGE
  • Available Voltage Range(V)
    187~276
POWER FACTOR
  • Cooling / Heating(%)
    98
MOISTURE REMOVAL
  • Moisture Removal(l/h)
    0.95
INDOOR
  • Air Flow Rate - Cooling, Max / H / M / L(㎥/min)
    19.0/14.5/13.0/10.5
    Sound Pressure Level - Cooling, Max / H / M / L / SL(dB(A))
    -/46/42/37/28
  • Dimensions (W × H × D) - Net(mm)
    998 x 345 x 210
    Dimensions (W × H × D) - Shipping(mm)
    1068 × 425 × 279
  • Weight - Net(kg)
    11.3
    Weight - Shipping(kg)
    13.4
  • Exterior Color Code
    Munsell 7.5BG 10/2 (RAL 9016)
OUTDOOR
  • Air Flow Rate - Max(㎥/min)
    49
    Sound Pressure Level - Cooling, Rated(dB(A))
    55
  • Dimensions (W × H × D) - Net(mm)
    870 x 650 x 330
    Dimensions (W × H × D) - Shipping(mm)
    1040 x 710 x 455
  • Weight - Net(kg)
    41
    Weight - Shipping(kg)
    45
  • Max. Fuse Size(A)
    20
    Exterior Color Code
    Munsell 9.54Y 8.34/1.31 (RAL 9001)
  • Operation Range - Cooling(℃ DB)
    18 ~ 54
CIRCUIT BREAKER
  • Circuit Breaker(A)
    25
POWER SUPPLY CABLE
  • Power Supply Cable(No. × ㎟)
    3 x 2.5
POWER SUPPLY TO UNIT
  • Power Supply to Unit
    Outdoor
POWER AND COMMUNICATION CABLE
  • Power and Communication Cable(No. × ㎟)
    4 x 0.75
PIPING
  • Size - Liquid(mm)
    Ø 6.35
    Size - Gas(mm)
    Ø 12.7
  • Connections Method - Indoor / Outdoor
    Flared / Flared
DRAIN HOSE SIZE
  • O.D, I.D(mm)
    21.5 , 16.0
BETWEEN INDOOR & OUTDOOR
  • Piping Length - Min / Standard / Max(m)
    3/5/30
    Piping Length - No Charge(m)
    7.5
  • Max. Elevation Difference(m)
    25
    Piping Connection Heat Insulation
    Both liquid and Gas Pipes
REFRIGERANT
  • Type
    R410A
    Pre Charge(g)
    1300
  • Additional Charge(g/m)
    15
    Control
    Electronics Expansion Valve
TOOL CODE(CHASSIS)
  • Indoor / Outdoor
    SK / U24A
COMPRESSOR
  • Type
    Dual Inverter Compressor
    Model
    GAT156MCA
  • Motor Type
    BLDC
    Oil Type / Maker
    POE (RB68A) / Sun Oil or Jx
    Nippon
  • Oil Charge (cc)
    400
    Manufacturer / Country of Origin
    LG Electronics/China
FAN(INDOOR)
  • Type
    Cross Flow Fan
    Motor Output(W)
    30
FAN(OUTDOOR)
  • Type
    Propeller Fan
    Motor Type
    BLDC
  • Motor Output (W)
    85
    Motor Insulation
    Class E
  • Motor Enclosure / Ingress Protection
    TEAO/IPX4
HEAT EXCHANGER
  • Evaporator - Material, Tube / Fin
    Cu/Al
    Evaporator - Corrosion Protection
    PCM
  • Condenser - Material, Tube / Fin
    Cu/Al
    Condenser - Corrosion Protection
    Gold
  • Condenser - Fin Type
    Louver
