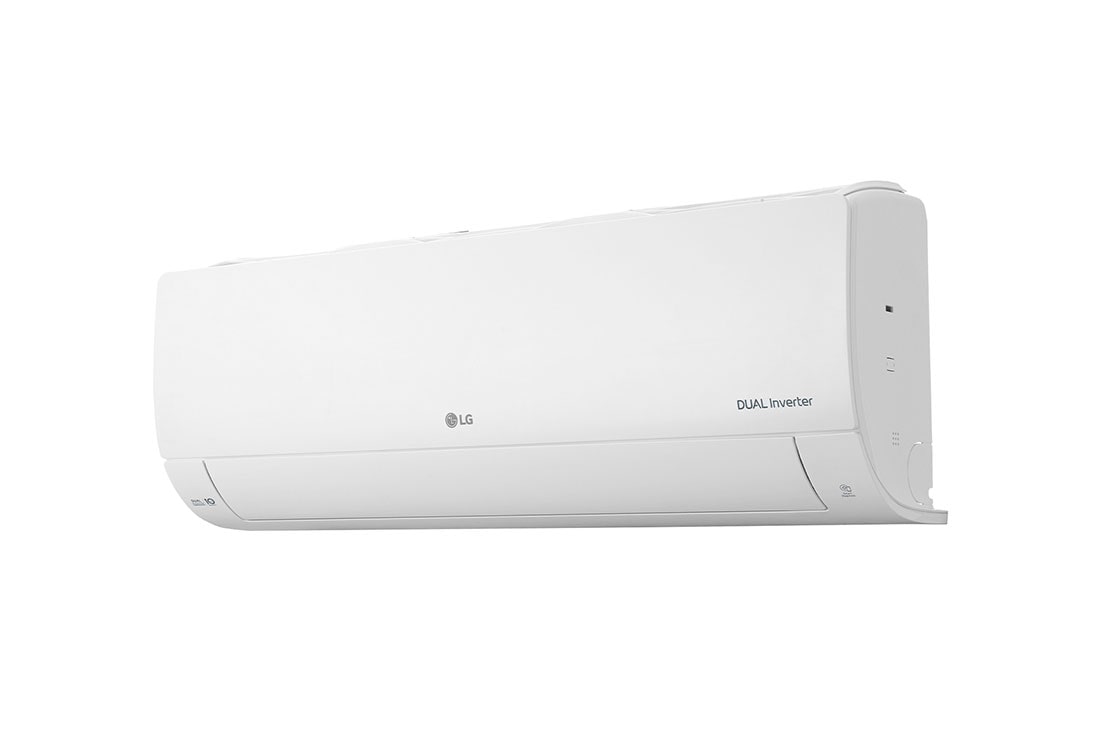

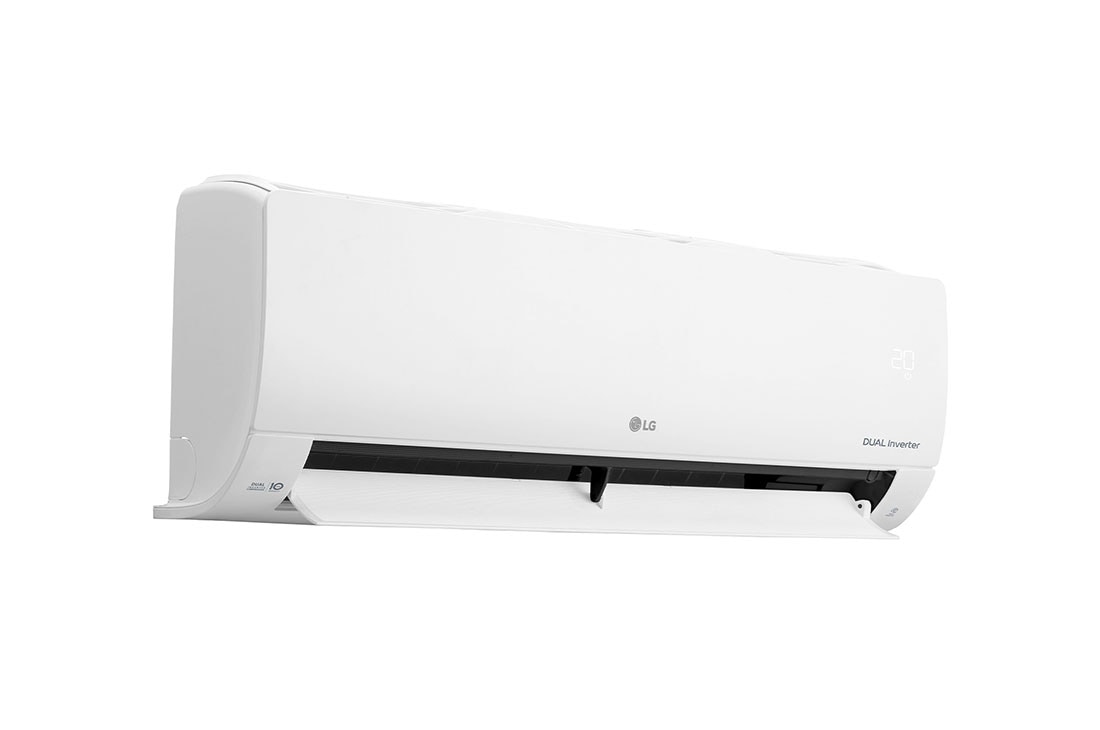

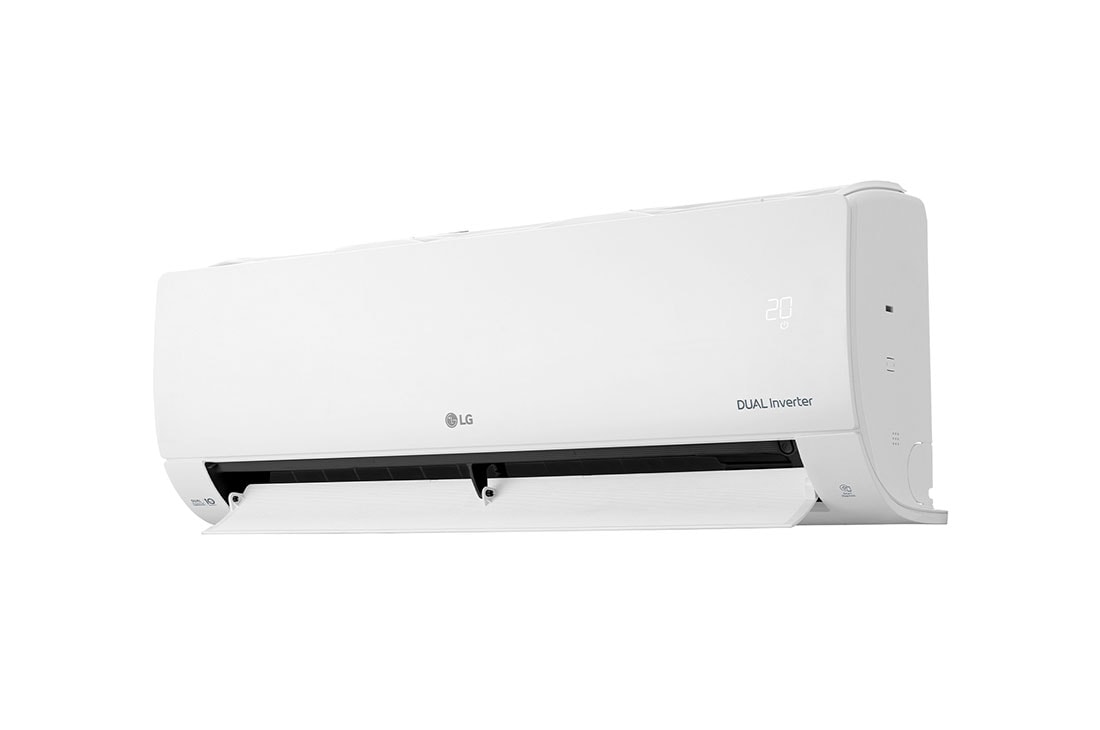

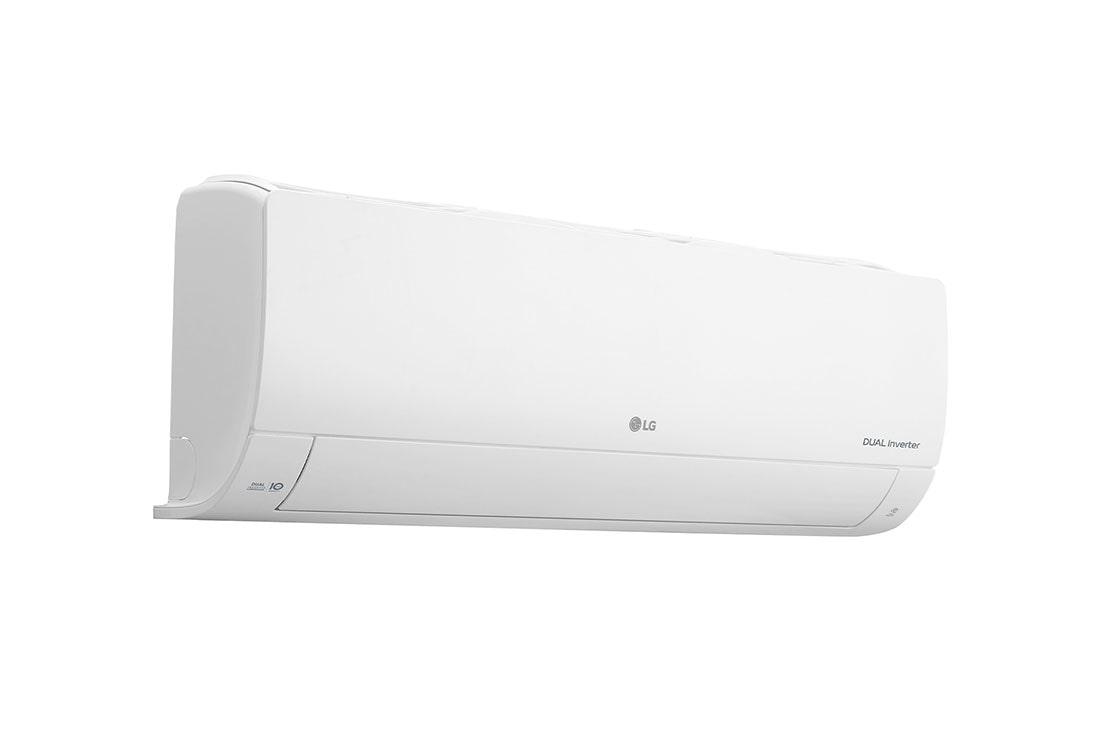

DUALCOOL AC 2 Ton, Faster Cooling, Energy Saving, Less Noise

Key Features

component-OBScountrySelectDesc

DUALCOOL AC 2 Ton, Faster Cooling, Energy Saving, Less Noise

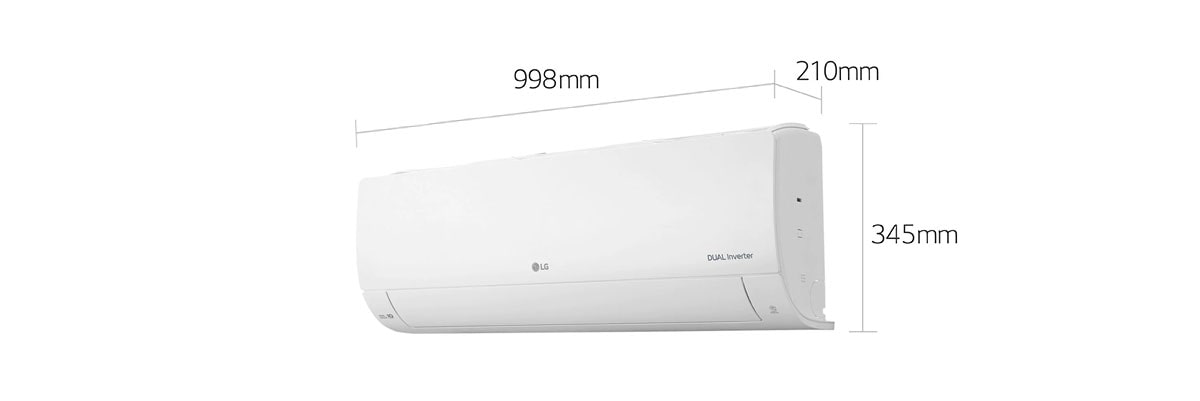

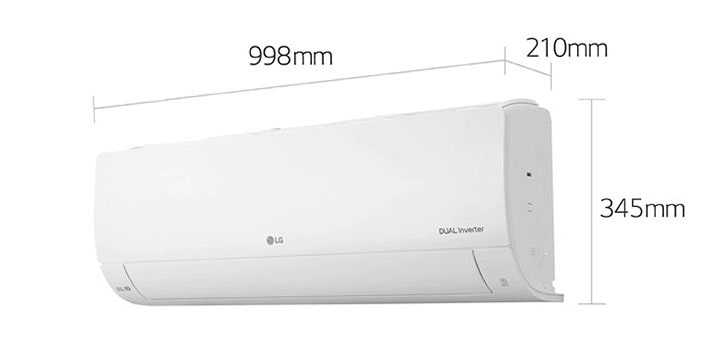

Dimensions
I27TNB I27TNB
SPEC SUMMARY
  • Capacity
    2 Ton
  • Dimension (W x H x D) mm
    998 x 345 x 210
  • Main Technology
    Dual Inverter Compressor™
  • Additional Benefit
    10 Year Warranty
CAPACITY
  • Cooling - Min ~ Rated ~ Max(kW)
    0.900 / 6.450 / 7.474
    Cooling - Min ~ Rated ~ Max(Btu/h)
    3070/ 22000 / 25500
  • Cooling (T3) - Min ~ Rated ~ Max(kW)
    0.790 / 5.420 / 6.740
    Cooling (T3) - Min ~ Rated ~ Max(Btu/h)
    2700 / 18500 / 22000
POWER INPUT
  • Cooling - Min ~ Rated ~ Max(W)
    340 / 1818 / 2800
    Cooling (T3) - Min ~ Rated ~ Max(W)
    404 / 2127 / 2800
RUNNING CURRENT
  • Cooling - Min ~ Rated ~ Max(A)
    1.65 / 8.10 / 14.00
    Cooling (T3) - Min ~ Rated ~ Max(A)
    1.96 / 9.70 /14.00
EER
  • EER(W/W)
    3.55
    EER((Btu/h)/W)
    12.10
EER(T3)
  • EER (T3)(W/W)
    2.55
    EER (T3)((Btu/h)/W)
    8.70
ENERGY LABEL GRADE
  • Cooling / Heating
    2
ANNUAL ENERGY CONSUMPTION
  • Cooling / Heating(kWh/year)
    4254
POWER SUPPLY
  • Ø / V / Hz
    1, 220-240, 50
AVAILABLE VOLTAGE RANGE
  • Available Voltage Range(V)
    187 ~ 276
POWER FACTOR
  • Cooling / Heating(%)
    98
MOISTURE REMOVAL
  • Moisture Removal(l/h)
    2.50
INDOOR
  • Air Flow Rate - Cooling, SH / H / M / L(m³/min)
    19.0 / 14.0 / 12.5 / 10.0
    Sound Pressure Level - Cooling, H / M / L / SL(dB(A))
    45 / 42 / 38 / 29
  • Dimensions (W × H × D) - Net(mm)
    998 x 345 x 210
    Dimensions (W × H × D) - Shipping(mm)
    1076 x 433 x 287
  • Weight - Net(kg)
    11.7
    Weight - Shipping(kg)
    13.3
  • Exterior Color Code
    Munsell 7.5BG 10/2 (RAL 9016)
OUTDOOR
  • Air Flow Rate - Max(㎥/min)
    49.0
    Fan Motor Speed - Cooling, Min ~ Max(rpm)
    190 ~ 900
  • Sound Pressure Level - Cooling, Rated(dB(A))
    56
    Dimensions (W × H × D) - Net(mm)
    870 x 650 x 330
  • Dimensions (W × H × D) - Shipping(mm)
    1040 x 710 x 455
    Weight - Net(kg)
    43.600
  • Weight - Shipping(kg)
    47.100
    Max. Fuse Size(A)
    25.000
  • Exterior Color Code
    Munsell 9.54Y 8.34/1.31 (RAL 9001)
    Operation Range - Cooling(℃ DB)
    18 ~ 54
CIRCUIT BREAKER
  • Circuit Breaker(A)
    25
POWER SUPPLY CABLE
  • Power Supply Cable(No. × ㎟)
    3 x 2.5
POWER SUPPLY TO UNIT
  • Power Supply to Unit
    Outdoor
POWER AND COMMUNICATION CABLE
  • Power and Communication Cable(No. × ㎟)
    4 x 0.75
PIPING
  • Size - Liquid(mm)
    Ø 6.35
    Size - Gas(mm)
    Ø 15.88
  • Connections Method - Indoor / Outdoor
    Flared / Flared
DRAIN HOSE SIZE
  • O.D, I.D(mm)
    21.5, 16
BETWEEN INDOOR & OUTDOOR
  • Piping Length - Min / Standard / Max(m)
    3 / 5 / 30
    Piping Length - No Charge(m)
    7.5
  • Max. Elevation Difference(m)
    25
    Piping Connection Heat Insulation
    Both liquid and Gas Pipes
REFRIGERANT
  • Type
    R410A
    Pre Charge(kg)
    1.480
  • Additional Charge(g/m)
    20
    Control
    Electronic Expansion Valve
  • Global Warning Potential
    2087.5
    t-CO₂ eq
    3.090
DEFROST METHOD
  • Defrost Method
    Reverse Cycle
TOOL CODE(CHASSIS)
  • Indoor / Outdoor
    SK / U24A
COMPRESSOR
  • Type
    Twin Rotary
    Model
    DKT176MAJ
  • Motor Type
    BLDC
    Oil Type / Maker
    PVE (FVC68D) / IDEMITSU
  • Oil Charge (cc)
    470
    Manufacturer / Country of Origin
    LG Electronics / China
FAN(INDOOR)
  • Type
    Cross Flow Fan
    Motor Output(W)
    60
FAN(OUTDOOR)
  • Type
    Propeller, Fan
    Motor Type
    BLDC
  • Motor Output (W)
    85
    Motor Insulation
    Class E
  • Motor Enclosure / Ingress Protection
    TEAO / IPX4 / 0
HEAT EXCHANGER
  • Evaporator - Material, Tube / Fin
    Cu / Al
    Evaporator - (ø x Row x Column x FPI x L) x Qty.(#1)
    (ø7 x 2 x 16 x 20 x 744) x 1
  • Evaporator - Corrosion Protection
    PCM
    Evaporator - Fin Type
    Wide Louver Plus
  • Condenser - Material, Tube / Fin
    Cu /Al
    Condenser - (ø x Row x Column x FPI x L) x Qty.(#1)
    (ø 7 x 2 x 28 x 14 x 940) x 1
  • Condenser - Corrosion Protection
    Gold
    Condenser - Fin Type
    Wide Louver Plus
