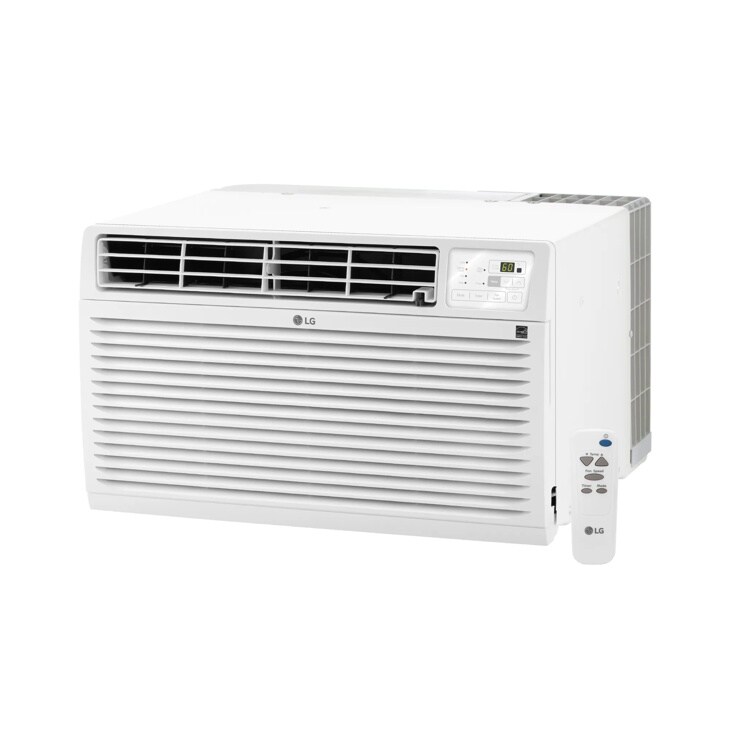

LT1016CER

10,000 BTU 115v Through-the-Wall Air Conditioner

$549.99

KEY FEATURES

  • ENERGY STAR® Qualified

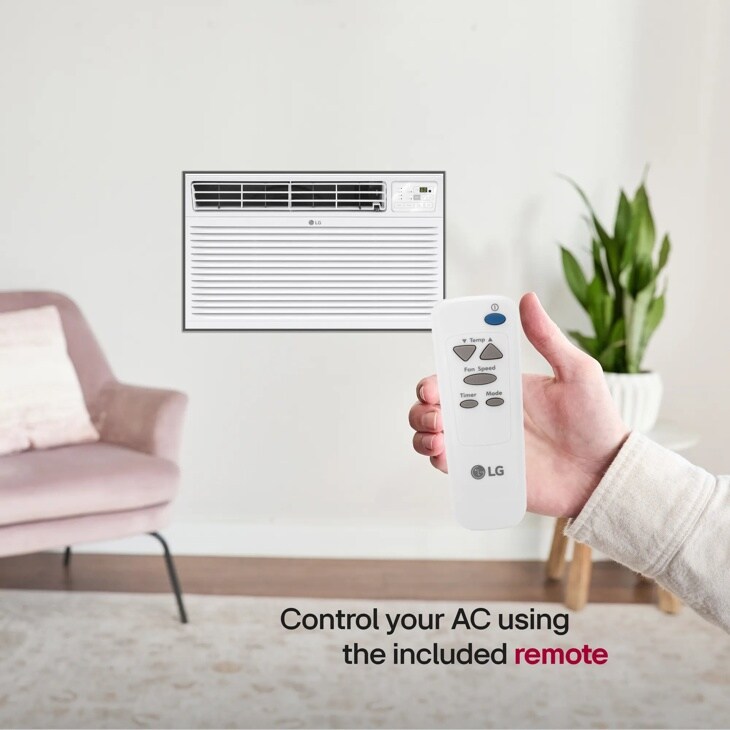

  • Remote Control
  • 3 Cooling & Fan Speeds
  • Trim Kit Included
10,000 BTU 115v Through-the-Wall Air Conditioner
$ 549.99
*The Energy Guide label estimates how much energy the appliance uses, compares energy use of similar products, and lists approximate annual operating costs.
**The estimated annual energy cost is based on a national average electricity cost of 13 cents per kWh and seasonal use of 8 hours a day over a 3-month period. Your exact costs will depend on local utility rates and the type and source of your energy.
  • Installation Kit

    This unit comes with our simple and convenient installation kit, so you can set up your air conditioner with ease.

  • Filter Check Reminder

    The Clean Filter LED lights up to notify you that the filter needs to be cleaned.

  • Washable Filter

    Maintenance is easy: simply remove the filter and wash it.

  • 24-hour On/Off Timer

    Up to 24 hours of operation time can be set, so that your air conditioner turns off when you plan it to.

  • 4-way Air Deflection

    LG air conditioners deliver cool air to every corner of your room. The 4-way swing function blows the air quickly and efficiently in many directions.

  • Auto Restart

    If the power cuts off, your unit resume its previous operation shortly after the power is restored.

Dimensions

LT1016CER LT1016CER

PERFORMANCE

    • Cooling BTU Performance
    • 9,800

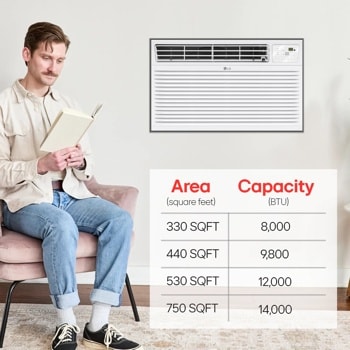

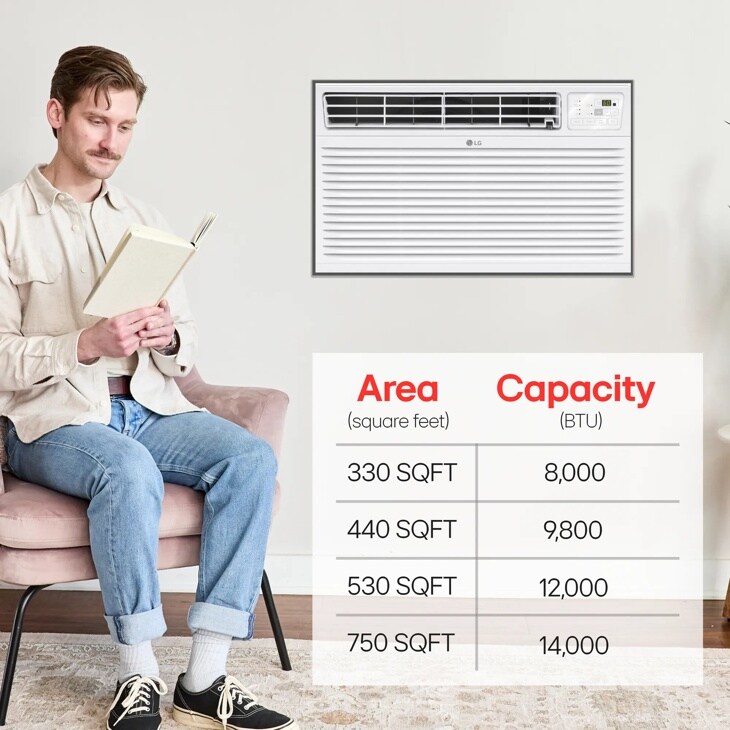

    • Est. Cooling Area (Sq. Ft.)
    • 450
    • CEER
    • 10.6
    • Dehumidification (Pts/hr)
    • 2.9
    • ENERGY STAR®
    • Yes
    • Refrigerant
    • R32
    • Noise Indoor dB (A) (High/Low)
    • 56/53
    • Noise Outdoor dB (A) (High)
    • 65
    • Dry Air Flow (CFM)
    • 250

FEATURES

    • Fan Speed Cooling
    • 3
    • Fan Speed Only
    • 3
    • Indoor Fan Type
    • Turbo
    • Air Deflection
    • 4-Way
    • Energy Saver Function
    • Yes
    • Thermostat Control
    • Thermistor
    • Remote Control
    • Yes
    • Compressor
    • Rotary
    • Air Discharge Type
    • Top Discharge
    • Chassis Type
    • Top Down
    • Auto Restart
    • Yes
    • Outdoor Vent / Exhaust
    • Yes
    • Timer
    • 24 Hr, On/Off
    • Filter Alarm Function
    • Yes

ELECTRICAL RATINGS

    • Voltage / 60 Hz
    • 115 V
    • Cooling Power (W)
    • 920
    • Cooling Current (A)
    • 8.5

MATERIALS/FINISHES

    • Color
    • White
    • Installation Kit
    • Yes
    • Air Filter
    • Washable

DIMENSIONS/WEIGHT

    • Shipping Dimension (WxHxD)
    • 27.72 x 17.41 x 22.41 inch
    • Product Dimension (WxHxD)
    • 24.00 x 14.41 x 20.09 inch
    • Net Weight (lb)
    • 70
    • Shipping Weight (lb)
    • 80

WARRANTY

    • Parts & Labor
    • 1 Year Parts and Labor

UPC CODES

    • UPC
    • 048231379618

What people are saying

Rated 5 out of 5 by from Looks great and perfect fit I bought 3 of these for our condo and they look great. I installed them myself as the directions were really good and useful. They run really well and are quiet...much appreciated in the bedrooms.
Date published: 2021-04-04
Rated 4 out of 5 by from Cool room I purchased this unit for an addition to our home about 10 months ago. It has functioned well. The remote is a nice feature.
Date published: 2021-03-19
Rated 4 out of 5 by from Almost perfect! The only negative that could be easily corrected is the drawing and explanation of where to place the foam strips in a new wall sleeve and the importance of tilting the sleeve so it has a 1/4" downward slope away from wall. The current instructions and drawings do not show this clearly.
Date published: 2021-02-26
  • y_2021, m_4, d_12, h_16
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.14
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_28
  • loc_en_US, sid_MD05601924, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_lg
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getReviews, 61ms
  • REVIEWS, PRODUCT

ASK & ANSWER

Ask your questions. Share your answers.
Please review the detailed product information and help guides in the
Product Support section for this product prior to posting a question.

How do I find the information about the power and type of outlet required

Asked by: BetsandI
The ENERGY STAR® Qualified LG 10,000 BTU 115v Through-the-Wall Air Conditioner, Model # LT1016CER has to be plugged into a dedicated (its own individual outlet) standard 125 V, 3-wire grounding receptacle protected by a 15 A time delay fuse or 15 A circuit breaker. The NEMA configuration for the outlet is 5-15R (i.e. Two parallel vertical slots over a round grounding hole). The information can be found in the product's owner's manual which can be downloaded from https://www.lg.com/us/support/product/lg-LT1016CER.AWYAUSH ...^IFV
Answered by: Ivanf
Date published: 2020-06-09

Does it fit my sleeve 27" × 17“ ?

Asked by: CW1688
The W x H x D dimensions for the sleeve that the LG 10,000 BTU 115v Through-the-Wall Air Conditioner, Model # LT1016CER fits into, the LG Thru-the-Wall Air Conditioner 26" Wall Sleeve, Model # AXSVA1, are 25 7/8" x 15 17/32" x 16 23/32" . All wall sleeves that are used to mount this air conditioner must be in good structural condition and must have a rear grille to securely attach the air conditioner. We strongly recommend the removal of the old wall sleeve and install the new LGE Wall Sleeve, but if you decide to keep your existing wall sleeve, you have to redirect the louvers at the back of the wall sleeve. If you do not redirect the louvers, you run the risk or poor performance or product failure which is not covered under the warranty. This unit will fit into a White-Westinghouse, Frigidaire or Carrier (52F series) wall sleeve with W x H x D dimensions of 25 1/2" x 15 1/4" x 16, 17 1/2 or 22", a General Electric/Hotpoint wall sleeve with W x H x D dimensions of 26" x 15 5/8" x 16 7/8", a Whirlpool wall sleeve with W x H x D dimensions of 25 7/8" x 16 1/2" x 17 1/8" or 23", a Fedders/Emerson wall sleeve with W x H x D dimensions of 27" x 16 3/4" x 16 3/4" or 19 3/4" or an Emerson/Fedders wall sleeve with W x H x D dimensions of 26 3/4" x 15 3/4" x 15", a Carrier wall sleeve (51S series) with W x H x D dimensions of 25 3/4" x 16 7/8" x 18 5/8", a Friedrich wall sleeve with W x H x D dimensions of 27" x 16 3/4" x 16 3/4". The owner's manual for the air conditioner has detailed instructions for the different procedures that you have to use to prepare the wall sleeves for installation...^IFV
Answered by: Ivanf
Date published: 2019-07-26
