LWS3063ST

4.7 cu. ft. Single Built-In Wall Oven

$1,399.00
$1,799.99
4.7 cu. ft. Single Built-In Wall Oven
$ 1,399.00

DIMENSIONS/CLEARANCES/WEIGHT

    • Shipping Weight (lbs)
    • Approx. 81.2 kg (179lbs)
    • Weight (Product)
    • Approx. 71.2 kg (157lbs)
    • Depth
    • 24 3/8"
    • Height
    • 29 15/16"
    • Width
    • 29 3/4"
    • Carton Dimensions (in) (W x H x D)
    • 33"(W) x 30"(D) x 34"(H)
    • Exterior (WxHxD)
    • 29-3/4"(W) x 29-5/16"(H) x 24-3/8"(D)
    • Cutout
    • 28-1/2"(W) x 29"(H) x 23-1/2"(D)

OVEN FEATURES

    • Bake Element
    • 2,500 watts
    • Bake element type
    • Hidden (8 pass)
    • Broil Element
    • 2,500 watts inner / 1,500 watts outer
    • Variable broil
    • Yes( Full,Center / High,Med,Low)
    • Broil element pass
    • 8
    • Cleaning
    • EasyClean®/Self Clean (3,4,5 hours)
    • Variable cleaning time
    • Yes (3,4,5 hrs)
    • Capacity (cu.ft)
    • 4.7

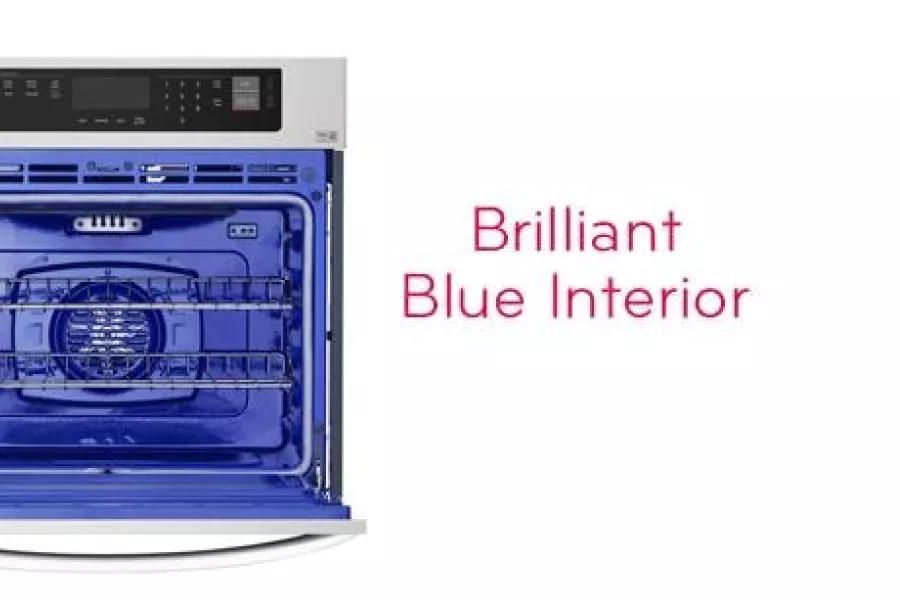

    • Interior Color
    • Blue
    • 12 hrs. shut-off
    • Yes
    • Proof
    • Yes
    • Variable warm
    • Yes (High,Med,Low)
    • Favorites menu
    • 3 (1. Bread,2. Meat,3. Chicken)
    • Color & Material
    • STS Finish(Al) / Black Stainless
    • # of rack position
    • 5
    • Convection Conversion
    • Yes
    • Convection element
    • Yes (2,000 watts Sheath heater)

SUMMARY

    • EasyClean®
    • Yes
    • Single Oven
    • Yes
    • Self + EasyClean®
    • Yes
    • ADA Compliant
    • Yes

WARRANTY/UPC

    • UPC
    • 048232336528
    • Parts & Labor
    • 1 Year

ACCESSORIES

    • Grid
    • 1
    • Heavy Duty Rack
    • 2
    • Spray Water Tank
    • 1
    • Broiler pan
    • 1

POWER/RATINGS

    • Rating
    • 4.1 KW
    • Electrical Supply
    • 120/240 VAC,120/208 VAC
    • Max. Amp Load
    • 17.3 A

What people are saying

Rated 4 out of 5 by from Looks great... however needs a base plate cover Just had the oven and love the look/color. Can’t wait to start using it. However the bottom part oven does not present a finished look. We will have to caulk/fill up to the bottom base plate which will not look ‘finished’, in our opinion.
Date published: 2020-07-09
Rated 5 out of 5 by from Wall Oven is Great! We replaced our slip in oven and installed this new LG LWS3063ST wall oven and it works perfectly, still getting used to the quicker cooking due to the convection feature. The look is very clean and contemporary.
Date published: 2020-03-06
Rated 5 out of 5 by from Works well So happy with our purchase. Great looking and the oven performs very well. We love it.
Date published: 2020-03-01
  • y_2020, m_11, d_27, h_16
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.12
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_39
  • loc_en_US, sid_MD05600790, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_lg
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getReviews, 239ms
  • REVIEWS, PRODUCT

ASK & ANSWER

Ask your questions. Share your answers.
Please review the detailed product information and help guides in the
Product Support section for this product prior to posting a question.

The installation guide for the LWS3063St indicates a recommended minimum clearance of 31" from the ground. What is the minimum clearance from the ground? I am trying to confirm that the recommended minimum is not the required minimum. Thanks!

Asked by: Tommy3131
The recommended minimum installation clearance of 31" from the ground in the installation guide for the LG 4.7 cu. ft. Single Built-In Wall Oven, Model # LWS3063ST is the clearance that you need to adhere to. It is a 'recommended' minimum and not necessarily the 'required' minimum...^IFV
Answered by: Ivanf
Date published: 2020-11-18

I noticed that the specifications indicate that the unit (LWS3063ST) should be mounted at a mininmum of 31" from the floor; however, I also noticed that LG indicated that this unit can be mounted within an under counter cabinet. So which is it?

Asked by: Tommy3131
The specifications for the LG 4.7 cu. ft. Single Built-In Wall Oven, Model # LWS3063ST on its product detail page on our site do not indicate that it should be mounted at a minimum of 31" from the floor nor do they indicate that the unit can be mounted within an under-counter cabinet. The specifications only list the Exterior W x H x D dimensions, the W x H x D Cutout dimensions, and W x H x D dimensions for the Carton that the unit is shipped in. The Installation guide that is packaged with the Wall Oven is details the installation clerances for the wall Oven. The installation guide lists the Recommended Minimum Cutout Location from the floor as 31” (787.4 mm), a Cabinet Width of 30” (762 mm), a Cutout Depth of 23 1/2” Min. (596.9 mm), a Cutout Width of 28 1/2” Min. (723.9 mm)/28 5/8” Max. (727 mm), and a Cutout Height of 28 15/16” Min. (735 mm)/29” Max. (736.6 mm). Kitchen cabinets in contact with the oven must be heat resistant up to 194°F (90°C), and fronts of nearby units up to at least 158°F (70°C). Standard Base Kitchen Cabinets have a depth of 24", a height of 36" (i.e. 3.5" for the Toe Kick, 31" for the cabinet height and 1.5 inches for the Countertop Thickness) and the width can vary from 12, 18, 24, 30, 33, 36, to 48 inches...^IFV
Answered by: Ivanf
Date published: 2020-11-18

Want to replace current wall oven w/cook top over, w/LWS3063BD single wall oven, and MUST have EXTERIOR oven BOX dimension to ensure cook top will fit above. Not listed in manual dimensions, called customer service 3x. No display models in my area.

Asked by: KLF16
You can visit the product information page for the LG 4.7 cu. ft. Single Built-In Wall Oven, Model # LWS3063D on our site and click on the Support tab to find a PDF copy of the Installation Guide that you can download and review where the required junction box should be placed and review an illustrated diagram with measurements for where gas or electric cooktops can be installed above the wall oven...^IFV
Answered by: Ivanf
Date published: 2020-01-31

Is the Oven designed to mount under the counter with a stove top above it

Asked by: Cimmark
The cooktop and oven can be installed together, as long as proper clearances are observed.
Answered by: ChrisPSM
Date published: 2020-01-03

Not sure how this can be ADA compliant because no matter how low I install it, in a wheel chair I burn myself or have to get danger close to be able to use it. I need an oven with retractable door or cafe style doors.

Asked by: Charlie pf tje 11
If you're in need of some guidance with using your range, please head to our support page at @LGUSSupport on Twitter or shoot us a private message on Facebook at https://www.facebook.com/LGUSA/ so a specialist can help out. ^CP
Answered by: ChrisPSM
Date published: 2019-12-09

Not sure how this can be ADA compliant because no matter how low I install it, in a wheel chair I burn myself or have to get danger close to be able to use it. I need an oven with retractable door or cafe style doors.

Asked by: Charlie pf tje 11
If you're in need of some guidance with using your range, please head to our support page at @LGUSSupport on Twitter or shoot us a private message on Facebook at https://www.facebook.com/LGUSA/ so a specialist can help out. ^CP
Answered by: ChrisPSM
Date published: 2019-12-09

CAN YOU USE THE GLIDING RACK FOR THIS UNIT

Asked by: MCHILDERS
Regrettably, there aren't any Gliding Racks that are compatible with the LG 4.7 cu. ft. Single Built-In Wall Oven, Model # LWS3063BD...^IFV
Answered by: Ivanf
Date published: 2019-11-20

What size halogen bulbs go inside oven? 2 of 3 are out.

Asked by: SueZeQ
The oven light is a standard 10-watt halogen bulb for ovens. If you have additional questions, you can contact our Customer Support by any of the below options: Phone: 1-800-243-0000 LiveChat: https://www.lg.com/us/support/chatbot Email: https://www.lg.com/us/support/email-appointment Facebook Messenger: https://www.facebook.com/LGUSA/ Twitter: @LGUSSupport The LG Community Forum is also a great resource for getting help from other LG customers: https://lgcommunity.us.com/
Answered by: ChrisPSM
Date published: 2019-09-30
