LFXC22596D

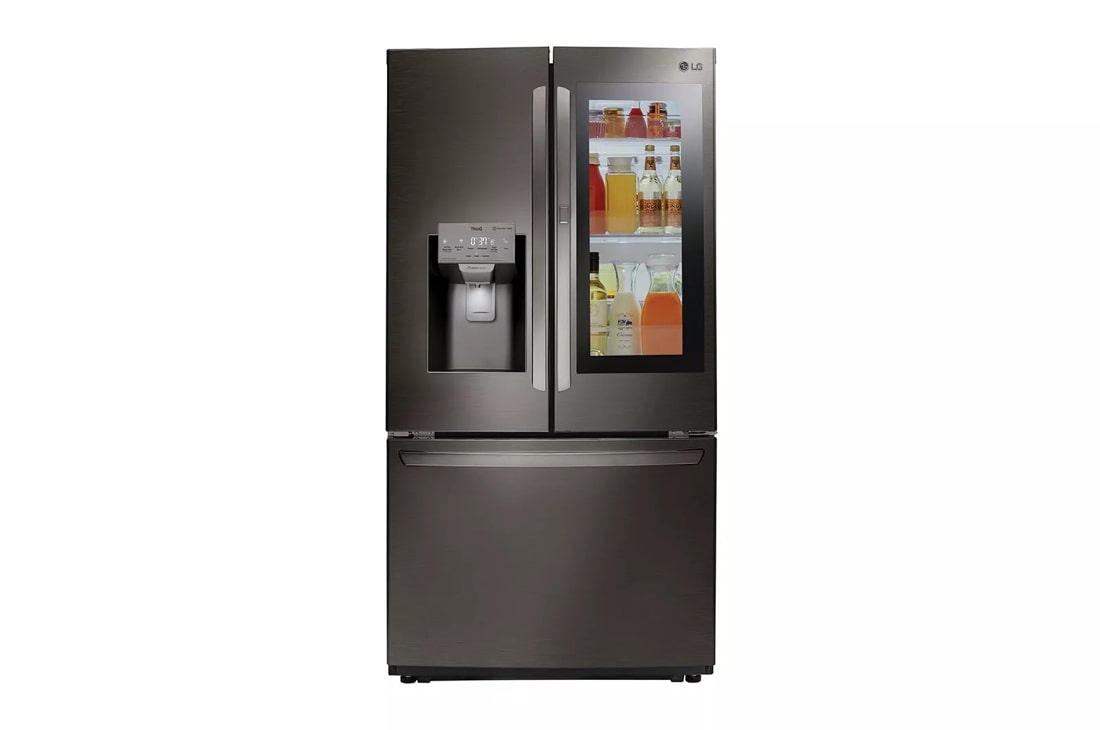

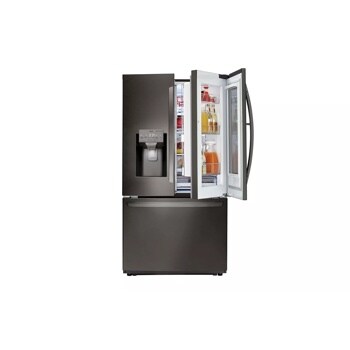

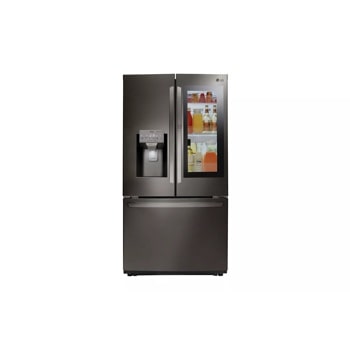

22 cu. ft. Smart wi-fi Enabled InstaView™ Door-in-Door® Counter-Depth Refrigerator

  • 22 cu. ft. Capacity
  • Counter-Depth
  • InstaView™ Door-in-Door®
  • Dual Ice Makers
  • PrintProof™ Finish
  • ThinQ® Technology with Proactive Customer Care
22 cu. ft. Smart wi-fi Enabled InstaView™ Door-in-Door® Counter-Depth Refrigerator
$ 3,549.99

Keep Your Water and Ice Fresh and Tasting Great:

SUMMARY

    • Door Type
    • French 3-Door
    • Refrigerator Type
    • InstaView™ Door-in-Door®
    • ThinQ® Technology with Proactive Customer Care
    • Yes
    • wi-fi Enabled
    • Yes

CAPACITY

    • Refrigerator (cu.ft.)
    • 14.6
    • Freezer (cu.ft.)
    • 7.3
    • Total (cu.ft.)
    • 21.9

ENERGY

    • Energy Consumption (kWh/Year)
    • 664
    • ENERGY STAR® Qualified
    • Yes

WATER & ICE SYSTEM

    • Ice & Water Dispenser
    • Yes
    • Dispenser Type
    • Integrated Tall Ice & Water Dispenser
    • Daily Ice Production (lbs)
    • 6.0 lbs.
    • IcePlus™ Production (lbs)
    • 6.5 lbs.
    • Ice Storage Capacity (lbs)
    • 2.5 + 4.0 lbs
    • Ice System
    • Slim SpacePlus®
    • Dual Ice
    • Yes
    • Dispenser Light
    • Yes
    • Water Filter
    • LT1000P

COOLING

    • Linear Compressor
    • Yes
    • Smart Cooling™ System
    • Yes
    • Multi-Air Flow Cooling
    • Yes
    • Temperature Sensors
    • 6
    • Fresh Air Filter
    • Yes
    • Evaporator
    • Yes

CONVENIENCE

    • Display Type
    • Membrane/White LED
    • Temperature Controls
    • Electronic/Digital
    • Door Alarm
    • Yes
    • Child Lock
    • Yes
    • Auto Closing Door Hinge
    • Yes
    • Sabbath Mode
    • Yes
    • LoDecibel™ Quiet Operation
    • Yes

REFRIGERATOR

    • No. of Shelves
    • 4 Split
    • Cantilevered Shelves
    • Hybrid Cantilevered
    • Shelf Construction
    • Spill Protector™ Tempered Glass
    • Crisper Bins
    • 2 Humidity Crispers
    • Glide N’ Serve™ Drawer
    • Yes
    • Refrigerator Light
    • Ceiling LED (Frameless)

REFRIGERATOR DOOR

    • InstaView™ Door-in-Door®
    • Yes
    • Door-in-Door® with ColdSaver™ Panel<br>
    • Yes
    • No. of Bins
    • 7 Total (Including Door-in-Door®)
    • Door Bin Construction
    • 1 Piece (clear)

FREEZER

    • Door Type
    • Pull Drawer
    • Drawers
    • 2-Tier Organization
    • DuraBase™ Solid Drawer Base
    • Yes
    • Drawer Divider
    • Yes
    • Freezer Light
    • LED Lighting
    • Freezer Handle
    • SmartPull™ Handle

THINQ® SMART FEATURES

    • Wi-Fi Enabled
    • Yes
    • Works with
    • Google Assistant and Amazon Alexa
    • SmartDiagnosis™
    • Yes
    • ThinQ® Technology with Proactive Customer Care
    • Yes

MATERIALS AND FINISHES

    • Contour Door
    • Yes
    • Hidden Hinges
    • Yes
    • Surface
    • Smooth
    • Fingerprint & Smudge Resistant Exterior
    • Yes
    • Handles
    • Matching Commercial Handles
    • All Available Colors
    • PrintProof™ Stainless Steel, Matte Black Stainless Steel, Black Stainless Steel

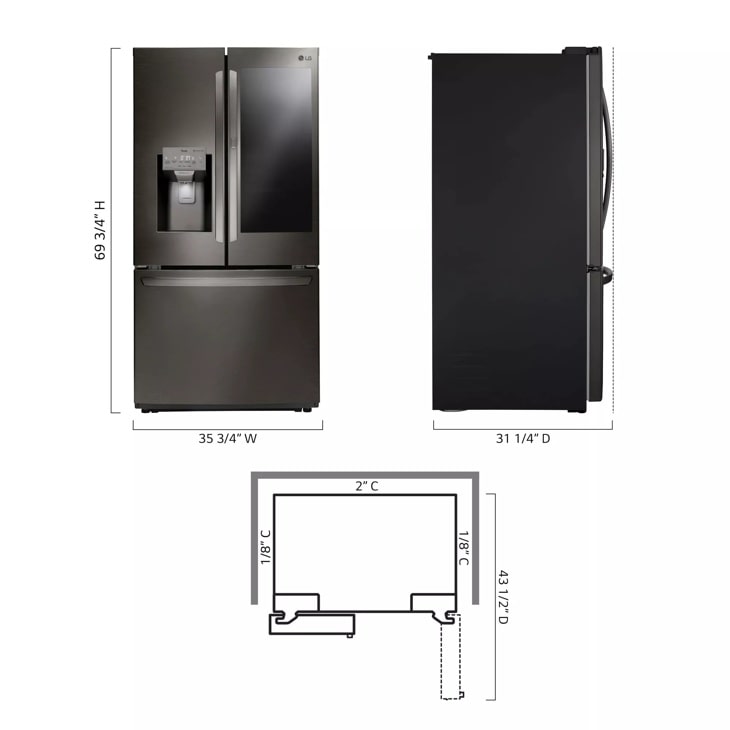

DIMENSIONS/CLEARANCES/WEIGHTS

    • Depth with Handles
    • 31 1/4"
    • Depth without Handles
    • 28 3/4"
    • Depth (Total with Door Open)
    • 43 1/2"
    • Height to Top of Case
    • 68 3/8"
    • Height to Top of Door Hinge
    • 69 3/4"
    • Width
    • 35 3/4"
    • Width (Door Open 90˚ with Handle)
    • 44 1/4"
    • Width (Door Open 90˚ without Handle)
    • 39 1/4"
    • Door Edge Clearance with Handle
    • 4 1/2"
    • Door Edge Clearance without Handle
    • 1 1/3"
    • Installation Clearance
    • Sides 1/8", Top 1", Back 2"
    • Weight (Unit/Carton)
    • 289 lbs./319 lbs.
    • Carton Dimensions (WxHxD)
    • 38" x 73" x 36"

LIMITED WARRANTY

    • Parts & Labor
    • 1 Year
    • Sealed System (Parts & Labor)
    • 5 Years
    • Compressor (Parts & Labor)
    • 5 Years
    • Linear Compressor (Parts Only)
    • 6-10 Years

UPC CODES

    • UPC
    • 048231802581

What people are saying

Rated 1 out of 5 by from Water dispenser stuck /water filter stuck I’ve had this fridge for less than 1 year. 1 time the water dispenser got stuck and wouldn’t stop dispensing and now the water filter is stuck and I can’t replace it.
Date published: 2020-04-08
Rated 4 out of 5 by from Looks good and works good!! I bought this one some months ago and I’m very happy with it
Date published: 2020-03-30
Rated 5 out of 5 by from Love!! Love the room and shape of the ice!! Freezer is roomy!!
Date published: 2020-03-28
  • y_2020, m_9, d_17, h_16
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.12
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_48
  • loc_en_US, sid_MD06068256, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_lg
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getReviews, 5ms
  • REVIEWS, PRODUCT

ASK & ANSWER

Ask your questions. Share your answers.
Please review the detailed product information and help guides in the
Product Support section for this product prior to posting a question.

The Bottom drawer in the refrigerator is broken . Where can we get a replacement part. The website does not take me to a parts ordering location.

Asked by: KRM1234
A replacement bottom drawer for the LG 22 cu. ft. Smart wi-fi Enabled InstaView&trade; Door-in-Door&reg; Counter-Depth Refrigerator, Model # LFXC22596S can be ordered from our Authorized Parts Distributor Affiliate: Encompass Parts Distribution 775 Tipton Industrial Dr. Suite F Lawrenceville, GA 30046 Sales: 866-779-7906 Fax: 800-552-1431 https://lg.encompass.com/ ...^IFV
Answered by: Ivanf
Date published: 2020-05-06

Im clueless as to getting these measurements right. &nbsp;My space in my kitchen measure&nbsp; D by me is width 36&rdquo; depth 32 and length 681/2. Am I measuring this right. I want to bet this fridge, but afraid it won&rsquo;t fit. &nbsp;Can anyone help.&nbsp;

Asked by: Awy L
The measurement of 68 1/2&quot; that you are referring to as the length is what is commonly listed as the height. The LG 22 cu. ft. Smart wi-fi Enabled InstaView&trade; Door-in-Door&reg; Counter-Depth Refrigerator, Model # LFXC22596S has a height of 68 3/8&quot; to the top of the case and a height of 69 3/4&quot; to the top of the door hinge.The recommended installation clearance spacing for the top of the refrigerator is 1&quot;. If your upper kitchen cabinets are standard upper kitchen cabinets, you do not have to worry about the height to the top of the door hinge. The refrigerator has a width of 35 3/4&quot; so your space of 36&quot; is good. The recommended installation clearance spacing for the sides is 1/8&quot; which with the width of the refrigerator is 36&quot;. The refrigerator has a depth of 31 1/4&quot; (includes the handles) and the recommended installation clearance spacing for the back is 2&quot; (i.e 33 1/4&quot; if you add that to the refrigerator's depth). Keep in mind that these are 'recommended installation clearances' so you have proper airflow around the refrigerator...^IFV
Answered by: Ivanf
Date published: 2020-04-24

Doe this refrigerator LFXC22596D make craft ice.

Asked by: Dundo
No, the LFXC22596D features Dual ice makers, dispensed from the door and located in the freezer compartment, produces large amounts of ice so you never run out. This extra ice storage helps ensure that you have extra ice on hand for those hot summer days or when entertaining large parties. However neither ice maker produces craft ice. You can find information about our refrigerators that produce craft ice via the following link: https://www.lg.com/us/discover/instaview-door-in-door/craft-ice
Answered by: ChrisPSM
Date published: 2019-11-06

Is this model available in a 21 cube feet

Asked by: Pickle 70
The actual capacity for the ENERGY STAR&reg; Qualified LG 22 cu. ft. Smart wi-fi Enabled InstaView&trade; Door-in-Door&reg; Counter-Depth Refrigerator, Model # LFXC22596D is 21.9 cubic feet, 14.6 cubic feet for the Refrigerator compartment and 7.3 cubic feet for the freezer compartment...^IFV
Answered by: Ivanf
Date published: 2020-01-20

Are the door handles the same style on this LG model as the stainless steel LG Studio (model LSFXC2496S)?

Asked by: DS24
The doors for the refrigerator compartment on the ENERGY STAR&reg; Qualified LG 22 cu. ft. Smart wi-fi Enabled InstaView&trade; Door-in-Door&reg; Counter-Depth Refrigerator, Model # LFXC22596S are Matching CommercialHandles &amp; the handle on the Freezer Compartment is a SmartPull&trade; Handle and Model # LSFXC2496S has LG Studio Style Handles for the refrigerator compartment &amp; a Pull Drawer for the Freezer compartment so they don't have the same handles...^IFV
Answered by: Ivanf
Date published: 2020-01-20

If the refrigerator doors are open, will the water/ice dispenser work at the same time?

Asked by: Lisa614
The dispenser on the ENERGY STAR&reg; Qualified LG 22 cu. ft. Smart wi-fi Enabled InstaView&trade; Door-in-Door&reg; Counter-Depth Refrigerator, Model # LFXC22596S will not operate when either of the refrigerator doors is open...^IFV
Answered by: Ivanf
Date published: 2019-07-15

Do you make any side by side freezer on the bottom refrigerators that are under 67.5&quot; tall?

Asked by: Tazzer22
Hi Tazzer22. Our Side-by-Side Refrigerators and Bottom Freezer Refrigerators are two separate categories. The Side-by-Side Refrigerators have a freezer compartment that is side-by-side with the refrigerator compartment as the name implies and our Bottom Freezer models have the freezer compartment below the refrigerator compartment. Which type of refrigerator were you interested in finding out about with regards to the height?...^IFV
Answered by: Ivanf
Date published: 2019-07-12

What is the depth of the&nbsp;LFXC22596D? &nbsp;Thanks

Asked by: RBTjr
The ENERGY STAR&reg; Qualified LG 22 cu. ft. Smart wi-fi Enabled InstaView&trade; Door-in-Door&reg; Counter-Depth Refrigerator, Model # LFXC22596D has a depth of 31 1/4&quot; with the handles, 28 3/4&quot; without the handles, and 43 1/2&quot; with the door open...^IFV
Answered by: Ivanf
Date published: 2019-07-09
