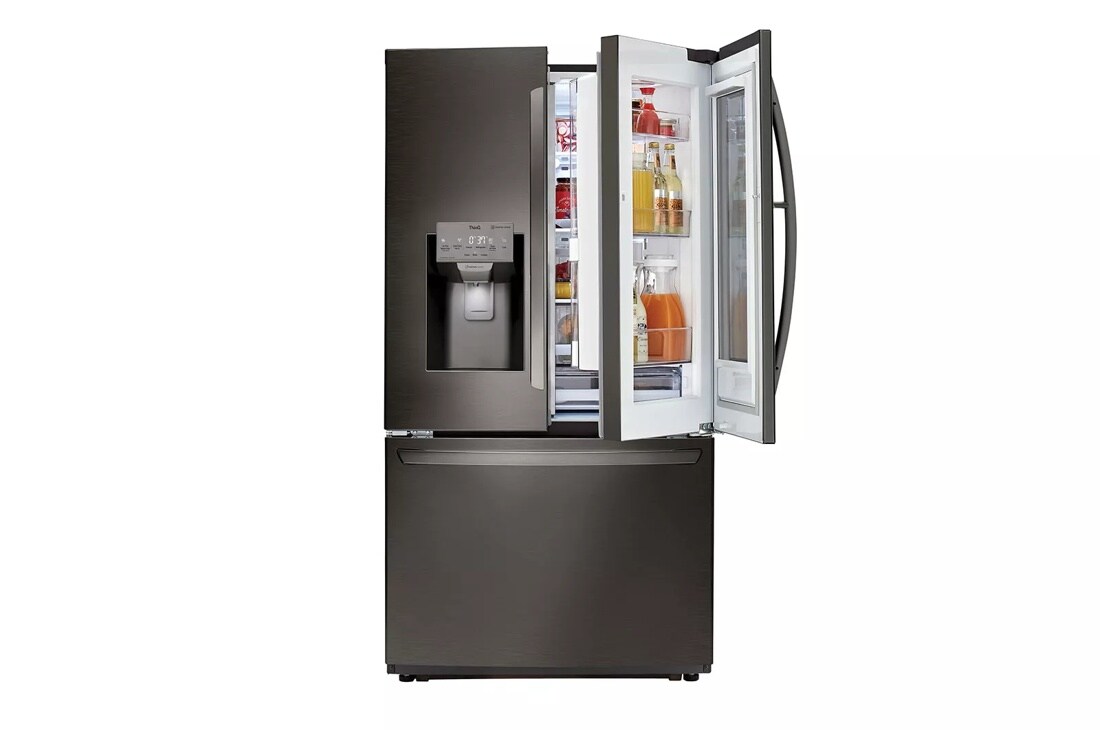

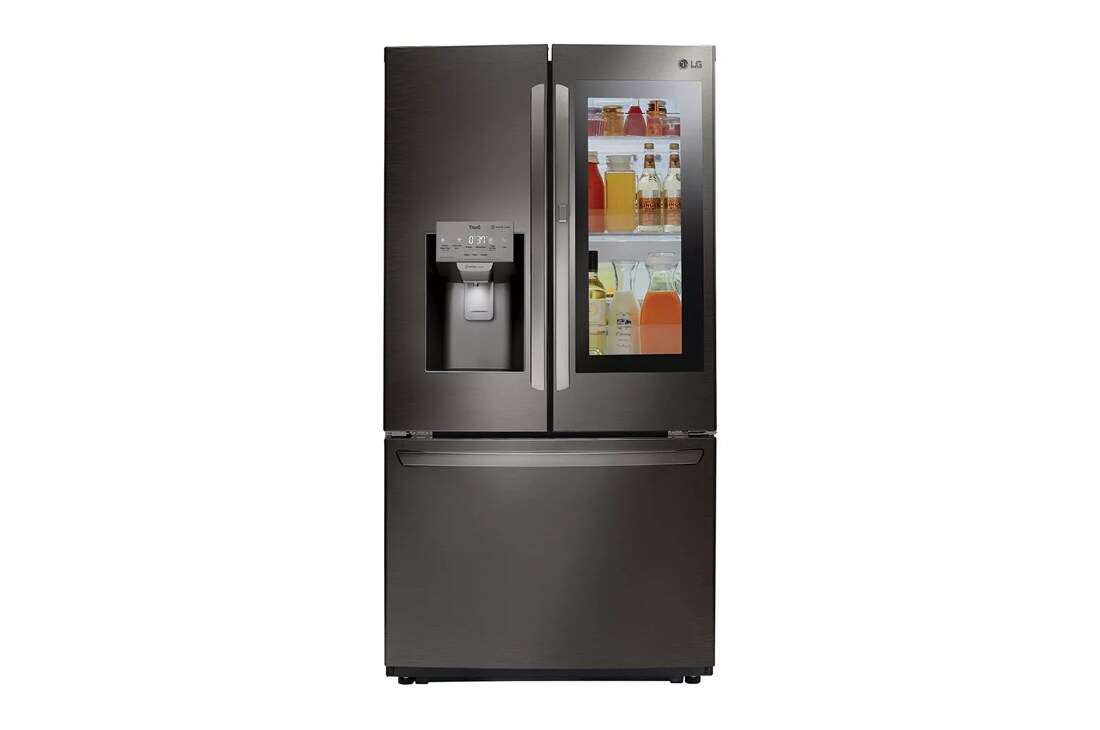

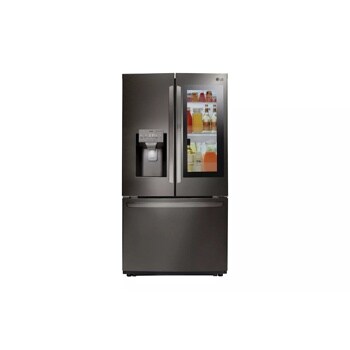

LFXS26596D

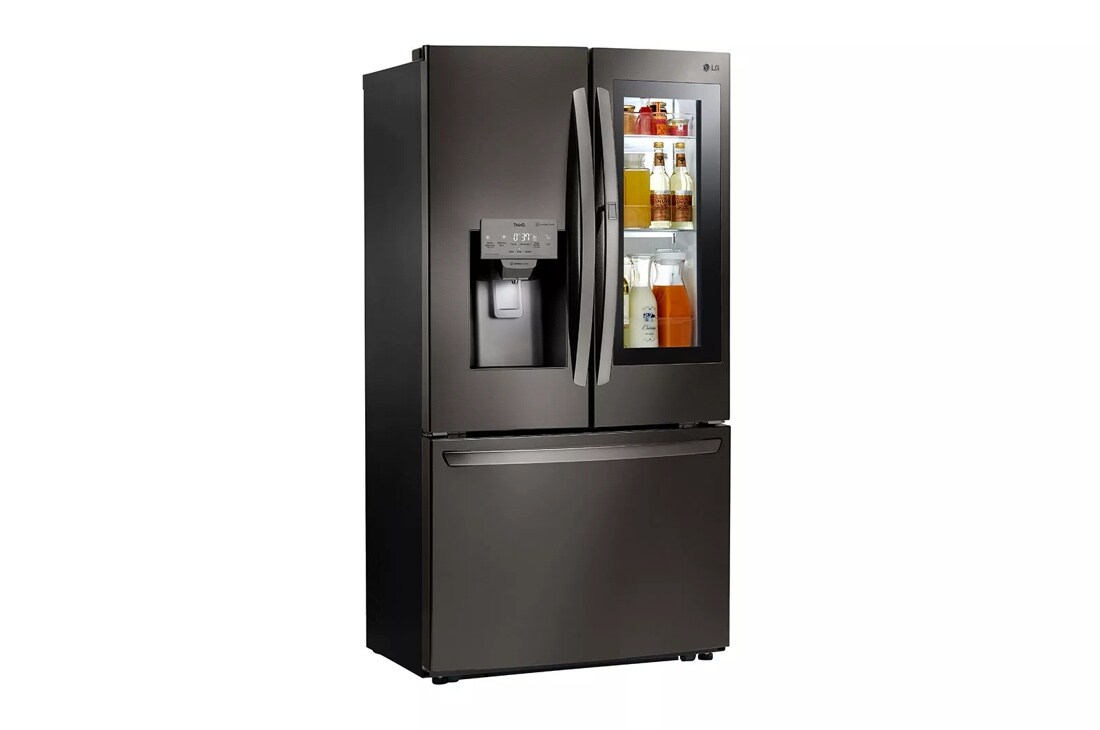

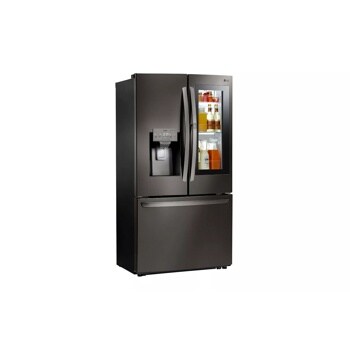

26 cu. ft. Smart wi-fi Enabled InstaView™ Door-in-Door® Refrigerator
Black Stainless Steel

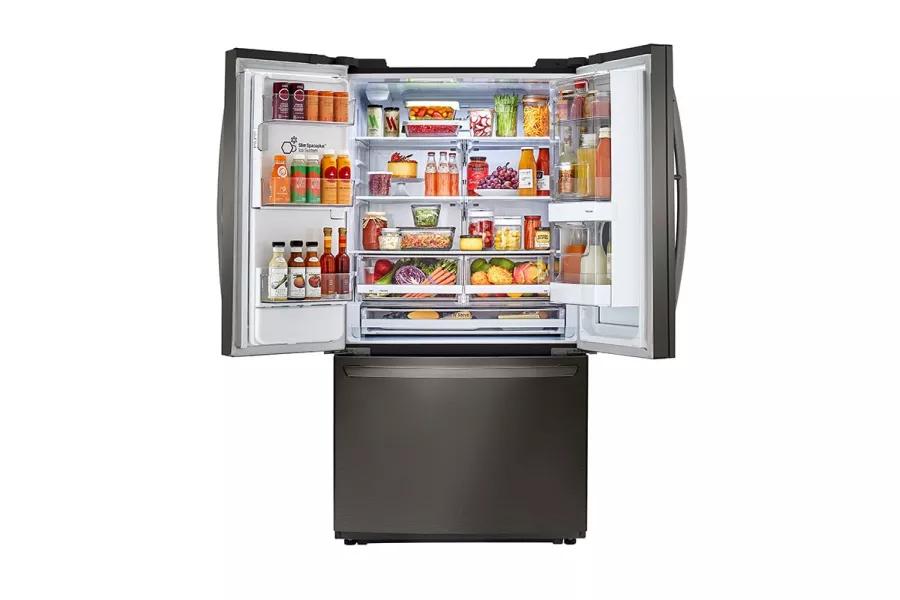

  • 26 cu. ft. Capacity

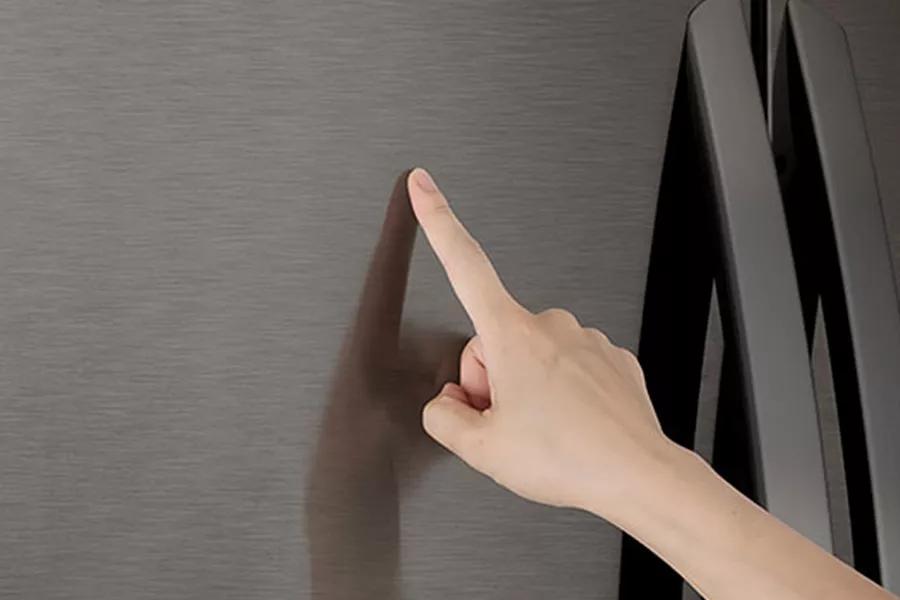

  • PrintProof™ Finish

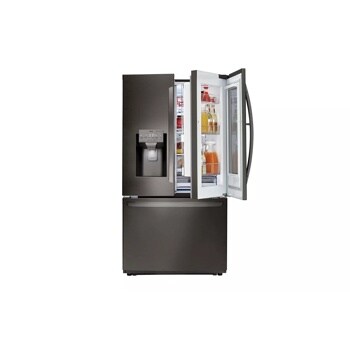

  • InstaView™ Door-in-Door®
  • SmartThinQ® Technology
  • Slim SpacePlus® Ice System
  • Dual Ice Makers
26 cu. ft. Smart wi-fi Enabled InstaView™ Door-in-Door® Refrigerator
$ 3,449.99
Where to Buy
*LG received the highest score with French door refrigerator in the J.D. Power 2017 and 2019 Kitchen Appliance Satisfaction Studies of customers’ satisfaction with their home appliance. Visit jdpower.com/awards.
*Consumer Reports does not endorse products or services.
  • undefined

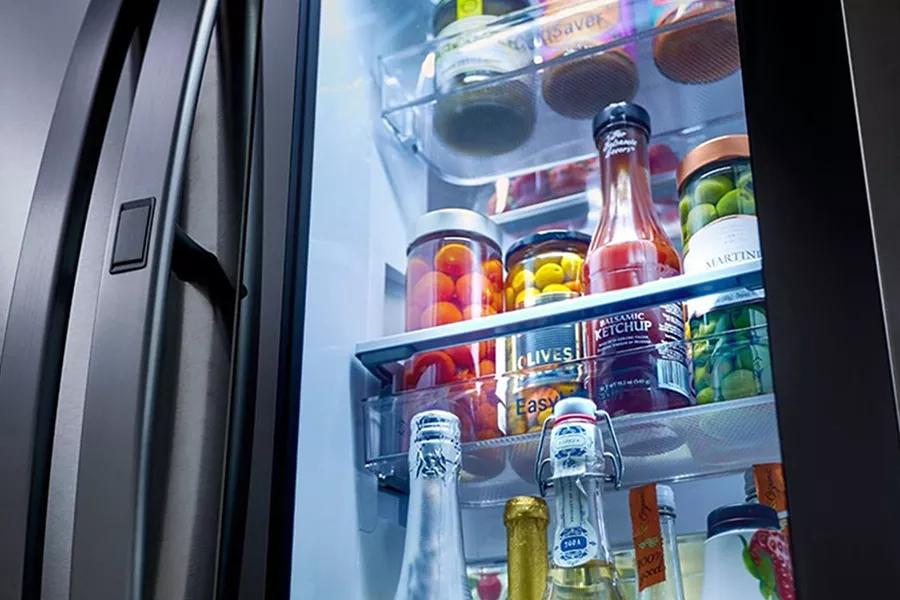

    Focused Freshness.

    LG took its advanced freshness system one step further by adding Door Cooling+ to provide a steady supply of cold air to help keep door contents at peak freshness.

  • Fresh air inside - Multi-flow filter in a refrigerator

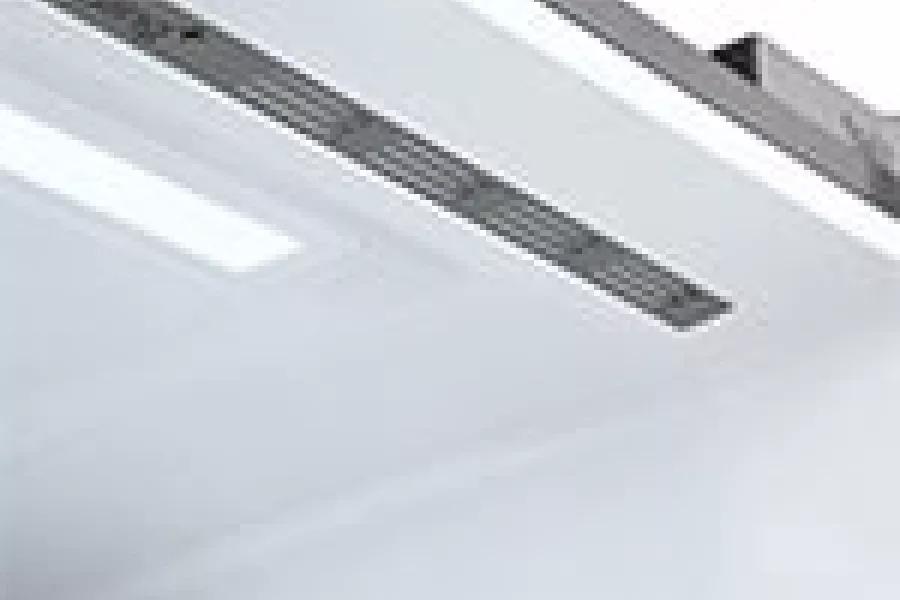

    Multi-Air Flow System

    Multi-Air Flow System is designed to maintain superior humidity and temperature levels to help keep your food fresher, longer.

  • One Size Fills All.

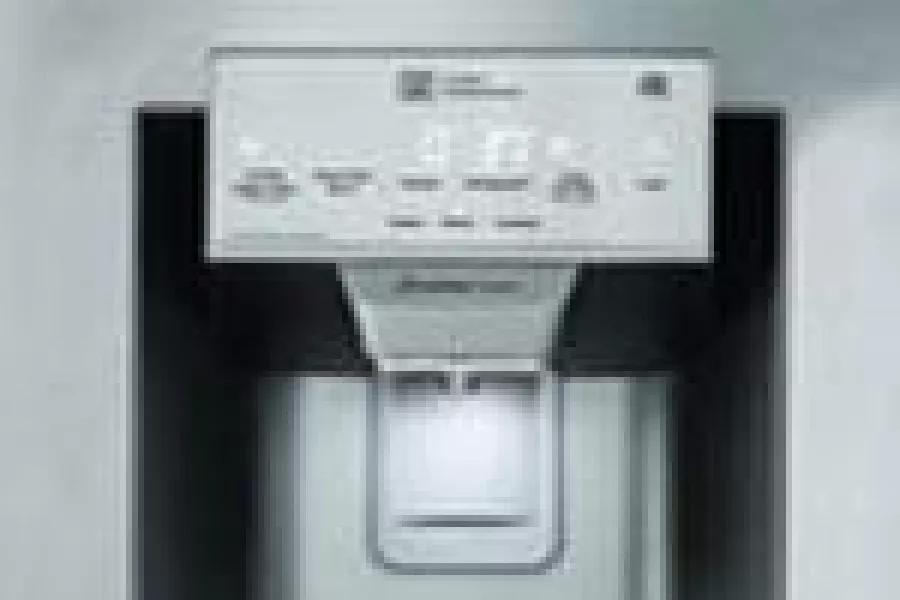

    One Size Fills All.

    From pitchers to pint glasses, finally there’s an ice and water dispenser that can handle just about any container you want to fill. Featuring a sleek new design, the dispenser is one of the tallest around, measuring in at an ultra-accommodating 12.6 inches. Also features LG's new pharmaceutical water filter, NSF certified to reduce more contaminants than our previous filters, for freshness you can taste!

Keep Your Water and Ice Fresh and Tasting Great:

SUMMARY

  • Door Type
    French 3-Door
    Refrigerator Type
    InstaView™ Door-in-Door®
  • SmartThinQ®
    Yes
    wi-fi Enabled
    Yes

CAPACITY

  • Refrigerator (cu.ft.)
    17.20
    Freezer (cu.ft.)
    8.80
  • Total (cu.ft.)
    26.0

ENERGY

  • Energy Consumption (kWh/Year)
    708
    ENERGY STAR® Qualified
    Yes

WATER & ICE SYSTEM

  • Ice & Water Dispenser
    Yes
    Dispenser Type
    Integrated Tall Ice & Water Dispenser
  • Daily Ice Production (lbs)
    6.0 lbs
    IcePlus™ Production (lbs)
    6.5 lbs.
  • Ice Storage Capacity (lbs)
    2.5 + 4.0 lbs
    Ice System
    Slim SpacePlus®
  • Dual Ice
    Yes
    Dispenser Light
    Yes
  • Water Filter
    LT1000P

COOLING

  • Linear Compressor
    Yes
    Smart Cooling™ System
    Yes
  • Multi-Air Flow Cooling
    Yes
    Temperature Sensors
    6
  • Fresh Air Filter
    Yes
    Evaporator
    Yes

CONVENIENCE

  • Display Type
    Membrane/White LED
    Temperature Controls
    Electronic/Digital
  • Door Alarm
    Yes
    Child Lock
    Yes
  • Auto Closing Door Hinge
    Yes
    Sabbath Mode
    Yes
  • LoDecibel™ Quiet Operation
    Yes

REFRIGERATOR

  • No. of Shelves
    4 Split
    Cantilevered Shelves
    Hybrid Cantilevered
  • Shelf Construction
    Spill Protector™ Tempered Glass
    Crisper Bins
    2 Humidity Crispers
  • Glide N’ Serve™ Drawer
    Yes
    Refrigerator Light
    Ceiling LED (Frameless)

REFRIGERATOR DOOR

  • InstaView™ Door-in-Door®
    Yes
    Door-In-Door® with ColdSaver™ Panel
    Yes
  • No. of Bins
    7 Total (Including Door-in-Door®)
    Door Bin Construction
    1 Piece (clear)

FREEZER

  • Door Type
    Pull Drawer
    Drawers
    2-Tier Organization
  • DuraBase™ Solid Drawer Base
    Yes
    Drawer Divider
    Yes
  • Freezer Light
    LED Lighting
    Freezer Handle
    SmartPull™ Handle

SMARTTHINQ® SMART FEATURES

  • Wi-Fi Enabled
    Yes
    Voice Activation
    Yes
  • Works with
    Google Assistant and Amazon Alexa
    Smart Grid Ready
    Yes
  • SmartDiagnosis™
    Yes

MATERIALS AND FINISHES

  • Contour Door
    Yes
    Hidden Hinges
    Yes
  • Surface
    Smooth
    Handles
    Matching Commercial Handles
  • All Available Colors
    PrintProof™ Stainless Steel, Matte Black Stainless Steel, Black Stainless Steel

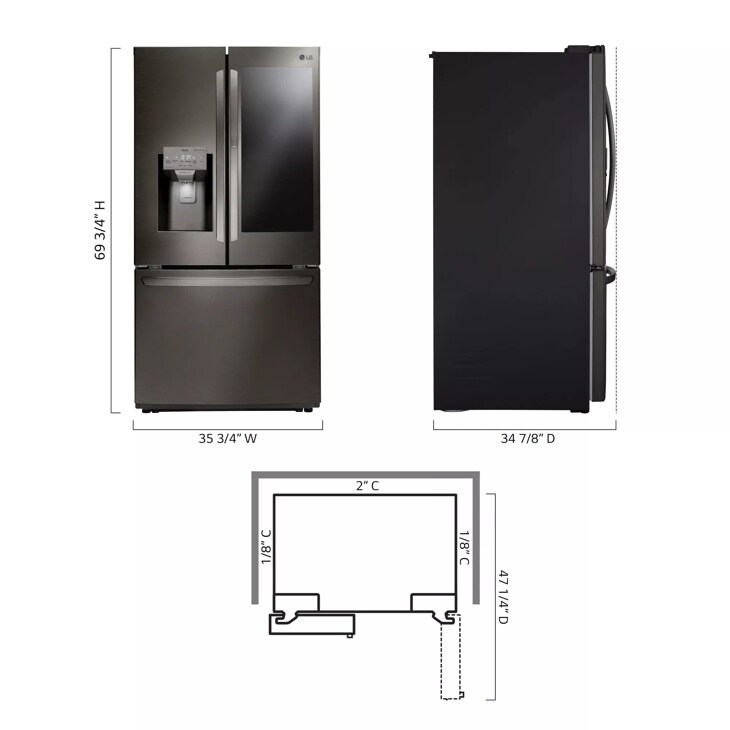

DIMENSIONS/CLEARANCES/WEIGHTS

  • Depth with Handles
    34 7/8"
    Depth without Handles
    32 3/8"
  • Depth without Door
    27 3/4"
    Depth (Total with Door Open)
    36 7/8"
  • Height to Top of Case
    68 3/8"
    Height to Top of Door Hinge
    69 3/4"
  • Width
    35 3/4"
    Width (Door Open 90˚ with Handle)
    44 1/4"
  • Width (Door Open 90˚ without Handle)
    39 1/4"
    Door Edge Clearance with Handle
    4 1/2"
  • Door Edge Clearance without Handle
    1 1/3"
    Installation Clearance
    Sides 1/8", Top 1", Back 2"
  • Weight (Unit/Carton)
    302 lbs./334 lbs.
    Carton Dimensions (WxHxD)
    38" x 73" x 36"

LIMITED WARRANTY

  • Parts & Labor
    1 Year
    Sealed System (Parts & Labor)
    5 Years
  • Compressor (Parts & Labor)
    5 Years
    Linear Compressor (Parts Only)
    6-10 Years

UPC CODES

  • UPC
    048231803601

What people are saying

Rated 5 out of 5 by from Knock knock I love the knock knock light on fetcher. Also ice making is very quick. Extremely easy to understand the display panel on the front of the refrigerator
Date published: 2020-01-20
Rated 2 out of 5 by from Loud noise I bought this a month ago, it makes a loud noise every time it turns on. Other then that is good
Date published: 2020-01-18
Rated 5 out of 5 by from super nice refrigerator This is one great refrigerator easy to access all kinds of items nice little nooks and storage for special things
Date published: 2020-01-17
  • y_2020, m_1, d_23, h_20
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.4
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_260
  • loc_en_US, sid_MD06068276, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_lg
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getReviews, 2ms
  • REVIEWS, PRODUCT

ASK & ANSWER

Ask your questions. Share your answers.
Please review the detailed product information and help guides in the
Product Support section for this product prior to posting a question.

I am running into an issue where the ice basket in the lower freezer seems to be melting into a large block of ice. I’ve checked the seal of the bottom freezer and everything seems to be fine. I’m just not sure what could be causing the ice to do this.

Asked by: Jklott_dewitt
That's not good! We're sorry to see that you've run into these issues with your refrigerator. We'll need to gather some additional details from you in order to see how we can best assist. Please reach out to a specialist via Twitter @LGUSSupport or via Facebook https://www.facebook.com/LGUSA/ ^CP
Answered by: ChrisPSM
Date published: 2020-01-02

I set this up last night and hooked up the water supply line and installed the water filter, but it’s not dispensing water or making ice. I’m trying to troubleshoot and see if I’m missing a step somewhere.

Asked by: nashvillebrad
We are sorry to see you are having trouble getting your refrigerator to dispense water. You can troubleshoot this issue using the following help article: https://www.lg.com/us/support/help-library/water-does-not-dispense-refrigerator-CT00023125-20150177934291
Answered by: ChrisPSM
Date published: 2019-12-16

Can the clear plastic curved cover on the inside of the "door within the door" come off? There appears to be a screw on top. The magnetic lock on the door is very strong and difficult for me to open with injured hands.

Asked by: teachdydx
We would be happy to look into the part you are describing but will need a little more information. Please reach out to a specialist for assistance via Twitter @LGUSSupport or via Facebook https://www.facebook.com/LGUSA/ ^CP
Answered by: ChrisPSM
Date published: 2019-10-25

We have “hard” water in our area, new filter has been installed but still seeing residue in water after ice melts. Anything I can check

Asked by: Wellesley 116
We're sorry to see that you've run into these issues with your refrigerator. We'll need to gather some additional details from you in order to see how we can best assist. Please reach out to a specialist via Twitter @LGUSSupport, Facebook https://www.facebook.com/LGUSA/ ^CP
Answered by: ChrisPSM
Date published: 2019-08-15

What is the part number for ordering a air filter for LFXS26596S

Asked by: Hobbskh
The LG 6 Month Replacement Refrigerator Air Filter (Part # ADQ73214404), Model # LT120F is the same Air Filter used in all LG Refrigerators.
Answered by: ChrisPSM
Date published: 2019-08-12

Does this LFXS26596S show the actual temps or just what the setting temps are?

Asked by: Jesse v
The display on the ENERGY STAR® Qualified LG 26 cu. ft. Smart wi-fi Enabled InstaView™ Door-in-Door® Refrigerator, Model # LFXS26596S indicates the set temperature of the refrigerator compartment in Celsius (°C) or Fahrenheit (°F). It is the target temperature and not the actual temperature of the refrigerator...^IFV
Answered by: Ivanf
Date published: 2019-04-17

How do I enable the WiFi?

Asked by: MarylouC
Below are the steps: To turn on the WiFi, Press and hold the Wi-Fi button for 3 seconds to connect to the network. The icon blinks while the connection is being made, then turns on once the connection is successfully made
Answered by: MayaC
Date published: 2019-04-15

what is the repacement item number for the water filter in the LFXS26596S

Asked by: mary canugo
The part number for the LFXS26596S water filter is ADQ74793501
Answered by: MayaC
Date published: 2019-03-26
