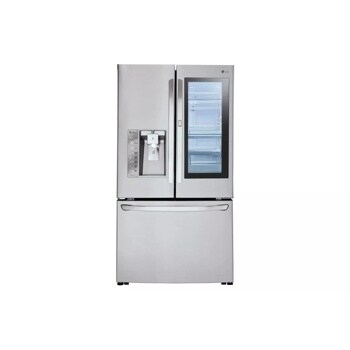

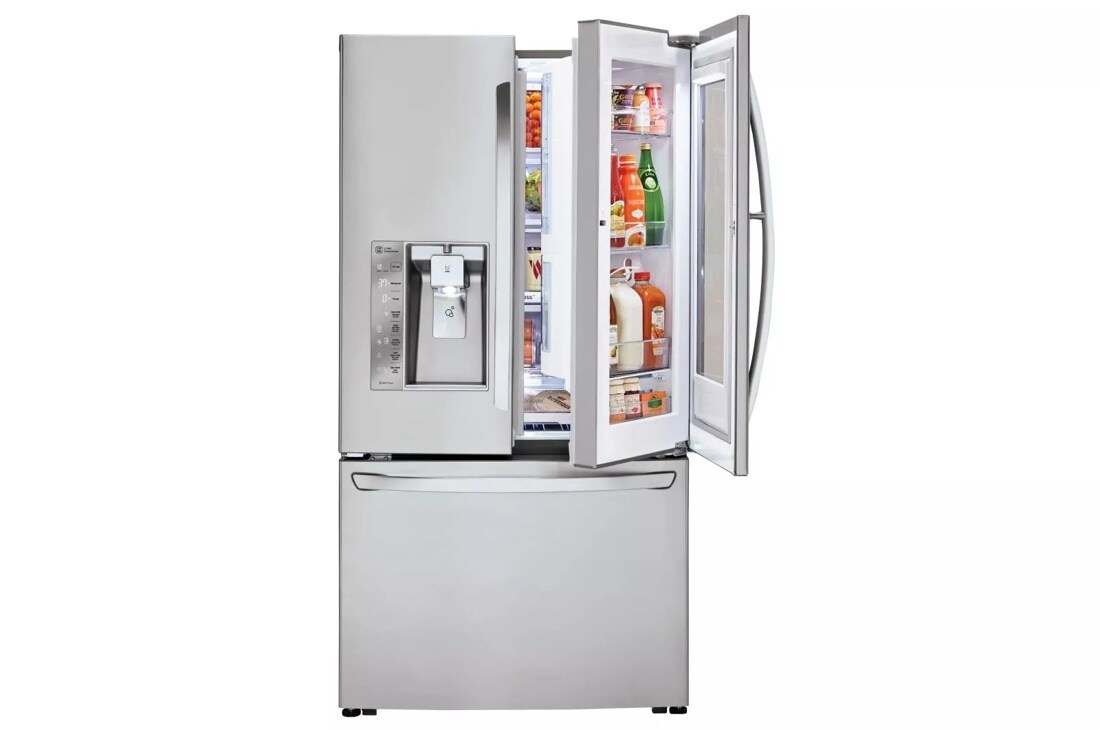

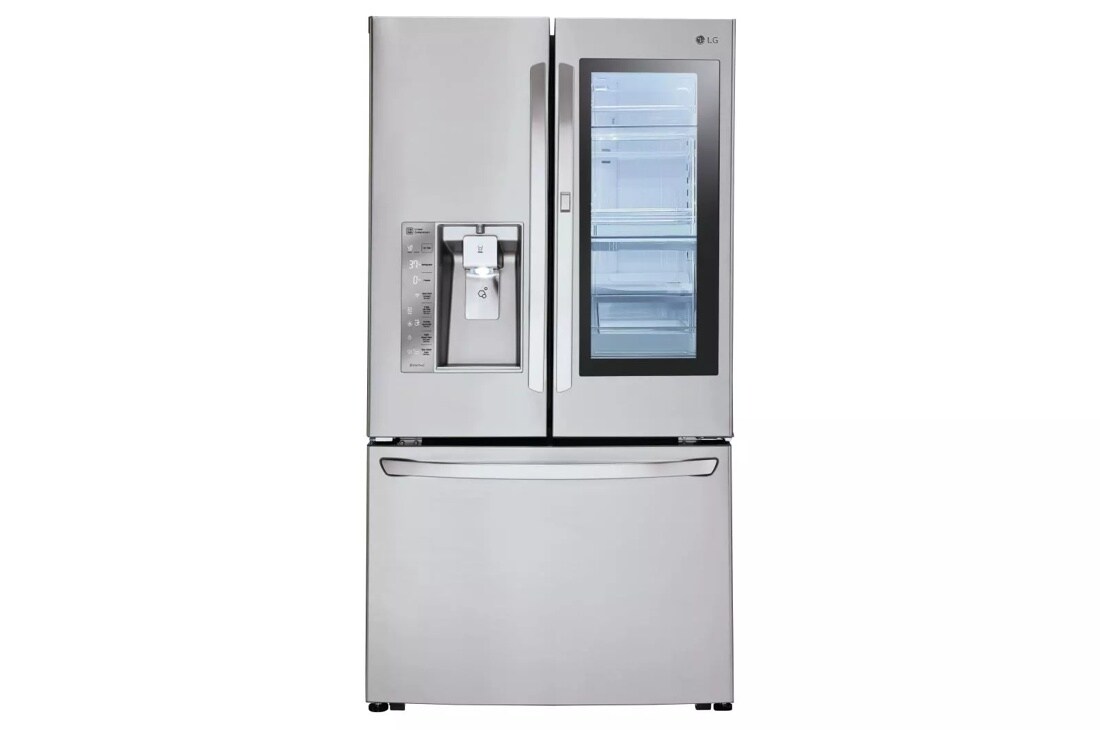

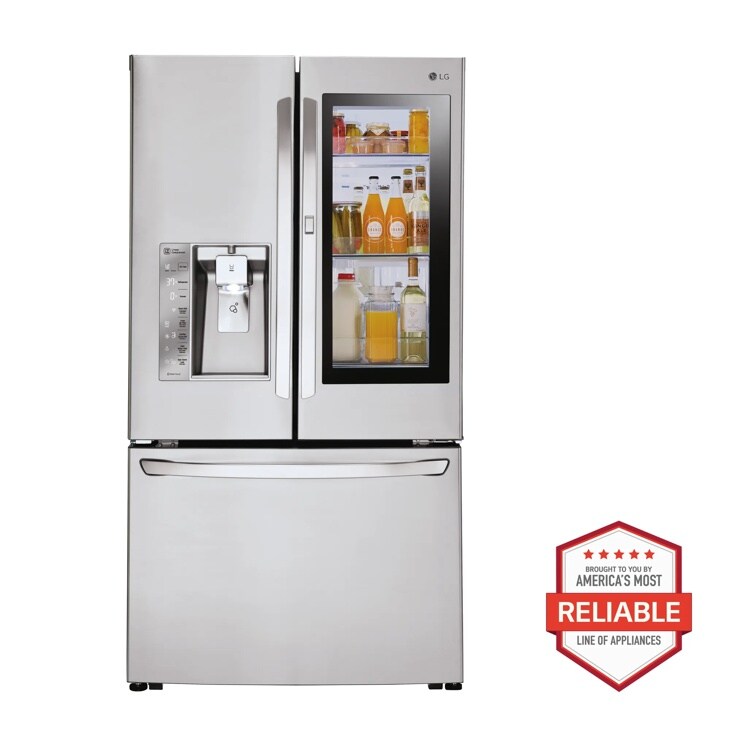

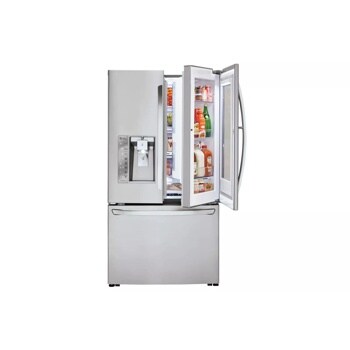

30 cu. ft. Smart wi-fi Enabled InstaView™ Door-in-Door® Refrigerator

  • 30 cu. ft. Capacity
  • InstaView™ Door-in-Door®
  • SmartThinQ® Technology
  • ColdSaver™ Panel
  • Slim SpacePlus® Ice System
30 cu. ft. Smart wi-fi Enabled InstaView™ Door-in-Door® Refrigerator

This model you are viewing is no longer available.

Click below to see similar products in this category that are available now.


  • Door Type
    French 3-Door
    Refrigerator Type
    InstaView™ Door-in-Door®
  • SmartThinQ®
    wi-fi Enabled
  • Total Capacity
    Ice & Water Dispenser
  • ENERGY STAR® Qualified
    Standard Depth
  • SmartDiagnosis™
    Sabbath Mode


  • Refrigerator
    19.50 cu. ft.
    10.10 cu. ft.
  • Total
    29.6 cu. ft.


  • Smart Cooling Plus System
    Multi Air Flow Cooling
  • Temperature Sensors
    Fresh Air Filter
    Yes, Air Filter LT120F
  • Water Filtration System
    Dual Evaporator
  • Ice & Water Dispenser
    Dispenser Type
    Integrated Tall Ice & Water Dispenser®
  • Ice System
    Slim SpacePlus®
    Linear Compressor
  • Display Type
    Smooth Touch Control (White LED)
    Daily Ice Production
    4.5 lbs/4.9 IcePlus
  • Ice Storage Capacity
    3.0lbs + 4.0lbs
  • Door-In-Door® with ColdSaver™ Panel
    Yes (w/ Glass Panel)
    ENERGY STAR® Qualified
    Yes (784 kWh/Year)


  • Glide N’ Serve™ Drawer
    Glide N' Access™ Shelf
  • Folding Shelf
    No. of Shelves
    4 Split (3 Fixed/1 Folding)
  • Cantilevered Shelves
    Shelf Construction
    Spill Protector™ Tempered Glass
  • Crisper Bins
    2 Crispers/1 Bonus Drawer
    Refrigerator Light
    Premium LED (Ceiling and Side)


  • No. of Shelves/Bin
    7 Total (Including Door-in-Door®)
    Door Bin Construction
    Clear, Opaque, Silver Deco
  • Dairy Corner


  • Drawers
    3-Tier Organization®
    DuraBase™ Solid Drawer Base
  • Divider
    Ice Bin
    Yes (1 Extra Ice Bin)
  • Freezer Light
    Premium LED
    Door Type
    Pull Drawer
  • Handle
    SmartPull® Freezer Handle


  • Depth with Handles
    36 1/4"
    Depth without Handles
    33 3/4"
  • Depth without Door
    29 1/2"
    Depth (Total with Door Open)
    48 1/8"
  • Height to Top of Case
    68 7/8"
    Height to Top of Door Hinge
    70 1/4"
  • Width
    35 3/4"
    Width (Door Open 90˚ with Handle)
    44 1/4"
  • Width (Door Open 90˚ without Handle)
    Installation Clearance
    Sides 1/8", Top 1", Back 2"
  • Weight (Unit/Carton)
    360 lbs / 393 lbs.
    Carton Dimensions (WxHxD)
    38" x 73" x 39"


  • Handle
    Matching Commercial Handles
    Available Colors
    Stainless Steel (S)
  • Hidden Hinges
    Coated Metal
  • Back
    Flush & Metal Cover Over Mechanical Parts
    Contour Door


  • Type
    3-Door Counter Depth French Door


  • Temperature Controls
    Door Alarm
  • LoDecibel™ Quiet Operation
  • Auto Closing Door Hinge
    Child Lock


  • Limited Warranty
    1 Year Parts and Labor, 5 Years on the Sealed System (Parts & Labor), 5 Years on the Compressor (Parts & Labor), 6-10 Years on Linear Compressor (Parts Only)

What people are saying

Rated 1 out of 5 by from Terrible! Quit cooling after 3 years, finish started chipping off after 3 months, have never been able to contact lg directly. Will never buy a LG product again.
Date published: 2020-06-29
Rated 1 out of 5 by from Good Looking Waste of Money! I bought this unit in Jan. 2018. Such a beautiful addition to my kitchen. I started to notice the food would be lukewarm. I did reset the fridge as instructed. It would go from cold to lukewarm. All my frozen foods were mushy about $200 worth. Had to toss the items and reset the fridge again. Once again everything went from cold to lukewarm. Here it is June 2020 the unit has gone completely out. I have lost about $400 in food. My son has a $2,000 medication that has to be refrigerated and we have lost that. Whose gonna replace that? I am waiting for someone LG is sending to come and "fix" the unit. Until then we are using a cooler while our beautiful 2 year old fridge is sitting nice and hot. I wish I would have read the reviews first.
Date published: 2020-06-15
Rated 1 out of 5 by from Not cooling I have owned this fridge raptor for less than 2 yrs. and it does not cool properly and my ice maker does not work properly because the unit does not cool properly. SEE PHOTO The problem is made worse because LG knows they have a problem with the linear compressors, and overall performance of this product. There Repair technician told me that 49 -55 degrees is a safe refrigerator temperature. SEE PHOTO I have lost all my groceries twice and has cost me over $400 in spoiled groceries. I hope someone from LG gets this review and offers to repair the unit or replace the unit. If not, I hope I can save another potential customer the LG headache and go another route.
Date published: 2020-04-27
  • y_2020, m_7, d_8, h_15
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.10
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_156
  • loc_en_US, sid_MD05790869, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_lg
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getReviews, 21ms


Ask your questions. Share your answers.
Please review the detailed product information and help guides in the
Product Support section for this product prior to posting a question.

Does the LFXS30796D refrigerator come with a speaker mounted on top of it hidden by the doors or is there an accessory that can be added to do this? Does it support Smart Thin Q , google , or alexa?

Asked by: know man
The ENERGY STAR® Qualified LG 30 cu. ft. Smart wi-fi Enabled InstaView™ Door-in-Door® Refrigerator, Model # LFXS30796D features LG's SmartThinQ® Technology. It does not have a speaker mounted on the top of the refrigerator and it is not Google Home or Amazon Alexa compatible...^IFV
Answered by: Ivanf
Date published: 2019-06-24

Opening is fine (36 inches) but does this fit with a wall on one side have a lfx319255w that fits but is the a true 44 1/2 when the doors is open on LFXS model.

Asked by: DragonMonster
The ENERGY STAR® Qualified LG 30 cu. ft. Smart wi-fi Enabled InstaView™ Door-in-Door® Refrigerator, Model # LFXS3079D has a listed width of 44 1/4" with the door open 90˚ which means that you will need a door edge clearance of 4 1/4" (4 1/2" recommended) for either door so you can open it 90˚. Please verify the model number for the refrigerator you currently have that you gave as Model # LFX319255W (Looks like one of the "5's" should have been an "S"). If the correct model number is LFX31925SW, which has a width of 45" with the door open 90˚ with handle, then you will not have a problem with the LFXS3079D fitting into the space...^IFV
Answered by: Ivanf
Date published: 2019-03-22

Where can we buy a water filter bypass module for this model?

Asked by: Leodox
Hello, all of our new models have a built in bypass, so you do not need to purchase one. Just simply do not install a filter. ^AC
Answered by: Amber C
Date published: 2019-05-04

Auto correct changed my previous question!  How do you control the humidity in the crisper drawers?

Asked by: Deeniebeenie
This model does not have any slider bars for the crispers, I too would like to know how to adjust the humidity in the crisper drawers?
Answered by: Traveling Al
Date published: 2018-06-02

The freezer is set to 0 degrees and has been working fine, but now the inside is making frost, does anyone know why this happens?

Asked by: Mlt73
There are two main things that can cause frost building up. 1) Door is opened frequently or for long periods of time. To resolve: When the doors are opened often or for long periods of time, warm, humid air enters the compartment. This raises the temperature and moisture level within the compartment. Increased moisture will lead to frost and condensation. To lessen the effect, reduce the frequency and duration of door openings. 2) Door is not closing properly. To resolve: Check for food packages that are blocking the door area. Check to see if the Ice bin, crisper cover, pans, shelves, door bins, or baskets are out of position. The doors were removed during product installation and not properly replaced. Check to see if the refrigerator is leveled properly. ^CP
Answered by: ChrisPSM
Date published: 2017-12-06

What depth is considered "counter depth"? The specs show that the 30796S is considered counter depth ready, this true?

Asked by: RaulJoel
Counter depth is approximately 24" without doors. LFXS30796S would not be considered a counter depth model.
Answered by: Shena
Date published: 2019-02-04

Is this refrigerator have the stainless exterior that doesn't show finger prints? Can't remember if I read somewhere this model has that coating.

Asked by: rgteran
The Stainless Steel on the ENERGY STAR® Qualified LG 30 cu. ft. InstaView™ Door-in-Door® Refrigerator, Model # LFXS30796S does not have a coating on it that makes it fingerprint or smudge resistant. Only the LG BLack Stainless Steel Appliances have a stainless steel formed from stainless steel coated with a darker hue and topped with a protective coating, that makes every appliance fingerprint and smudge resistant...^IFV
Answered by: LGJoel
Date published: 2019-02-04

At what temperature Should the freezer be set at

Asked by: leo1097
We appreciate your interest in this refrigerator. When the unit is first installed, the freezer temperature should be set to 0 degrees Fahrenheit, while the refrigerator should be set to 37 degrees. Once the unit reaches these temperatures, you may change the setting to however you would prefer.
Answered by: NeilE
Date published: 2017-10-10
