- Pixel Pitch: 1.25 mm
- Screen Size: 5.1 m × 2.7 m (14 sqm)
- Screen Resolution: 4,096 × 2,160 px
- Brightness : 48(DCI) / 55 / 65 / 75 / 100 / 130 / 260 / 300 nit
- 3D Support, Dolby Media Server Compatible
All Spec
INFORMATION
Model name
LDAA012-MD
PHYSICAL PARAMETERS
Pixel Pitch (mm)
1.25mm
Pixel Configuration
SMD
No. of Modules per Cabinet (WxH)
6 (2 x 3)
Cabinet Resolution (WxH)
512 x 360
Cabinet material
Aluminum
Cabinet Dimensions (W x H x D, mm)
Main : 640 x 450 x 59 (163 w/back cover)

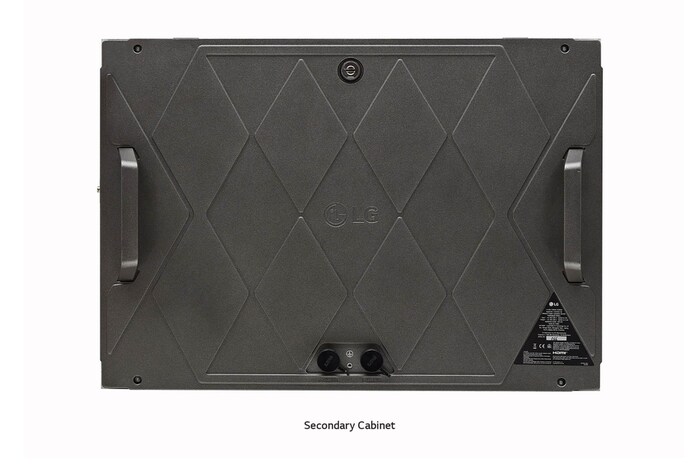

Secondary : 640 x 450 x 59 (101 w/handle)
Weight per Cabinet (kg/unit)

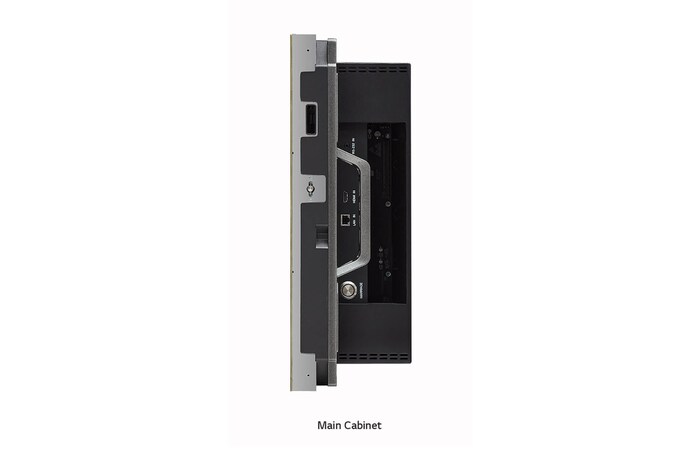

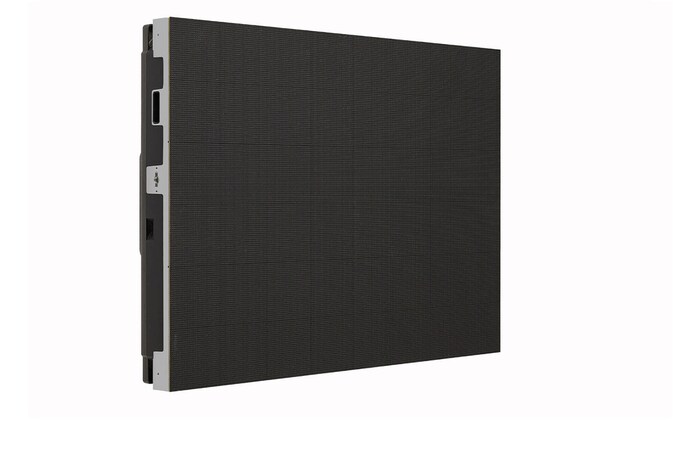

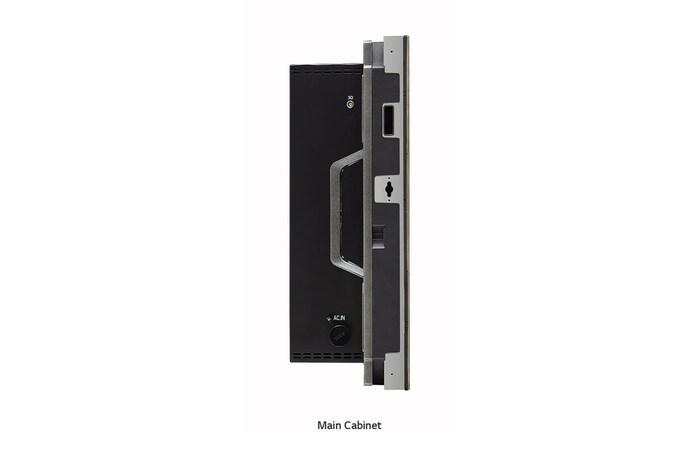

Main Cabinet : 13.8

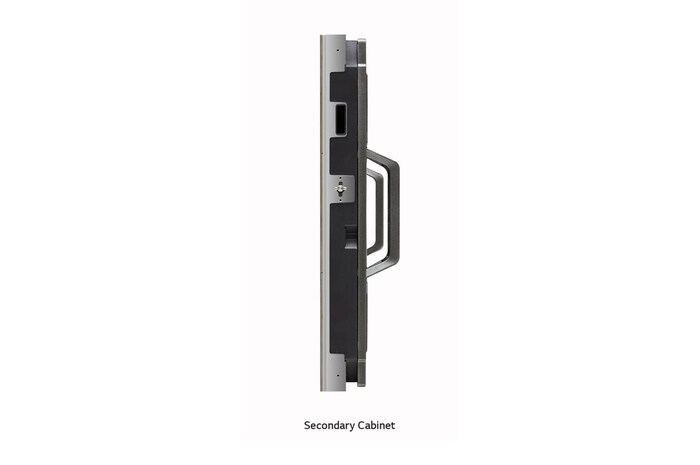

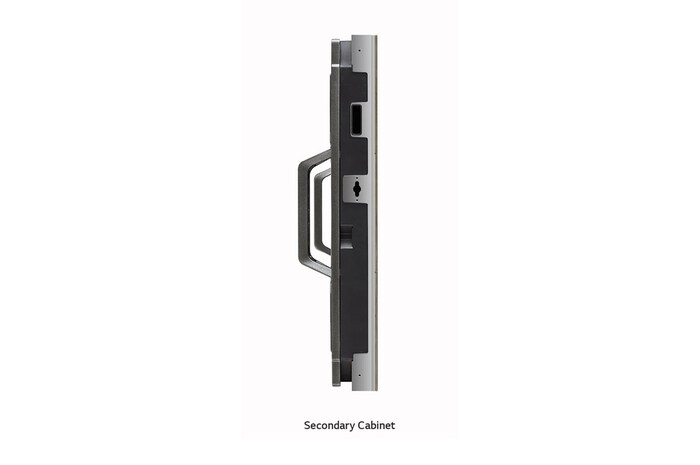

Secondary : 7.5
Service access
Rear only
OPTICAL SPECIFICATIONS
Max Brightness (After Calibration, nit)
48(DCI) / 55 / 65 / 75 / 100 / 130 / 260 / 300
Contrast Ratio
≥4,000:1
Visual Viewing Angle (Horizontal)
160
Visual Viewing Angle (Vertical)
160
Processing Depth (bit)
15bit@24/48/50Hz
