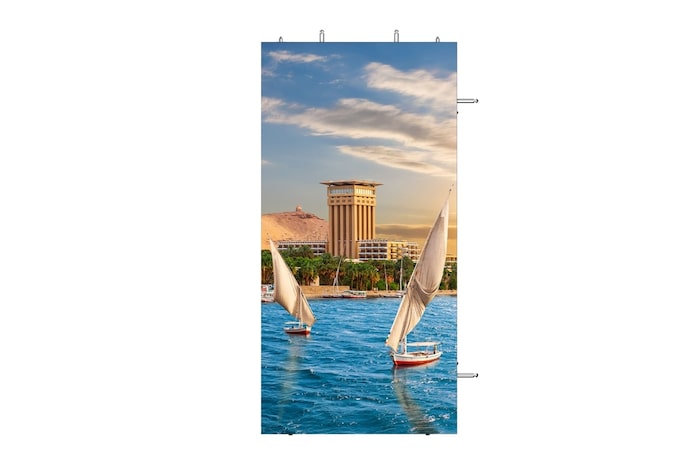

Model name
LSBC026-GD
Pixel Configuration
Single SMD
Pixel Pitch (mm)
2.6
Module Resolution (WxH)
96x96
Module Dimensions(WxH,mm)
250x250
Weight per Module (kg)
0.7
No. of Modules per Cabinet (WxH)
2x4
Cabinet Resolution (WxH)
192x384
Cabinet Dimensions (W x H x D, mm)
500x1,000x69
Cabinet Surface Area (㎡)
0.5
Weight per Cabinet (kg/unit)
12.8
Weight per Square Meter (kg/㎡)
26
Physical Pixel Density (pixels/㎡)
147,456
Flatness of Cabinet (mm)
±0.5
Cabinet material
Die-casting Aluminum
Service access
Front or Rear (select one only)
Max Brightness (After Calibration, nit)
1,000
Color Temperature (K)
3,200~9,300
Visual Viewing Angle (Horizontal)
160
Visual Viewing Angle (Vertical)
140
Brightness Uniformity
0.97
Color Uniformity
±0.003Cx,Cy
Contrast Ratio
5,000:1
Processing Depth (bit)
16 (HDR10, HDR10 Pro)
Power Consumption (W/Cabinet, Max.)
300
Power Consumption (W/Cabinet, Avg.)
100
Power Consumption (W/㎡, Max.)
600
Heat Dissipation (BTU/h/Cabinet, Max.)
1,024
Heat Dissipation (BTU/h/Cabinet, Avg.)
341
Heat Dissipation (BTU/h/㎡, Max.)
2,047
Power Supply (V)
100 to 240
Frame Rate (Hz)
50 / 60
Refresh Rate (Hz)
3,840
Operating Temperature(℃)
-20℃ to +40℃
Operating Humidity
10~80%RH
IP rating Front
IP50
IP rating Rear
IP50
LED Lifetime (Half brightness)
100,000
Certification
CE, FCC, cTUVus, CB
Environment
RoHS, REACH
Controller
CVBA

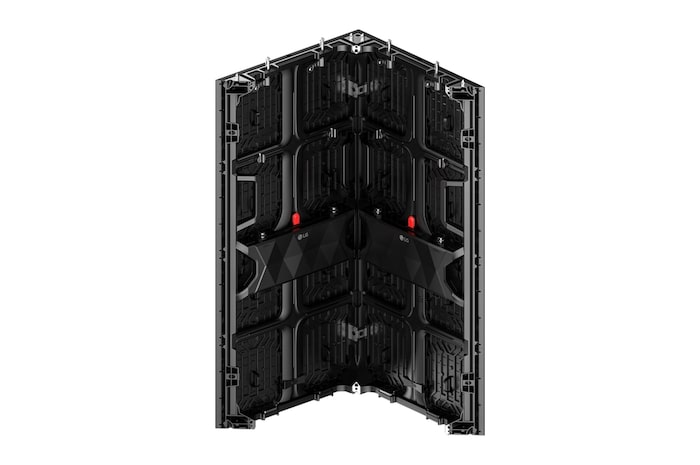

90 degree corner cut
O
