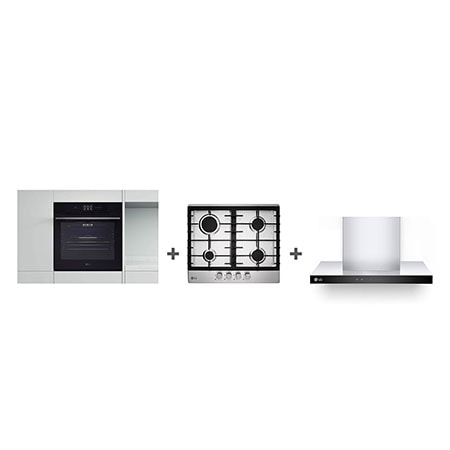

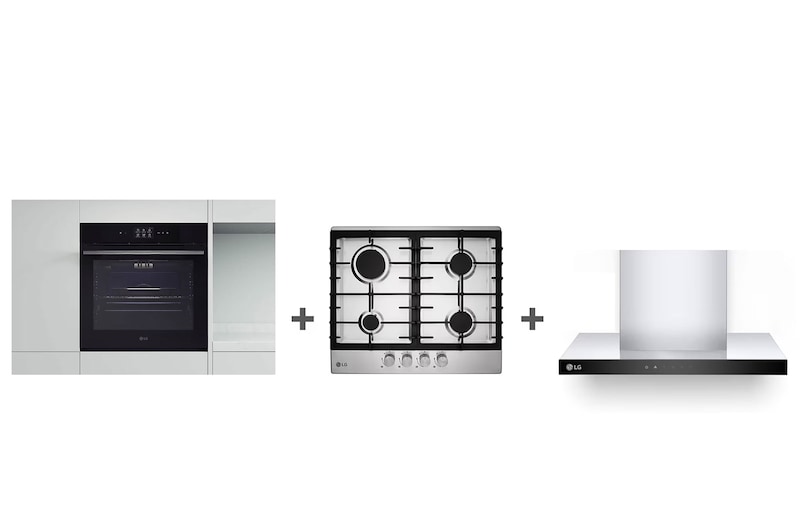

LG InstaView Oven 76 Liters A+ Air Fry &Steam + LG built-in gas panel + LG Hood 60 cm with Touch Control
Brand
LG
Country of Origin
China
Installation Type
Wall-Mount
Outcase Color
Stainless Steel
Blower CMH (min-max)
280-830
Blower dB(min-max)
55-77
Blower Speed Levels
3+Boost
Hood Type
T-Shape
Control Type
Glass Touch
Wi-Fi Control CFM
No
Wi-Fi Control Lights
No
Wi-Fi Power On/Off
No
Shipping Weight (Kg)
16.8
Packing Dimensions (W x H x D) (mm)
680 x 385 x 650
Product Dimensions (W x H x D)(mm)
598 x 280 x 500
Product Weight (Kg)
9.3
Power Output (W)
253
Required Power Supply (V/Hz)
220~240V / 50Hz, 220~240V / 60Hz
Circuit Breaker Size (A)
16
Hood Type
T-Shape
Auto Delay-Off
No
Blower CMH (min-max)
280-830
Blower dB(min-max)
55-77
Blower Speed Levels
3+Boost
Dual-Level Lighting
No
Filter Type
Washable Aluminum Grease Filiter
Installation Type
Wall-Mount
Lighting Power (W)
3
Lighting Type
LED
Outcase Color
Stainless Steel
RoHS Compliant
Yes
Size in Width (mm)
598
Vertical Internal Blower
6" Round
Brand
LG
Country of Origin
China
Outcase Color
Stainless Steel
Cooktop Type
Sealed Burner
Fuel Type
Gas
Clock
No
Control Lock
No
Printproof Finish
No
Cooktop Color
Stainless Steel
Cooktop Control Type
Knob
Cooktop Finish
Stainless Steel
Knob Color
Stainless Steel
Knob Lighting
No
Knob Material
Aluminum
Shipping Weight (Kg)
12.7
Packing Dimensions (W x H x D) (mm)
672 x 173 x 582
Product Dimensions (W x H x D)(mm)
594 x 90 x 514
Product Weight (Kg)
9.8
Cut-out Dimensions (W x H x D)(mm)
560 x 90 x 490
Size in Width (mm)
594
Power Output (W)
7500
Required Power Supply (V/Hz)
220~240V / 50Hz, 220~240V / 60Hz
ThinQ(Wi-Fi)
No
Conversion Kit (Ea)
1
Cooktop Burner Grate Material
Cast Iron
Cooktop Type
Sealed Burner
Element/Burner Type(Single)
Left Front, Left Rear, Right Front, Right Rear
Fuel Type
Gas
Gas Burner - Left Front(LNG/LPG) (W)
1000 / 1000
Gas Burner - Left Rear(LNG/LPG) (W)
3000 / 3000
Gas Burner - Right Front(LNG/LPG) (W)
1750 / 1750
Gas Burner - Right Rear(LNG/LPG) (W)
1750 / 1750
Gas Burner - Total (LNG/LPG) (W)
7500 / 7500
Number of Cooktop Elements/Burners
4
Safety function(Cooktop)
No
Switched on(How to Switch on)
Automatic (Push & Turn Knob)
Brand
LG
Country of Origin
Korea
Outcase Color
Black
Fuel Type
Electric
Oven Cooking System
ProBake Convection
Oven Type
Single
Clock
Yes
Kitchen Timer
Yes
Control Lock
Yes (Oven)
Cooking Complete Reminder Volume
Yes
Language
Arabic, English
Oven Cleaning Type
Easy Clean
Sabbath Mode
No
Soft Closing System
Yes(Oven Door)
Temperature Unit of Measure
Celsius
Timed Cook
Yes
Door Color
Matt Black
Interior Color
Blue
Outcase Color
Black
Printproof Finish
No
Cavity Material
Enamel
Control Display
LCD
Handle Color
Black Stainless Steel
Handle Material
Aluminum
Knob Lighting
No
Oven Control Type
Glass Touch
Oven Door Feature
Instaview Window
Shipping Weight (Kg)
51.0
Packing Dimensions (W x H x D) (mm)
700 x 645 x 660
Product Dimensions (W x H x D)(mm)
592 x 594 x 569
Product Weight (Kg)
45.0
Cut-out Dimensions (W x H x D)(mm)
560 x 590 x 556
Oven Interior Dimension (W x H x D)(mm)
488 x 373 x 420
Size in Width (mm)
592
Power Output (W)
3500
Required Power Supply (V/Hz)
220~240V / 50Hz
NFC Tag On
No
SmartDiagnosis
Yes
ThinQ(Wi-Fi)
Yes
Check & Control
Yes
Proactive Customer Care
Yes
Smart Recipe (3rd Party Recipe App)
No
Voice Control (3rd Party Device)
No
Baking Tray (Ea)
1
Deep Baking Tray (Ea)
1
Standard Rack (Ea)
1
Steam Tray(Large) (Ea)
1
Temp Probe (Ea)
1
Automatic Safety Shut-Off
Yes
Bake Element Type
Hidden
Broil Element Type
Sheath
Convection Conversion
No
Convection Fan
Dual Speed (High/Low)
Convection Type
ProBake Convection
Bake Element Power (W)
1633
Broil Element Power (W)
1633 / 1742
Convection Element Power (W)
2000
Fuel Type
Electric
GoCook Smart Oven Light
Yes
Maintenance
Descaling, Drying
Number of Rack Positions
5
Oven Capacity (L)
76
Oven Cooking mode
Air Fry, Bottom Heat, Defrost, Drying, Eco Hot Air, Eco Top Bottom Heat, Fan Assisted Air, Frozen Meal, Hot Air, Large Grill, Pizza Mode, Proof, Roasting, Small Grill, Sous-Vide, Steam, Steam Baking, Steam Hot Air, Steam Regenerating, Steam Roasting, Top Bottom Heat, Warm, Warm Dishes
Oven Light Type
LED
