75" UHD 4,000nits Window-facing Display

Specs

Support

Resource

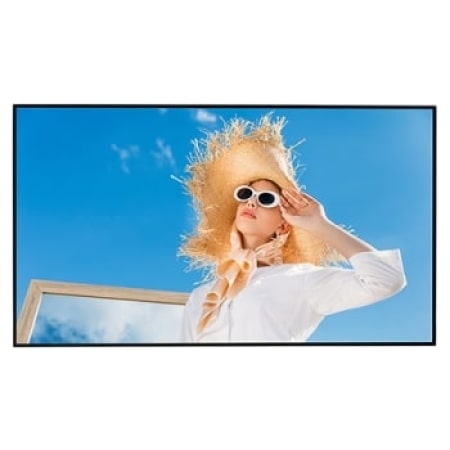

75" UHD 4,000nits Window-facing Display

75" UHD 4,000nits Window-facing Display

75XS4G-B
()
Print

All Spec

PANEL

  • Screen Size (Inch)

    75

  • Panel Technology

    IPS / M+

  • Back Light Type

    Direct

  • Aspect Ratio

    16:9

  • Native Resolution

    3840 x 2160 (UHD)

  • Refresh Rate

    60Hz

  • Brightness

    4,000nit (Typ.), 3,200nit (Min.)

  • Contrast Ratio

    1,200:1 (Typ.)

  • Dynamic CR

    500,000:1

  • Color Gamut

    NTSC 68%

  • Viewing Angle (H x V)

    178º x 178º

  • Color Depth (Number of Colors)

    1.07 Billion colors

  • Response Time

    8ms (G to G)

  • Surface Treatment (Haze)

    Haze 3%

  • Life time

    50,000Hrs (Typ.)

  • Operation Hours (Hours/Day)

    24/7

  • Portait / Landscape

    YES / YES

  • Transparency

    N/A

  • QWP (Quarter Wave Plate)

    YES

CONNECTIVITY

  • HDMI In

    YES (2ea)

  • HDMI In (HDCP Ver.)

    2.2/1.4

  • DP In

    YES (HDCP 2.2/1.3)

  • DVI-D In

    NO

  • RGB In

    NO

  • Audio In

    NO

  • RS232C In

    YES

  • RJ45(LAN) In

    YES (1ea)

  • IR In

    YES

  • USB In

    USB2.0 Type A (1ea)

  • HDMI Out

    YES

  • DP Out

    YES

  • Audio Out

    NO

  • Touch USB

    NO

  • External Speaker Out

    YES

  • RS232C Out

    YES

  • RJ45(LAN) Out

    YES

  • IR Out

    YES (Sharing RS232C Out)

  • Daisy Chain

    NO

MECHANICAL SPECIFICATION

  • Bezel Color

    Black

  • Bezel Width

    Even bezel : 13.8mm

  • Weight (Head)

    39.6Kg

  • Weight (Head+Stand)

    N/A

  • Packed Weight

    50Kg

  • Monitor Dimensions (W x H x D)

    1679.2 x 957.6 x 104mm

  • Monitor Dimension with Stand (W x H x D)

    N/A

  • Carton Dimensions (W x H x D)

    1816 x 1106 x 285mm

  • Handle

    YES

  • VESA Standard Mount Interface

    600 x 400 mm

PROTECTION GLASS

  • Thickness

    N/A

  • Degree of Protection

    N/A

  • Tempered / Chemical strengthening

    N/A

  • Anti-Reflective

    N/A

  • Infrared - Resistance (IR)

    N/A

  • Shatter-Proof

    N/A

FEATURE - HARDWARE

  • Internal Memory (eMMC)

    16GB

  • Wi-Fi/BT (Built-in)

    YES

  • Temperature Sensor

    YES

  • Auto Brightness Sensor

    YES

  • Pixel Sensor

    NO

  • Proximity Sensor

    NO

  • Current Sensor

    NO

  • BLU Sensor

    NO

  • Humidity Sensor

    NO

  • Acceleration(Gyro) Sensor

    YES

  • Power Indicator

    NO

  • Local Key Operation

    YES

  • FAN (Built-in)

    YES

FEATURE - SOFTWARE

  • OS Ver. (webOS)

    webOS 4.1

  • Local Contents Scheduling

    YES

  • Group Manager

    YES

  • USB Plug & Play

    YES

  • Fail over

    YES

  • Booting Logo Image

    YES

  • No Signal Image

    YES

  • RS232C Sync

    YES

  • Local Network Sync

    YES

  • Backlight Sync

    YES

  • PIP

    YES

  • PBP

    YES (2PBP)

  • Screen Share

    NO

  • Video Tag

    YES (4 Video Tag)

  • Play via URL

    YES

  • Screen Rotation

    YES

  • External Input Rotation

    YES

  • Gapless Playback

    YES

  • Tile Mode Setting

    YES

  • Setting Data Cloning

    YES

  • SNMP

    YES

  • ISM Method

    YES

  • Auto Set ID

    YES

  • Status Mailing

    YES

  • Control Manager

    YES

  • Cisco Certification

    NO

  • Crestron Connected

    NO

  • Smart Energy Saving

    YES

  • PM mode

    YES

  • Wake on LAN

    YES

  • Network Ready

    YES

  • Beacon

    YES

  • HDMI-CEC

    YES

  • SI Server Setting

    YES

  • webRTC

    YES

  • Pro:Idiom

    YES

  • Brightness Compensation

    NO

  • W/B Setting by Grey scale

    NO

  • Scan Inversion

    NO

ENVIRONMENT CONDITIONS

  • Operation Temperature

    0 °C to 40 °C (w/o Direct Sunlight, Direct Sunlight in Cooling System) 0 °C to 30 °C (Direct Sunlight)

  • Operation Humidity

    10 % to 80 %

POWER

  • Power Supply

    AC 100-240V~, 50/60Hz

  • Power Type

    Built-in Power

POWER CONSUMPTION

  • Typ.

    750W (Full White) 405W (IEC 62087)

  • Max.

    790W

  • BTU (British Thermal Unit)

    2559 BTU/Hr(Typ.), 2696 BTU/Hr(Max.)

  • DPM

    0.5W

  • Power off

    0.5W

SOUND

  • Speaker (Built-in)

    NO

CERTIFICATION

  • Safety

    CB / NRTL

  • EMC

    FCC Class "A" / CE / KC / VCCI

  • ERP / Energy Star

    YES / NO

  • ePEAT(US only)

    NO

OPS COMPATIBILITY

  • OPS Type compatible

    NO

  • OPS Power Built-in

    NO

SOFTWARE COMPATIBILITY

  • SuperSign CMS

    YES

  • SuperSign Control+

    YES

  • SuperSign WB

    NO

  • SuperSign Cloud

    NO

  • Promota

    NO

  • Mobile CMS

    NO

  • Connected Care

    YES

LANGUAGE

  • OSD

    English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Türkçe, Arabic

ACCESSORY

  • Basic

    Remote Controller(including battery 2ea), Power Cord, HDMI Cable, Manual (EIG, IG), IR Receiver(w/Ambient Light Sensor), RS-232C Gender, IR Sheet

  • Optional

    Double sided Bracket (Landscape&Portrait : WM-B640S)

SPECIAL FEATURE

  • Overlay Touch Compatibility

    N/A

  • Smart Calibration

    N/A

  • Tilt (Face up)

    N/A

  • Tilt (Face down)

    N/A

  • IP Rating

    N/A

  • Conformal Coating (Power Board)

    YES

  • Power Protection

    N/A

  • Direct Sunlight

    N/A

DEDICATED FEATURE - TOUCH

  • Available Object Size for Touch

    N/A

  • Response Time ('Paint' app on Windows 10 PC)

    N/A

  • Accuracy (Typ.)

    N/A

  • Interface

    N/A

  • Protection Glass Thickness

    N/A

  • Protection Glass Transmission

    N/A

  • Operating System Support

    N/A

  • Multi Touch Point

    N/A

To access more technical documentation and resources, please visit the LG B2B partner portal.
