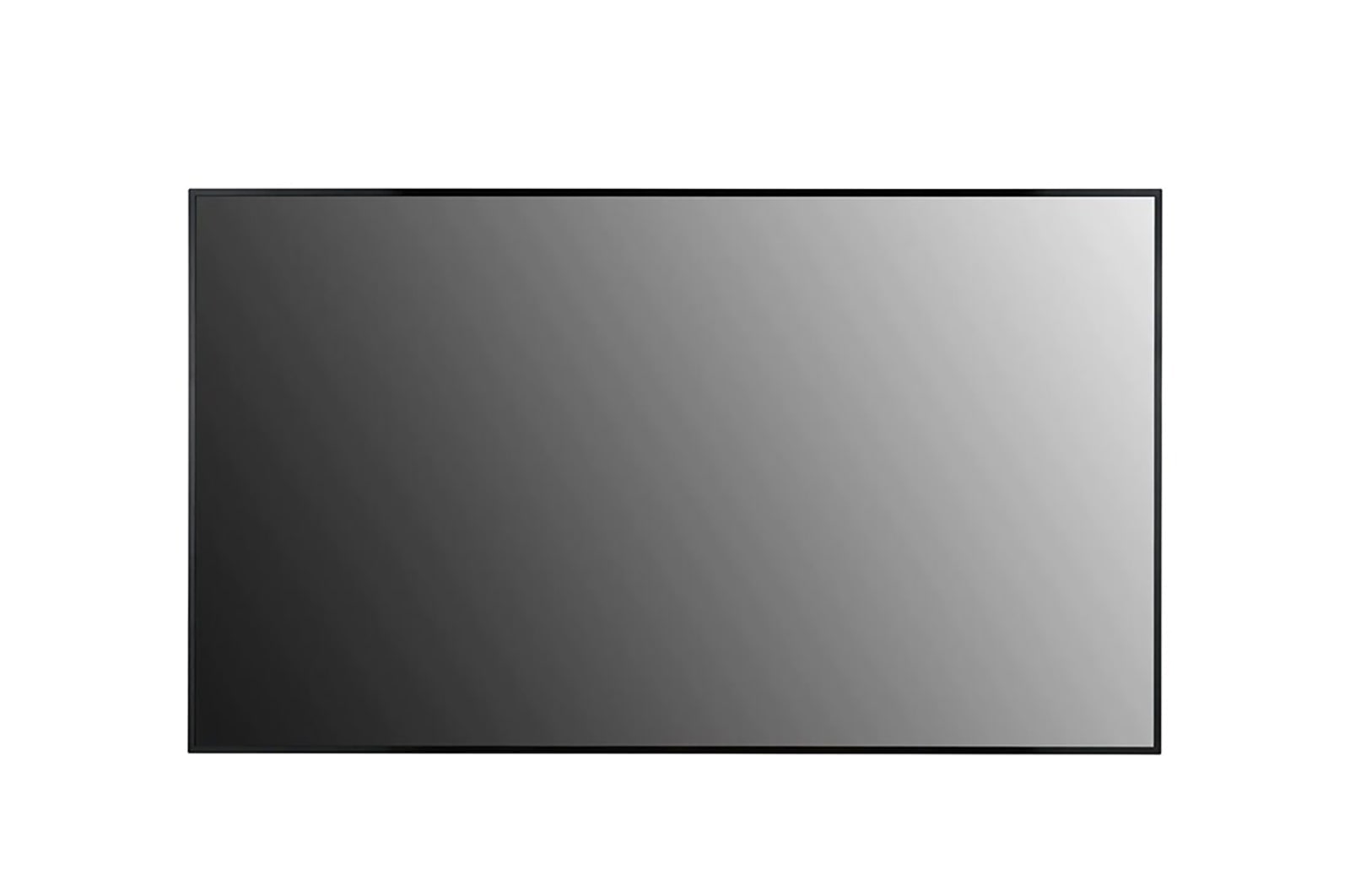

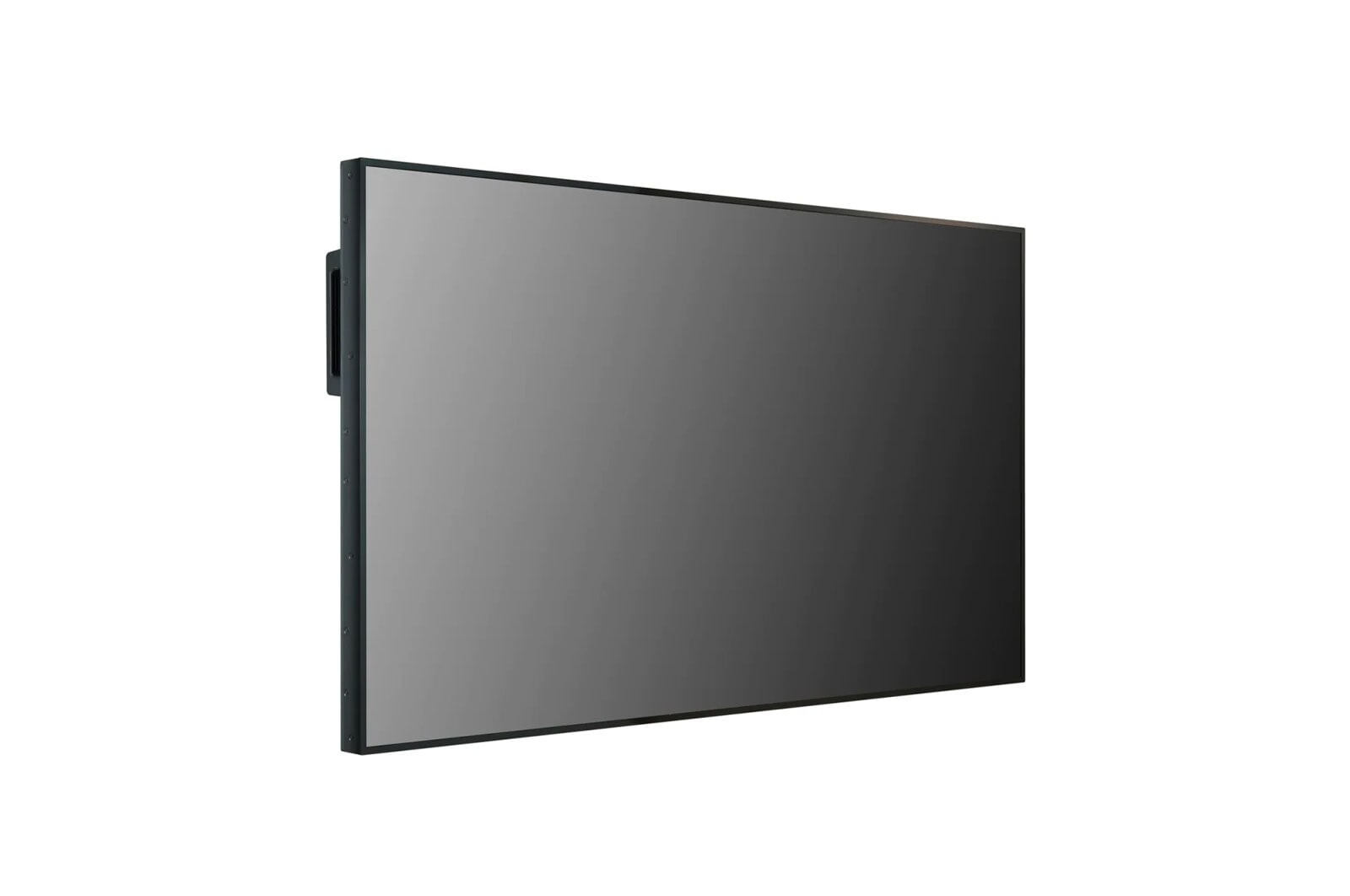

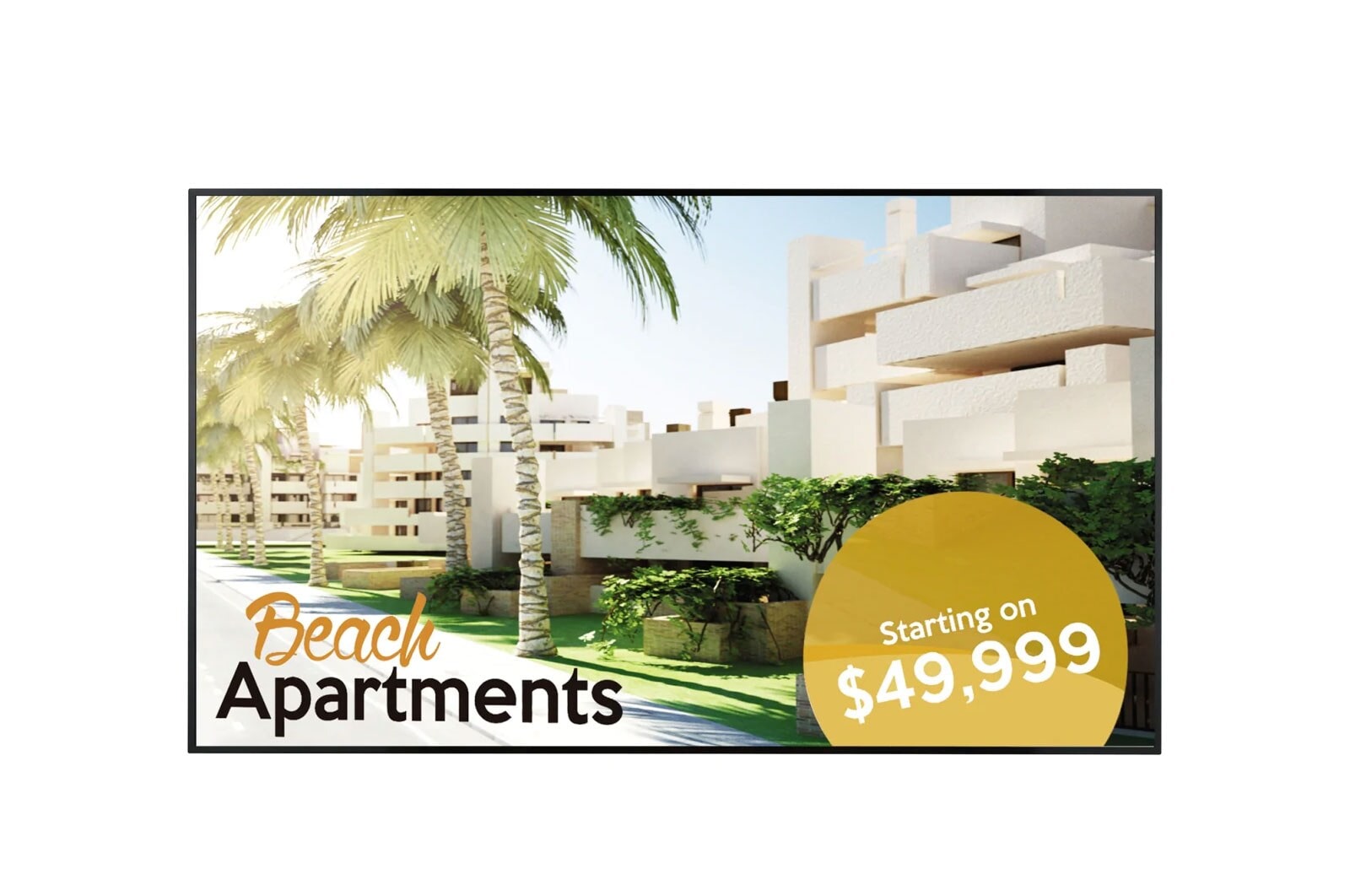

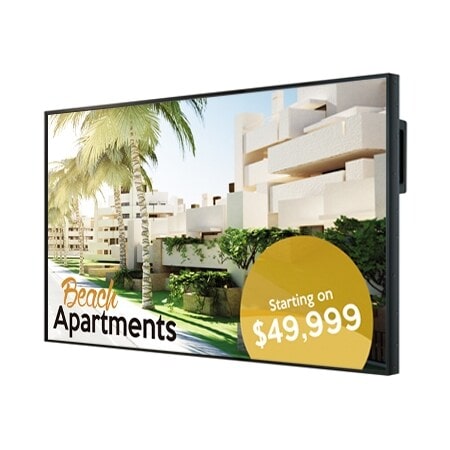

75'' UHD 3,000nits Open-frame Display

75'' UHD 3,000nits Open-frame Display

75XF3ES-B
()
75XF3ES-B
Outstanding Visibility with Reliable Performance

Outstanding Visibility with Reliable Performance

There is increasing demand for outdoor signage for delivering information and advertisement. With high-brightness and reliable performance, the open frame XF Series is able to achieve these goals effectively in any location.
High Brightness
Outstanding Visibility

High Brightness

With a great brightness of 3,000 cd/m², XF series clearly deliver contents and attract public attention, which is the ultimate display for outdoor visibility.
Visible with Polarized Sunglasses
Outstanding Visibility

Visible with Polarized Sunglasses

QWP (Quarter Wave Plate) enables clear visibility even when the viewer is wearing polarized sunglasses.
Auto Brightness Control
Outstanding Visibility

Auto Brightness Control

The screen brightness is automatically adjusted depending on the ambient light. The brightness is increased in light for better visibility, while it is decreased in darkness for efficient power management.
High Operating Temperature
Product Reliability

High Operating Temperature

Its high reliability under high operating temperatures reduces additional costs for air conditioning system.
Conformal Coating
Product Reliability

Conformal Coating

The product can be often unavoidably exposed to dust and water during maintenance. Conformal coating on every major circuit board eliminates such troubles by protecting it against dust, iron powder, humidity, etc.

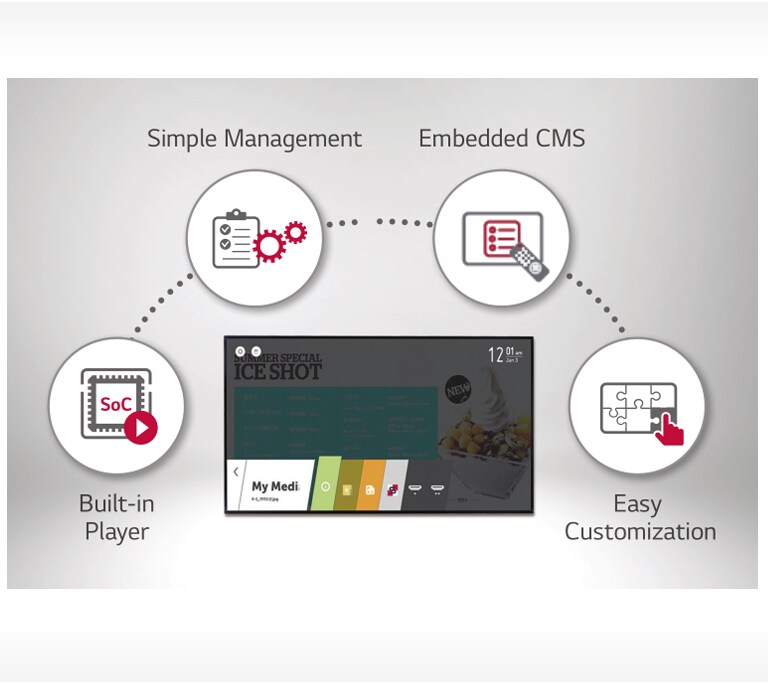

webOS Smart Platform
High Performance

webOS Smart Platform

Quad Core SoC(System-on-Chip) can execute several tasks at the same time without a separate media player. In addition, webOS 3.0 platform enhances user convenience with intuitive UI and simple app development tools.
Smart Brightness Compensation
High Performance

Smart Brightness Compensation

The built-in BLU sensor constantly measures the brightness of the display and automatically compensates for reduced brightness during operation.
Optimized Design for Double-sided Display
Easy Installation

Optimized Design for Double-sided Display

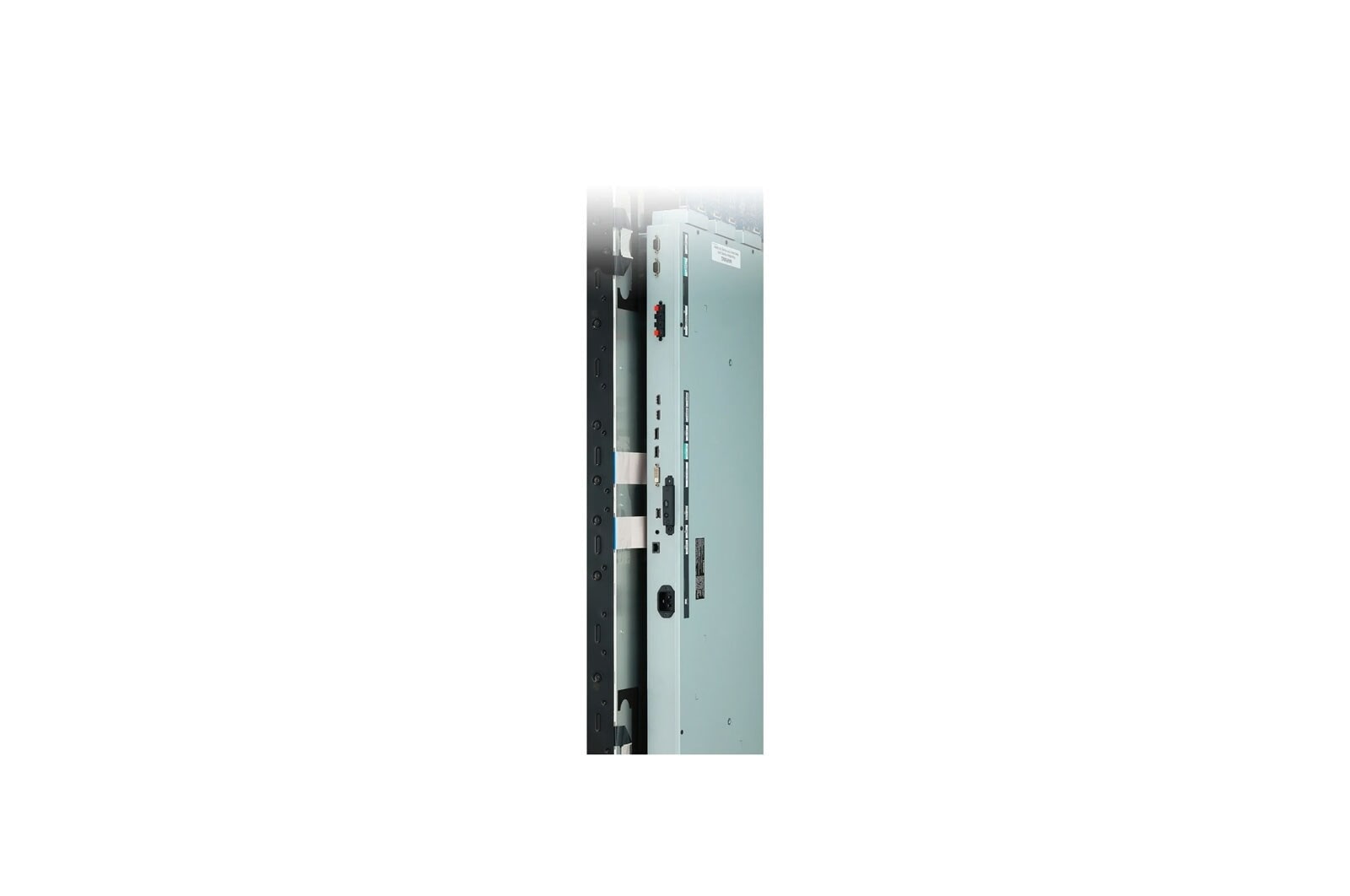

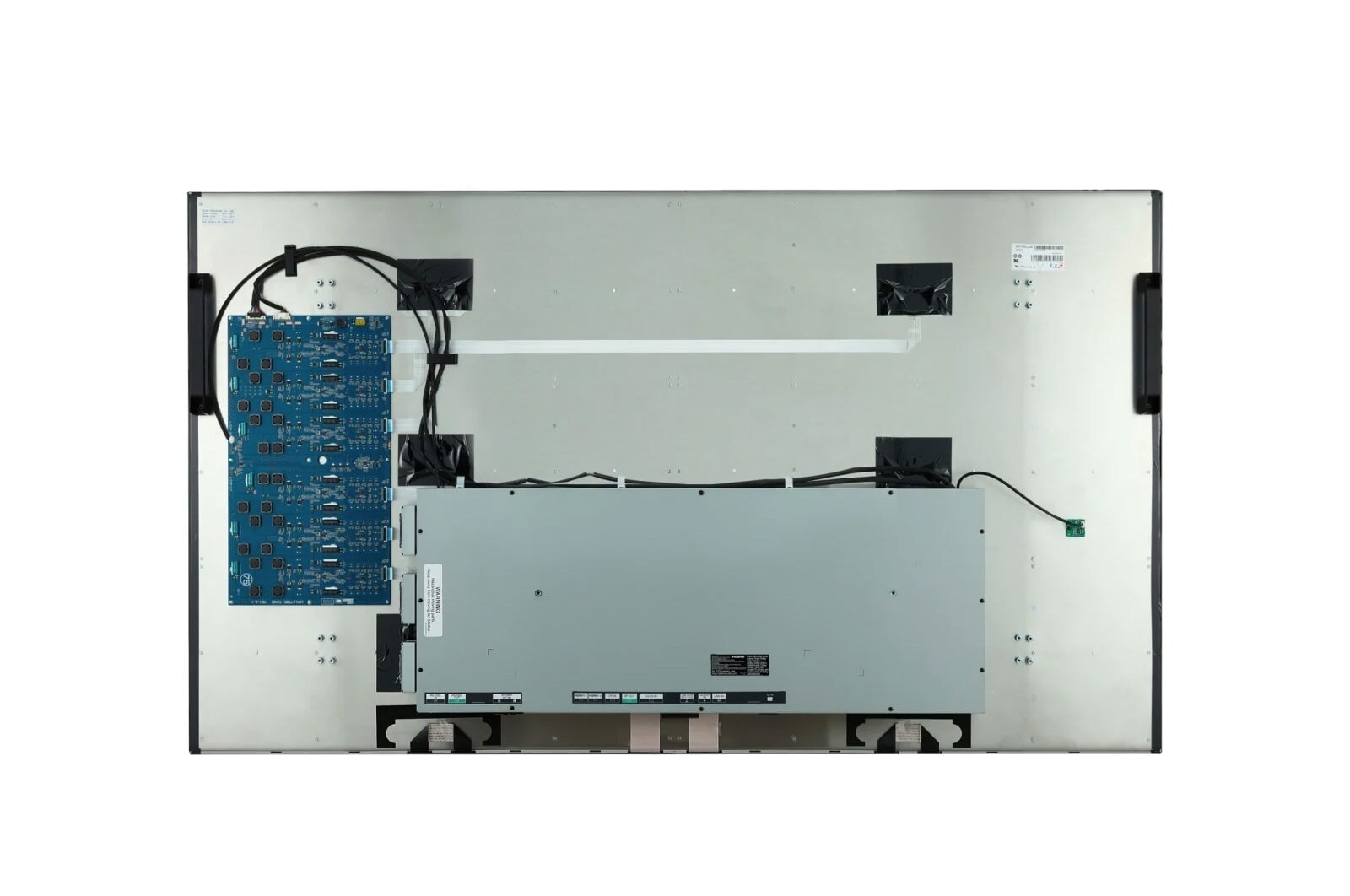

For double-sided displays, the circuit board box at the back of the display is conveniently positioned to conserve space with two back-to-back installations.
Print

All Spec

PANEL

  • Screen Size (Inch)

    75

  • Panel Technology

    IPS / M+

  • Back Light Type

    Direct

  • Aspect Ratio

    16:9

  • Native Resolution

    3840 x 2160 (UHD)

  • Refresh Rate

    60Hz

  • Brightness

    3,000nit (Typ.), 2,800nit (Min.)

  • Contrast Ratio

    1,200:1 (Typ.)

  • Dynamic CR

    500,000:1

  • Color Gamut

    NTSC 68%

  • Viewing Angle (H x V)

    178º x 178º

  • Color Depth (Number of Colors)

    1.07 Billion colors

  • Response Time

    8ms (G to G)

  • Surface Treatment (Haze)

    Haze 3%

  • Life time

    50,000Hrs (Typ.)

  • Operation Hours (Hours/Day)

    24/7

  • Portait / Landscape

    YES / YES

  • Transparency

    N/A

  • QWP (Quarter Wave Plate)

    N/A

CONNECTIVITY

  • HDMI In

    YES (2ea)

  • HDMI In (HDCP Ver.)

    2.2

  • DP In

    YES (HDCP 1.3)

  • DVI-D In

    YES

  • RGB In

    NO

  • Audio In

    YES

  • RS232C In

    YES

  • RJ45(LAN) In

    YES (1ea)

  • IR In

    YES

  • USB In

    USB2.0 Type A (1ea)

  • HDMI Out

    NO

  • DP Out

    YES

  • Audio Out

    NO

  • Touch USB

    NO

  • External Speaker Out

    YES

  • RS232C Out

    YES

  • RJ45(LAN) Out

    YES

  • IR Out

    NO

  • Daisy Chain

    NO

MECHANICAL SPECIFICATION

  • Bezel Color

    Black

  • Bezel Width

    Even bezel : 11.8mm

  • Weight (Head)

    37.5Kg

  • Weight (Head+Stand)

    N/A

  • Packed Weight

    47Kg

  • Monitor Dimensions (W x H x D)

    1675.2 x 953.6 x 128.9mm

  • Monitor Dimension with Stand (W x H x D)

    N/A

  • Carton Dimensions (W x H x D)

    1816 x 1106 x 285mm

  • Handle

    YES

  • VESA Standard Mount Interface

    N/A

PROTECTION GLASS

  • Thickness

    N/A

  • Degree of Protection

    N/A

  • Tempered / Chemical strengthening

    N/A

  • Anti-Reflective

    N/A

  • Infrared - Resistance (IR)

    N/A

  • Shatter-Proof

    N/A

FEATURE - HARDWARE

  • Internal Memory (eMMC)

    8GB

  • Wi-Fi/BT (Built-in)

    NO

  • Temperature Sensor

    YES

  • Auto Brightness Sensor

    YES

  • Pixel Sensor

    NO

  • Proximity Sensor

    NO

  • Current Sensor

    YES

  • BLU Sensor

    YES

  • Humidity Sensor

    YES

  • Acceleration(Gyro) Sensor

    NO

  • Power Indicator

    NO

  • Local Key Operation

    NO

  • FAN (Built-in)

    YES

FEATURE - SOFTWARE

  • OS Ver. (webOS)

    webOS 3.0

  • Local Contents Scheduling

    YES

  • Group Manager

    NO

  • USB Plug & Play

    YES

  • Fail over

    YES

  • Booting Logo Image

    YES

  • No Signal Image

    YES

  • RS232C Sync

    YES

  • Local Network Sync

    YES

  • Backlight Sync

    YES

  • PIP

    NO

  • PBP

    NO

  • Screen Share

    NO

  • Video Tag

    YES (2 Video Tag)

  • Play via URL

    NO

  • Screen Rotation

    YES

  • External Input Rotation

    YES

  • Gapless Playback

    YES

  • Tile Mode Setting

    YES

  • Setting Data Cloning

    YES

  • SNMP

    YES

  • ISM Method

    YES

  • Auto Set ID

    YES

  • Status Mailing

    YES

  • Control Manager

    YES

  • Cisco Certification

    NO

  • Crestron Connected

    NO

  • Smart Energy Saving

    YES

  • PM mode

    YES

  • Wake on LAN

    YES

  • Network Ready

    YES

  • Beacon

    NO

  • HDMI-CEC

    YES

  • SI Server Setting

    YES

  • webRTC

    NO

  • Pro:Idiom

    YES

  • Brightness Compensation

    YES

  • W/B Setting by Grey scale

    NO

  • Scan Inversion

    NO

ENVIRONMENT CONDITIONS

  • Operation Temperature

    0 °C to 40 °C (with Solar) 0 °C to 50 °C (without Solar)

  • Operation Humidity

    10 % to 80 %

POWER

  • Power Supply

    AC 100-240V~, 50/60Hz

  • Power Type

    Built-in Power

POWER CONSUMPTION

  • Typ.

    620W (Full White) 353W (IEC 62087)

  • Max.

    700W

  • BTU (British Thermal Unit)

    2116 BTU/Hr(Typ.), 2388 BTU/Hr(Max.)

  • DPM

    0.5W

  • Power off

    0.5W

SOUND

  • Speaker (Built-in)

    NO

CERTIFICATION

  • Safety

    CB / NRTL

  • EMC

    FCC Class "A" / CE / KC / VCCI

  • ERP / Energy Star

    YES / NO

  • ePEAT(US only)

    NO

OPS COMPATIBILITY

  • OPS Type compatible

    NO

  • OPS Power Built-in

    NO

SOFTWARE COMPATIBILITY

  • SuperSign CMS

    YES

  • SuperSign Control+

    YES

  • SuperSign WB

    NO

  • SuperSign Cloud

    NO

  • Promota

    NO

  • Mobile CMS

    NO

  • Connected Care

    YES

LANGUAGE

  • OSD

    English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Türkçe, Arabic, Polski

ACCESSORY

  • Basic

    Remote Controller(Including Battery 2ea), HDMI Cable(1ea), USB Cable(2ea), Manual (IG&EIG), Regulation Book, Phone to RS232C Gender(1ea), LAN extension cable(2ea), SMA Cable(2ea), IR Cable(1ea), JCD 5P PWR Cable(3ea), JCD 8P PWR Cable(1ea), Cord Grip rubber(5ea), Screw (6ea), JCD Corner Bracket(4ea)

  • Optional

    NO

SPECIAL FEATURE

  • Overlay Touch Compatibility

    N/A

  • Smart Calibration

    N/A

  • Tilt (Face up)

    N/A

  • Tilt (Face down)

    N/A

  • IP Rating

    N/A

  • Conformal Coating (Power Board)

    YES

  • Power Protection

    YES

  • Direct Sunlight

    YES

DEDICATED FEATURE - TOUCH

  • Available Object Size for Touch

    N/A

  • Response Time ('Paint' app on Windows 10 PC)

    N/A

  • Accuracy (Typ.)

    N/A

  • Interface

    N/A

  • Protection Glass Thickness

    N/A

  • Protection Glass Transmission

    N/A

  • Operating System Support

    N/A

  • Multi Touch Point

    N/A
