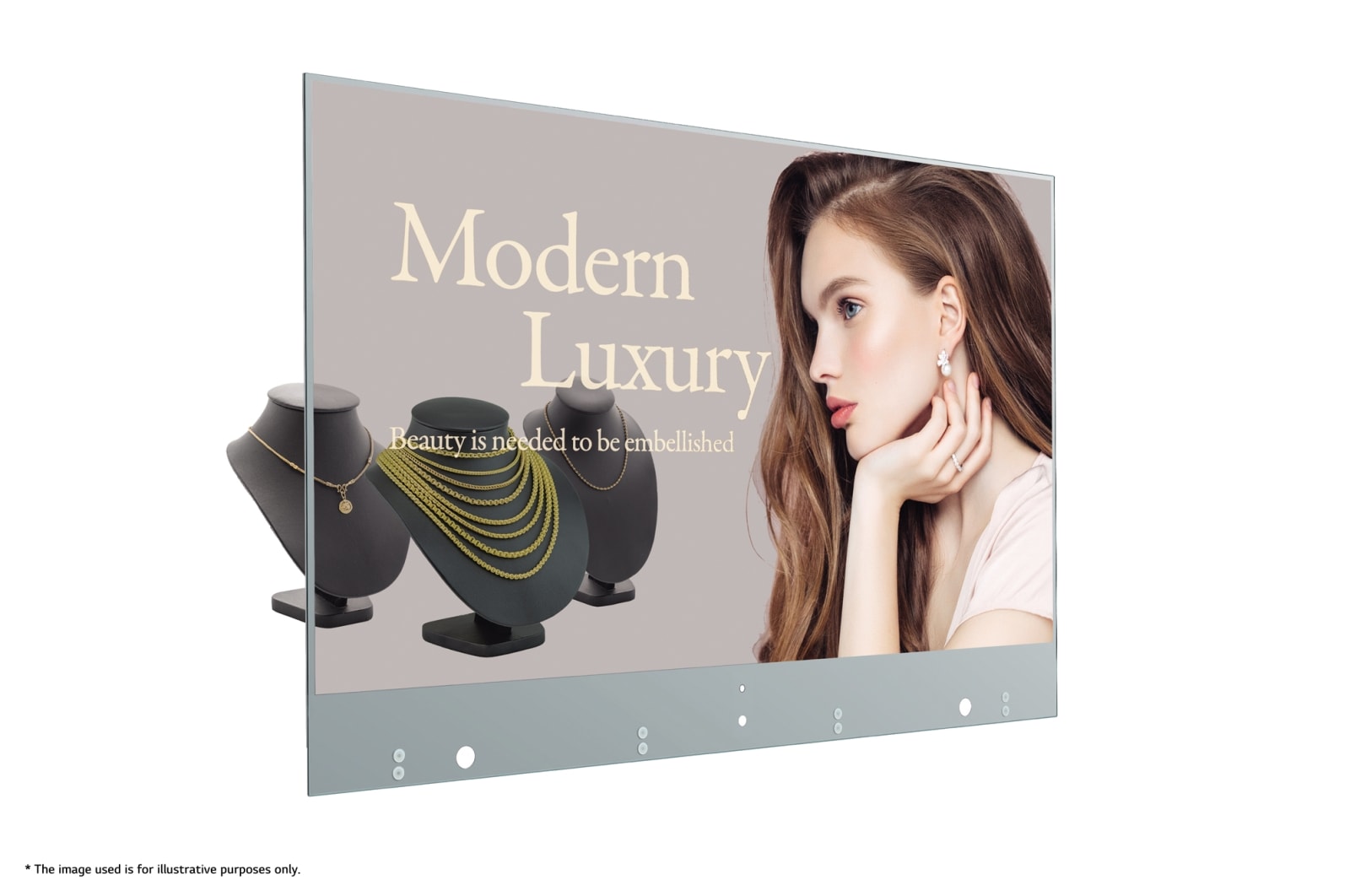

Transparent OLED Signage

A New Level of See-through View

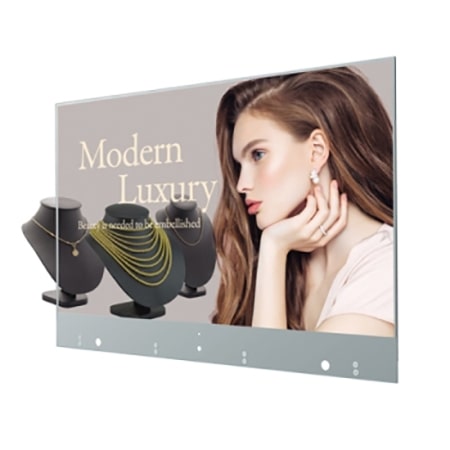

LG Transparent OLED signage illuminates spaces that once were hidden away behind the display, completely harmonizing with its surroundings.

* All images used are for illustrative purposes only.

FULL OF LIFE

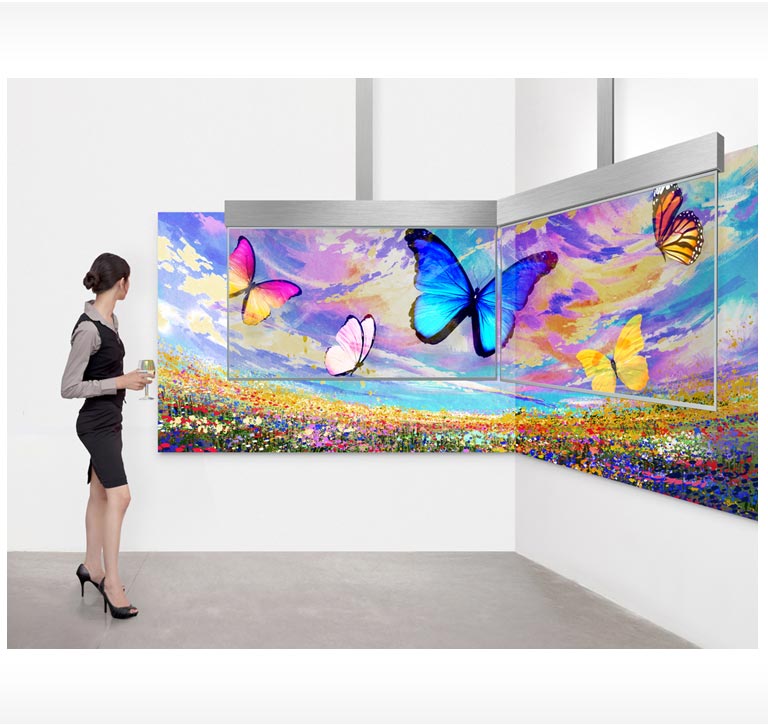

Unrivaled Picture Quality

LG's OLED technology, featuring self-lighting pixels, maintains accurate and vivid colors even when the display becomes transparent. It brings content to life, making it difficult for people to separate content from the real objects placed behind the screen.

SPACIAL HARMONY

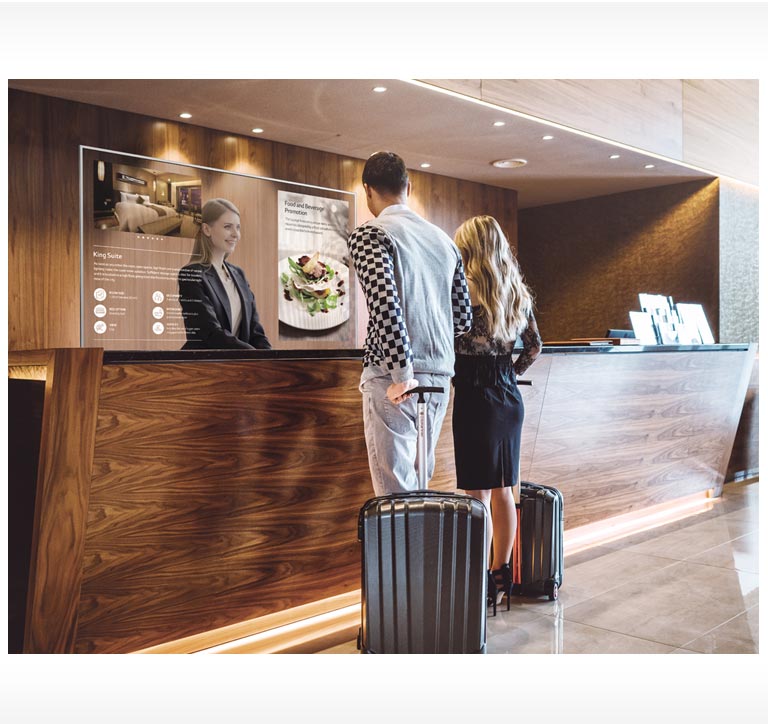

High Transparency

Thanks to its high transparency (38％), much higher than conventional LCD transparent displays, LG Transparent OLED signage blends into its surroundings seamlessly and naturally. The display's see-through view turns places where it is installed into open and interactive spaces.

SPACIAL HARMONY

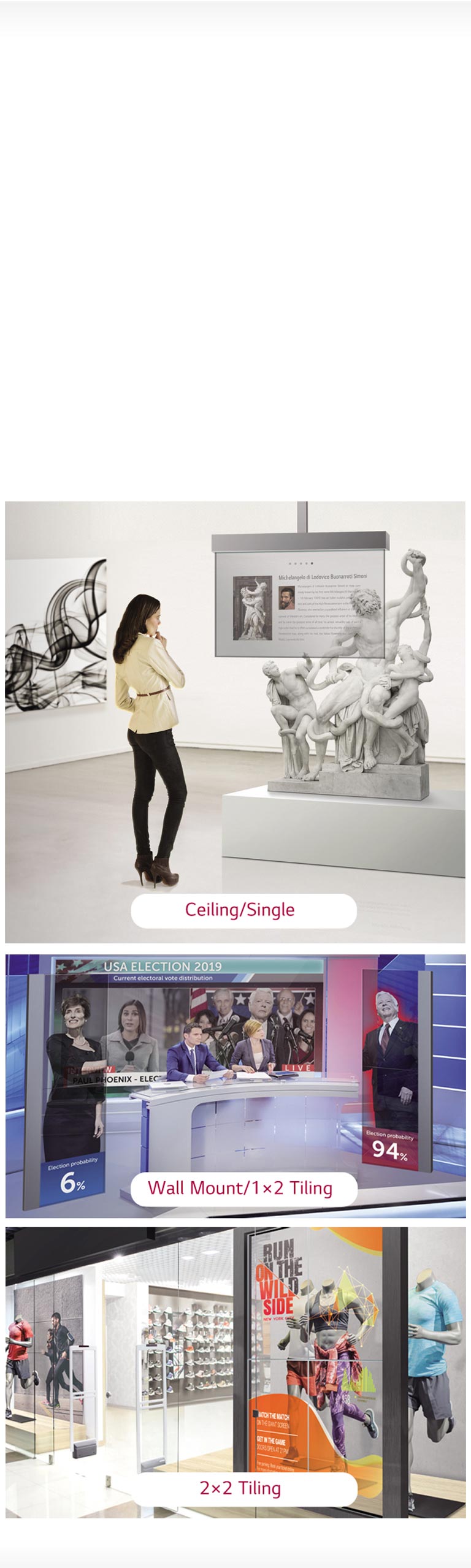

Customizable and Expandable Design

LG Transparent OLED signage is designed as a semi-assembled display, meaning you can install it in various ways to fit into existing structures and spaces. There is no limit to the applications of Transparent OLED signage, and it can complement any venue in which it is installed.
* Installation accessories are not supplied by LG.

SEE THROUGH

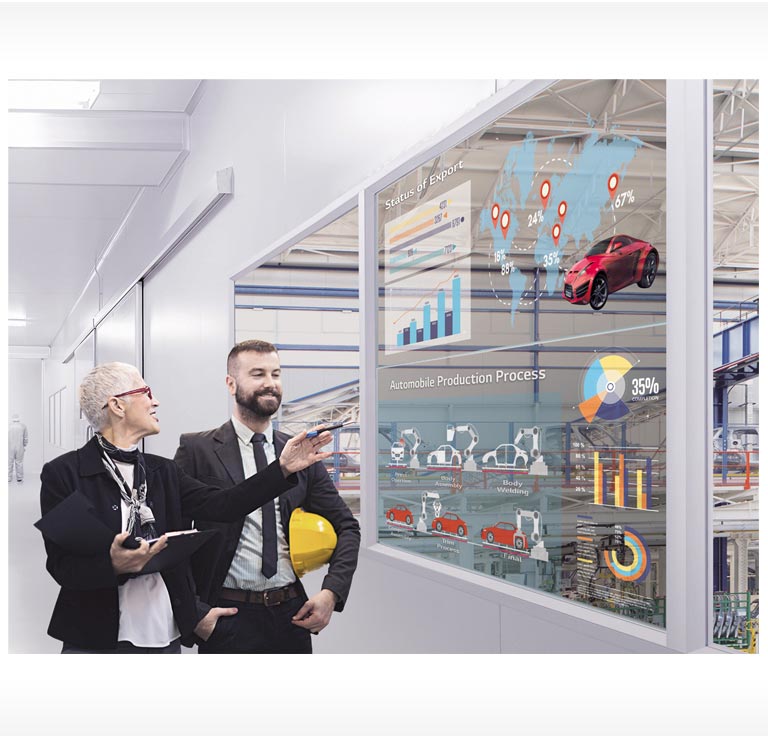

Effective Information Delivery

While clearly showing objects behind the screen, LG Transparent OLED signage overlays information right over them so that viewers can easily see both the object and the relevant information without having to change their view.

VISUAL FEAST

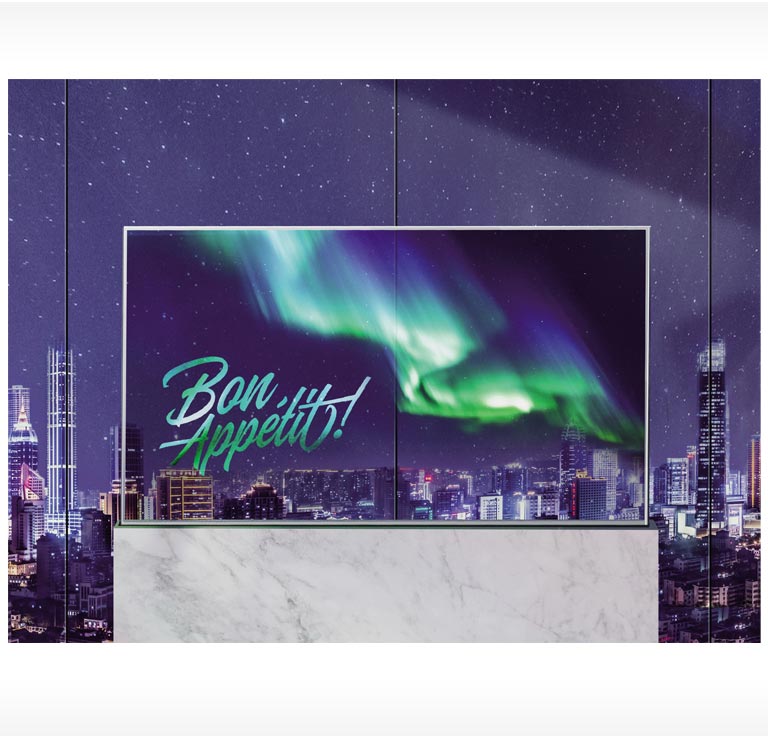

AR Effects in the Dark

Using LG transparent OLED signage, you can surprise viewers with AR effects in the dark. The content displayed seems life-like, adding another “wow” factor to the viewing experience.

PRODUCT DURABILITY

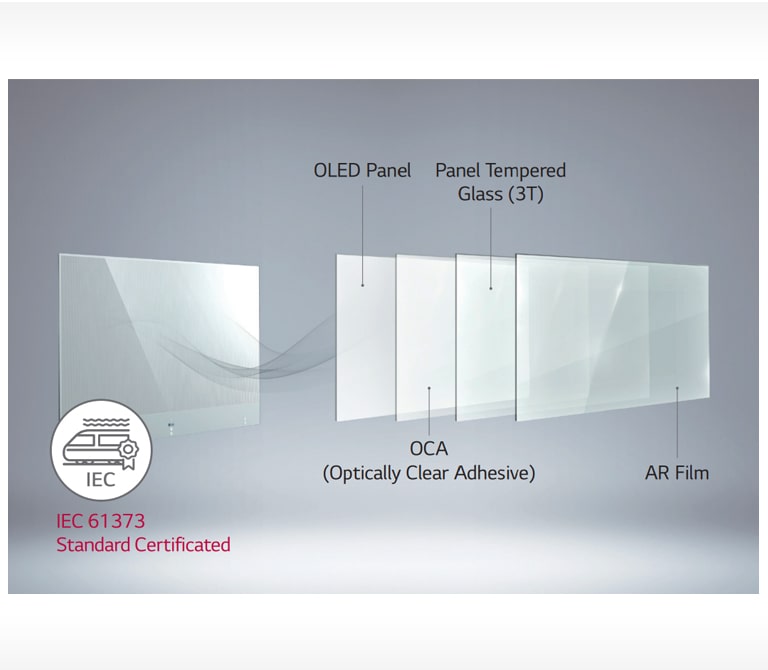

Robust Design for Safety

The tempered front glass protects the screen from external impact, and its certified safety design means it is reliable enough to endure shock and vibration caused by the surrounding environment, such as moving trains.

All Spec

ACCESSORY

Basic
Remote Controller, Power Cord, QSG, IR Receiver, Regulation Book, Phone to RS232C Gender, RS232 Cable (4p-4p), FFC Cables (for Connection between Panel and Signage Box), DP Cable, LAN Cable, LC (VLC Cable), Tapes, Screws, Shield Cover Assy', Rubber Dampers

CERTIFICATION

Safety
CB / NRTL
EMC
FCC Class "A" / CE / KC
ErP / Energy Star
Yes(EU Only) /No

CONNECTIVITY

Input
HDMI, DP, USB (2)
Output
DP, Audio
External Control
RS232C In/out, RJ45 (LAN) In/out, IR In

ENVIRONMENT CONDITIONS

Operation Temperature
0°C to 40°C
Operation Humidity
10% to 80%

MECHANICAL SPECIFICATION

Bezel Width
7.9 / 7.9 / 7.9 / 121.7 mm (T/L/R/B)
Monitor Dimension (W × H × D)
(Head) 1,225.53 x 810.1 x 6.6 mm(Signage Box) 782.8 x 238.4 x 34.7 mm
Weight
(Head) 13.9 kg(Signage Box) 3.4 kg
Carton Dimensions (W × H × D)
1,329 x 898 x 191 mm
Packed Weight
22.4 kg
