UM3E Series

UM3E Series

UM3E Series

75UM3E-B

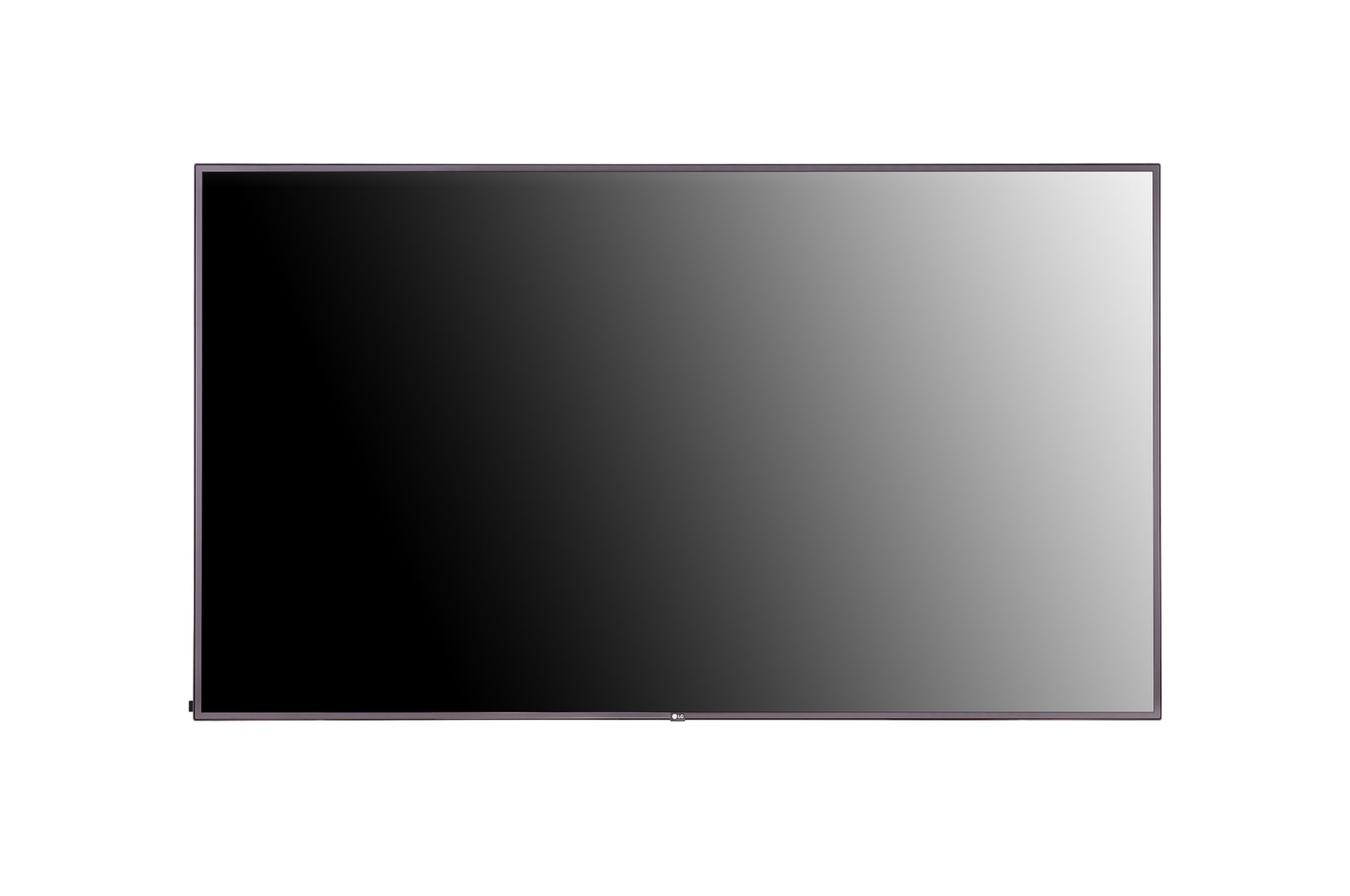

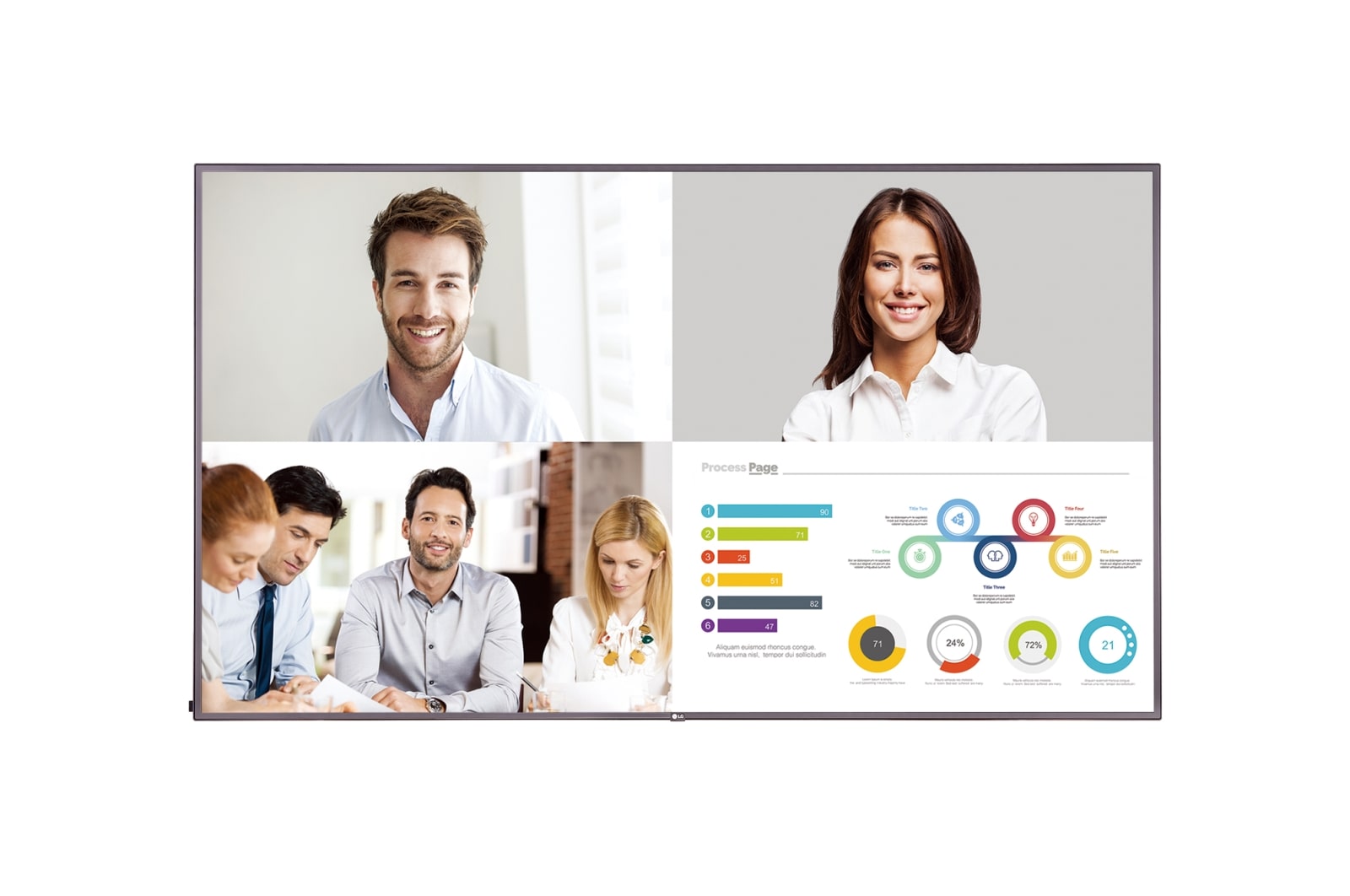

Front view of UM3E Series 75UM3E-B
LG UM3E Series, 75UM3E-B
LG UM3E Series, 75UM3E-B
LG UM3E Series, 75UM3E-B
LG UM3E Series, 75UM3E-B
LG UM3E Series, 75UM3E-B
LG UM3E Series, 75UM3E-B
Front view of UM3E Series 75UM3E-B
LG UM3E Series, 75UM3E-B
LG UM3E Series, 75UM3E-B
LG UM3E Series, 75UM3E-B
LG UM3E Series, 75UM3E-B
LG UM3E Series, 75UM3E-B
LG UM3E Series, 75UM3E-B

Características principales

  • Brightness(Typ.) : 350 cd/m²
  • Bezel : 14.9 mm (Even)
  • Depth : 57.9 mm
  • Interface : HDMI(2)/DP/DVI-D/USB 2.0(2)/ RS232C/ RJ45/ Audio/ IR
  • Built-in Speaker(10W+10W)
Más
Imprimir

Todas las especificaciones

ACCESORIO

  • Básico

    Control remoto, Cable de alimentación, QSG, Cable DP (1.8 m), Libro de normas, Teléfono para género RS232C

  • Opcional

    Kit OPS (KT-OPSF), Instalación en pared (LSW640A/B)

CERTIFICACIÓN

  • Seguridad

    CB / NRTL

  • EMC

    FCC Class "A" / CE / KC

  • ErP (productos relacionados con la energía) / Energy Star

    Sí (para la UE) / Sí (Energy Star 8.0)

COMPATIBILIDAD DE SOFTWARE

  • Software de gestión de contenido

    SuperSign CMS

  • Software de control y monitoreo

    SuperSign Control+/Control

COMPATIBILIDAD DEL REPRODUCTOR MULTIMEDIA

  • Tipo compatible con OPS

    Sí

CONDICIONES DEL ENTORNO

  • Temperatura de funcionamiento

    0 °C a 40 °C

  • Humedad de funcionamiento

    10% a 80%

CONECTIVIDAD

  • Entrada

    HDMI (3), DP, DVI-D, Audio, USB 2.0 (2)

  • Salida

    DP, Audio (Apagado/Fijo/Variable)

  • Control Externo

    RS232C entrada/salida, entrada RJ45, entrada IR

CONSUMO DE ENERGÍA

  • Típico

    160 W

  • Máx.

    185 W

ENERGÍA

  • Suministro de energía

    100-240 V~, 50/60 Hz

  • Tipo de energía

    Energía incorporada

ESPECIFICACIONES FÍSICAS

  • Peso del bisel

    14.9 mm (Even)

  • Dimensiones del monitor (ancho x alto x profundidad)

    1,682.4 x 960.3 x 57.9 mm (sin mango y logotipo)

  • Peso (cabezal)

    41.5 kg

  • Dimensiones de la caja (ancho x alto x profundidad)

    1,816 x 1,123 x 228 mm

  • Peso con el empaque

    49 kg

  • Interfaz de montaje estándar VESA™

    600 x 400 mm

PANEL

  • Tamaño de pantalla

    75"

  • Resolución

    3.840 x 2.160 (UHD)

  • Brillo (Tipo, cd/m²)

    350

Para obtener más documentación técnica y otras descargas, visita la página LG B2B Partner Portal.
