APNW55GT3M0

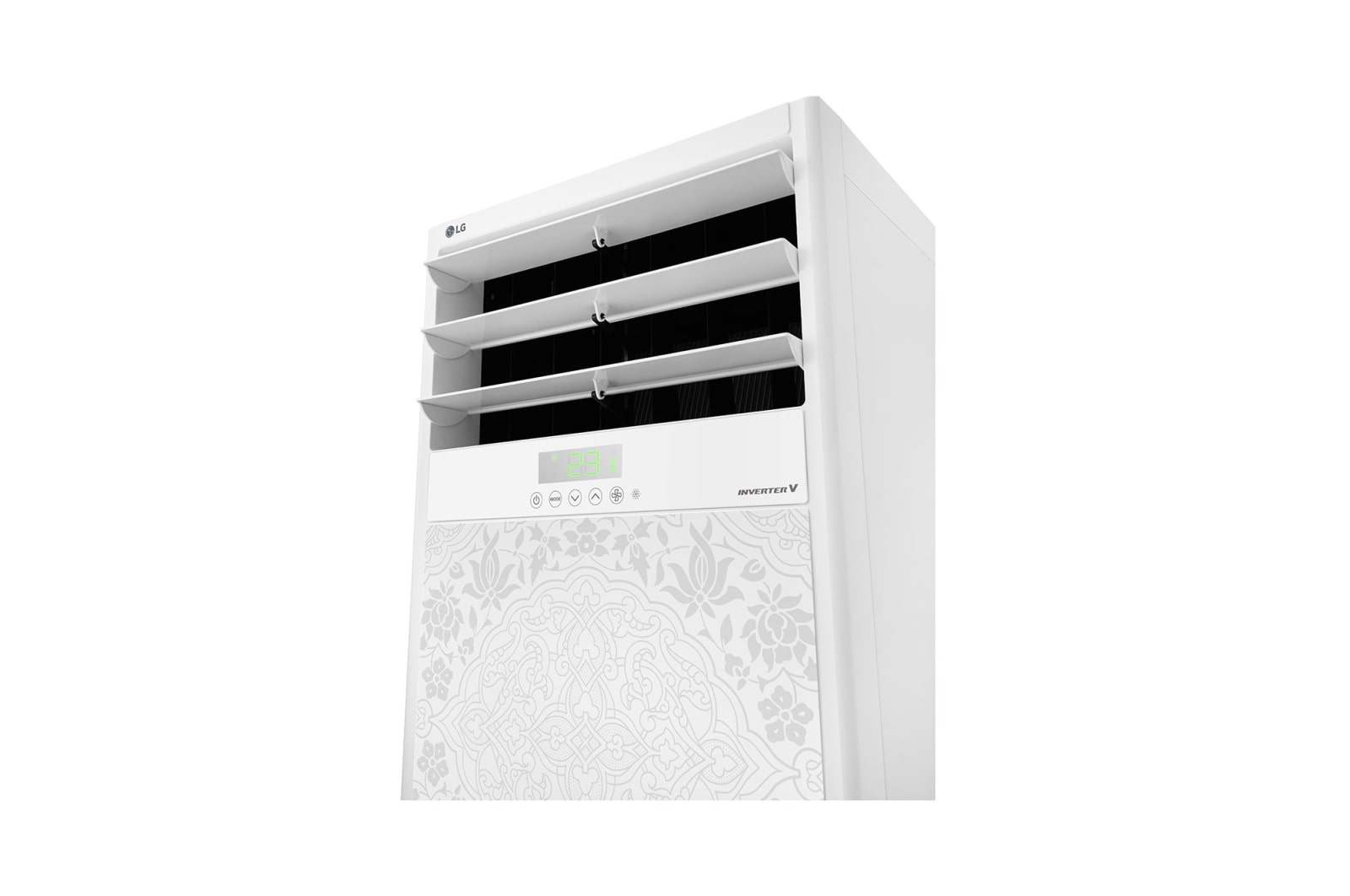

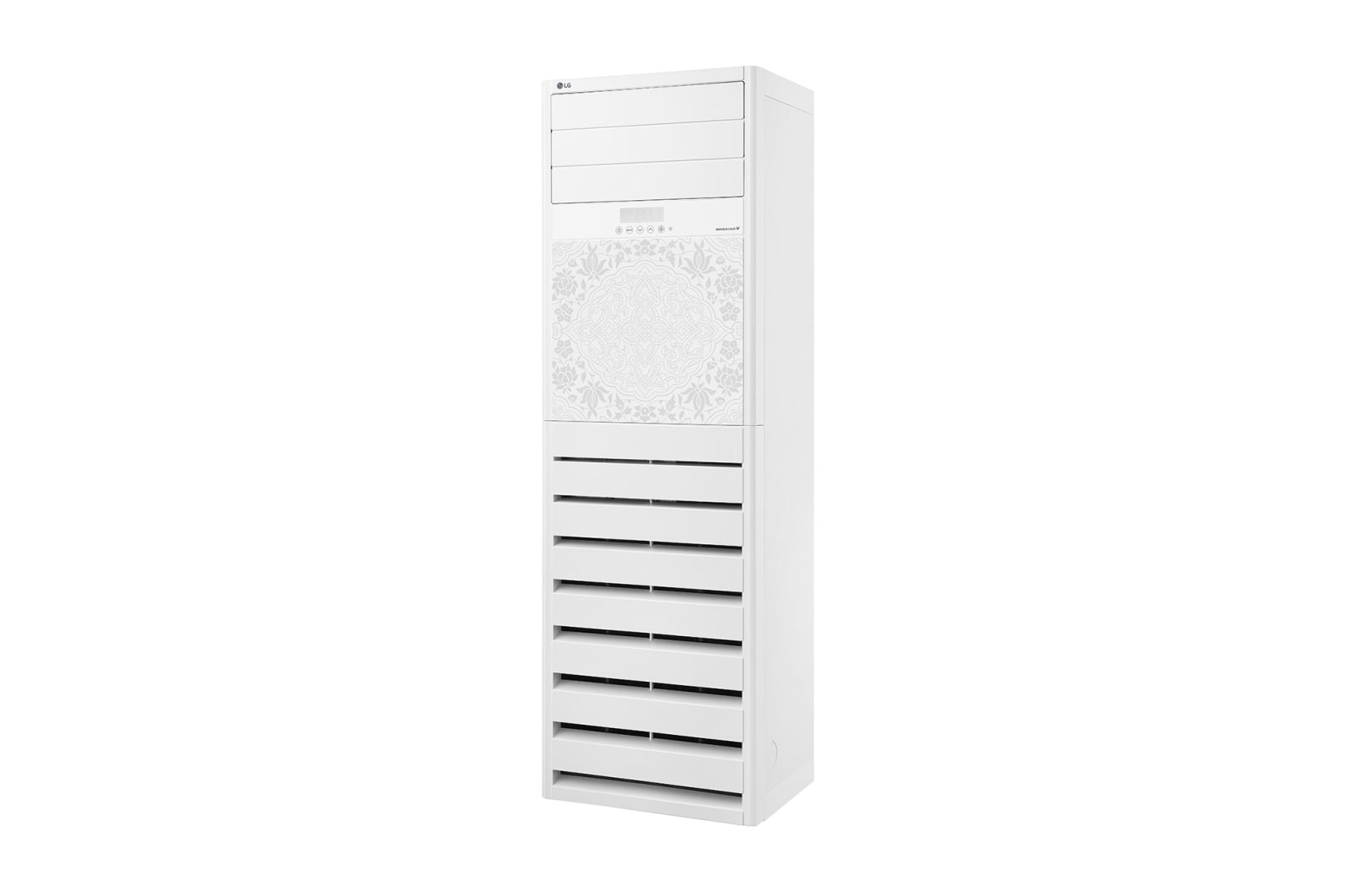

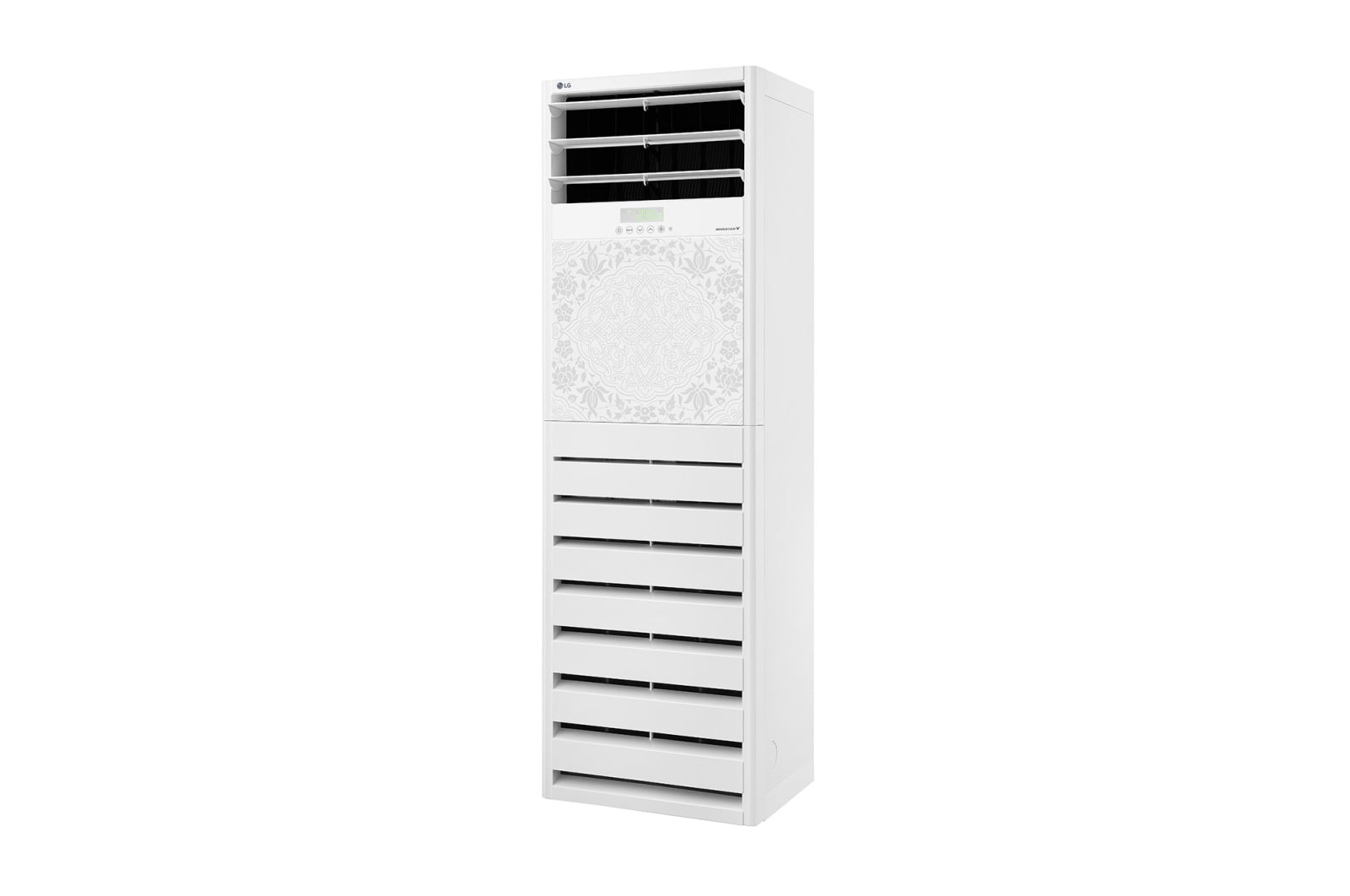

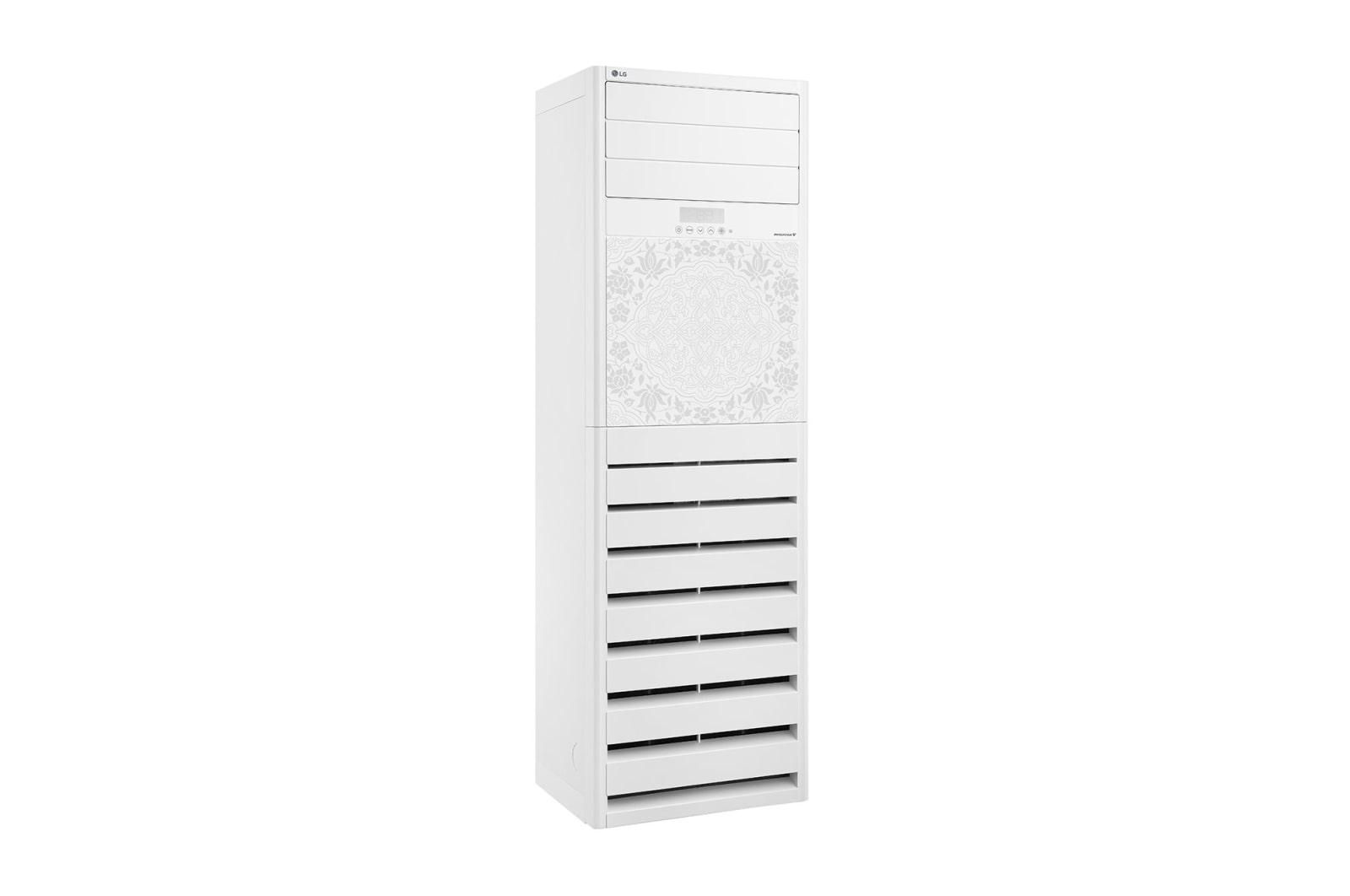

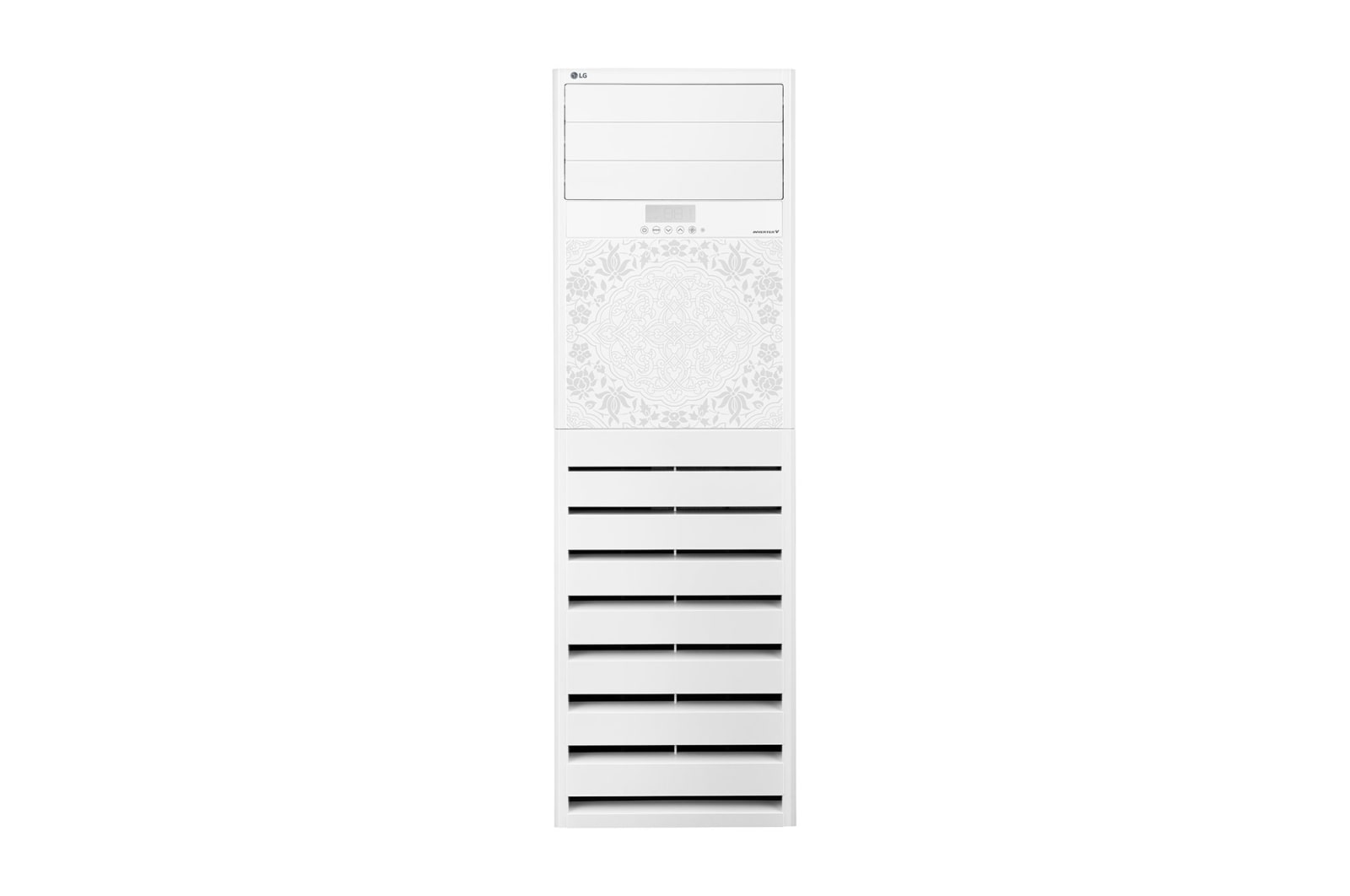

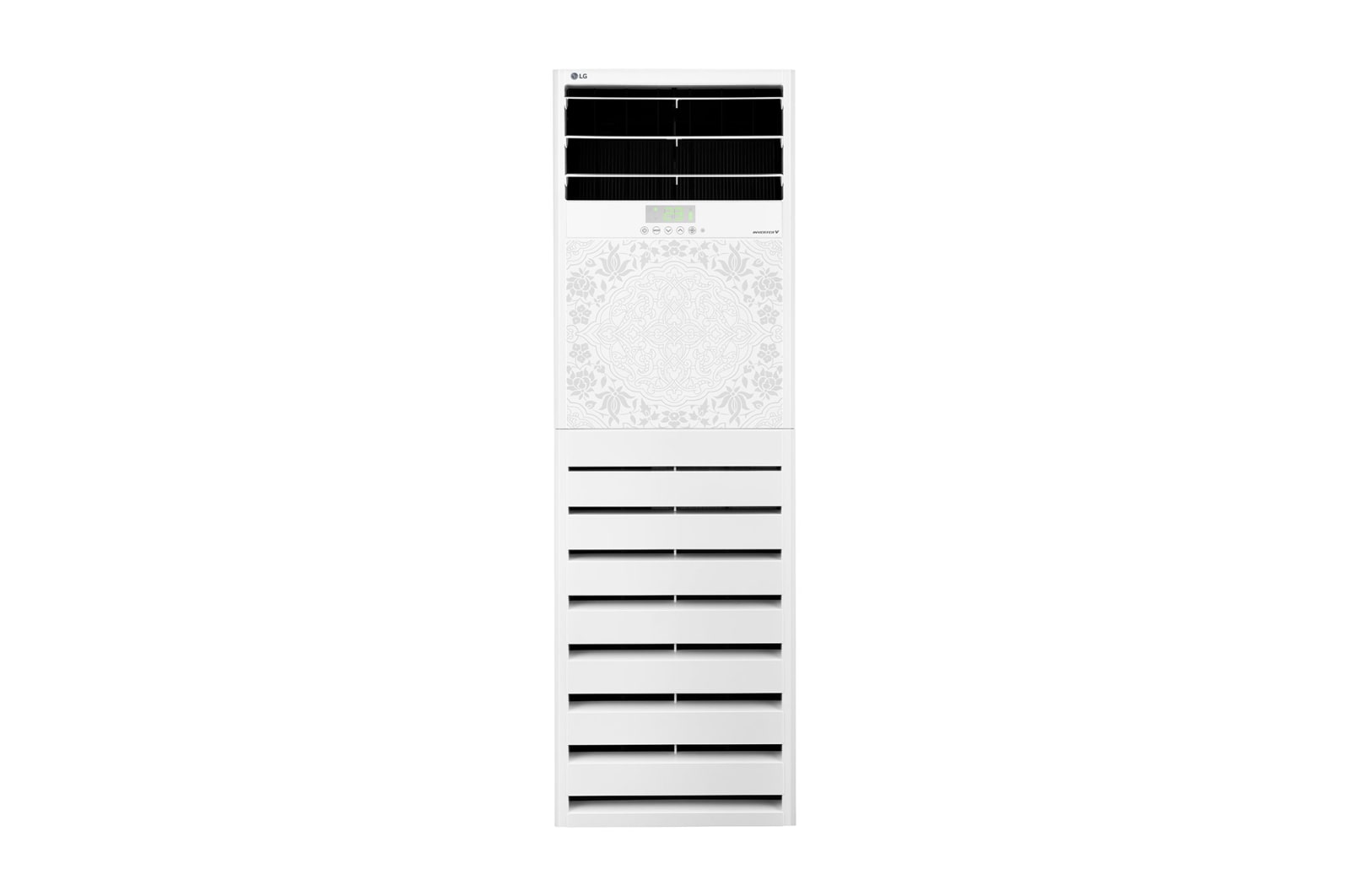

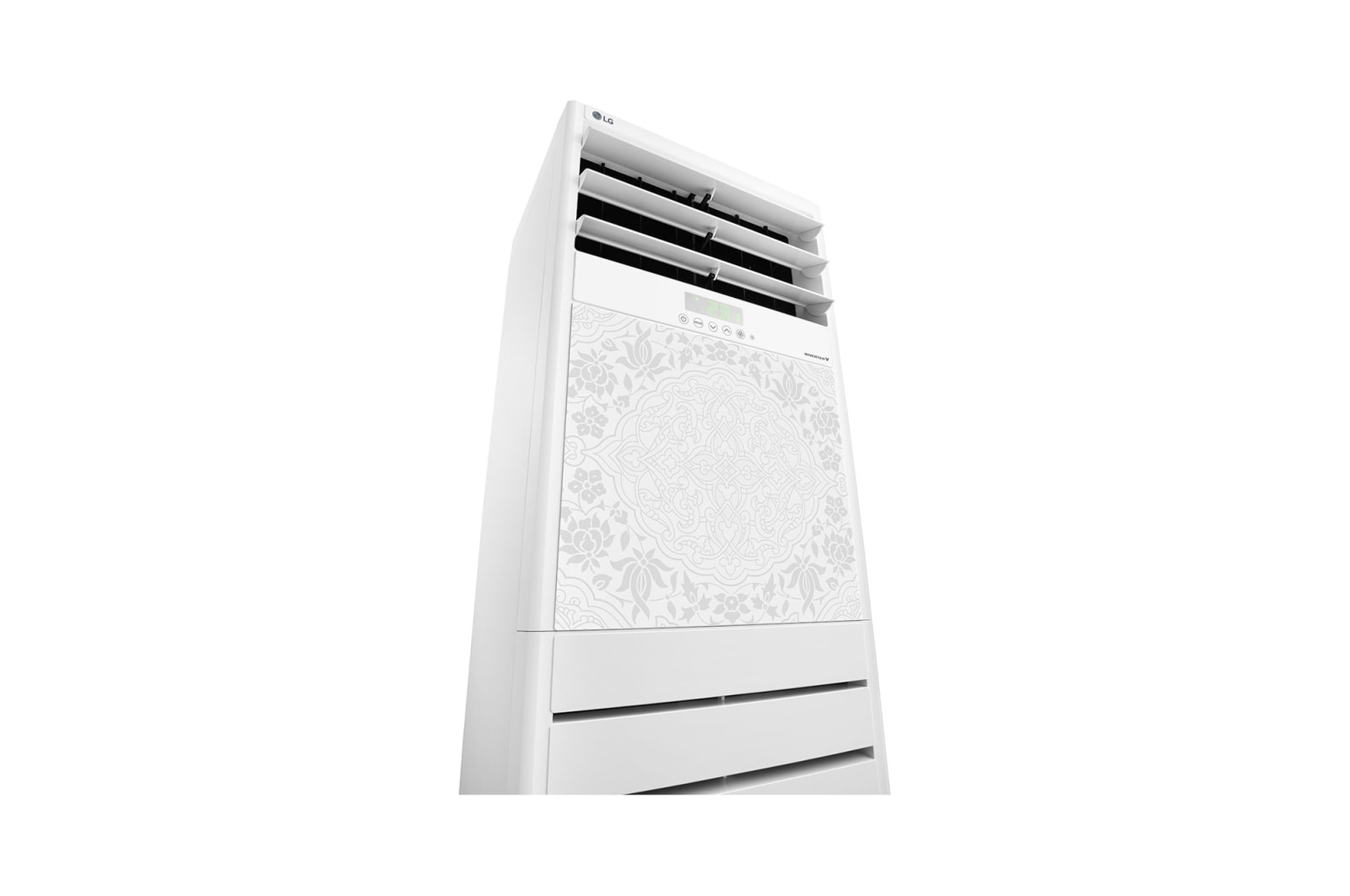

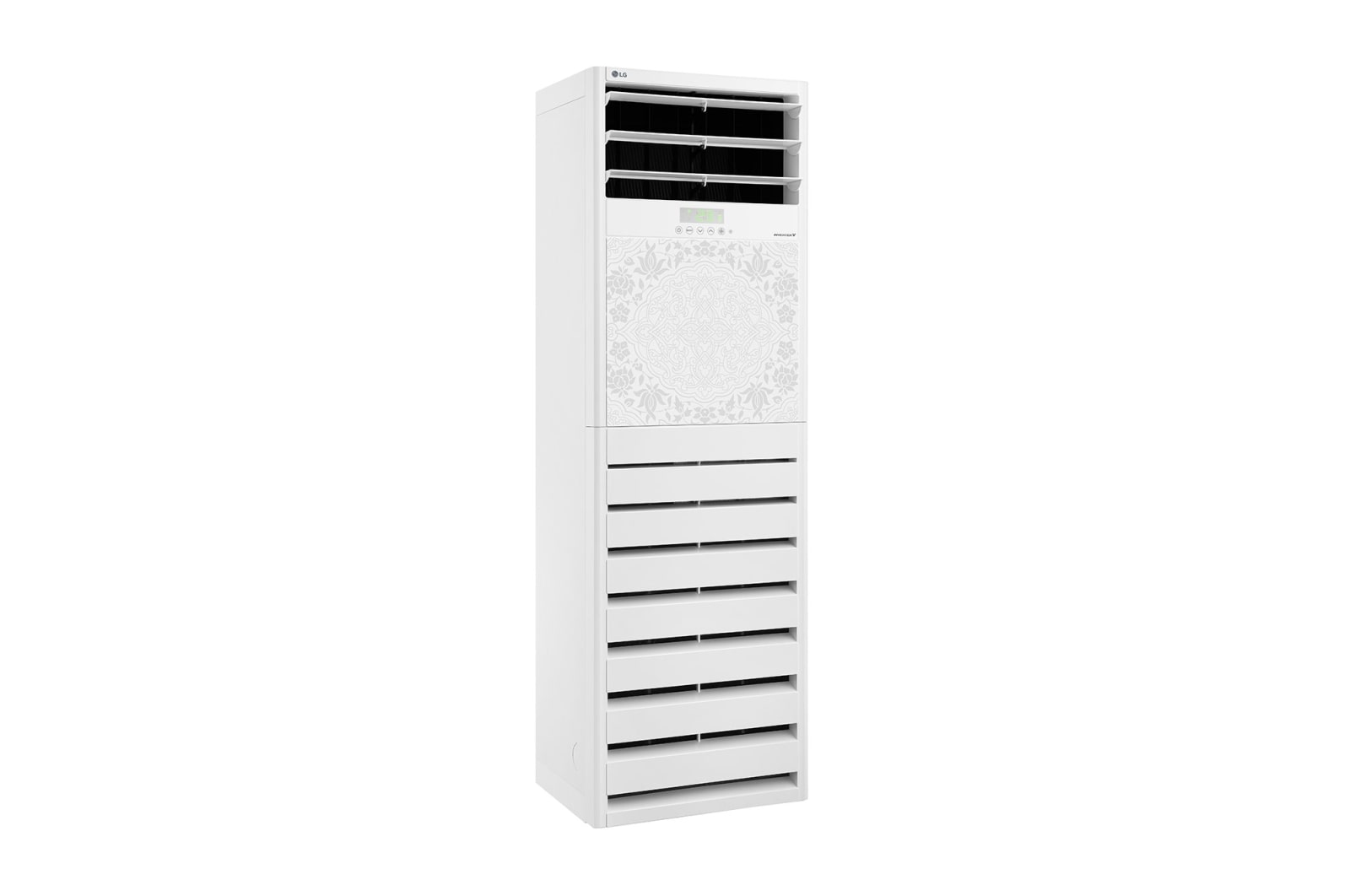

Floor Standing - Inverter Air Conditioner (Islamic Traditional Design) - Heat and Cool
  • 7.5 Stars
  • Child Lock
  • Timer
  • Night Silent Mode
  • Auto 4 Way Swing
  • Jet Mode
Floor Standing - Inverter Air Conditioner (Islamic Traditional Design) - Heat and Cool

GENERAL SPECIFICATIONS

  • Capacity - Cooling (Rated)
    13.51kW
    46,100Btu/h
    Capacity - Heating (Rated)
    14.65kW
    50,000Btu/h
  • Power Input - Cooling (Rated)
    4.65kW
    Power Input - Heating (Rated)
    4.15kW
  • Running Current - Cooling (Rated)
    20.3 A
    Running Current - Heating (Rated)
    18.2 A
  • Power Supply (V , Ø , Hz)
    230, 1, 60
    Wiring Connections - Power Supply Cable (included Earth)
    3C No. x 6.0 mm2 (10AWG)
  • Dimensions - (WxHxD)
    950 x 1,360 x 330 mm
    37-13/32 x 54-11/32 x 13 inch
    Net Weight
    93.5kg (206.1lbs)
  • Compressor - Type
    Twin Rotary
    Compressor - Model
    GPT442MAB Model x 1 No.
  • Compressor - Motor type
    BLDG
    Compressor - Motor Output
    4,000W (at 60Hz) x 1 No.
  • Refrigerant - Type
    R410A
    Refrigerant - Precharged Amount
    3,400g (119.9oz)
  • Refrigerant - Chargeless - Pipe Length
    5m (16.4ft)
    Refrigerant - Additional Charging Volume
    40g/m (0.43oz/ft)
  • Refrigerant - Control
    Electronic Expansion Valve
    Refrigerant Oil - Type
    FVC68D (PVE)
  • Refrigerant Oil - Charged volume
    1,300cc x 1 No.
    Heat Exchanger - (Row x Column x FPI) x No.
    (2 x 32 x 16) x 2
  • Fan - Type
    Propeller
    Fan - Air Flow Rate
    120 x 2m3/min
  • Fan Motor - Type
    BLDC
    Fan Motor - Output
    124.2W x 2 No.
  • SoundPressure Level - Cooling (Rated)
    62dB (A)
    SoundPressure Level - Heating (Rated)
    62dB (A)
  • Piping Connections - Liquid (Outer Dia.)
    Ø9.52mm (3/8inch)
    Piping Connections - Gas (Outer Dia.)
    Ø19.05mm (3/4inch)
  • Piping Length (Max.)
    30m (98.4ft)
    Maximum Height defference - Outdoor Unit ~ Indoor Unit (Max.)
    20m (65.6ft)
  • Opefatio Range (Outdoor Teriperatvre) - Cooling (Min. ~ Max.)
    0°C (32.0°F) ~ 54DB (129.2DB)
    Opefatio Range (Outdoor Teriperatvre) - Heating (Min. ~ Max.)
    -5°C (23.0°F) ~ 18WB (64.4WB)
