Air conditioning disa_enppeared from LG (10.0 kW)

Air conditioning disa_enppeared from LG (10.0 kW)

Air conditioning disa_enppeared from LG (10.0 kW)

AT-W36GMLT0
LG Air conditioning disa_enppeared from LG (10.0 kW), AT-W36GMLT0
LG Air conditioning disa_enppeared from LG (10.0 kW), AT-W36GMLT0

Key Features

  • Large-scale work of up to 54 degrees Celsius
  • Control via external static pressure ESP
  • Precise temperature control
  • Standby mode
More

Indoor Unit Intro

Alanfrr Technology

Alanfrr Technology

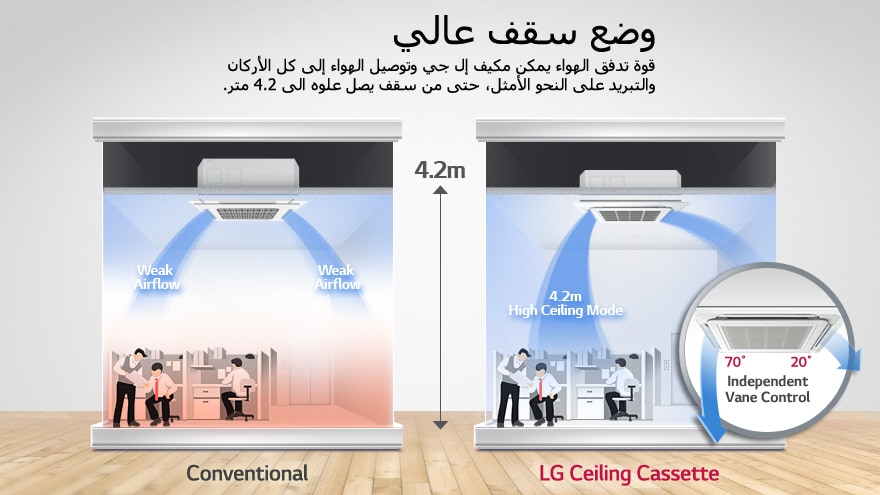

High-ceiling setting

High-ceiling setting

Tropical Compressor

Tropical Compressor

Health Condition

Health Condition

Print

All Spec

PRODUCT INFORMATION

  • Product Type

    Sitting cassette canopy

  • Cooling / heating

    Cooling and heating

  • Alanfrr Technology

    Yes

  • Fast cooling

    Yes

  • Super energy saving

    Yes

  • Coolers protection of the environment

    Yes

  • High-ceiling setting

    Yes

  • Purification of the Clean Air

    Yes

  • Separately run blades for guidance

    Yes

  • Noise internal unit level (H / M / L)

    43/41/39 dB (A)

  • Operating range

    Up to 54 ° C

GENERAL SPECIFICATIONS

  • Power supply (ø / V / Hz)

    1/230/60

  • Cooling capacity

    10.0 Kw (34,100 Btu / h)

  • Energy used

    2.9 kW

  • Energy Efficiency %

    11.6 Btu / hr / W

  • COP

    3.4 W / W

INTERNAL UNITY

  • AC current

    1.0 A.

  • Air flow rate (H / M / L)

    30.0 / 28.0 / 26.0 CMM

  • Body dimensions (width × height × depth)

    840 × 288 × 840 mm

  • Motherboard dimensions (width × height × depth)

    950 × 25 × 950 mm

  • Net weight

    24.6 kg

ODU

  • AC current

    A 12.8

  • Compressor Type

    Rotary double

  • Sound level (H)

    48 dB (A)

  • (Width × height × depth)

    950 × 834 × 330 mm

  • Net weight

    65 kg

  • Delivery pipes (liquid)

    Ø 9.52 mm

  • Delivery pipes (gas)

    Ø 15.88 mm

  • Exchange (external / internal)

    Ø 32 mm / 25 mm

  • .toul Pipes maximum (the main pipeline)

    50 m

  • Vertical height maximum. (internal external)

    30 m

THE POSSIBILITY OF INSTALLATION

  • Houses

    Yes

  • Shops

    Yes

  • Restaurants

    Yes

  • Offices

    Yes

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
