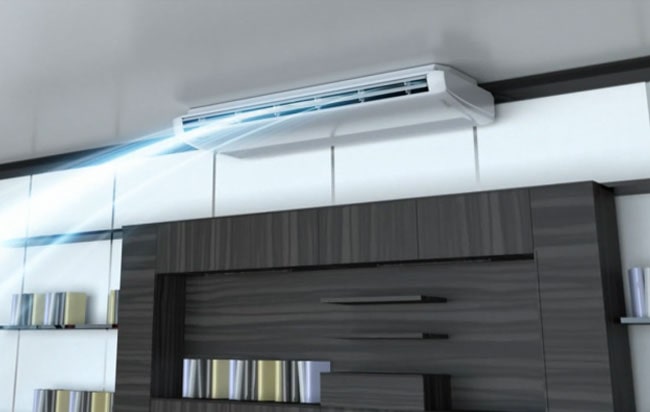

Air conditioner hanging on the ceiling of the LG - inverter system technology (15.8 kW)

Air conditioner hanging on the ceiling of the LG - inverter system technology (15.8 kW)

Air conditioner hanging on the ceiling of the LG - inverter system technology (15.8 kW)

AB-Q60GRLT0
LG Air conditioner hanging on the ceiling of the LG - inverter system technology (15.8 kW), AB-Q60GRLT0
LG Air conditioner hanging on the ceiling of the LG - inverter system technology (15.8 kW), AB-Q60GRLT0

Key Features

  • Inverter system technology
  • Energy Provider
  • Fast cooling
  • Low level of inconvenience
  • Large-scale work of up to 54 degrees Celsius
  • Run with independent rotary
More

Indoor Unit Intro

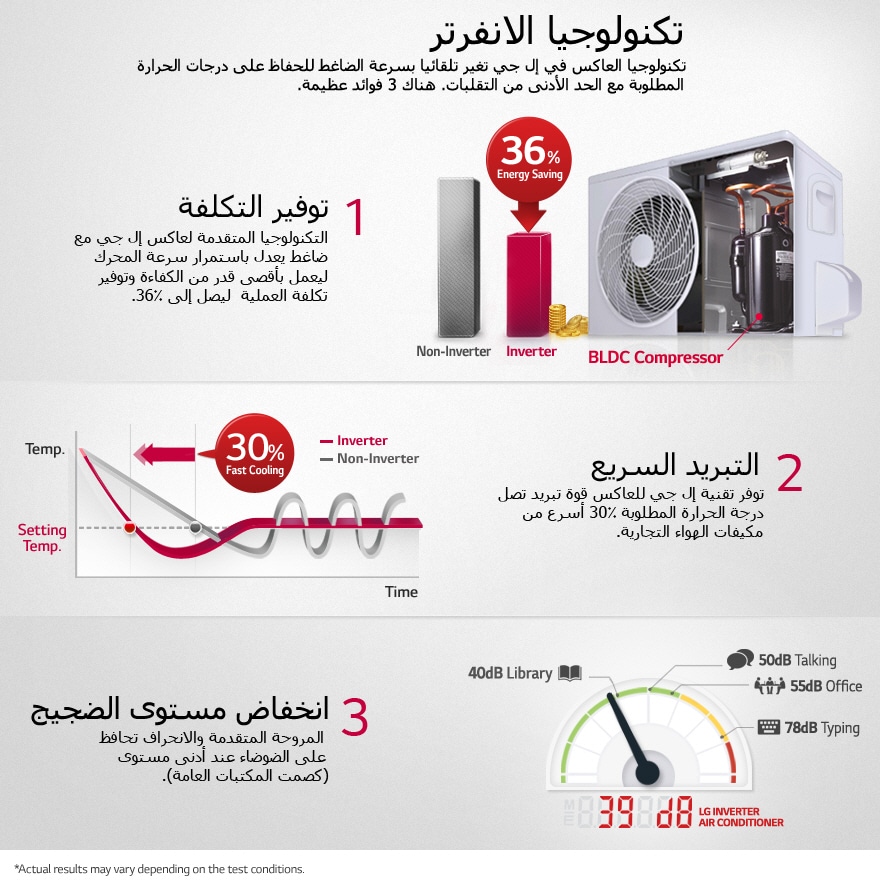

Alanfrr Technology

Alanfrr Technology

*Actual images (signage display) available may differ from the example images shown.

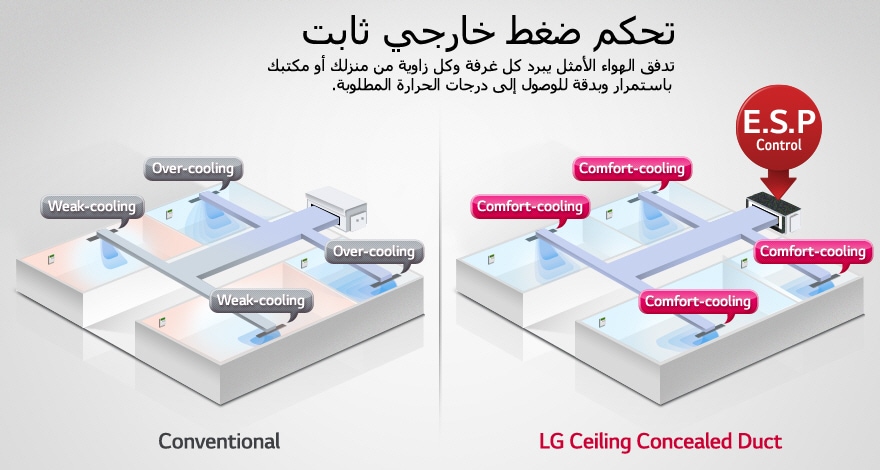

Constant external pressure control

Constant external pressure control

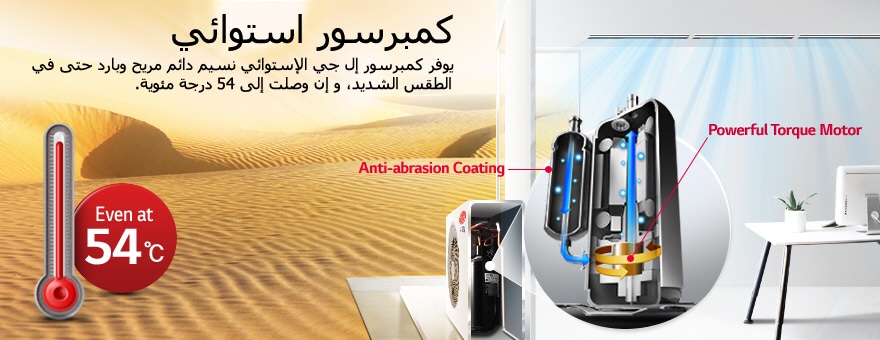

Tropical Compressor

Tropical Compressor

Easy Maintenance

Easy Maintenance

Print

All Spec

PRODUCT INFORMATION

  • Product Type

    Air ceiling hidden

  • Cooling / heating

    Only cooling

  • Alanfrr Technology

    Yes

  • Fast cooling

    Yes

  • Super energy saving

    Yes

  • Coolers protection of the environment

    Yes

  • ESP

    Yes

  • Two dual thermistor thermistors Control

    Yes

  • Taufertaqh (zero energy consumption, standby mode)

    Yes

  • Noise internal unit level (H / M / L)

    46/44/42 dB (A)

  • Operating range

    Up to 54 ° C

GENERAL SPECIFICATIONS

  • Power supply (ø / V / Hz)

    1/230/60

  • Cooling capacity

    15.8 Kw (54,000 Btu / h)

  • Energy used

    5.4 kW

  • Energy Efficiency %

    10.0 Btu / hr / W

  • COP

    2.9 W / W

INTERNAL UNITY

  • AC current

    2.4 A.

  • Air flow rate (H / M / L)

    50.0 / 45.0 / 40.0 CMM

  • External static pressure

    98 Pa

  • Dehumidify rate

    5.0 ℓ / h

  • Body dimensions (width × height × depth)

    1,230 × 380 × 590 mm

  • Net weight

    49.0 kg

ODU

  • AC current

    9.0 A.

  • Compressor Type

    Rotary double

  • Sound level (H)

    57 dB (A)

  • (Width × height × depth)

    950 × 1,380 × 330 mm

  • Net weight

    96 kg

  • Delivery pipes (liquid)

    Ø 9.52 mm

  • Delivery pipes (gas)

    Ø 19.05 mm

  • Exchange (external / internal)

    Ø 25.4 mm / 22.6 mm

  • .toul Pipes maximum (the main pipeline)

    50 m

  • Vertical height maximum. (internal external)

    30 m

THE POSSIBILITY OF INSTALLATION

  • Shops

    Yes

  • Offices

    Yes

  • Hospitals

    Yes

  • Hotels

    Yes

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
