LG 2023 55 inch CreateBoard Interactive Screen
Contact Us

LG 2023 55 inch CreateBoard Interactive Screen

Contact Us

LG 2023 55 inch CreateBoard Interactive Screen

55TR3DK-B
LG 2023 55 inch CreateBoard Interactive Screen, 55TR3DK-B
LG 2023 55 inch CreateBoard Interactive Screen, 55TR3DK-B
LG 2023 55 inch CreateBoard Interactive Screen, 55TR3DK-B
LG 2023 55 inch CreateBoard Interactive Screen, 55TR3DK-B
LG 2023 55 inch CreateBoard Interactive Screen, 55TR3DK-B
LG 2023 55 inch CreateBoard Interactive Screen, 55TR3DK-B
LG 2023 55 inch CreateBoard Interactive Screen, 55TR3DK-B
LG 2023 55 inch CreateBoard Interactive Screen, 55TR3DK-B
LG 2023 55 inch CreateBoard Interactive Screen, 55TR3DK-B
LG 2023 55 inch CreateBoard Interactive Screen, 55TR3DK-B
LG 2023 55 inch CreateBoard Interactive Screen, 55TR3DK-B
LG 2023 55 inch CreateBoard Interactive Screen, 55TR3DK-B
LG 2023 55 inch CreateBoard Interactive Screen, 55TR3DK-B
LG 2023 55 inch CreateBoard Interactive Screen, 55TR3DK-B

Key Features

  • Brightness (w/o Glass) : 440 nit (Max.), 390 nit (Typ.)
  • Resolution : 3,840 × 2,160 (UHD)
  • Multi-Touch Point : 40 Points (Max.)

A New Level of Classroom with LG CreateBoard

*All images in this page are for illustrative purposes only.

A New Level of Classroom with LG CreateBoard

Various Teaching Templates

LG CreateBoard offers a variety of educational templates and teaching tools such as a ruler, table, and sticky notes, allowing for active engagement by students and enabling intuitive classes.
Editing images and videos becomes easy with LG CreateBoard, and created resources can be easily shared with others through QR codes.

Various Teaching Templates

Multi-touch

LG CreateBoard can simultaneously detect up to 40 points for multi-touch functionality. This creates a lifelike board touch experience, helping students easily become accustomed and truly engage in classes. This leads to the maximum concentration and organic engagement of students.

*A max of 32 points are recognized in the Android environment, and a max of 40 points are detected in the Windows environment.
*Up to 10 points can be recognized in the writing app.

Multi-touch

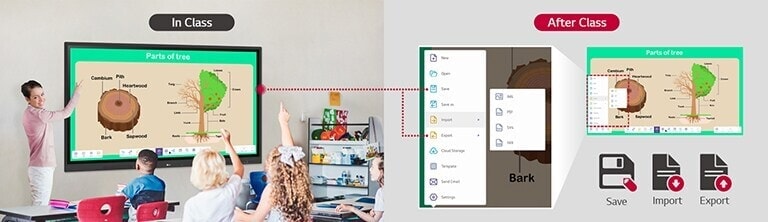

Easy to Save / Import / Export

LG CreateBoard includes simple import and export functionality.
Resources can be saved and imported directly to and from Google Drive or OneDrive, and files can be imported from a USB drive (Users can browse resources saved on USB storage).

Easy to Save / Import / Export

Wireless ScreenShare

LG CreateBoard Share enables users to show up to 9 shared screens or a file on a screen in real-time when the LG CreateBoard Share app is installed on the device.
Also, files from the host can be easily sent to any devices connected to the LG CreateBoard Share app, and several quick controls by the host are available.

* LG CreateBoard also supports app-less sharing for PC (via website) and mobile devices within the same network.
* For a more stable connection, we recommend the installation of a dedicated app (LG CreateBoard Share).

Wireless ScreenShare

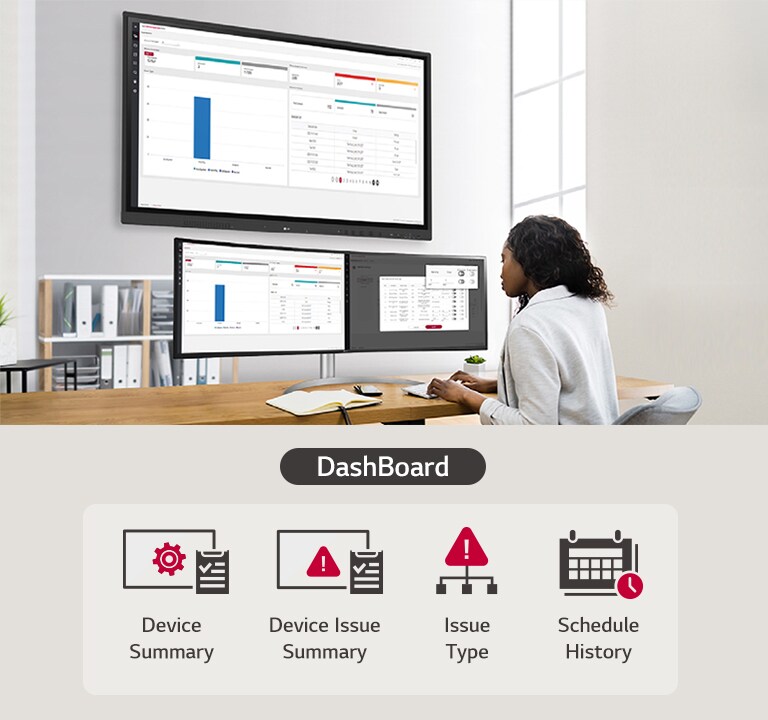

LG ConnectedCare DMS

LG ConnectedCare DMS is a cloud solution for remotely monitoring, controlling, and managing the status of LG CreateBoard installed in educational environments. This feature enables IT managers to operate and manage important resources on operating devices without physically visiting sites.

* 'LG ConnectedCare DMS' needs to be purchased separately.
* The availability of the 'LG ConnectedCare DMS' service differs by region,
so please contact the LG sales representative in your region for more details.
* LG ConnectedCare DMS supports the TR3DJ/TR3PJ/TR3DK Series as of now(plus more to come) under a cloud environment.

LG ConnectedCare DMS

Remote-control Services

Remote-control / Scheduling

Frequently used controls such as the power on/off, scheduling, brightness, and screen lock functions can be applied using a remote control.

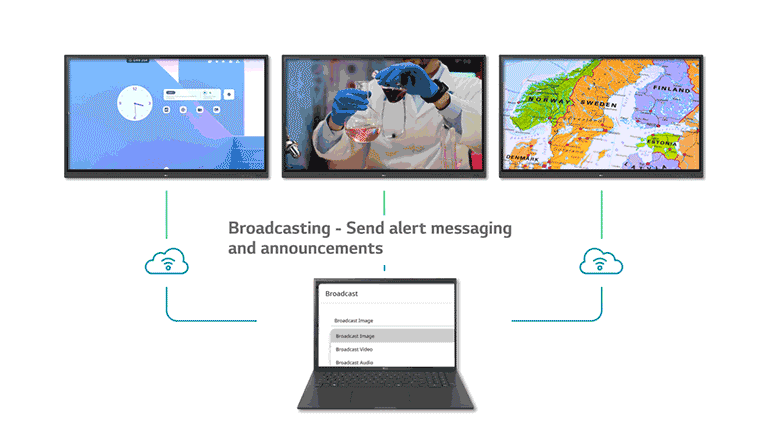

Broadcasting

Broadcasting / Alert Messaging

Messages and a range of other content can be sent from the main system to individual classroom devices connected to LG ConnectedCare DMS.

In case of urgent occasions such as a fire or a natural disaster, alert messages can be distributed manually across the system, which help teachers and students promptly take safety action.

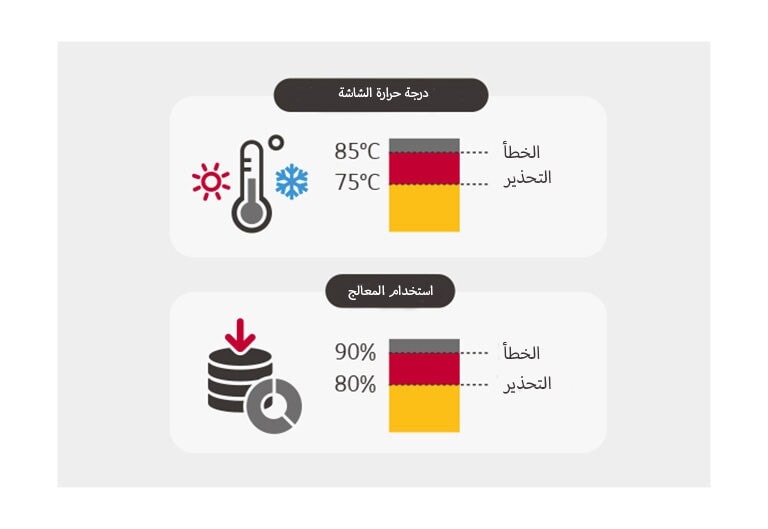

Threshold Settings

Threshold Settings

Users can set thresholds in eight categories including display temperature, memory usage, or signal, and can receive warning or error notifications based on their threshold settings.

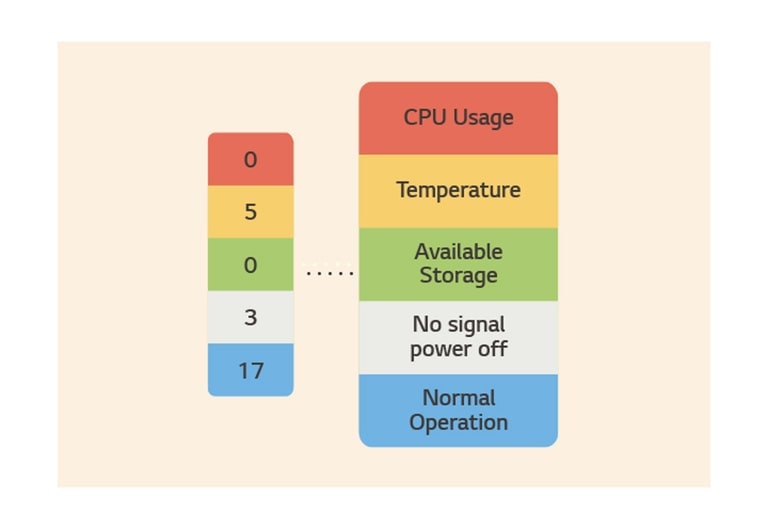

Monitoring

Monitoring & Fault Diagnosis

An engineer can check the status in real-time and diagnose problems remotely. Also, the current status of issues can be categorized, allowing for easy viewing and quick responses.
Issue Management

Issue Management

Remote issue management can be carried out by the LG ConnectedCare DMS solution. This makes management safer and more efficient, facilitating the stable operation of the classroom.

Bluetooth Connectivity

LG CreateBoard supports wireless Bluetooth connections to various devices such as a speaker, mouse, keyboard, etc. This is optimal for building a hybrid environment so that online and offline classes can proceed smoothly.

Bluetooth Connectivity

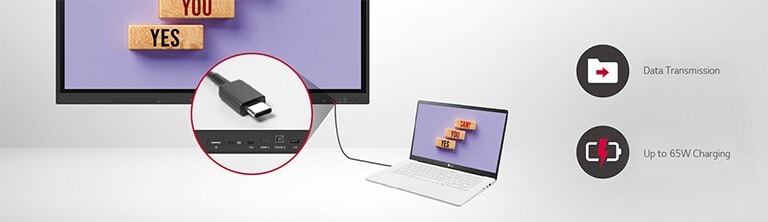

C-type Connection

USB-C connectivity simplifies connections
which enables charging and sending data simultaneously over just one single cable.

*USB Type-C cables are sold separately.

C-type Connection

QR Login for Easy Cloud Access

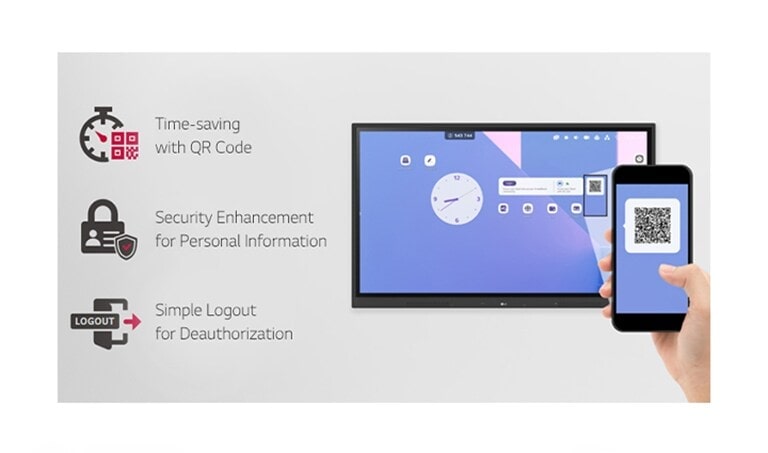

QR Login for Easy Cloud Access

The QR code on the home screen reduces preparation time for class by enabling personal device verification. Users can sign up for a variety of apps on the LG CreateBoard including Google Drive and OneDrive with just one QR verification without any additional login process. Once a lesson is finished, users can simply click the Logout button to disconnect, thus the risk of a personal information leak is reduced.

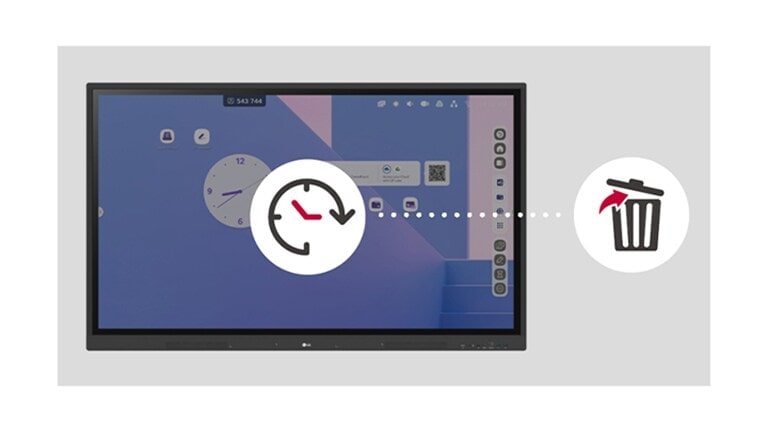

Auto-remove Files

Auto-remove Files

Users can set LG CreateBoard to delete files regularly for enhanced security.
Smart Viewing

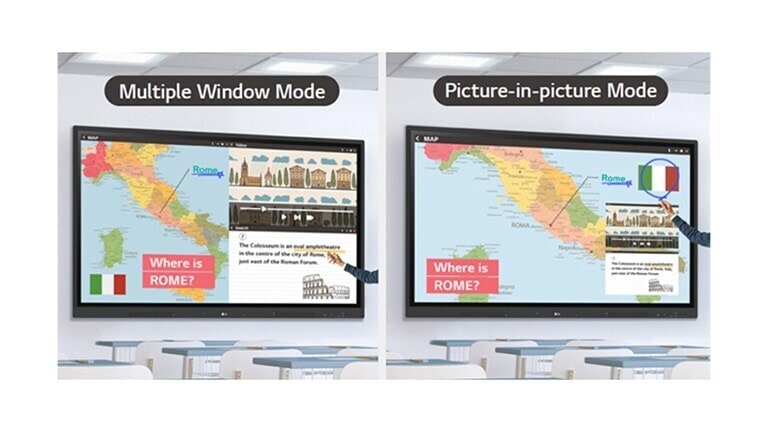

Smart Viewing

The Smart Viewing feature of LG CreateBoard enables efficient teaching. Two or more materials can be displayed on the same screen simultaneously without having to repeat Alt-tab, making teaching more convenient and efficient. Two materials can be displayed side by side (multi window mode), or one material can be overlaid on the other one (picture-in-picture mode).

*Multi window mode may not work for some apps.
*PIP mode is available for the external source screen.
Auto-remove Files

Auto-remove Files

Users can set LG CreateBoard to delete files regularly for enhanced security.
Print

All Spec

SOUND

  • Speaker (Built-in)

    YES (15W x 2)

ACCESSORY

  • Basic

    Power Cord 3M*1, USB Cable (Type A-Type B) 5M*1, HDMI Cable 3M*1, Writing Pen*2pcs, User Manual, QSG, Carton Box, Remote Controller(include battery 2ea), Wifi module

  • Optional

    Wall Mount(WM-L000S), Floor Stand(ST-000F, ST-860F)

LANGUAGE

  • OSD

    English, Denmark, Finnish, German, Korean, Norwegian, Polski, Portugues(Europe), Portugues(Brazil), Romanian, Spanish, Swedish, Hungarian, Thai

POWER

  • Power Supply

    AC 100-240V~, 50/60Hz

  • Power Type

    Built-in Power

CERTIFICATION

  • EMC

    FCC Class "A" / CE

  • ERP / Energy Star

    YES / NO

  • Safety

    CB / NRTL

ENVIRONMENT CONDITIONS

  • Operation Humidity

    10 % to 90 %

  • Operation Temperature

    0 °C to 40 °C

OPS COMPATIBILITY

  • OPS Power Built-in

    YES

  • OPS Type compatible

    YES (Slot)

DEDICATED FEATURE - TOUCH

  • Accuracy (Typ.)

    Âą1mm

  • Available Object Size for Touch

    Ø2 mm ↑

  • Interface

    USB2.0

  • Multi Touch Point

    Max. 40 Points(Windows), Max. 32 Points(Android)

  • Operating System Support

    Windows 7/8/10/Linux/Mac/Android (Linux/Mac Support one point touch)

  • Protection Glass Thickness

    3mm (Anti-Glare)

  • Protection Glass Transmission

    0.88

  • Response Time ('Paint' app on Windows 10 PC)

    5ms ↓

MECHANICAL SPECIFICATION

  • Weight (Head)

    26.1Kg

  • Bezel Color

    Black

  • Bezel Width

    T/R/L/B : 18/18/18/45mm

  • Carton Dimensions (W x H x D)

    1401 × 859 × 220mm

  • Handle

    NO

  • Monitor Dimensions (W x H x D)

    1271 × 774 × 87mm

  • Packed Weight

    34.5Kg

  • VESA Standard Mount Interface

    400 x 200 mm

POWER CONSUMPTION

  • BTU (British Thermal Unit)

    580 BTU/Hr(Typ.), 1348 BTU/Hr(Max.)

  • DPM

    0.5W

  • Max.

    395W

  • Power off

    0.5W

  • Typ.

    170W

PANEL

  • Aspect Ratio

    16:9

  • Back Light Type

    Direct

  • Brightness

    390nit (Typ., without Glass)

  • Color Depth (Number of Colors)

    16.7 Million colors

  • Color Gamut

    NTSC 72%

  • Contrast Ratio

    1,200:1

  • Dynamic CR

    5,000:1

  • Life time

    50,000Hrs (L30)

  • Native Resolution

    3840 x 2160 (UHD)

  • Operation Hours (Hours/Day)

    16/7

  • Panel Technology

    IPS

  • Portait / Landscape

    NO / YES

  • Refresh Rate

    60Hz

  • Response Time

    8ms (G to G)

  • Screen Size (Inch)

    55

  • Surface Treatment (Haze)

    Haze 25%

  • Viewing Angle (H x V)

    178Âş x 178Âş

SPECIAL FEATURE

  • Conformal Coating (Power Board)

    YES

CONNECTIVITY

  • Audio In

    YES

  • Audio Out

    YES

  • DP In

    NO

  • DP Out

    NO

  • DVI-D In

    NO

  • External Speaker Out

    NO

  • HDMI In

    YES (3ea)

  • HDMI In (HDCP Ver.)

    2.2

  • HDMI Out

    YES

  • IR In

    NO

  • RGB In

    YES

  • RJ45(LAN) In

    YES (1ea)

  • RJ45(LAN) Out

    YES

  • RS232C In

    YES

  • RS232C Out

    NO

  • Touch USB

    USB2.0 Type B (2ea)

  • USB In

    USB3.0 Type A (4ea), USB2.0 Type A (1ea), USB Type C (1ea)

DEDICATED FEATURE - CREATE BOARD

  • Bluetooth

    Bluetooth 5.0

  • CPU

    Quad core A55

  • GPU

    Mail G52 Multicore 2

  • LAN

    Gigabit LAN

  • Memory(RAM)

    4GB

  • OS ver. (Android)

    Android 11

  • Storage

    32GB

  • Wi-Fi

    802.11a/b/g/n/ac/ax (WiFi 6)

SOFTWARE COMPATIBILITY

  • Connected Care

    YES

FEATURE - HARDWARE

  • Auto Brightness Sensor

    YES

  • Internal Memory (eMMC)

    32GB

  • Local Key Operation

    NO

  • Power Indicator

    YES

  • Temperature Sensor

    NO

  • Wi-Fi/BT (Built-in)

    YES

FEATURE - SOFTWARE

  • Booting Logo Image

    YES

  • Crestron Connected

    NO

  • HDMI-CEC

    NO

  • Network Ready

    NO

  • PBP

    YES (2PBP)

  • PIP

    YES

  • PM mode

    NO

  • Screen Share

    YES

  • Setting Data Cloning

    NO

  • Smart Energy Saving

    YES

  • Wake on LAN

    YES

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
