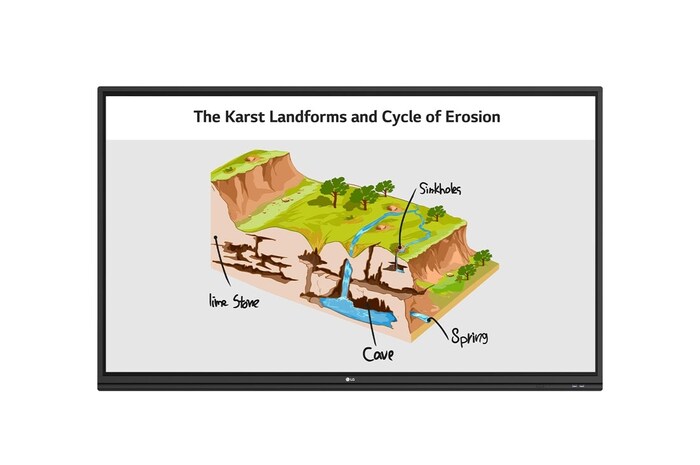

UHD IR-type Touch CreateBoard

65TR3PJ-B

Key Features

Brightness : 390 nit (w/o Glass, Typ.)
Multi Touch Point : 20 Points (Max.)
Interface : HDMI (3), RGB (1), Audio In (1), RS-232C In (1), RJ45 (1), USB 3.0 Type A (3), USB 2.0 Type A (1), USB 3.1 Type C (1), Audio Out / Optical Output, Touch USB (2)

All Spec

POWER

Power Supply: AC 100-240V~, 50/60Hz

Power Type: Built-in Power

SOUND

Speaker (Built-in): YES (16W x 2)

ACCESSORY

Basic: Power Cord 3M*1, USB Cable (Type A-Type B) 5M*1, HDMI Cable 3M*1, Writing Pen*2pcs, User Manual, QSG, Carton Box, Remote Controller(include battery 2ea), Wifi module

Optional: NO

LANGUAGE

OSD: English, Simplified Chineses, Catalan, Czech, Denmark, Arabic(Egypt), Finnish, French, German, Greek, Italian, Japanese, Korean, Netherlands(Dutch), Norwegian, Polski, Portugues(Europe), Portugues(Brazil), Romanian, Russian, Spanish, Swedish, Türkçe, Ukrainian, Traditional Chinese, Hungarian, Latvian, Thai

OPS COMPATIBILITY

OPS Power Built-in: YES

OPS Type compatible: YES (Slot)

CERTIFICATION

EMC: FCC Class "A" / CE

ERP / Energy Star: YES / NO

Safety: CB / NRTL

ENVIRONMENT CONDITIONS

Operation Humidity: 10 % to 90 %

Operation Temperature: 0 °C to 40 °C

MECHANICAL SPECIFICATION

Weight (Head): 40.2Kg

Bezel Color: Black

Bezel Width: T/R/L/B : 17.7/17.7/17.7/45.7mm

Carton Dimensions (W x H x D): 1628 × 1005 x 208mm

Handle: YES

Monitor Dimensions (W x H x D): 1489 × 897 × 87.0mm

Packed Weight: 48.8Kg

VESA Standard Mount Interface: 600 x 400 mm

POWER CONSUMPTION

BTU (British Thermal Unit): 648 BTU/Hr(Typ.), 1365 BTU/Hr(Max.)

DPM: 0.5W

Max.: 400W

Power off: 0.5W

Typ.: 190W

DEDICATED FEATURE - TOUCH

Accuracy (Typ.): ±1mm

Available Object Size for Touch: Ø2 mm ↑

Interface: USB3.0

Multi Touch Point: Max. 20 Points

Operating System Support: Windows 7/8/10/XP/Linux/Mac/Android (Windows XP/Linux/Mac Support one point touch)

Protection Glass Thickness: 4mm (Anti-Glare)

Protection Glass Transmission: 0.87

Response Time ('Paint' app on Windows 10 PC): 10ms ↓

PANEL

Aspect Ratio: 16:9

Back Light Type: Direct

Brightness: 390nit (Typ., without Glass)

Color Depth (Number of Colors): 16.7 Million colors

Color Gamut: NTSC 72%

Contrast Ratio: 5,000:1

Dynamic CR: NO

Life time: 30,000Hrs (Min.)

Native Resolution: 3840 x 2160 (UHD)

Operation Hours (Hours/Day): 16/7

Panel Technology: IPS

Portait / Landscape: NO / YES

Refresh Rate: 60Hz

Response Time: 6.5ms (G to G)

Screen Size (Inch): 65

Surface Treatment (Haze): Haze 25%

Viewing Angle (H x V): 178º x 178º

SPECIAL FEATURE

Conformal Coating (Power Board): YES

CONNECTIVITY

Audio In: YES

Audio Out: YES

DP In: NO

DP Out: NO

DVI-D In: NO

External Speaker Out: NO

HDMI In: YES (3ea)

HDMI In (HDCP Ver.): 2.2/1.4

HDMI Out: YES

IR In: NO

RGB In: YES

RJ45(LAN) In: YES (1ea)

RJ45(LAN) Out: YES

RS232C In: YES

RS232C Out: NO

Touch USB: USB3.0 Type B (2ea)

USB In: USB3.0 Type A (4ea), USB2.0 Type A (1ea), USB Type C (1ea)

SOFTWARE COMPATIBILITY

Connected Care: YES

DEDICATED FEATURE - CREATE BOARD

Bluetooth: Bluetooth 5.0

CPU: Quad core A73

GPU: Mail G52 Multicore 2

LAN: Gigabit LAN

Memory(RAM): 4GB

OS ver. (Android): Android 9

Storage: 32GB

Wi-Fi: 802.11a/b/g/n/ac/ax

FEATURE - HARDWARE

Auto Brightness Sensor: YES

Internal Memory (eMMC): 32GB

Local Key Operation: YES

Power Indicator: YES

Temperature Sensor: NO

Wi-Fi/BT (Built-in): YES

FEATURE - SOFTWARE

Booting Logo Image: YES

Crestron Connected: YES

HDMI-CEC: YES

Network Ready: NO

PBP: NO

PIP: NO

PM mode: NO

Screen Share: YES

Setting Data Cloning: NO

Smart Energy Saving: YES

Wake on LAN: YES
