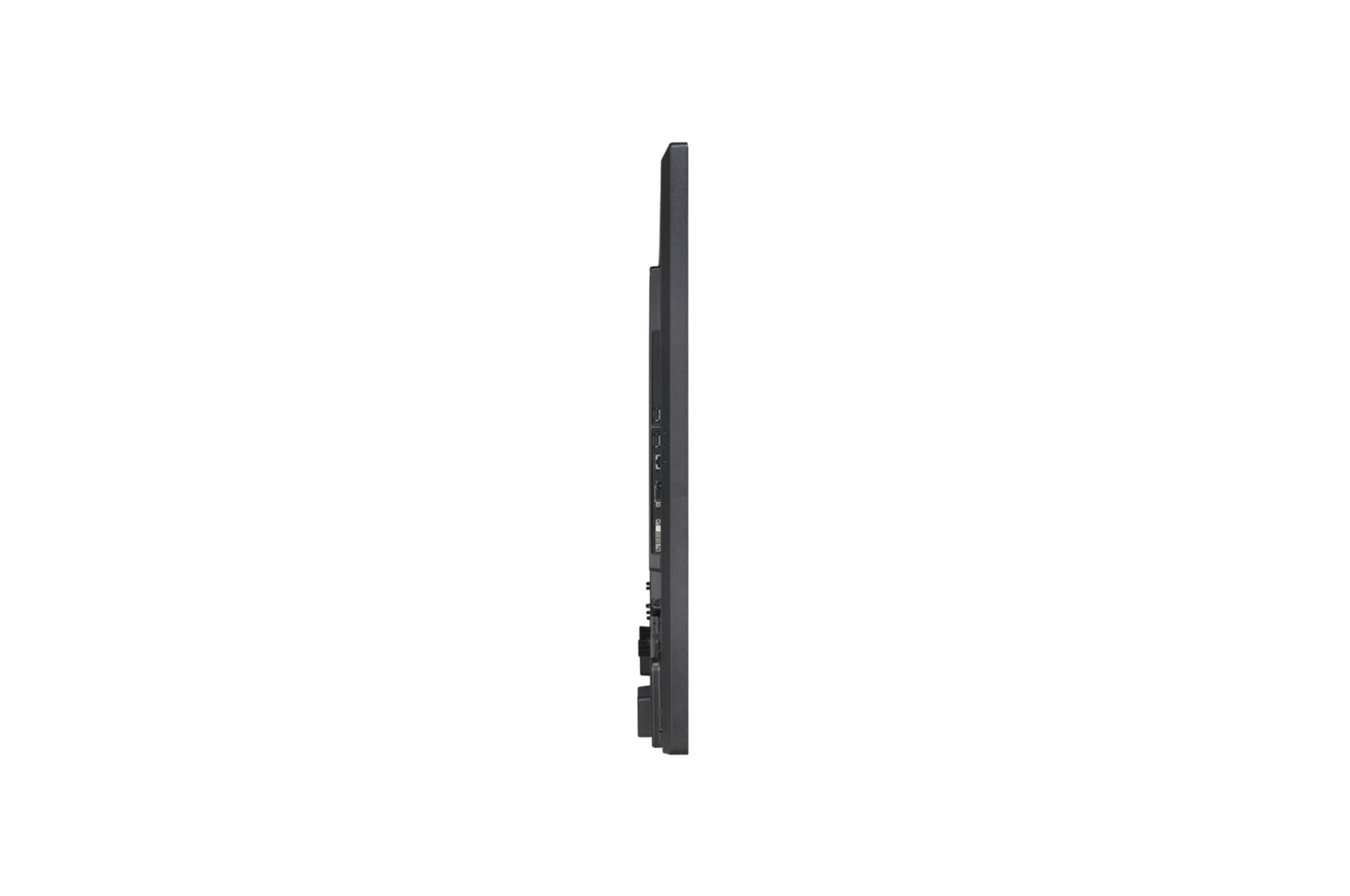

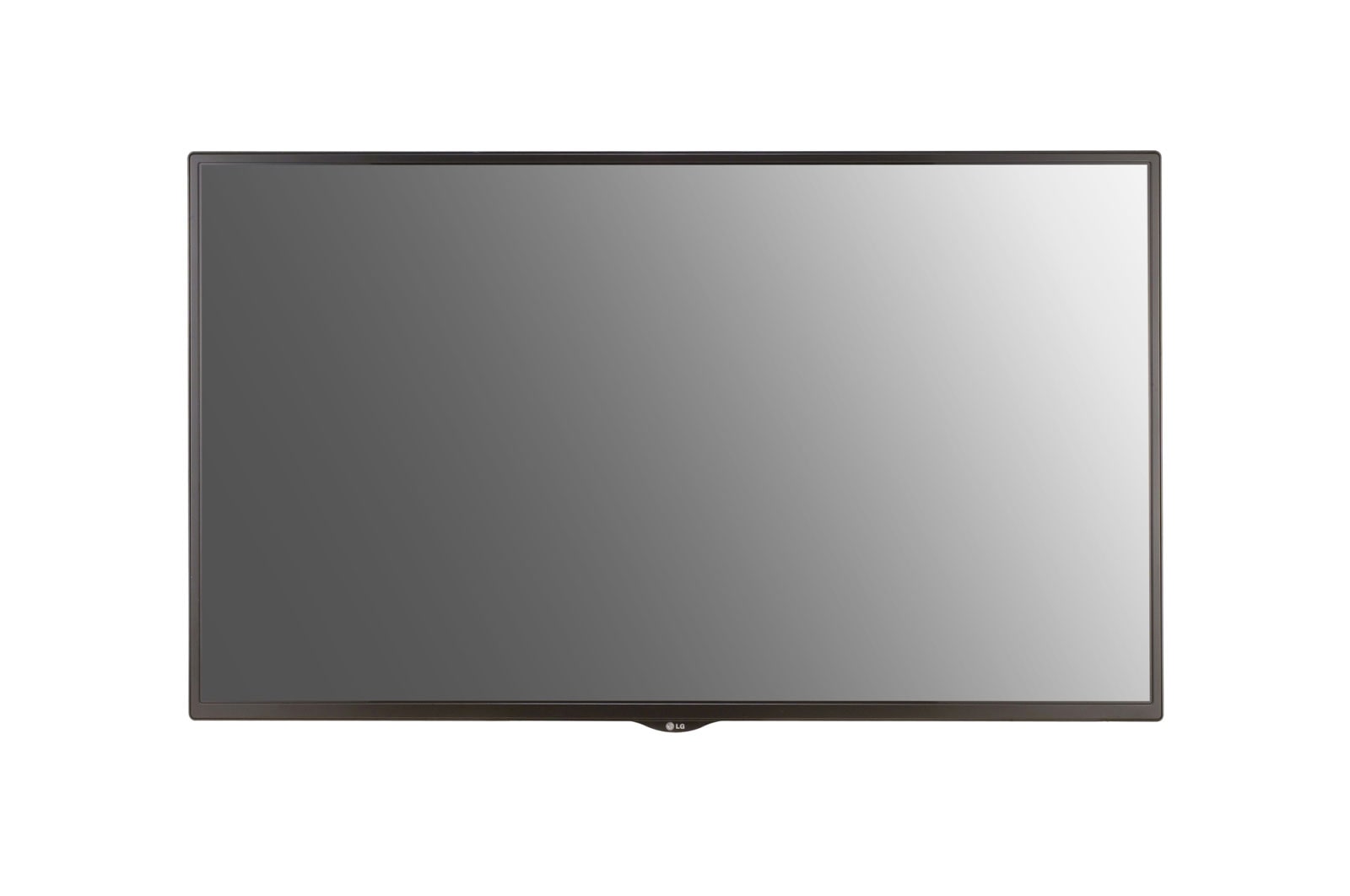

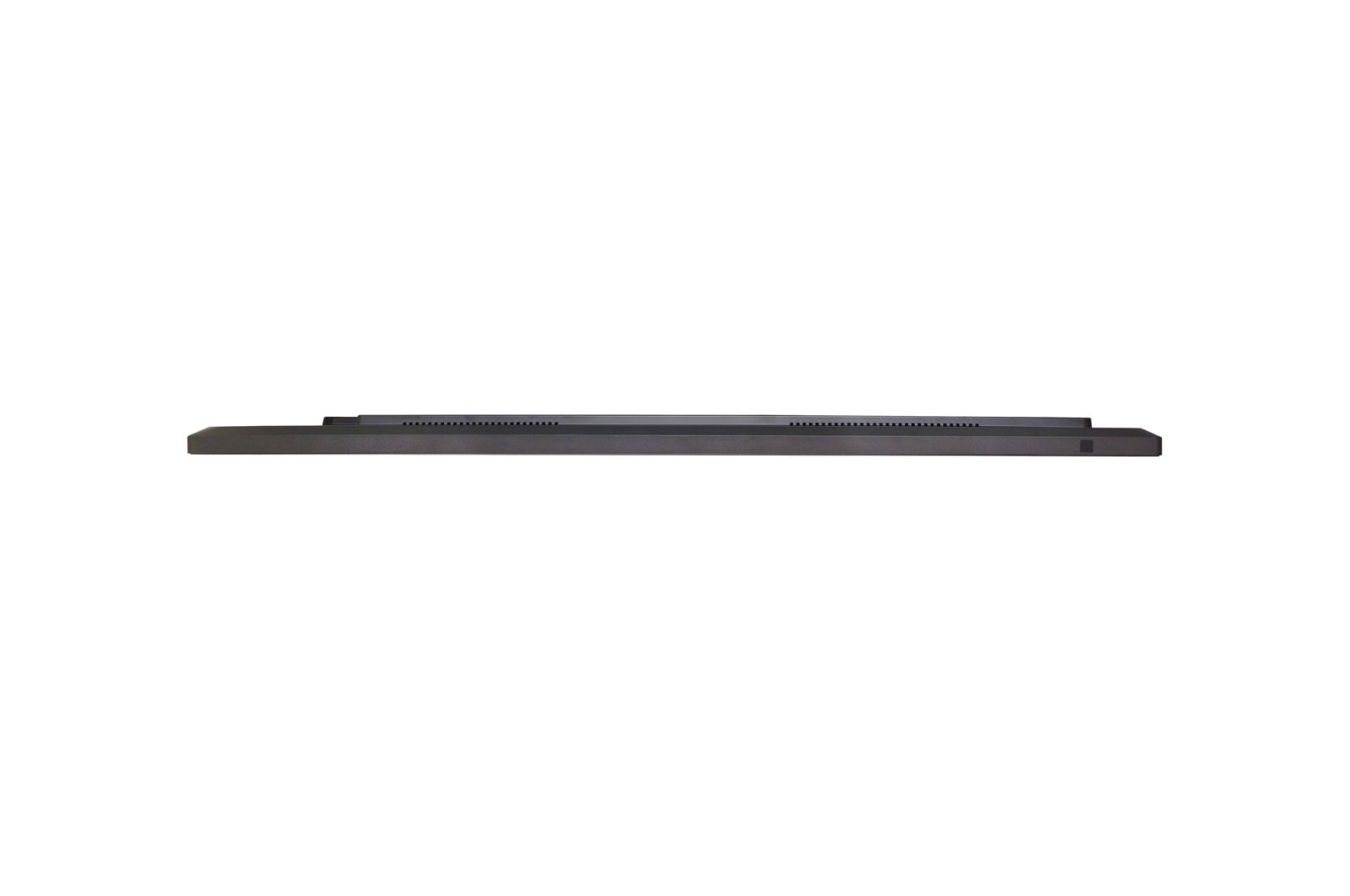

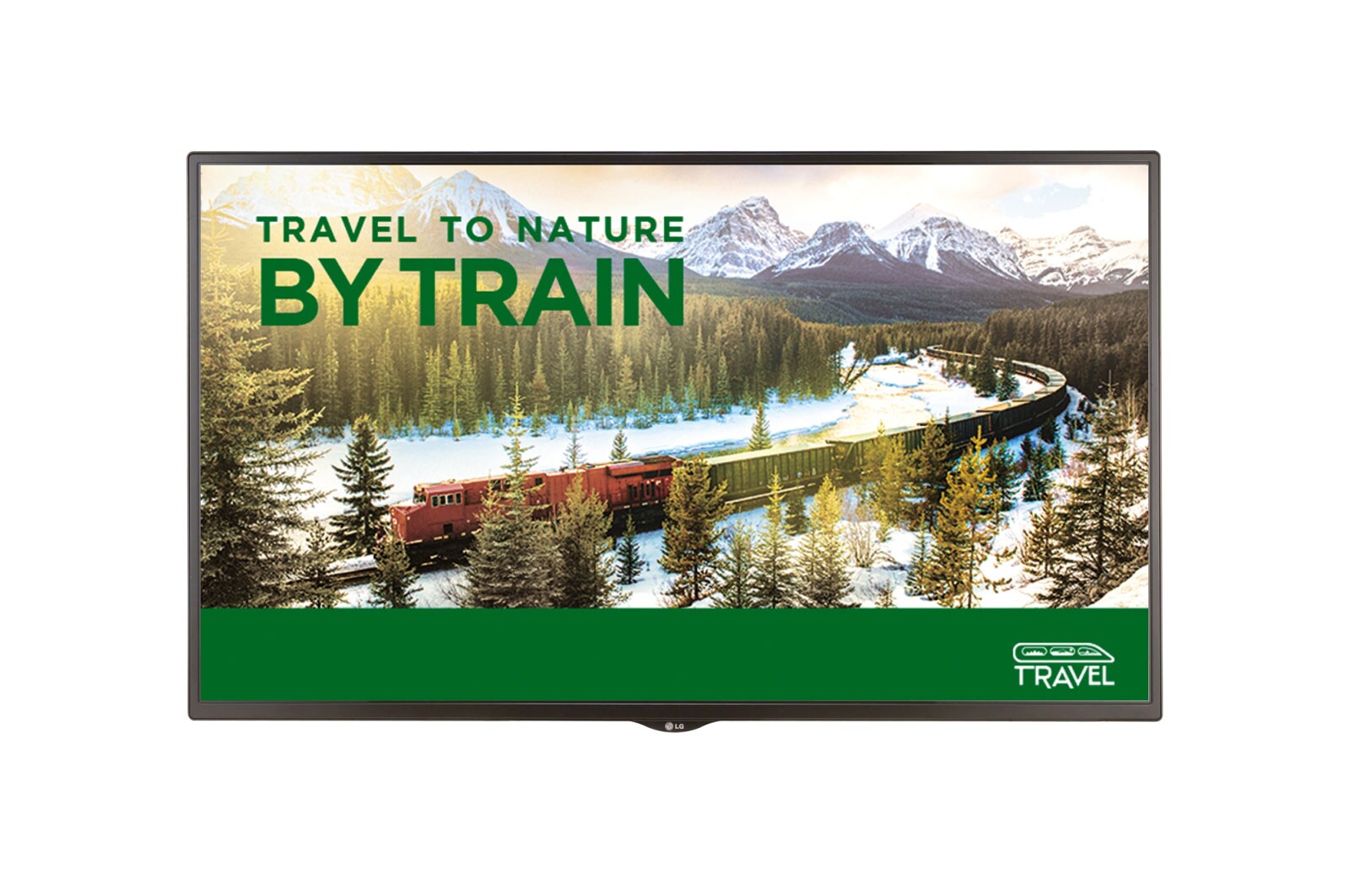

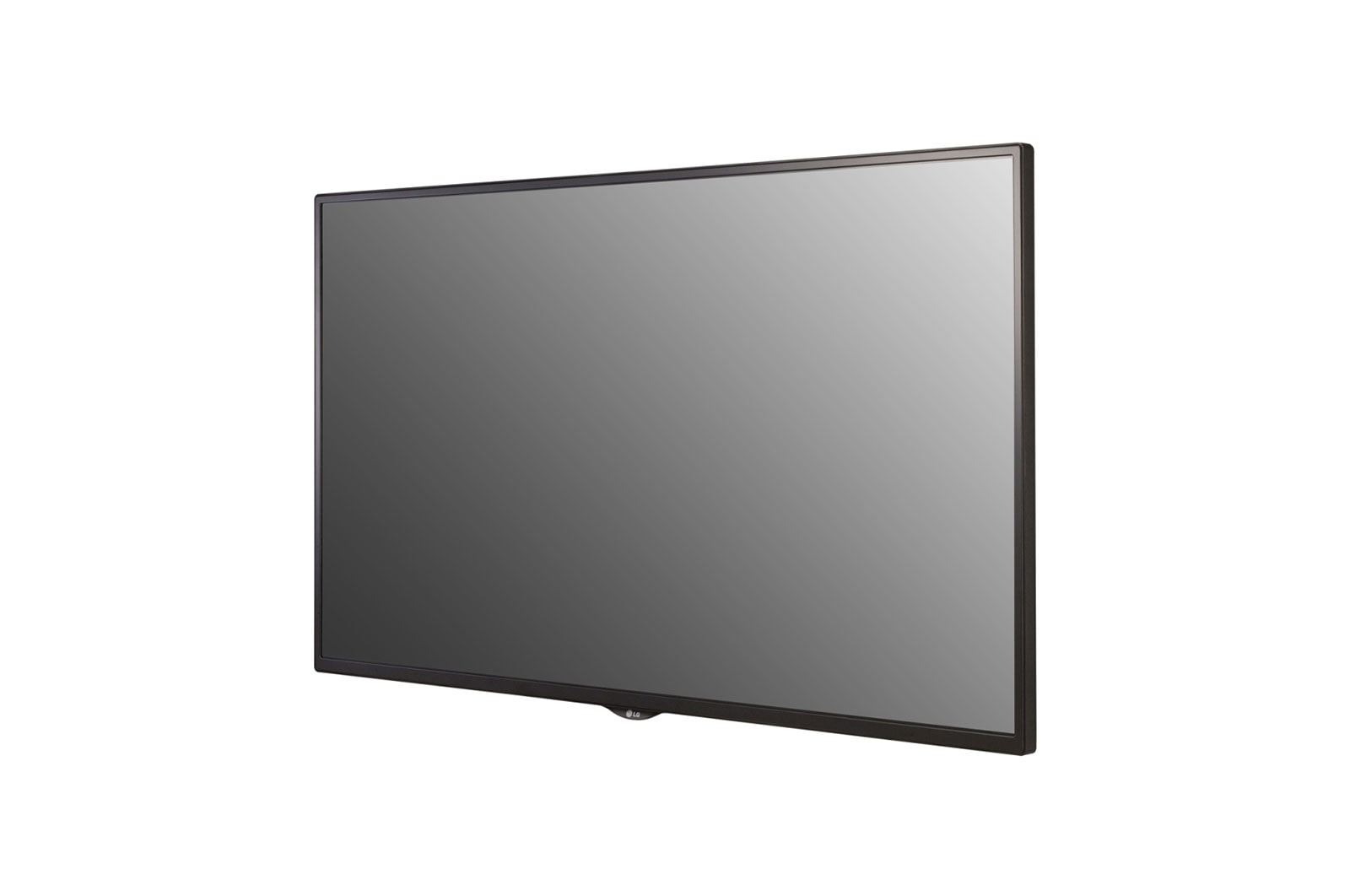

55SH7E-B
SH7E Series
  • Brightness(Typ.): 700cd/m²
  • Bezel: 11.9mm (T/L/R), 18mm (B)
  • Depth: 54mm
  • Interface: HDMI(3), DP, DVI-D, USB 3.0, RS232C, RJ45, IR
  • Built-in Speaker(10W+10W)
SH7E Series
*Supported model: NIPPON PRIMEX (NP-3511, NP-3611).
*SDK: Software Development Kit.
*CMS: Content Management System.
*A laptop and a display must be connected to the same network.
*Installation of the PC client app is required. Go to the 'Tech Spec' section of this page for the minimum requirements and then download the app from the 'Business Resources' section.

PANEL

  • Screen Size
    55"
    Native Resolution
    1,920 x 1,080 (FHD)
  • Brightness(Typ.,cd/m²)
    700

CONNECTIVITY

  • Input
    HDMI (3), DP, DVI-D, Audio, USB 3.0
    Output
    DP, Audio
  • External Control
    RS232C in/out, RJ45 in, IR in

PHYSICAL SPECIFICATION

  • Bezel Width
    11.9mm (T/R/L), 18mm (B)
    Monitor Dimension (W x H x D)
    1,238 x 714.9 x 54 mm
  • Weight (Head)
    17.5kg
    Carton Dimensions (W x H x D)
    1,330 x 807 x 170 mm
  • Packed Weight
    21.7kg
    VESA™ Standard Mount Interface
    300 x 300 mm

ENVIRONMENT CONDITIONS

  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10% to 80%

POWER

  • Power Supply
    100-240 V~, 50/60 Hz
    Power Type
    Built-In Power

POWER CONSUMPTION

  • Typ. / Max.
    130W/150W
    Smart Energy Saving
    91W

STANDARD(CERTIFICATION)

  • Safety
    IEC 60950-1/EN 60950-1/UL 60950-1
    EMC
    FCC Class "A"/CE/KC
  • ErP / Energy Star
    N/A/Yes (Energy Star 8.0)

MEDIA PLAYER COMPATIBILITY

  • OPS Type Compatible
    Yes
    External Media player Attatchable
    Yes

SOFTWARE COMPATIBILITY

  • Content Management Software
    SuperSign CMS
    Control and Monitoring Software
    SuperSign Link

MINIMUM REQUIREMENTS FOR LG PRESENTER

  • OS (Windows)
    Windows 7 (64bit), Windows 10 (64bit)
    CPU (Windows)
    2.7GHz+ Dual Core Broadwell or higher
  • OS (macOS)
    macOS 10.12 Sierra, MacOS 10.13 High Sierra
    CPU (macOS)
    Any CPU which supports Sierra or High Sierra
  • Memory
    4GB RAM
    Hard Drive
    1GB of free space
  • Graphics Hardware (Windows)
    Intel Iris or higher, Nvidia, ATI
    Graphics Hardware (macOS)
    Any GPU which supports Sierra or High Sierra

ACCESSORY

  • Basic
    Remote Controller (2 Batteries Included), Power Cord, QSG, HDMI Cable, Regulation Book, Phone to RS232C Gender
    Optional
    Stand (ST-492T), Media Player, Wall Bracket (LSW350B), VESA Adapter (AM-B330S), OPS Kit (KT-OPSA), HDBaseT (EB-B100), Touch Overlay (KT-T55E)
