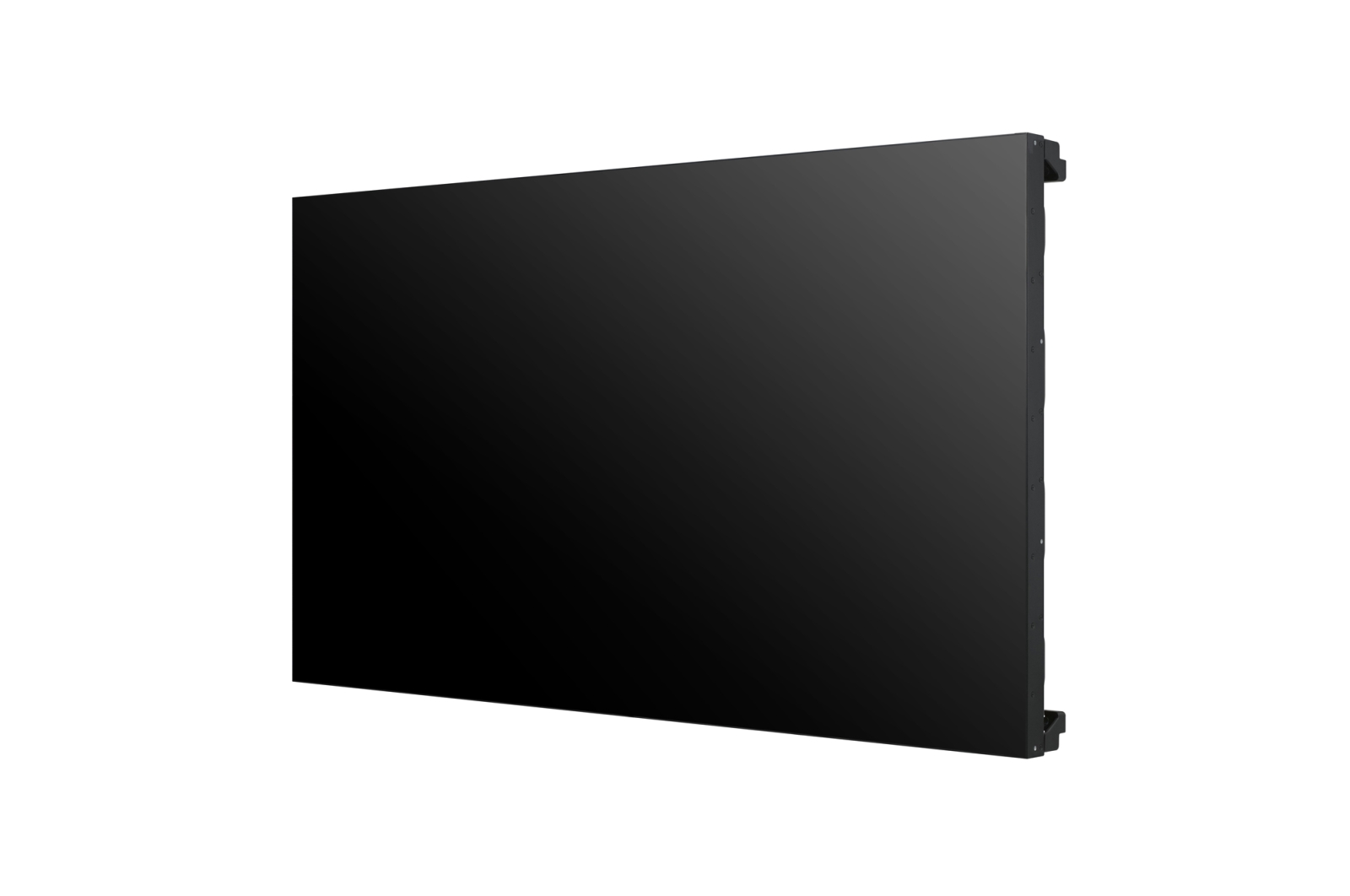

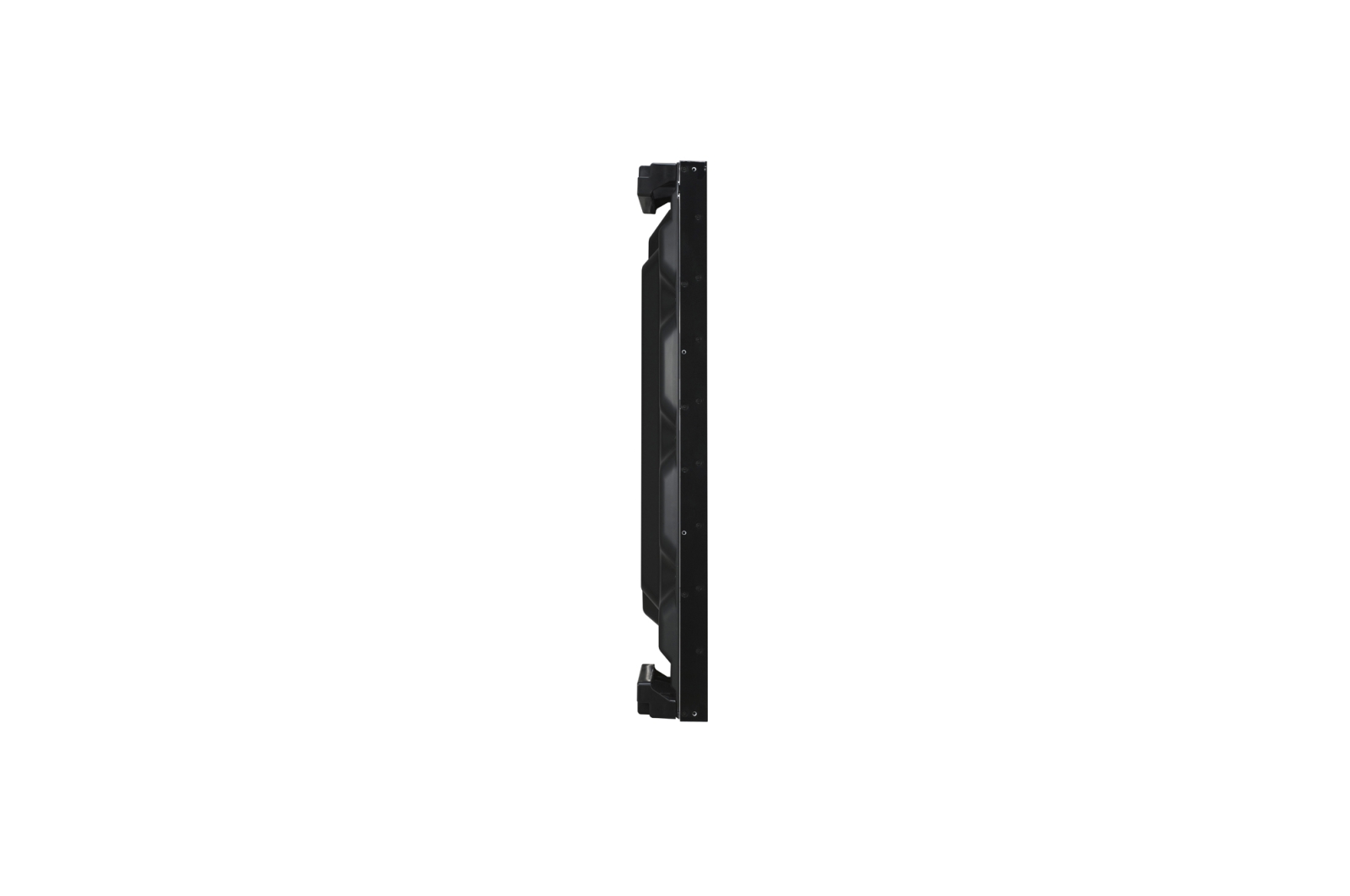

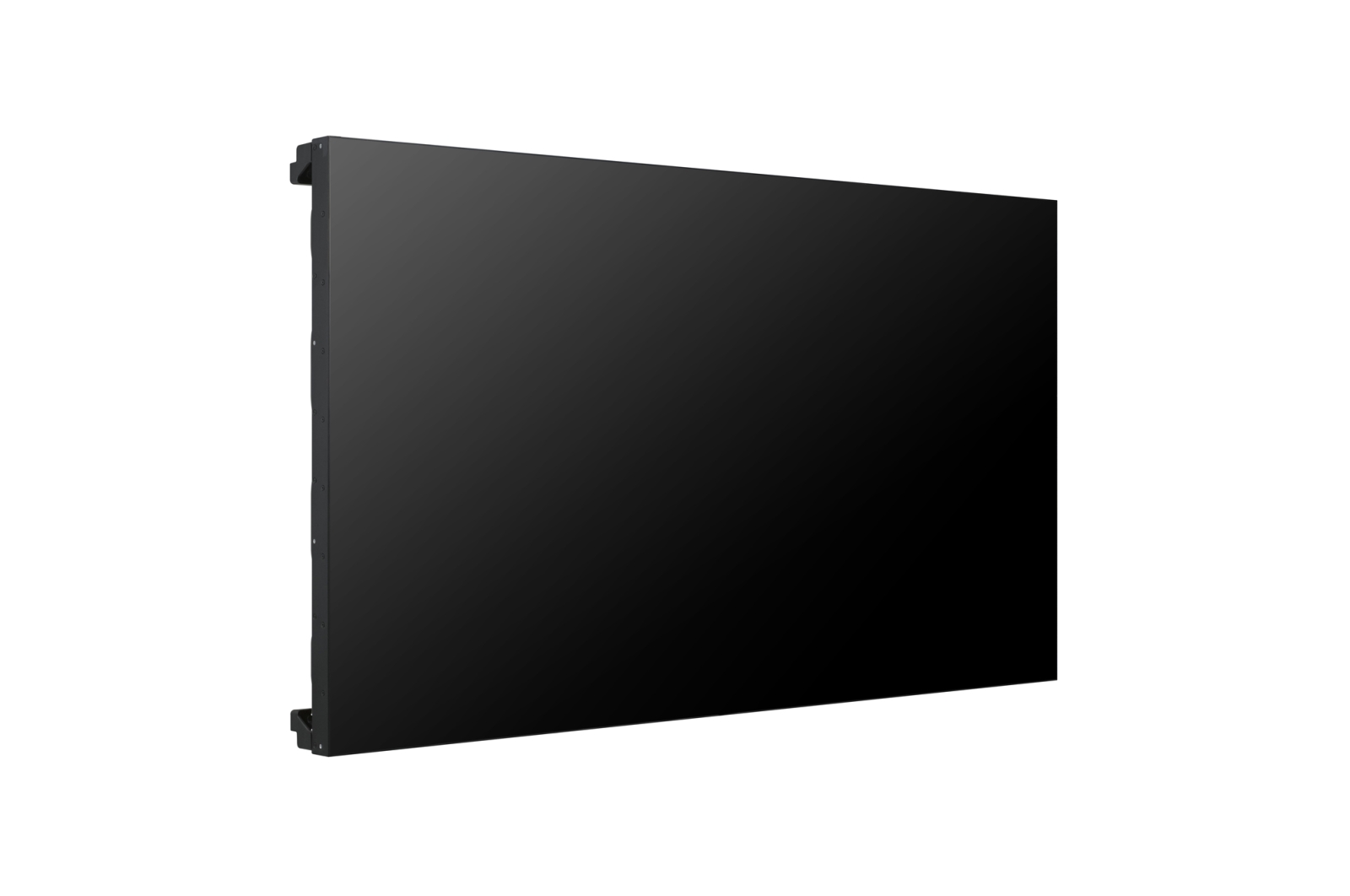

VL5F Series

(2)

Incredible Immersion with Ultra-Narrow Bezel

The VL5F series provides all-encompassing screen immersion thanks to its ultra-narrow 3.5 mm bezel-to-bezel, while its outstanding IPS panel delivers a clear image from any angle. With its extremely attractive and highly functional design, it can be used to deliver advertising and information in a variety of business environments.

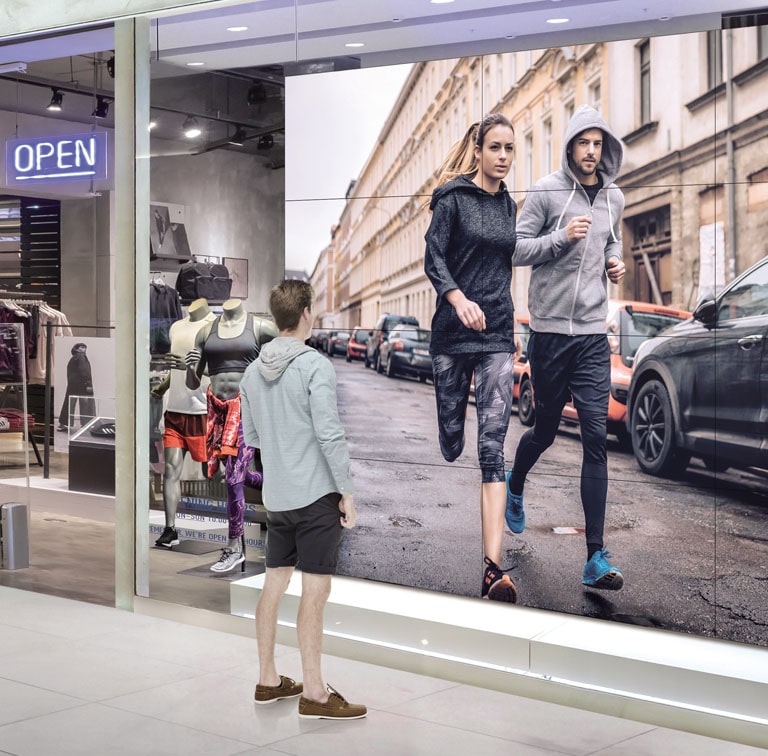

Achieving Incredible Immersion

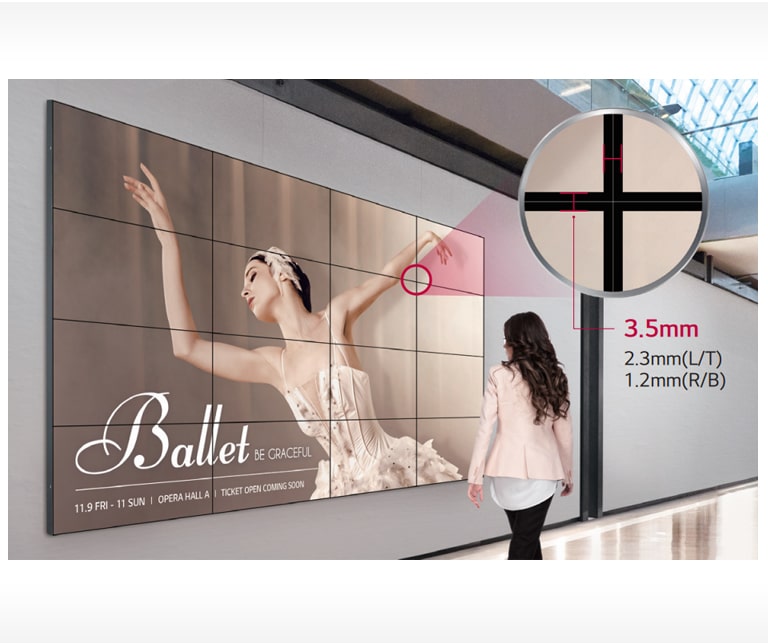

Seamless Large Screens with Ultra-Narrow Bezel

The ultra-narrow bezel creates a visually stunning digital wall to effectively deliver dynamic content and immerse the viewers. The large screen it generates is enough to captivate the attention of passersby.

Achieving Incredible Immersion

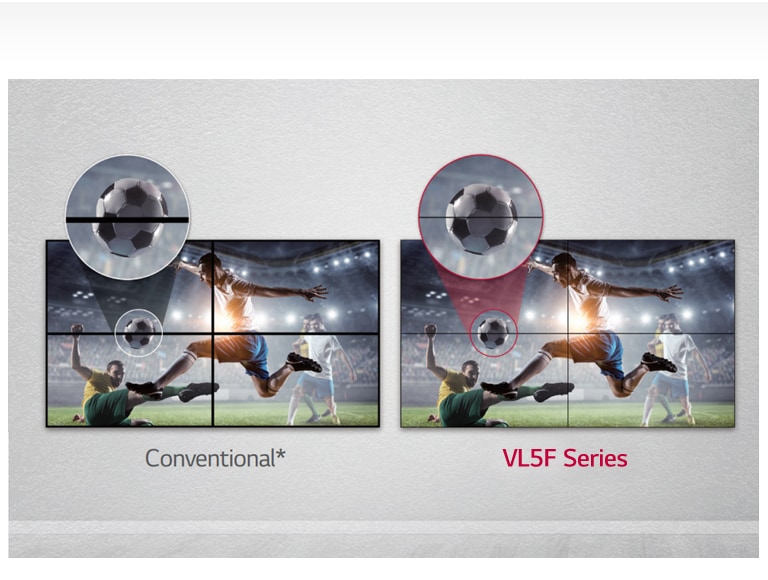

Image Gap Reduction

The VL5F series includes an image improvement algorithm that can reduce image gaps among tiled displays when playing back videos. Objects located on the bezel boundaries are adjusted for a seamless viewing experience.

*The "Conventional" refers to displays which do not include an image improvement algorithm.

Vivid and Dynamic Picture Quality

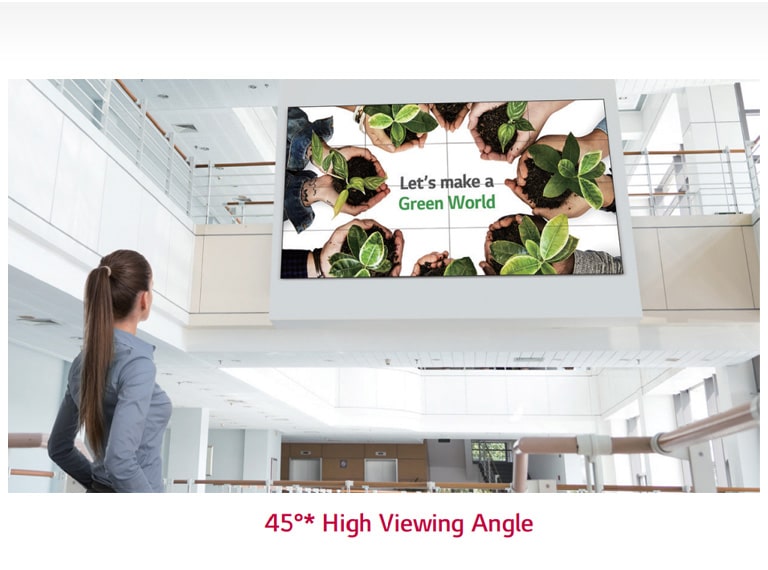

Higher Viewing Angle

Large screens are usually positioned higher than human-eye level, making uniform picture quality essential for video walls. The viewing angle of the VL5F series is high enough to display vivid colors throughout the screen with no distortion.

*Results based on in-house testing. Actual test results may differ depending on environment and measuring equipment.

Vivid and Dynamic Picture Quality

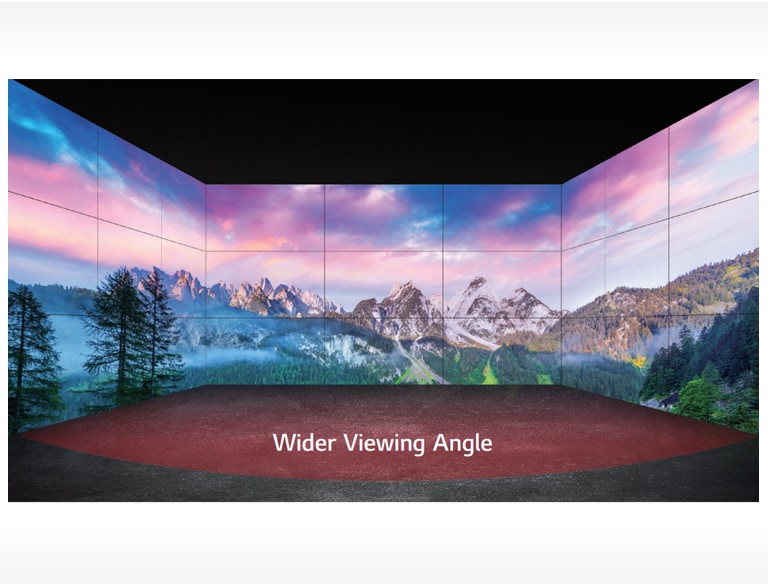

Wider Viewing Angle

It is well known that LG IPS panel technology enables better control of liquid crystals, which in turn allows the screen to be viewed from virtually any angle. Because of this, the VL5F series captures the attention of and captivates more viewers with lifelike colors, regardless of their viewing position.

User Convenience

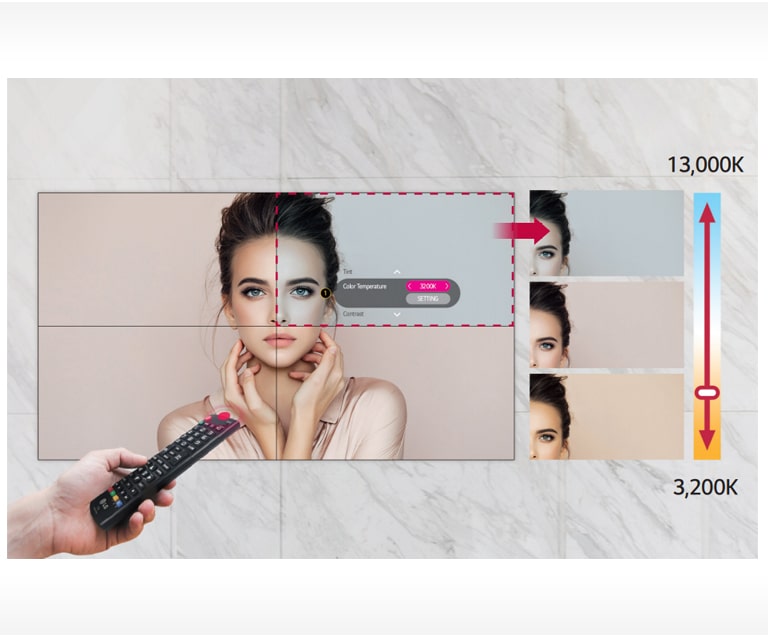

Easy Color Adjustment

Depending on the content, the color temperature of the display can be easily adjusted in increments of 100K using a remote control.

User Convenience

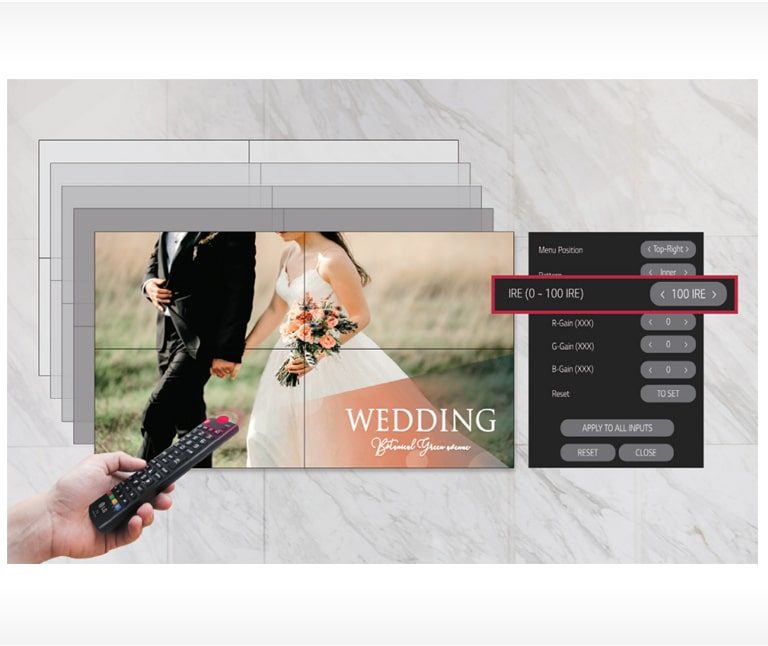

Simple White Balance Adjustment

In conventional video walls, white balance was adjustable only in “full-white” mode, but the VL5F series allows you to modify each value of grey scale to achieve more detailed and precise white balance adjustment.

User Convenience

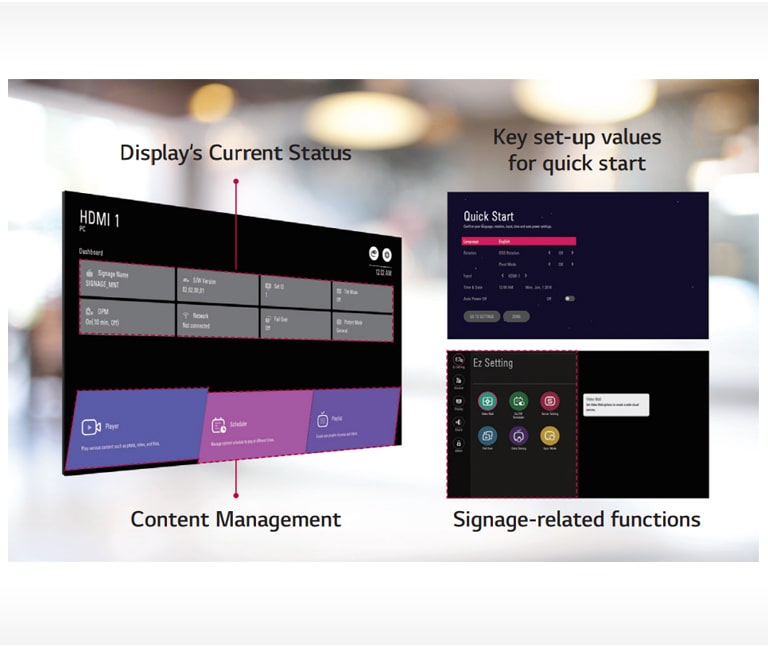

User-Friendly Menu Structure

The menu structure has been optimized for commercial use. It simplifies approach flows and groups similar functions together, adopting a more intuitive GUI for ease of use. This way, users can avoid having to do trial-anderror when exploring desired functions and managing displays.

User Convenience

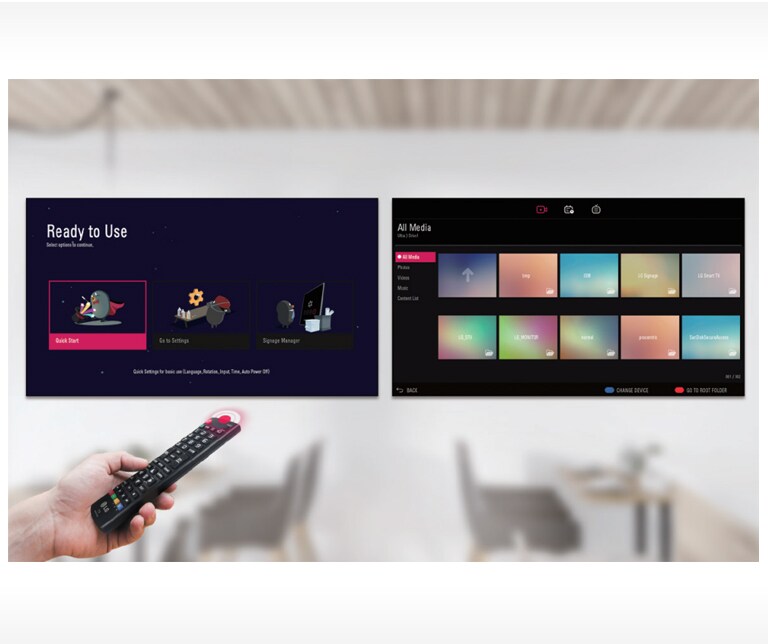

Intuitive GUI

The GUI^{(Graphic User Interface)} is carefully designed with a four-way navigation remote control that lets users easily switch to other settings. Also, it adopts a larger font for better visibility, which is necessary when users want to control displays from relatively far distances.

All Spec

PANEL

Screen Size

55"
Panel Technology

IPS
Aspect Ratio

16:9
Native Resolution

1,920 x 1,080 (FHD)
Dynamic CR

500,000 : 1 (The luminosity ratio of Full Black/Full White color on video input condition.)
Brightness(Typ.,cd/m²)

500
Contrast Ratio

1,200:1
Viewing Angle (H x V)

178 x 178
Response Time

8ms (G to G)
Surface Treatment

3%
Life Time (Typ.)

60,000 Hrs
Operation Hours

24 Hrs
Orientation

Landscape & Portrait

CONNECTIVITY

Input

HDMI(2), DP, DVI-D, Audio, USB
Output

DP, Audio
External Control

RS232C In/out, RJ45(LAN) In, IR In

MECHANICAL SPECIFICATION

Bezel Color

Black
Bezel Width

2.25mm (T/L) / 1.25mm (B/R)
Monitor Dimension (W × H × D)

1,213.4 x 684.2 x 93.1 mm
Weight (Head)

20.3kg
Carton Dimensions (W × H × D)

1,353 x 980 x 263 mm
Packed Weight

33kg
Handle

Yes
VESA™ Standard Mount Interface

600 x 400 mm

ENVIRONMENT CONDITIONS

Operation Temperature

0°C to 40°C
Operation Humidity

10% to 80%

POWER

Power Supply

100-240V~, 50/60Hz
Power Type

Built-In Power

POWER CONSUMPTION

Typ. / Max.

130W / 150W
Smart Energy Saving

62W

CERTIFICATION

Safety

CB / NRTL
EMC

FCC Class “A” / CE / KC
ErP / Energy Star

Yes (EU Only) / Yes (Energy Star 8.0)

MEDIA PLAYER COMPATIBILITY

OPS Type Compatible

No

SOFTWARE COMPATIBILITY

Content Management Software

SuperSign CMS
Control and Monitoring Software

SuperSign Control / Control+

ACCESSORY

Basic

Remote Controller, Power Cord, RS232C Cable, DP Cable, IR Receiver, Guide Bracket, Screws, Manual
Optional

Wall Mount (Landscape: WM-L640V, Portrait: WM-P640V)
