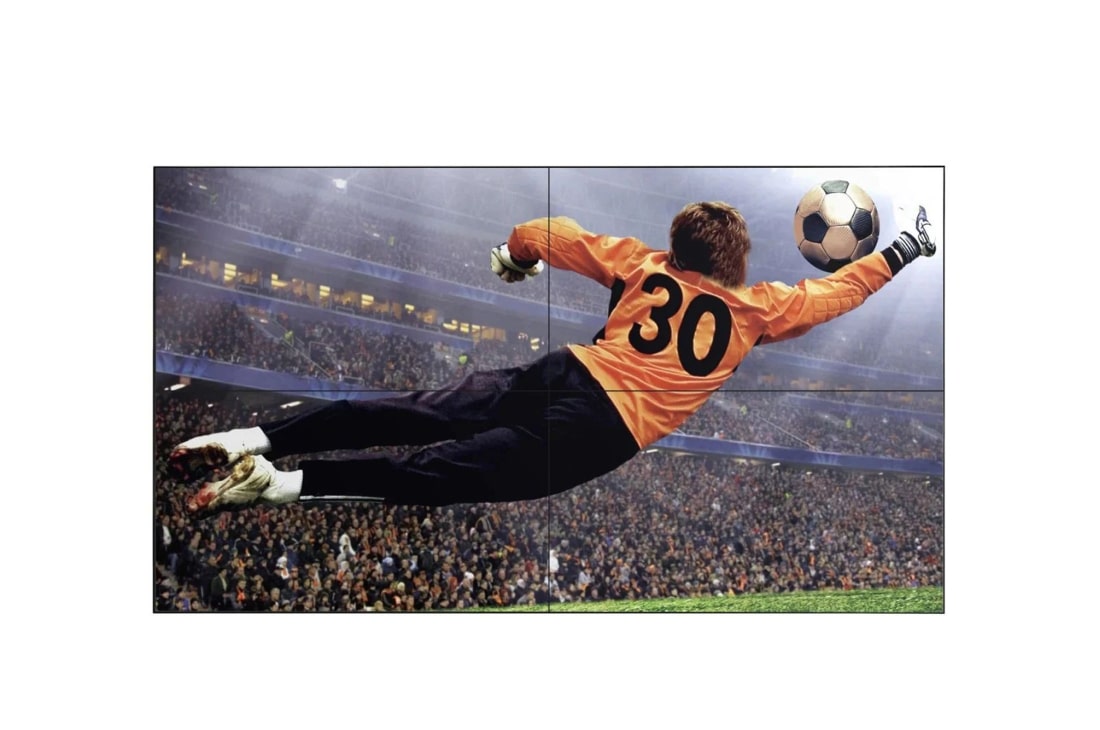

49'' 500 nits FHD Slim Bezel Video Wall

49VL5G-M

Key Features

Brightness(Typ.) : 500 cd/m²
Bezel : 2.25 mm (T/L), 1.25 mm (B/R)
Depth : 89.7 mm
Interface : HDMI/ DP/ DVI-D/ USB/ RS232C/ RJ45/ Audio/ IR

All Spec

LANGUAGE

OSD: English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Japanese, Russian, Portugues(Europe), Dutch, Czech, Greek, Arabic

ACCESSORY

Basic: Remote Controller(include battery 2ea), Power Cord, RS232C cable, DP cable, IR Receiver, Guide Bracket, Screws, Manual

Optional: NO

POWER

Power Supply: AC 100-240V~, 50/60Hz

Power Type: Built-in Power

SOUND

Speaker (Built-in): NO

OPS COMPATIBILITY

OPS Power Built-in: NO

OPS Type compatible: NO

CERTIFICATION

EMC: FCC Class "A" / CE / KC

ePEAT(US only): NO

ERP / Energy Star: YES / Energy Star 8.0(US Only)

Safety: CB / NRTL

ENVIRONMENT CONDITIONS

Operation Humidity: 10 % to 80 %

Operation Temperature: 0 °C to 40 °C

MECHANICAL SPECIFICATION

Weight (Head): 16.9Kg

Bezel Color: Black

Bezel Width: T/R/L/B : 2.25/1.25/2.25/1.25mm

Carton Dimensions (W x H x D): 1214 x 778 x 263mm

Handle: YES

Monitor Dimensions (W x H x D): 1077.6 x 607.8 x 89.7mm

Monitor Dimension with Stand (W x H x D): N/A

Packed Weight: 21.9Kg

VESA Standard Mount Interface: 600 x 400 mm

Weight (Head+Stand): N/A

POWER CONSUMPTION

BTU (British Thermal Unit): 341 BTU/Hr(Typ.), 409 BTU/Hr(Max.)

DPM: 0.5W

Max.: 120W

Power off: 0.5W

Smart Energy Saving (70%): 60W

Typ.: 100W

PANEL

Aspect Ratio: 16:9

Back Light Type: Direct

Brightness: 500nit (Typ.)

Color Depth (Number of Colors): 1.07 Billion colors

Color Gamut: NTSC 72%

Contrast Ratio: 1,000:1

Dynamic CR: 500,000:1

Life time: 60,000Hrs (Typ.)

Native Resolution: 1920 x 1080 (FHD)

Operation Hours (Hours/Day): 24/7

Panel Technology: IPS

Portait / Landscape: YES / YES

QWP (Quarter Wave Plate): N/A

Refresh Rate: 60Hz

Response Time: 8ms (G to G)

Screen Size (Inch): 49

Surface Treatment (Haze): Haze 3%

Transparency: N/A

Viewing Angle (H x V): 178º x 178º

CONNECTIVITY

Audio In: YES

Audio Out: YES

Daisy Chain: Input : HDMI, DP, DVI-D / Output : DP

DP In: YES (HDCP 1.3)

DP Out: YES

DVI-D In: YES (HDCP 1.4)

External Speaker Out: NO

HDMI In: YES (2ea)

HDMI In (HDCP Ver.): 1.4

HDMI Out: NO

IR In: YES

IR Out: NO

RGB In: NO

RJ45(LAN) In: YES (1ea)

RJ45(LAN) Out: NO

RS232C In: YES

RS232C Out: YES

Touch USB: NO

USB In: USB2.0 Type A (1ea)

SPECIAL FEATURE

Conformal Coating (Power Board): YES

Direct Sunlight: N/A

IP Rating: IP5X tested

Overlay Touch Compatibility: N/A

Power Protection: N/A

Smart Calibration: N/A

Tilt (Face down): N/A

Tilt (Face up): N/A

SOFTWARE COMPATIBILITY

Connected Care: NO

Mobile CMS: NO

Promota: NO

SuperSign Cloud: NO

SuperSign CMS: YES

SuperSign Control+: YES

SuperSign WB: YES

FEATURE - HARDWARE

Acceleration(Gyro) Sensor: NO

Auto Brightness Sensor: NO

BLU Sensor: NO

Current Sensor: NO

FAN (Built-in): NO

Humidity Sensor: NO

Internal Memory (eMMC): NO

Local Key Operation: NO

Pixel Sensor: NO

Power Indicator: NO

Proximity Sensor: NO

Temperature Sensor: YES

Wi-Fi/BT (Built-in): NO

FEATURE - SOFTWARE

Auto Set ID: YES

Backlight Sync: NO

Beacon: NO

Booting Logo Image: YES

Brightness Compensation: NO

Cisco Certification: NO

Control Manager: NO

Crestron Connected: YES

External Input Rotation: NO

Fail over: YES

Gapless Playback: NO

Group Manager: NO

HDMI-CEC: YES

ISM Method: YES

Local Contents Scheduling: YES

Local Network Sync: NO

Network Ready: NO

No Signal Image: YES

OS Ver. (webOS): Non-webOS

PBP: NO

PIP: NO

Play via URL: NO

PM mode: YES

Pro:Idiom: NO

RS232C Sync: YES

Scan Inversion: YES

Screen Rotation: YES

Screen Share: NO

Setting Data Cloning: YES

SI Server Setting: NO

Smart Energy Saving: YES

SNMP: YES

Status Mailing: NO

Tile Mode Setting: YES

USB Plug & Play: YES

Video Tag: NO

Wake on LAN: YES

webRTC: NO

W/B Setting by Grey scale: YES
