LED Cinema

LAD033F

LED Cinema

Print

All Spec

OPTICAL PARAMETERS

  • Pitch

    3.3 mm

  • LED Type

    SMD

  • Pixels per LED Module

    8,640

  • Aspect Ratio (per Cabinet)

    64 : 90

  • Resolution (per Cabinet)

    192 × 270

  • Pixels (per Cabinet)

    51,840

  • Pixel Density (per SQM)

    90,000

  • Frame (Video) Rate

    24 Hz, 25 Hz, 30 Hz, 48 Hz, 50 Hz, 60 Hz

  • Brightness (After Calibration)

    48 nit (DCI-compliant)

  • Contrast Ratio

    4000 : 1 (Minimum)

  • Color Space (Gamut)

    DCI - P3 (DCI-compliant)

  • Viewing Angle (Horizontal, Vertical)

    120º, 120º

  • Color Depth

    12 Bit (DCI-compliant)

  • Chromaticity Uniformity

    In case of White : Within ±0.015 x, ±0.015 y

  • Color Temperature (White)

    (x. y) = (0.314, 0.351) / DCI-P3 Theater

  • Color Temperature (R, G, B)

    DCI-P3 theater R: (x. y) = (0.68, 0.32)
    G: (x. y) = (0.265, 0.690)
    B: (x. y) = (0.15, 0.06)

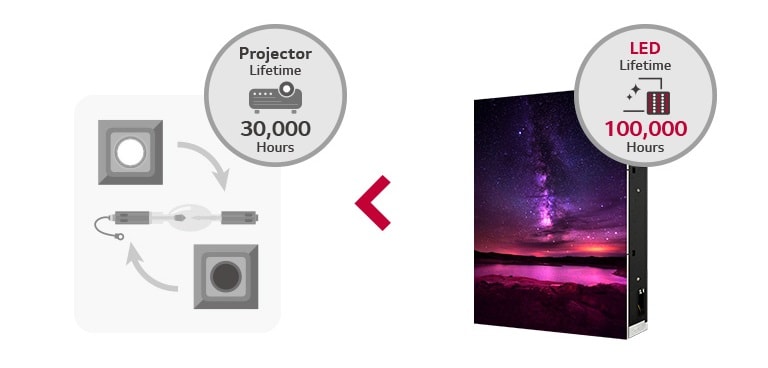

  • Lifetime

    100,000 Hours (LED to Half Brightness)

  • Operation Hours

    16 Hours per Day / 7 Days per Week

PHYSICAL/ELECTRICAL PARAMETERS

  • Modules (per Cabinet)

    6 (2 × 3)

  • Dimension (LDM)

    320 mm × 300 mm

  • Dimension (per Cabinet)

    640 mm × 900 mm × 124 mm (Including Handle)

  • Dimension (4K, Total)

    14,080 mm × 7,200 mm (101 sqm)

  • Dimension (4K, Active Area)

    13,653 mm × 7,200 mm (98 sqm)

  • Weight (per Cabinet)

    15 kg

  • Weight (4K, Total)

    2,640 kg

  • Material of Cabinet Body

    Aluminum

  • Heat Generation (per Cabinet)

    221 BTU (Max.) / 73 BTU (Typ.)

  • Serviceability

    Rear only

  • Power Supply

    AC100-240 V ~, 50/60 Hz

  • Power Type

    Built-in Power

  • Power Consumption (Max, per Cabinet)

    90 watt (Main) / 52 watt (Secondary)

  • Power Consumption (Max, 4K)

    9,260 W

  • Certification

    DCI, CB, CE-LVD/EMC, FCC, ETL/UL, RoHS, REACH

  • Supported Media Server

    Dolby® IMS3000

  • Interface

    RJ45

  • Operation Temperature

    0°C to 40°C

  • Operation Humidity

    10% to 80%

  • Storage Temperature

    -20°C to 60°C (-4°F to 140°F)

  • Storage Humidity

    5% to 85%

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
