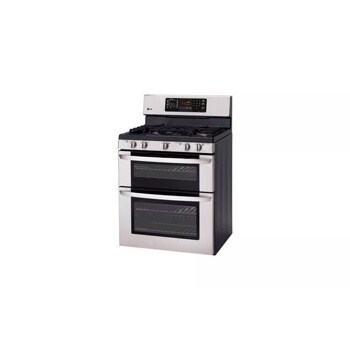

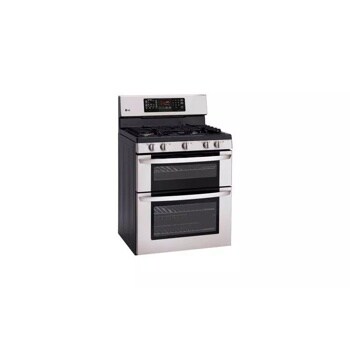

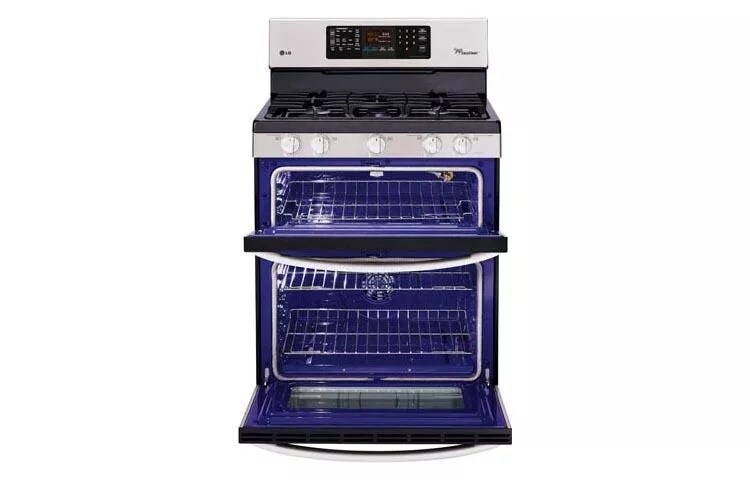

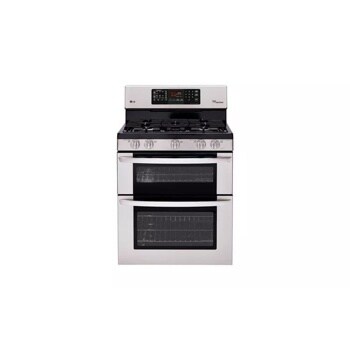

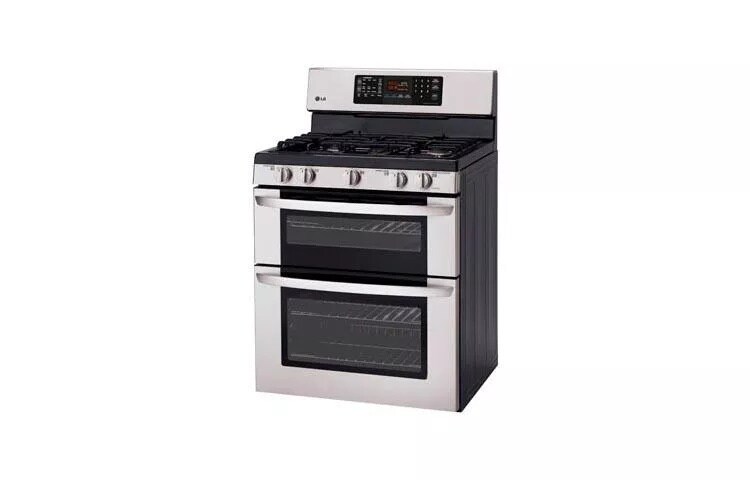

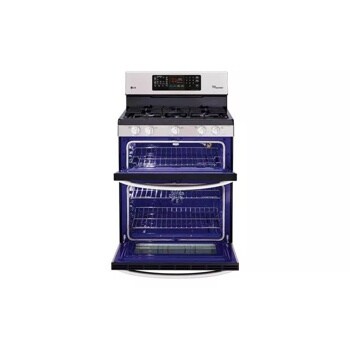

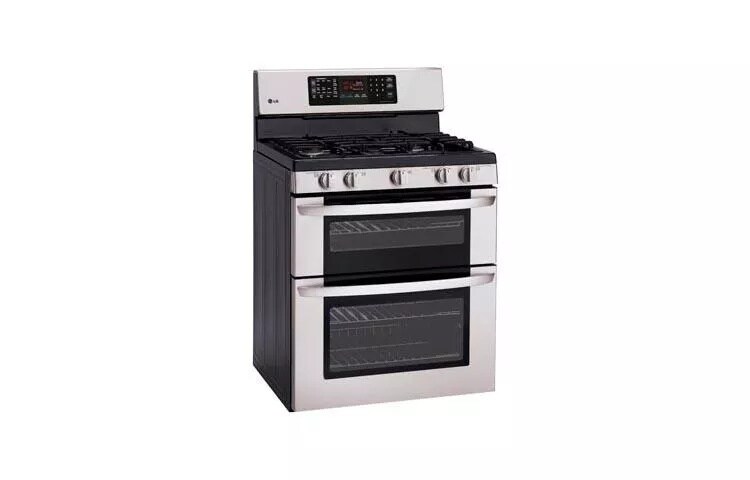

LDG3036ST

6.1 cu. ft. Capacity Gas Double Oven Range with EasyClean® and IntuiTouch™ Controls

KEY FEATURES

  • EasyClean® Cleaning Feature
  • Maximum Usable Cooktop Space in a Gas Double Oven
  • Large Capacity Gas Oven (6.1 cu. ft.)
  • EvenJet™ Convection System
6.1 cu. ft. Capacity Gas Double Oven Range with EasyClean® and IntuiTouch™ Controls

CAPACITY

    • Oven Capacity
    • 2.2 cu.ft. Upper / 3.9 cu.ft. Lower
    • Total Capacity
    • 6.1 cu. ft.

OVEN FEATURES

    • Configuration
    • Freestanding Gas Double Oven
    • EasyClean® Technology
    • Yes
    • Control Type
    • Knobs/Keypad
    • Display
    • LED
    • Bake Element (Upper)
    • 14,500 / 13,500 btu/h
    • Broil Burner (Upper)
    • 14500Btu/h / 13500Btu/h
    • Bake Element (Lower)
    • 16,000 / 14,000 btu/h
    • Convection Conversion
    • Yes
    • Convection System - Convection Bake
    • Yes
    • Convection System - Convection Roast
    • Yes
    • Cooking Modes
    • Bake, Broil, Proof, Warm
    • Oven Control Features
    • Delay Bake, Delay Clean, Automatic Shut-Off
    • Cleaning
    • Self Clean / EasyClean®
    • Oven Light
    • Yes
    • No. Rack Positions
    • 2 Standard Racks
    • Large WideView™ Window
    • Yes
    • Accessories
    • Griddle

COOKTOP

    • Burner Type
    • Sealed Gas Burners
    • Configuration - Left Front
    • 12000Btu/h / 9500Btu/h
    • Configuration - Left Rear
    • 9100Btu/h / 9100Btu/h
    • Configuration - Center (Single Oval)
    • 8000Btu/h / 8000Btu/h
    • Configuration - Right Front
    • 17000Btu/h / 10000Btu/h
    • Configuration - Right Rear
    • 5000Btu/h / 5000Btu/h
    • Oval Burner
    • Yes

DIMENSIONS/CLEARANCES/WEIGHT

    • Shipping Weight (lbs)
    • 268
    • Cabinet Width (in)
    • 30"
    • Overall Height (in)
    • 47 7/16"
    • Overall Width (in)
    • 29 9/10"
    • Oven Interior Dimensions (Upper) (in) (W x H x D)
    • 24 1/2" x 8 4/5" x 19 1/5"
    • Depth (including handle)
    • 28 7/8"
    • Oven Interior Dimensions (in) (W x H x D)
    • 24 1/2" x 13 2/5" x 19 1/5"

POWER/RATINGS

    • Requirements
    • 120 VAC
    • KW / Amp Rating @120V
    • 1.65kW / 13.75A

MATERIALS/FINISHES

    • Available Colors
    • Stainless Steel (ST)
    • Knobs
    • Nikel Plating
    • Handle
    • Matching Stainless
    • Door
    • Full Stainless Steel Wrap
    • Cooktop Finish
    • Porcelain

FIND THE RIGHT PRODUCTS

    • EasyClean®
    • Yes

WARRANTY/UPC

    • Limited Warranty
    • 1 Year Parts and Labor, 5 Years Glass Cooktop/Electric Elements/Sealed Gas Burners
    • UPC
    • 048231318358

What people are saying

Rated 1 out of 5 by from Disappointment This stove / oven had everything I needed, so I thought! The touch pad is peeling and looks poorly. Similarly, the tape on the stove knobs is crinkled and peeling. This past year, the oven temperature does not match the oven setting, causing the food to be raw or uncooked or not done! And baked goods not cooked well and wet in the center!! What the heck?! This was a costly item for my family. I bake a lot of meals, too bad that this is not a good investment! I feel sad that this good looking oven fell apart inside and out!
Date published: 2021-03-25
Rated 3 out of 5 by from Good Versatility Second one we bought since the first worked very well. Middle oven doesn’t heat as even as our first did but still does well. I would like it better if the knobs didn’t turn on as easily. If you bump into them accidentally they tend to rotate on.
Date published: 2020-12-26
Rated 5 out of 5 by from Easy Oven I have had this for years now great buy. The self cleaning really works. The igniters will need replacing, did it myself. Easy Oven!!
Date published: 2020-12-07
  • y_2021, m_4, d_12, h_16
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.14
  • cp_1, bvpage1
  • co_hasreviews, tv_2, tr_159
  • loc_en_US, sid_MD05030161, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_lg
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getReviews, 11ms
  • REVIEWS, PRODUCT

ASK & ANSWER

Ask your questions. Share your answers.
Please review the detailed product information and help guides in the
Product Support section for this product prior to posting a question.

I accidentally dented the stainless steel piece that houses the control panel. Is it possible to replace it?

Asked by: JanineD
The part that you are inquiring about can be replaced. Any parts and accessories for the LG 6.1 cu. ft. Capacity Gas Double Oven Range with EasyClean® and IntuiTouch™ Controls, Model # LDG3036ST can be ordered from: Encompass Parts Distribution 775 Tipton Industrial Dr. Suite F Lawrenceville, GA 30046 Sales: 866-779-7906 Fax: 800-552-1431 https://lg.encompass.com ...^IFV
Answered by: Ivanf
Date published: 2020-06-08

Can you tell me what part number I need if my bottom oven igniter needs to be replaced?

Asked by: SabrinaG
The igniter is part number MEE61841401. ^CP
Answered by: ChrisPSM
Date published: 2020-01-28

Need to order the knobs. Like everyone else, the plastic film has melted with normal use.Our oven is only 4 years old. Model LDG3036ST Having trouble finding the right website to do this. Thanks!

Asked by: Squirrelly one
Let's see if we can get that taken care of for you. Send us a message on Twitter at @LGUSSupport or on Facebook https://www.facebook.com/LGUSA/ so we can get more info and see what we can do. ^CP
Answered by: ChrisPSM
Date published: 2019-09-24

Can I replace the oven rack with a gliding oven rack? One that I have is slipping off the track.

Asked by: steph26
Hello, while be can not guarantee you will not have the same issue, the AHT74173802 will fit. ^AC https://www.lg.com/us/kitchen-accessories/lg-AHT74173802-gliding-rack
Answered by: Amber C
Date published: 2018-11-06

My lower oven suddenly gives an Fw 9 code and will not light. At the same time the light does not come on by opening the door, but will turn on with the control panel. The code is F19. This page won't allow me to go back and correct.

Asked by: Rebecca A
We regret the trouble you have experienced with this gas range. The F19 error code suggests that the oven is not heating. If the current lower oven temperature does not exceed 150 degrees, or is lower than start temperature after 5 min of pre-heating, then the range may require service. To make service arrangements, you may either contact our Customer Interactive Center at 800-243-0000, or you can check our Repair Provider Lookup on our website, at http://www.lg.com/us/support/repair/support-repair-provider-lookup.jsp.
Answered by: NeilE
Date published: 2017-02-14

What does it mean when you have used the broiler... Hot clear off on the upper oven and the display does nothing after it turns the broiler off?

Asked by: Greens24
Broiling on the LG 6.1 cu. ft. Capacity Gas Double Oven Range with EasyClean® and IntuiTouch™ Controls, Model # LDG3036ST uses intense radiant heat to cook food. The "Hot Clear Off" alerts you to the extremely high temperatures to prevent burns. When Broiling is done, you should press the Upper Clear Off key...^IFV
Answered by: LGJoel
Date published: 2016-10-27

How do i lower flame on my gas double oven range

Asked by: Rascel47
We appreciate your interest in this gas range. The variation of the flame height may be adjusted through the gas regulator or another related device. It is recommended to obtain the assistance of a qualified gas installer or an authorized service technician to make such an adjustment. To make service arrangements, you may either contact our Customer Interactive Center at 800-243-0000, or you can check our Repair Provider Lookup on our website, at http://www.lg.com/us/support/repair/support-repair-provider-lookup.jsp.
Answered by: NeilE
Date published: 2016-10-14

Dou sell a replacmet cover for the front. The stainless housing (frame) around the oven controls/clock.. my son dented the metal and I would like to replace

Asked by: ErinLivesey
Parts and accessories can be obtained through our parts distributor, MCM Electronics. Their contact number, for placing orders, is 800-824-9491. You can also use their website, at http://www.mcmelectronics.com/content/en-US/forms/lg_parts. The part number for this item is: AGM73590301.
Answered by: NeilE
Date published: 2016-10-10
