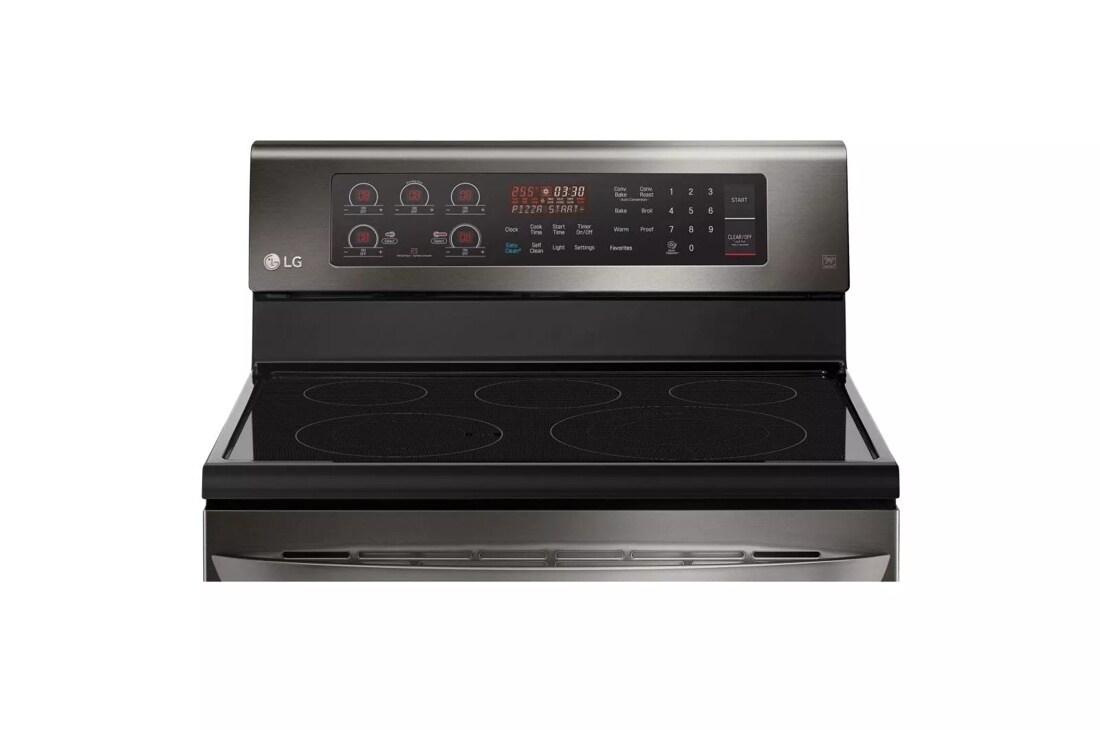

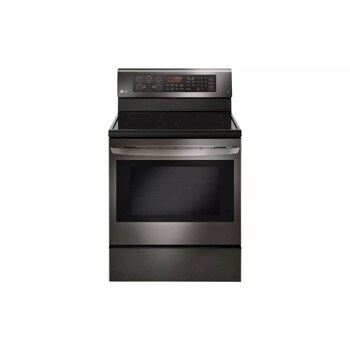

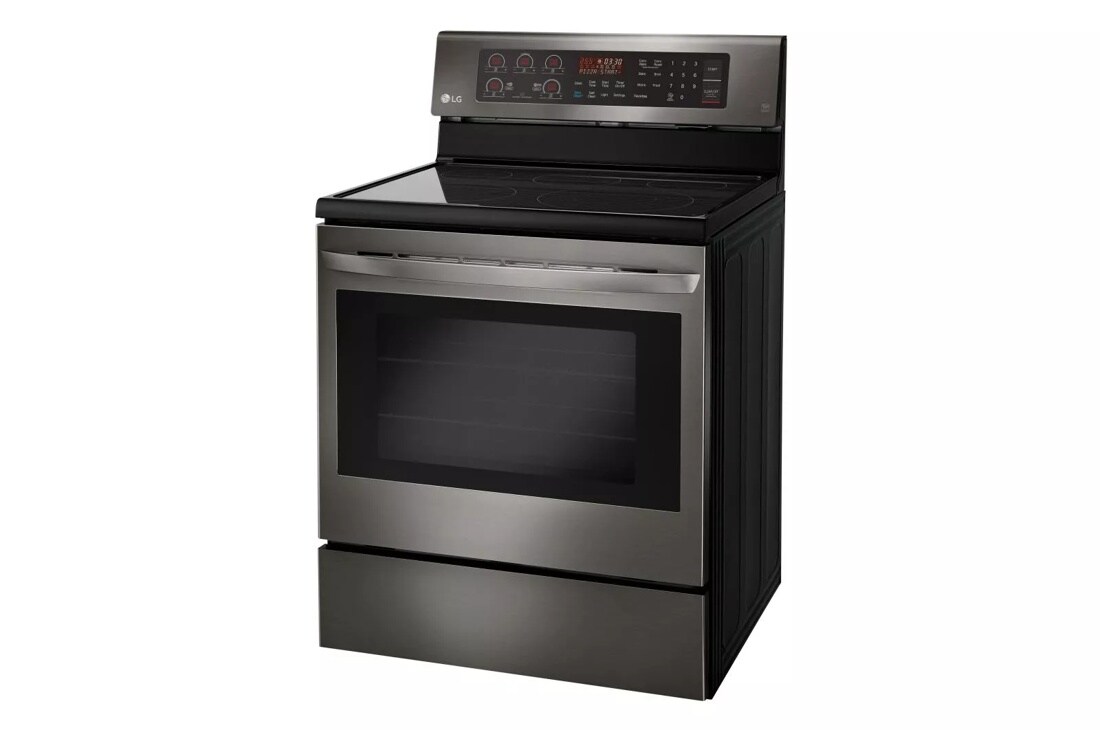

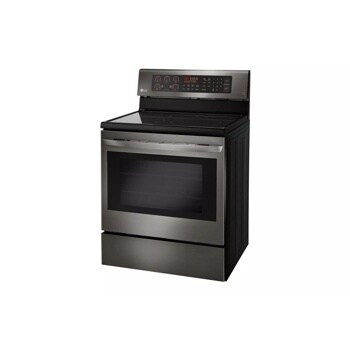

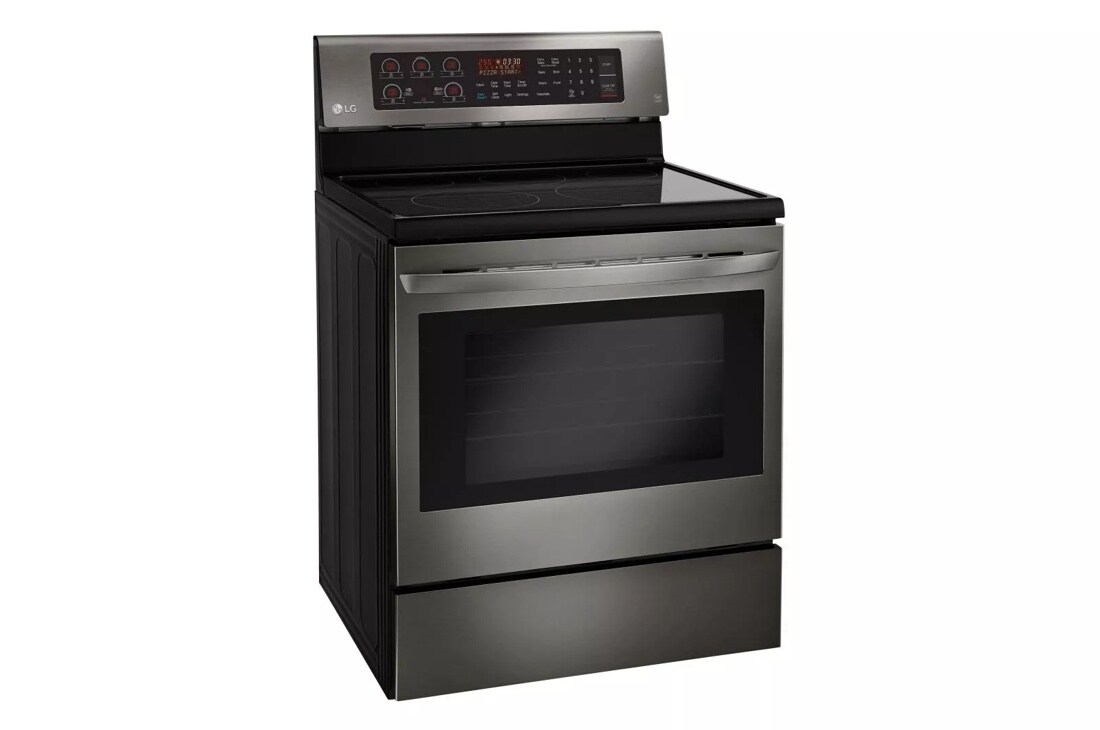

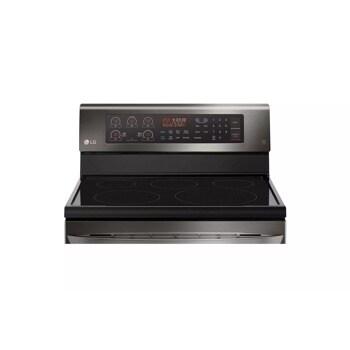

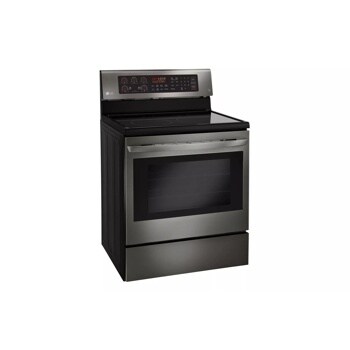

6.3 cu. ft. Electric Single Oven Range with True Convection and EasyClean®
DISCONTINUED
6.3 cu. ft. Electric Single Oven Range with True Convection and EasyClean®
LRE3194BD
Key features
- 6.3 cu.ft. Large Capacity
- True Convection
- 3-in-1 Element
- EasyClean® + Self Clean
- 5 Elements
- Fastest Boiling 3.2kW Elements
Specifications
CONTROLS
SMARTTHINQ® TECHNOLOGY
POWER/RATINGS
COOKTOP
WARRANTY/UPC
OVEN FEATURES
SUMMARY
CAPACITY
ACCESSORIES
DRAWER FEATURES
APPEARANCE
DIMENSIONS/CLEARANCES/WEIGHT
See All
CONTROLS
Language
English, Spanish, French
Display
VFD
Temperature Unit of Measure
Fahrenheit / Celsius
Oven Control Type
Keypad (IntuiTouch™)
Clock
12 hr or 24 hr (option)
Cooktop Control Type
Keypad (IntuiTouch™)
Cooking Complete Reminder Volume
Beeper
Sabbath Mode
Yes
CONTROLS
Language
English, Spanish, French
Display
VFD
Temperature Unit of Measure
Fahrenheit / Celsius
Oven Control Type
Keypad (IntuiTouch™)
Clock
12 hr or 24 hr (option)
Cooktop Control Type
Keypad (IntuiTouch™)
Cooking Complete Reminder Volume
Beeper
Sabbath Mode
Yes
SMARTTHINQ® TECHNOLOGY
SmartDiagnosis™
Yes
POWER/RATINGS
KW Rating at 240V
13.5kW
Amp Rating at 240V
56.3A
KW Rating at 208V
10.1kW
Amp Rating at 208V
48.6A
COOKTOP
Hot Surface LED Indicator
Yes
Element Size/Wattage - Left Rear
1200 (6")
Cooktop Finish
Black Ceramic + Grey Pattern
Element Size/Wattage - Right Rear
1200 (6")
Element Size/Wattage - Right Front
3000 (12") / 2200 (9") / 1100(6")
Type
Radiant
No of Radiant Elements
5
Element Size/Wattage - Left Front
3200 (9") / 1400 (6")
Center
100 (7")
WARRANTY/UPC
UPC
048231340847
Parts & Labor
1 Year
OVEN FEATURES
Oven Cooking Modes
Bake, Broil, Convection Bake, Convection Broil, Convection Roast, Proof, Warm, Pizza, Speed Roast
Convection System/Mode/Cooking System
True Convection
Convection Fan
Single Speed
Convection Conversion
Yes
Oven Control Features
Keypad (IntuiTouch™)
Door Lock
Yes
EasyClean®
Yes
No. of Rack Positions
7
Broil Element (Watt)
Sheath 4200 / 6 Pass
Convection (Watt)
Sheath 700W / Sheath 3400W (6 Pass Hidden Bake)
Self CleanOven Features
Yes
GoCook Smart Oven LightOven Features
Yes (1 Light)
Automatic Safety Shut-DownOven Features
After 12 hours
SUMMARY
EasyClean®
Yes
Fuel Type
Electric
Freestanding
Yes
Self + EasyClean®
Yes
Single Oven
Yes
CAPACITY
Storage Drawer Capacity (cu. ft.)
0.8 (No Handle)
Oven Capacity (cu. ft.)
6.3 cu.ft.
ACCESSORIES
Standard Rack
2
DRAWER FEATURES
Type
Storage (No Handle)
APPEARANCE
Handle/Knobs
Matte Black Stainless Steel / Black Stainless Steel / Stainless Steel / Smooth Black / Smooth White
Oven Door Feature
WideView™ Window (Smog Glass)
Knobs
Matte Black Stainless Steel / Black Stainless Steel / Stainless Steel / Smooth Black / Smooth White
PrintProof™ Finish
Yes (Only Matte Black and Black Stainless Steel)
All Available Colors
Matte Black Stainless Steel / Black Stainless Steel / Stainless Steel / Smooth Black / Smooth White
DIMENSIONS/CLEARANCES/WEIGHT
Carton Dimensions (in) (W x H x D)
33 11/16" x 50 7/8" x 30 9/16"
Weight (Product)
167
Drawer Dimensions (in) (W x H x D)
22 3/16" x 4 1/2" x 16 3/8"
Shipping Weight (lbs)
191
Overall Height (in)
47 7/16"
Overall Width (in)
29 7/8"
Oven Interior Dimensions (in) (W x H x D)
24 1/2" x 20 1/4" x 19 3/8"
Height to Cooking Surface (in)
36"
Cabinet Width (in)
30"
Overall Depth (in) - including handle
28"
