LRG3085ST

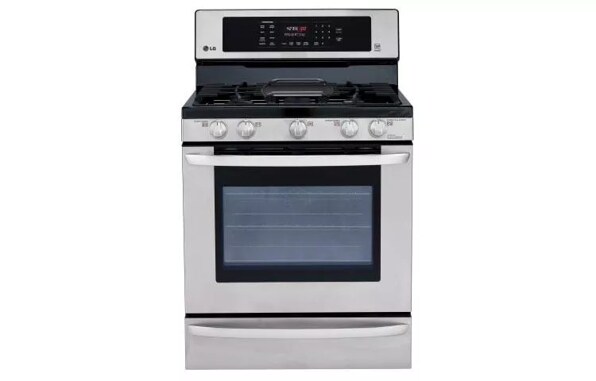

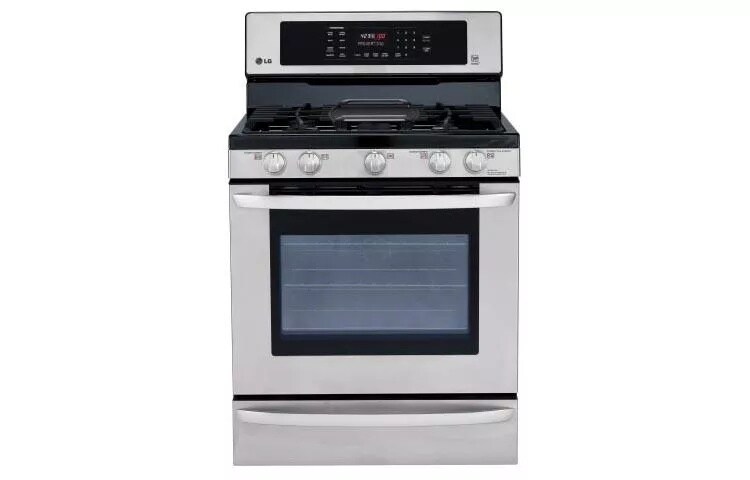

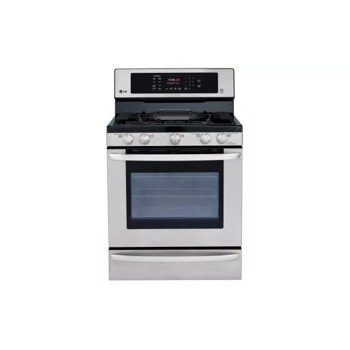

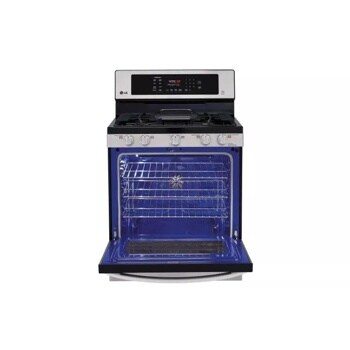

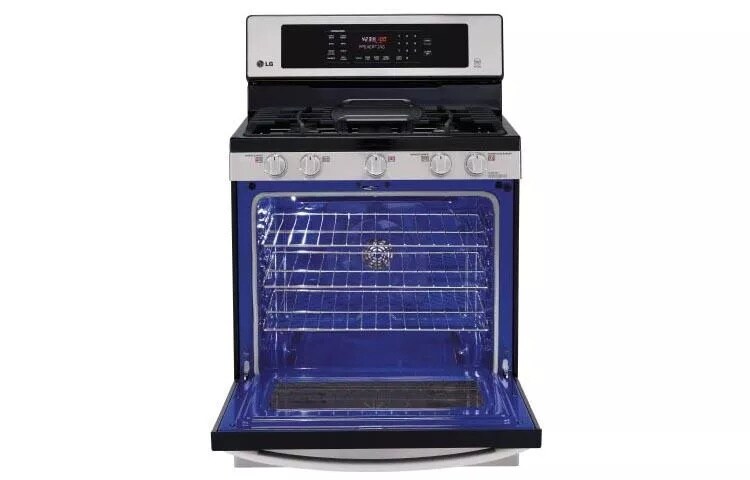

5.4 cu.ft. Capacity Freestanding Gas Oven

5.4 cu.ft. Capacity Freestanding Gas Oven

CAPACITY

    • Oven Capacity
    • 5.4 cu.ft.

OVEN FEATURES

    • Configuration
    • Freestanding Gas Oven with Storage Drawer
    • Bake Element (BTUh)
    • 19,000/18,000
    • Broil Element (BTUh)
    • 14,500/13,500
    • Oven Control Features
    • Delay Bake (up to 12 hours), Delay Clean, Automatic Shut-Off (After 12 hours)
    • Cleaning
    • EasyClean®/Self Clean (3,4,5 hours)
    • Oven Light
    • 1 (Incandescent)
    • Oven Rack
    • 3 Standard Racks
    • Convection
    • True Convection
    • Door Lock
    • Yes
    • Automatic Convection Conversion
    • Yes
    • No. Rack Positions
    • 7
    • Temperature Display
    • Yes (Fahrenheit or Celsius display)

COOKTOP

    • Cooktop Burner Type
    • Sealed Gas Burners
    • Fuel Type
    • LNG/LPG
    • Grates
    • Continuous, Dishwasher Safe
    • No. of Grates
    • 3
    • Valves
    • Push & Turn
    • Knobs
    • Nickel Plating, Hair Lined
    • Bezel
    • Continuous, Dishwasher Safe
    • Burner Configuration
    • Size/BTU
    • Burner Configuration - Left Rear
    • 9,100/9,100
    • Burner Configuration - Right Rear
    • 5,000/5,000
    • Burner Configuration - Center Rear
    • 8,000 (oval)/8,000
    • Burner Configuration - Left Front
    • 12,000/9,500
    • Burner Configuration - Right Front
    • 17,000/10,000
    • Simmer BTU - Left Rear
    • 1,100
    • Simmer BTU - Right Rear
    • 650
    • Simmer BTU - Center Rear
    • 2,300
    • Simmer BTU - Left Front
    • 1,200
    • Simmer BTU - Right Front
    • 1,400
    • Cooktop Finish
    • Grey Patterned on Black Ceramic Glass
    • Oval Burner
    • Yes

CONTROL

    • Cooktop
    • Backguard /Front
    • Oven
    • Knob
    • Display
    • SmoothTouch™ Glass Controls / White (Green & Pink Smog) VFD
    • Electronic Clock & Timer
    • Yes
    • Control Lock Capability
    • Yes (Except Kitchen Timer,Clock Set,Oven Light)
    • Audible Preheat Signal
    • Yes
    • Cooking Complete Reminder
    • Yes
    • Language
    • English, Spanish, French

APPEARANCE

    • Available Colors
    • Stainless Steel
    • Handle
    • Matching Color
    • Knobs
    • Matching Color
    • Oven Door Feature
    • Large WideView™ Plus Window, Full SS Wrap

DIMENSIONS/CLEARANCES/WEIGHT

    • Shipping Weight (lbs)
    • 269
    • Product Weight (lbs)
    • 227
    • Cabinet Width (in)
    • 29 15/16"
    • Overall Depth (in)
    • 26 1/2" (to door) / 27 31/32" (including handle)
    • Overall Height (in)
    • 47 5/8"
    • Overall Width (in)
    • 29 15/16"
    • Oven Interior Dimensions (Upper) (in) (W x H x D)
    • 24 1/2" x 19 1/2" x 19 3/8"
    • Height to Cooking Surface (in)
    • 36"
    • Drawer Dimensions (in) (W x H x D)
    • 22 3/16" x 4 1/2" x 16 3/8"
    • Carton Dimensions (in) (W x H x D)
    • 33 1/4" x 51 9/16" x 31 5/16"

POWER/RATINGS

    • Requirements
    • 120 VAC
    • KW / Amp Rating @120V
    • 540kw / 4.5A

FIND THE RIGHT PRODUCTS

    • EasyClean
    • Yes
    • Warming Drawer
    • Yes

WARRANTY / UPC

    • Limited Warranty
    • 1 Year Parts and Labor, 5 Years Glass Cooktop/Electric Elements/Sealed Gas Burners
    • UPC
    • 048231318402

What people are saying

Rated 1 out of 5 by from Major fail too early We bought this item about 5 years ago. After 3 - 4 years, the oven would no longer hold the temperature. We had the igniter replaced, it worked for several months, same problem again. This may be the only issue, but i would not give a poor rating if this happens in year 8-10 of the product. If you sell a quality unit for higher end price, you expect it to last. Manufacturer Warranty is pointless, unless it an absolute lemon, problems will not arise until you are well outside the 1 year, or whatever it might be.
Date published: 2020-08-25
Rated 1 out of 5 by from Don't buy Have has issues with heating errors and temperature fluctuations since we bought it. No one can pinpoint the exact cause. The F9 error code is prevalent among a lot of owners. Replacing LG with a more reliable brand.
Date published: 2020-06-06
Rated 4 out of 5 by from Save yourself from a tin foil nightmare! Folks, do not put tin foil or disposable tin pans on the bottom panel inside this oven, you know, what we sometimes do to line and protect the bottom surface from splashes. The foil will melt to the enamel. Yes it will! My oven was brand new when this happened, and after research I found only hydrochloric acid dissolves tin foil, but it takes time, a few hours. I used Lysol toilet cleaner believe it or not and it worked, but...the acid dulled the gorgeous shiny blue enamel in a big way, now it just looks like a massive brown blotch. Why did this happen? Unlike most ovens this model's heating unit is in the bottom center, and it gets hot enough to melt foil, causing it to adhere to the enamel. They don't tell you this when you buy the oven so be careful! You can read many other's LG nightmares with this model and tin foil in message boards online. It's a discontinued model so I'm looking for a replacement panel and crossing my fingers!
Date published: 2018-03-04
  • y_2020, m_10, d_22, h_17
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.12
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_36
  • loc_en_US, sid_MD05124323, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_lg
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getReviews, 209ms
  • REVIEWS, PRODUCT

ASK & ANSWER

Ask your questions. Share your answers.
Please review the detailed product information and help guides in the
Product Support section for this product prior to posting a question.

How do I clean in between the glass on the oven door? Mine looks like it's full of dust.

Asked by: MJ55
We regret the inconvenience you have experienced with this gas range. These glass panes are not removable from the door, for cleaning purposes. As such, if the glass panes have something between them, the only option for cleaning them would be to obtain the assistance of a qualified technician.
Answered by: NeilE
Date published: 2017-05-08

I imported an LG gas range (LRG3085) from the USA to kenya. Now I must convert it to use LPG. From the manual, i found out an LP nozzle conversion kit should have been included but It didn't come with it. Can I get the kit in Nairobi Kenya?

Asked by: lee k
Our offices, in the United States, do not have product information for Kenya. In order to obtain such information, it is recommended to check our subsidiary’s website, at http://www.lg.com/eastafrica/support/contact-customer-support.
Answered by: NeilE
Date published: 2016-08-19

If the racks in an LG gas oven discolor while leaving them in during the self cleaning process will the color restore itself over time??

Asked by: Rhonda24
I apologize, but no; the discoloration is caused by the gas heat and high temperature. Time will not restore the original luster.
Answered by: NeilE
Date published: 2016-08-15

Can the door be removed for easier oven cleaning?

Asked by: Lucy05
We appreciate your interest in this gas range. Information displayed on pages 34-35 shows how all the doors can be removed to facilitate ease in cleaning.
Answered by: NeilE
Date published: 2016-02-24

My LarG3085ST  stove came without a central oval burner grille how can I obtain one?

Asked by: GeorgieFK
You didn't mention whether this was a recent purchase or not with regards to the LG 5.4 cu.ft. Capacity Freestanding Gas Oven, Model # LRG3083ST missing the Central Oval Burner. If this was recent, you may want to see if the retailer you purchased it from may have one for you or contact the LG Customer Interactive Center at (800) 243-0000 to see if you can obtain one from them. If you need to order one, you can order it from the LG Authorized Parts Distributor in your region: Encompass Parts Distribution 775 Tipton Industrial Dr. Suite F Lawrenceville, GA 30046 Sales: 866-779-7906 Fax: 800-552-1431 https://lg.encompass.com...^IFV
Answered by: LGJoel
Date published: 2015-12-04

My new LRG3085ST range came without the griddle. What is the part number for the griddle. Thanks!

Asked by: MartClark
The part number for the griddle is AEB72914203 but even if you just refer to it as the LG griddle, you would get the same griddle since it's the only one available that is used in any LG range oven...^IFV
Answered by: LGJoel
Date published: 2015-10-03

what is the full depth dimension w/ door fully open? model LRG3085ST

Asked by: harcyn
Regrettably, the overall depth of the LG 5.4 cu.ft. Capacity Freestanding Gas Oven, Model # LRG3085ST with the door fully opened is not listed under the unit's specifications but hopefully an estimate based on the given dimensions will give you a dimension that is close enough. The unit is listed as having a height of 36" to the cooking surface. The drawer is listed as having a height of 4 1/2" and looking at the image of the unit, the control panel looks to be about 2 inches wide. So if we add the height of the drawer to the width of the control panel and subtract that from the height to the cooking surface, should give us an approximate measurement for the length of the door which should be 29.5". If we add that to the given depth of the unit to the door, 26 1/2" then the overall depth of the unit with the door fully opened should be that plus the height of the door which is 56"...^IFV
Answered by: LGJoel
Date published: 2015-08-07

orifice for griddle & burners

my customer is trying to go back to natural gas from lp. I need part numbers for the 4 burners and the griddle please. I have tried all that I know of to locate them but no luck.
Asked by: wheezey
Just to clarify, the LG 5.4 cu.ft. Capacity Freestanding Gas Oven, Model # LRG3085ST initially came configured for natural gas and your customer then converted these with the LP conversion kit and now wants to convert back to natural gas. Are you looking to get the 5 cooktop nozzles(orifices) and the 2 oven nozzles to convert back assuming that the original ones are either lost or misplaced, or are you looking to get burners and a griddle for the oven? Regardless of which parts you would like to get, they will be available from any LG Authorized Parts Distributor and if your location is in Mississippi as indicated the closest parts distributor to you would be: MCM Electronics 650 Congress Park Drive Centerville, OH 45459 Sales: 800-824-9491 Fax: 800-765-6960 http://www.mcmelectronics.com/lgparts You can either contact them and tell them what you are looking for and let them know for which Model # and they will be able to assist you in ordering the correct parts...^IFV
Answered by: LGJoel
Date published: 2015-07-29
