LSWD309BD

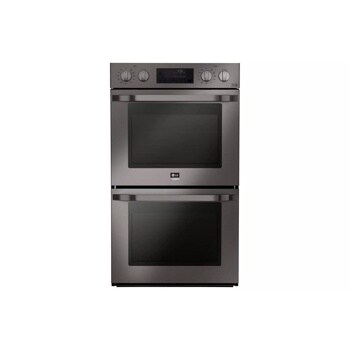

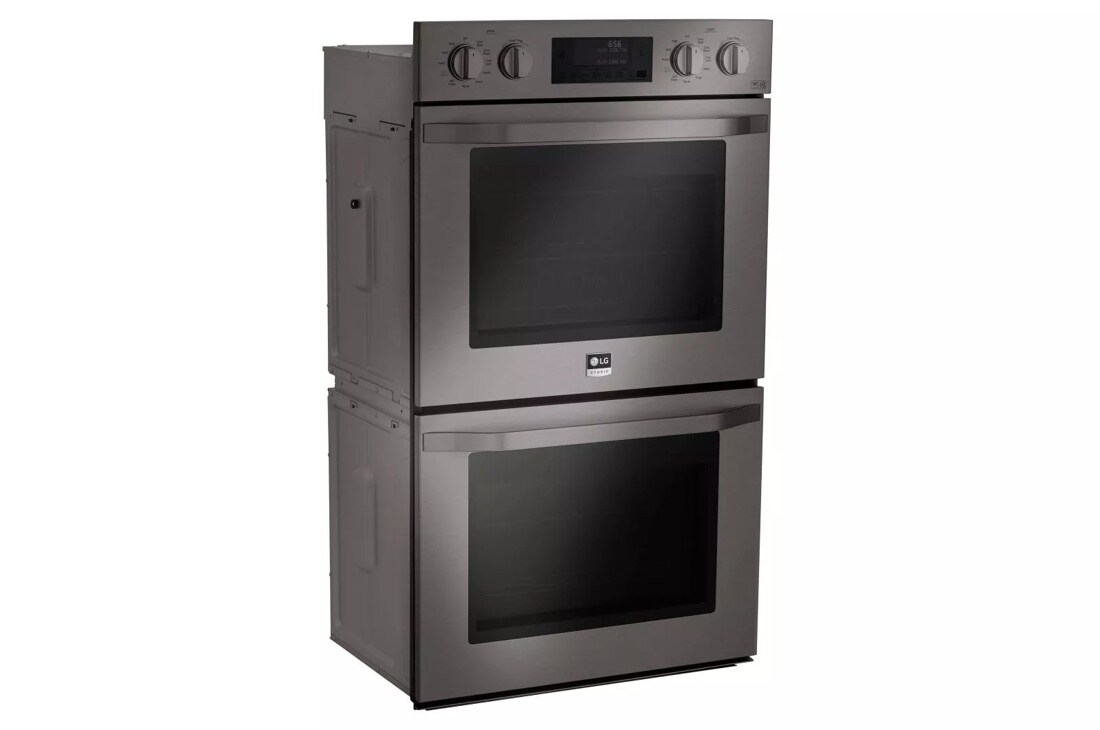

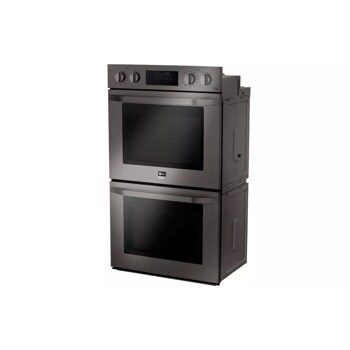

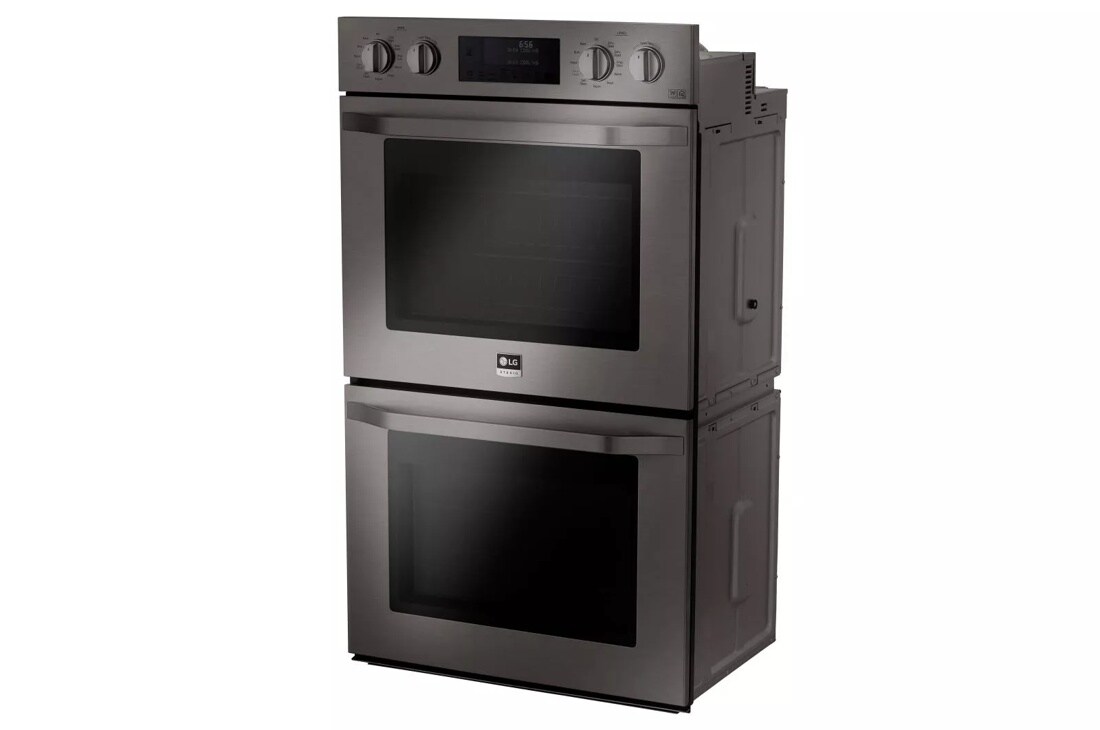

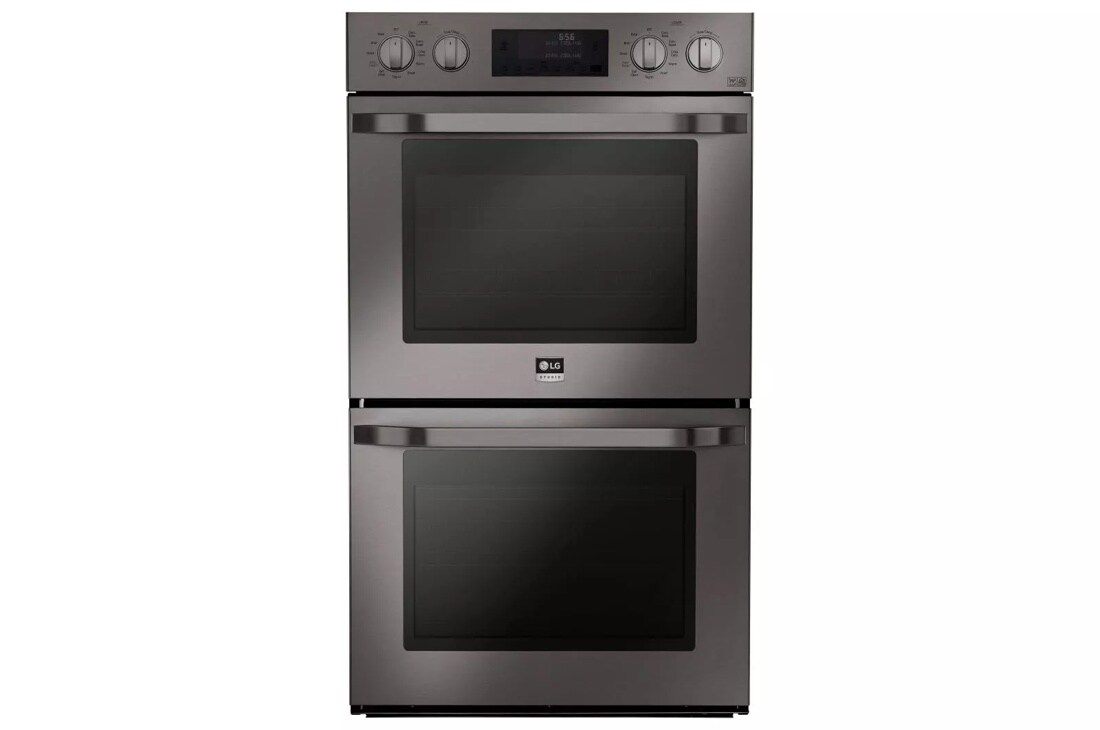

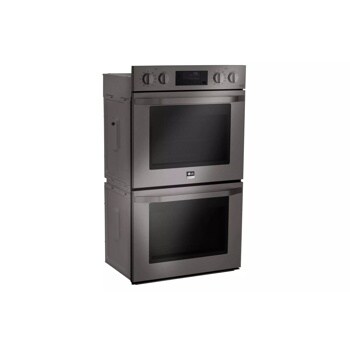

LG STUDIO 9.4 cu. ft. Double Built-In Wall Oven

KEY FEATURES

  • 9.4 cu. ft. Total Capacity (4.7 cu. ft. upper/lower)
  • PrintProof™ Finish
  • True Convection
LG STUDIO 9.4 cu. ft. Double Built-In Wall Oven

DIMENSIONS/CLEARANCES/WEIGHT

    • Shipping Weight (lbs)
    • 303 lbs
    • Weight (Product)
    • 270 lbs
    • Carton Dimensions (in) (W x H x D)
    • 33"(W) x 30"(D) x 57"(H)
    • Product (WxHxD)
    • 29-3/4"(W) x 52-1/16"(H) x 24-3/8"(D)
    • Cut-Out (WxHxD)
    • 28- 1/2"(W) x 51-15/16"(H) x 23-1/2"(D)

OVEN FEATURES

    • Configuration
    • Double Oven

SUMMARY

    • LG STUDIO
    • Yes
    • Double Oven
    • Yes
    • Self + EasyClean®
    • Yes
    • EasyClean®
    • Yes

CONTROLS

    • Display
    • White VFD
    • Control Lock Capability
    • Yes
    • Oven Control Type
    • SmoothTouch™ Glass Touch

POWER/RATINGS

    • Electric Supply
    • 120/240 VAC,120/208 VAC
    • Max. Amp Load
    • 40.0A
    • Rating
    • 8.2 KW

WARRANTY/UPC

    • Limited Warranty
    • 2 Year Parts & Labor
    • UPC
    • 048232337044

MATERIALS/FINSHES

    • Fingerprint & Smudge Resistant
    • Yes

ACCESSORIES

    • Grid
    • 1
    • Heavy Duty Rack
    • 4
    • Gliding Rack
    • 2
    • Broiler pan
    • 1
    • Meat Probe
    • 1

APPEARANCE

    • Handle/Knobs
    • Black STS Finish (AIuminum)
    • Available Colors
    • Black Stainless Steel
    • Fingerprint & Smudge Resistant
    • Yes

UPPER OVEN FEATURES

    • Broil element pass
    • 8
    • Bake element type
    • Hidden (8 pass)
    • Variable cleaning time
    • Yes (3,4,5 hrs)
    • Capacity (cu.ft)
    • 4.70
    • Interior Color
    • Blue
    • Variable broil
    • Yes( Full,Center / High,Med,Low)
    • Variable warm
    • Yes (High,Med,Low)
    • 12 hrs. shut-off
    • Yes
    • Lighting
    • 3 (Halogen Lamp - 3 dimension lighting)
    • Convection conversion
    • Yes
    • -Convection element
    • Yes (2,000 watts)
    • Proof
    • Yes
    • Bake element
    • 2,500 watts
    • # of rack position
    • 5
    • Self Clean
    • Yes

LOWER OVEN FEATURES

    • -Convection element
    • Yes (2,000 watts)
    • Variable cleaning time
    • Yes (3,4,5 hrs)
    • Broil element pass
    • 8
    • Capacity (cu.ft)
    • 4.7
    • Interior Color
    • Blue
    • Variable broil
    • Yes( Full,Center / High,Med,Low)
    • Variable warm
    • Yes (High,Med,Low)
    • Bake element
    • 2,500 watts
    • Bake element type
    • Hidden (8 pass)
    • 12 hrs. shut-off
    • Yes
    • Lighting
    • 3 (Halogen Lamp - 3 dimension lighting)
    • Proof
    • Yes
    • Self Clean
    • Yes
    • Broil element
    • 2,500 watts inner / 1,500 watts outer
    • # of rack position
    • 5
    • Convection Conversion
    • Yes

SMART FUNCTION

    • NFC
    • Yes

What people are saying

Rated 5 out of 5 by from Stop. This is it. Amazing double oven in the black stainless. Interior amazing. Windows, amazing. Lighting, with the windows, sweet. Engineer, so K thermocouple, Fluke digital thermometer. -15 degree F, -14 degree F adjust, top and bottom ovens respectively. Once dialed in; accurate and repeatable to less than one degree F. On/Off control. Will have to wait for continuous proportional control. Wattage adequate. I get the whole “subdued” touch control. But not everyone is still 20. Should be a high contrast lettering option. Not a deal breaker, but you have to focus carefully. Pricing is a fraction of high end ovens that do not bake or broil as well. I see some sites as having this unit marked discontinued. What a loss.
Date published: 2019-05-20
Rated 5 out of 5 by from Love the double oven It is working and makes great cookies. My wife loves the purple inside.
Date published: 2018-02-27
Rated 5 out of 5 by from Beautiful & functional I've always wanted a double wall oven and finally got one and couldn't be more pleased. I love the black stainless steel color and the features and performance are great. So easy to use and so easy to clean. It's so nice not to have to bend over to get something out of the oven or squat down to clean. Did I mention how beautiful the inside of the oven is? There is nothing bad about this oven.
Date published: 2016-12-31
  • y_2021, m_5, d_5, h_17
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.15
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_3
  • loc_en_US, sid_MD05774148, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_lg
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getReviews, 27ms
  • REVIEWS, PRODUCT

ASK & ANSWER

Ask your questions. Share your answers.
Please review the detailed product information and help guides in the
Product Support section for this product prior to posting a question.

Amps needed?

Asked by: Dhill1657
The LSWD309BD is a double built-in wall oven which can consume up to 7,800 W at 240 VAC (specifications on our site list it as 8.2 Kilowatts (8200 Watts) so a 40 Amp circuit breaker with wire gauge #8 AWG must be used. The customer should notify the electrician doing the wiring that the power leads supplied with the appliance are UL, CSA recognized for connection to larger gauge household wiring. The insulation of these leads is rated at temperatures much higher than the temperature rating of household wiring. The current carrying capacity of the conductor is governed by the wire gauge and thetemperature rating of the insulation around the wire. ^CP
Answered by: ChrisPSM
Date published: 2019-12-13

I have the LG Studio Double wall oven in black stainless finish. I need a replacement door and knob, how can I acquire those parts.

Asked by: Carryn Nichole
Parts and accessories can be obtained through our parts distributor, Encompass Parts. Their contact number, for placing orders and pricing information, is 866-779-7906. You can also use their website, at https://www.encompassparts.com/ ^CP
Answered by: ChrisPSM
Date published: 2019-05-13

I have the fridge and dishwasher of the black stainless steel series but the double wall oven dimensions are larger than my old set. Will LG make smaller units so I can complete my kitchen.

Asked by: Aschreiber
At this time, we would not have any specs or dimensions to provide for manufacturing for future double oven models.
Answered by: NeilE
Date published: 2017-07-13

I have been waiting for a brand to come out with a 27" double wall oven/microwave in black stainless...a 30" has been introduced. Love the black stainless but won'the purchase any appliances until I can get all pieces together. Anything in the works?

Asked by: JEDR
