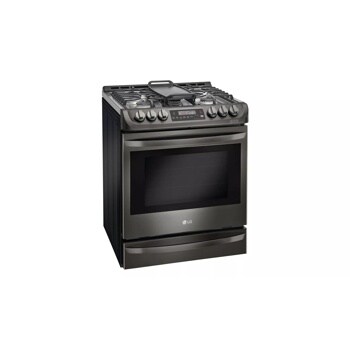

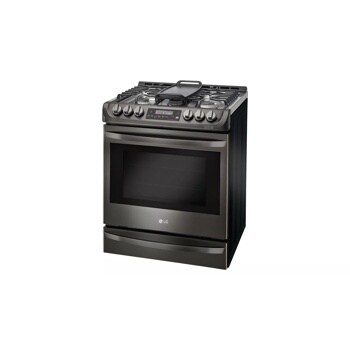

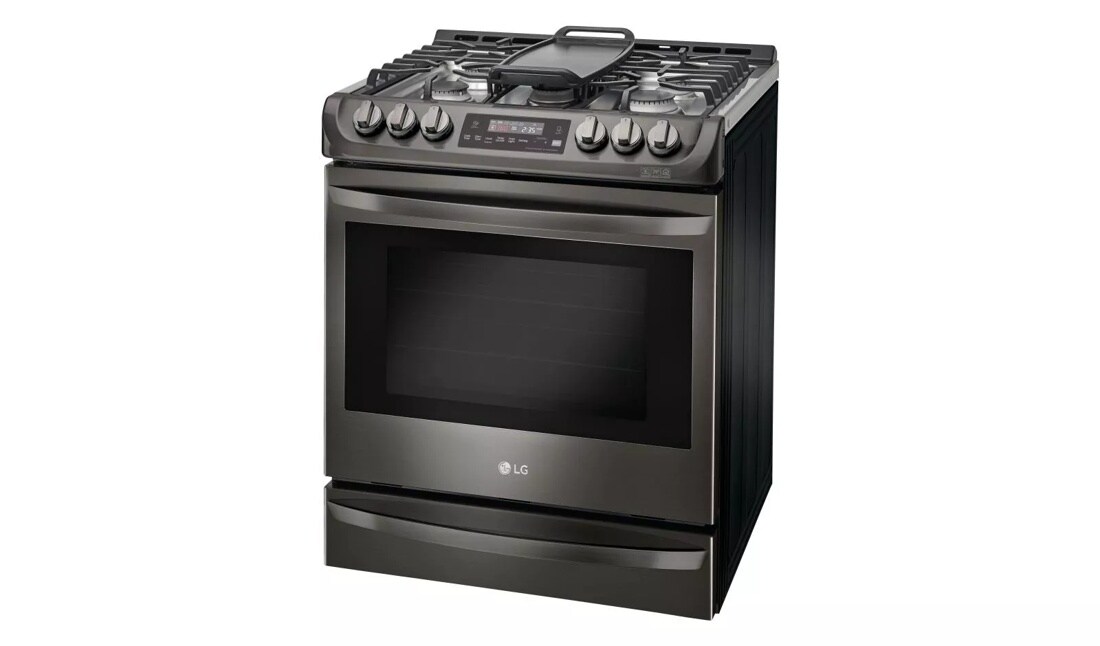

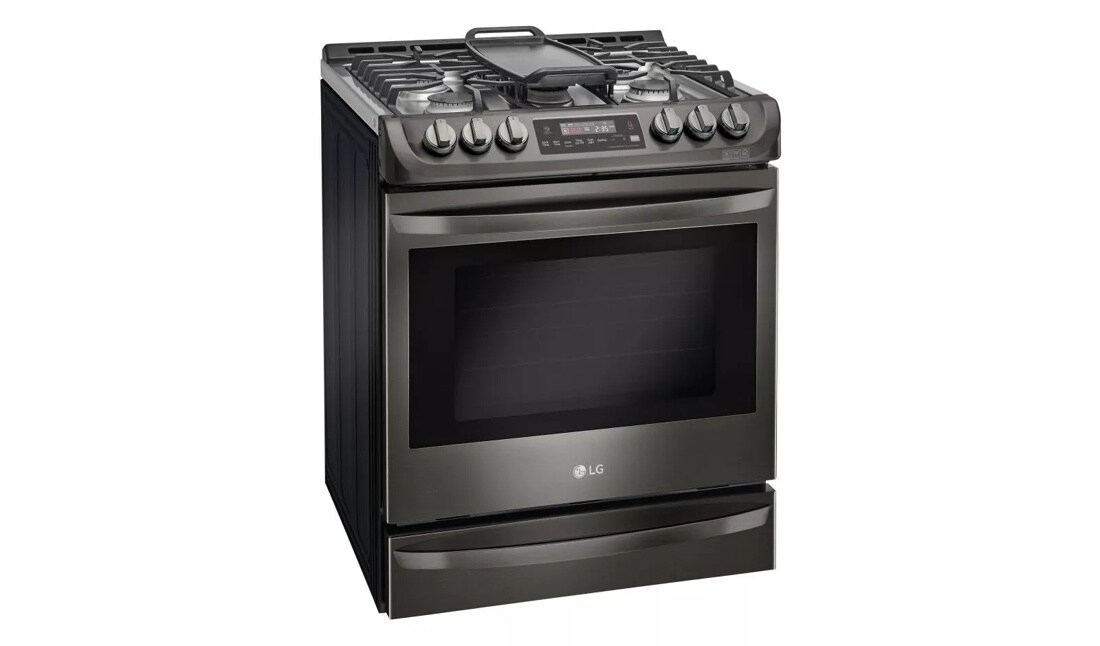

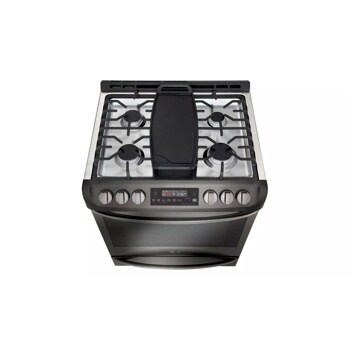

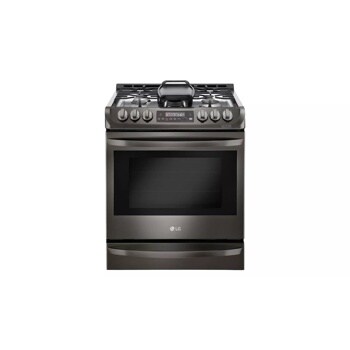

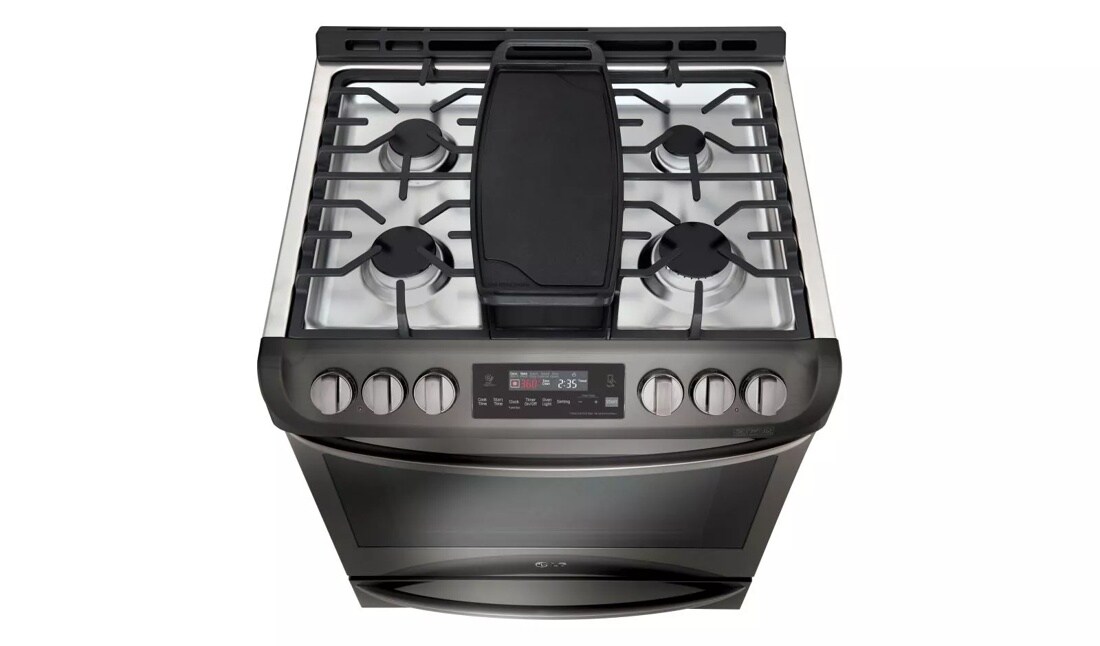

6.3 cu. ft. Gas Single Oven Slide-in Range with ProBake Convection® and EasyClean®
DISCONTINUED
6.3 cu. ft. Gas Single Oven Slide-in Range with ProBake Convection® and EasyClean®
LSG4513BD
Key features
- 6.3 cu. ft. Large Capacity
- PrintProof™ Finish
- EasyClean®
- ProBake Convection®
- UltraHeat™ 18.5K BTU Power Burner
Specifications
CONTROLS
POWER/RATINGS
COOKTOP
WARRANTY/UPC
OVEN FEATURES
SUMMARY
CAPACITY
ACCESSORIES
APPEARANCE
DIMENSIONS/CLEARANCES/WEIGHT
See All
CONTROLS
Automatic Safety Shut-Off
After 12 hours
Display
VFD
Temperature Unit of Measure
˚F or ˚C
Oven Control Type
Glass Touch
Clock
12 hr or 24 hr (option)
Cooktop Control Type
Front Tilt-Control Knobs
Certified Sabbath Mode:
No
Cooking Complete Reminder Volume
1. High 2. Low 3. Mute
CONTROLS
Automatic Safety Shut-Off
After 12 hours
Display
VFD
Temperature Unit of Measure
˚F or ˚C
Oven Control Type
Glass Touch
Clock
12 hr or 24 hr (option)
Cooktop Control Type
Front Tilt-Control Knobs
Certified Sabbath Mode:
No
Cooking Complete Reminder Volume
1. High 2. Low 3. Mute
POWER/RATINGS
Requirements
120 VAC
Amp Rating at 240V
539W
Amp Rating at 208V
4.2A
COOKTOP
Center (Warming Zone) (BTU):
10,000 (Oval-Burner)
Burner/BTU - Right Rear
5,000 BTU
Burner/BTU - Left Front
12,000 BTU
Burner/BTU - Right Front
18,500 BTU
Burner/BTU - Left Rear
9,100 BTU
WARRANTY/UPC
Limited Warranty
1 Year Parts & Labor
UPC
48232335460
OVEN FEATURES
GoCook Smart Oven Light
Yes (1 Light)
Convection Conversion
Yes
Door Lock
Yes
Configuration
Single Oven
Broil Element (BTUh)
15000/12500
Convection Burner (BTU/h)
19000 / 17000 (LNG/LPG)
ProBake Convection®
Yes
Self Clean
Yes
No. of Rack Positions
7
Oven Modes
Bake, Broil High, Broil Low, Conv. Bake, Conv. Roast, Pizza, Warm, Proof, EasyClean, SelfClean, Remote Start, Delay Timed Cook, Timed Cook
Oven Type
Single Oven
Oven Cooking System
Convection
Slide-In
Yes
SUMMARY
Fuel Type
Electric
Self + EasyClean®
Yes
CAPACITY
Oven Capacity (cu. ft.)
6.3
ACCESSORIES
Standard Rack
3
Conversion Kit
Yes
Spray Bottle
Yes
Scouring Pad
Yes
Griddle Plate
Yes
APPEARANCE
Handle/Knobs
Stainless-Steel Finish (AI), BLK Stainless Steel
Oven Door Feature
WideView™ Window
All Available Colors
Stainless Steel, Black Stainless Steel
Cooktop Finish
Stainless Steel
DIMENSIONS/CLEARANCES/WEIGHT
Carton Dimensions (in) (W x H x D)
32 1/2" x 44" x 30 1/2"
Weight (Product)
189 lbs
Drawer Dimensions (in) (W x H x D)
22 3/16" x 4 1/2" x 16 3/8"
Shipping Weight (lbs)
210 lbs
Overall Width (in)
29 7/8"
Oven Interior Dimensions (in) (W x H x D)
24 7/8" x 21 3/8" x 20"
Height to Cooking Surface (in)
36"
Depth (including handle)
28 15/16"
Cabinet Width (in)
30"
Overall Height (in) - including backguard
37 7/8”
