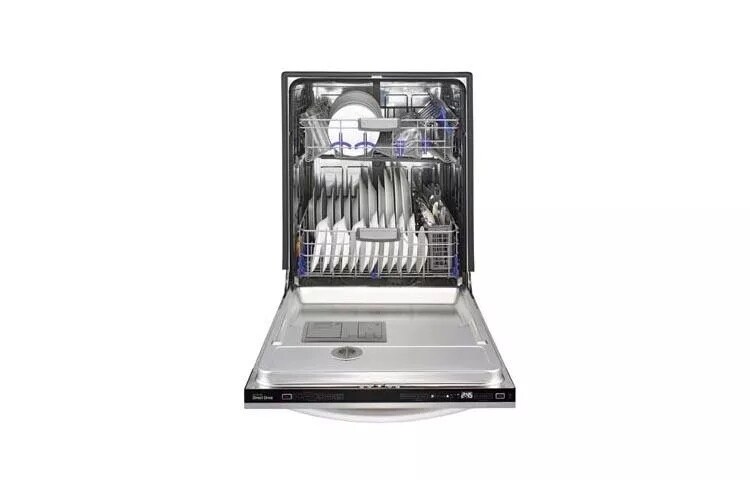

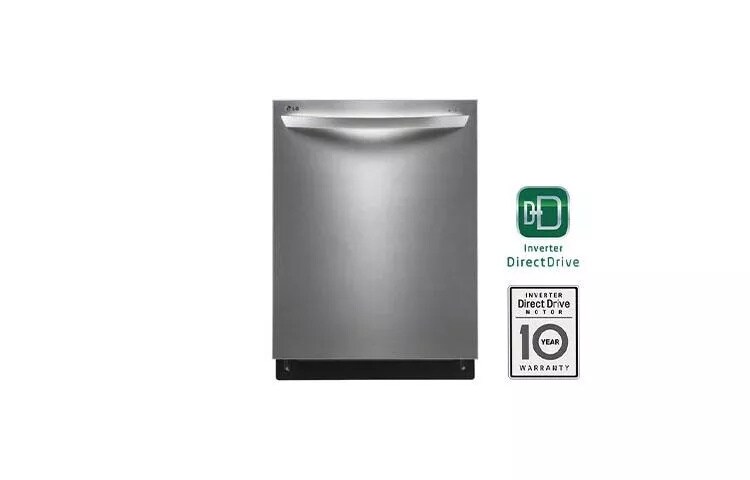

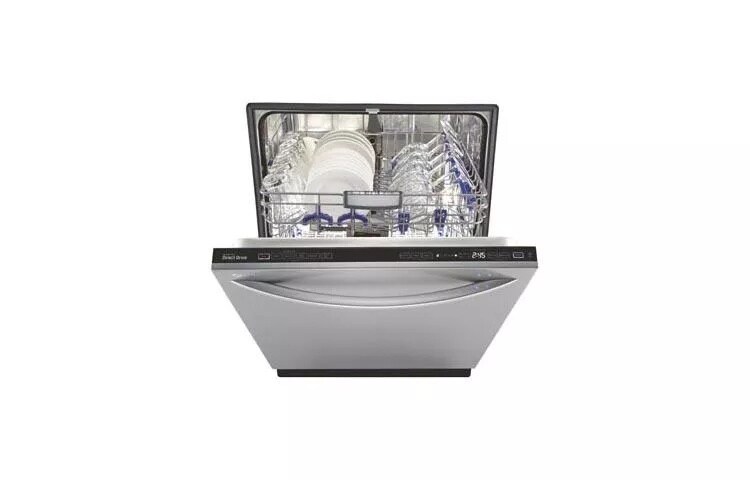

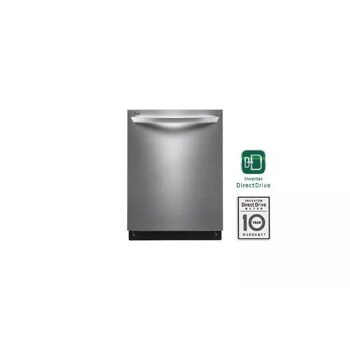

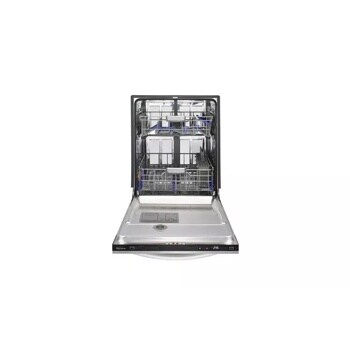

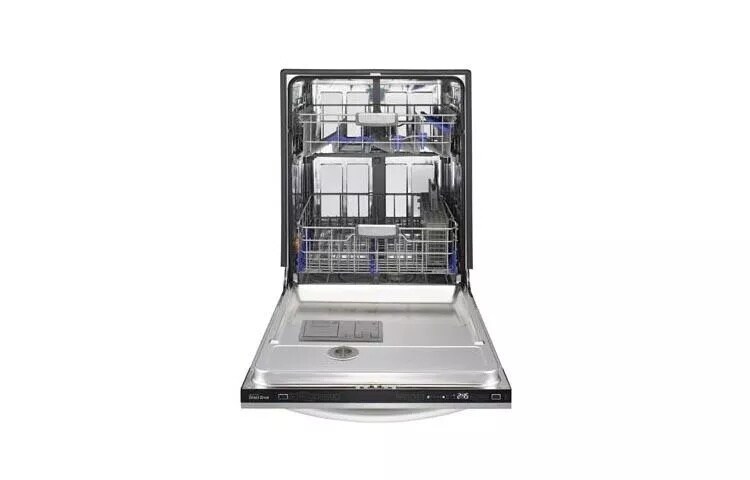

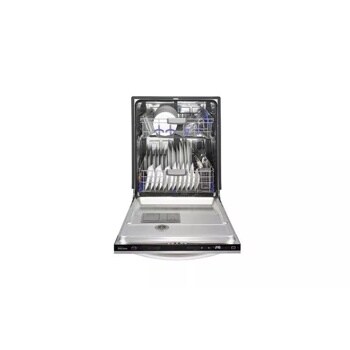

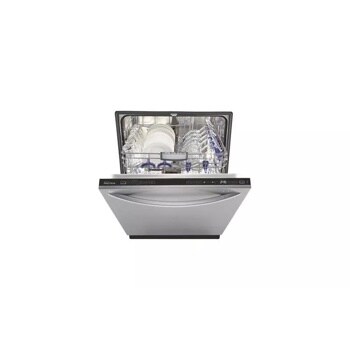

Top Control SteamDishwasher™ w/ EasyRack™ Plus

1/5
Logo Image
1/5
LG Logo
Top Control SteamDishwasher™ w/ EasyRack™ Plus
Top Control SteamDishwasher™ w/ EasyRack™ Plus
Top Control SteamDishwasher™ w/ EasyRack™ Plus
Top Control SteamDishwasher™ w/ EasyRack™ Plus
DISCONTINUED
Top Control SteamDishwasher™ w/ EasyRack™ Plus

Top Control SteamDishwasher™ w/ EasyRack™ Plus

LDF8764ST

Key features

  • 15 Place Settings
  • 6 Cycles
  • Hidden SmoothTouch™ Controls with LED Display

Specifications

download-guide iconDownload Energy Guide
  • DIMENSIONS
  • CAPACITY
  • POWER SOURCE/RATING
  • WARRANTY/UPC
  • SUMMARY
  • FEATURES
  • PERFORMANCE
  • STYLE AND DESIGN
  • RACKS AND BASKETS
  • See All
  • DIMENSIONS
    Unit Dimensions (WxHxD)
    23 3/4" x 33 1/2" x 24 5/8"
    Required Clearances (WxHxD)
    24" x 33 1/2" x 24"
    Carton Dimensions (WxHxD)
    27 1/5" x 35 1/10" x 29 3/5"
    Weight (Unit/Carton)
    110.2 lbs / 116.4 lbs
    DIMENSIONS
    Unit Dimensions (WxHxD)
    23 3/4" x 33 1/2" x 24 5/8"
    Required Clearances (WxHxD)
    24" x 33 1/2" x 24"
    Carton Dimensions (WxHxD)
    27 1/5" x 35 1/10" x 29 3/5"
    Weight (Unit/Carton)
    110.2 lbs / 116.4 lbs
    CAPACITY
    Lower Rack Dish Height Limit
    14"
    Upper Rack Dish Height Limit
    12"
    Total Place Settings
    15
    POWER SOURCE/RATING
    Ratings/Requirements/Type
    UL Listed/120 V, 12 Amps/60 Hz
    Circuit Breaker Size
    15 Amps
    ENERGY STAR® Qualified
    Yes
    WARRANTY/UPC
    UPC
    048231014380
    Limited Warranty
    1 Year Labor, 2 Year Parts, 5 Years on Control Board and Rack Parts, 10 Years Direct Drive Motor Lifetime on the Stainless Steel Tub and Door Liner
    SUMMARY
    Handle Design
    Towel Bar Handle
    FEATURES
    LoDecibel™ Quiet Operation
    Yes
    Slim Direct Drive Motor
    Yes
    Overflow Detector
    Yes
    120°F Inlet Water Capability
    Yes
    3-Stage Filtration System
    Yes
    Delay Start
    Up To 19 Hours
    Child Lock
    Yes
    PERFORMANCE
    Wash Cycles
    Heavy, Delicate, Dual Control
    Sanitary Rinse Cycle
    Yes
    Extra Rinse Option
    Yes
    Multi-Level Water Direction
    5
    SenseClean™ Wash System
    Yes
    Number of Wash Cycles
    3
    Dual Spray Intensity Feature
    Yes
    Variable Spray Intensities
    Strong/Medium/Soft
    Hybrid Condensing Drying System
    Yes
    Noise Level
    44 dB
    STYLE AND DESIGN
    Handle
    Matching Commercial Handle
    Tub Material
    Stainless Steel
    Electronic Controls
    Hidden SmoothTouch™ Controls with LED Display
    Time Remaining Indicator
    Yes
    Rinse-Aid Indicator
    Yes
    SignaLight™ Cycle Indicator Lights
    2: Operating - Clean
    Available Colors
    Stainless Steel (ST)
    RACKS AND BASKETS
    Cutlery Baskets
    3-in-1 Detachable Baskets
    Stemware Holders
    Yes
    Racks and Tines
    Nylon Coated with Rounded Tips
    EasyRack™ Plus System: Upper Rack Color-Coded Foldable Tines
    Yes
    EasyRack™ Plus System: Lower Rack Color-Coded Foldable Tines
    Yes
    EasyRack™ Plus System: Height Adjustable Upper Rack
    Yes
