Discontinued
LDS5774ST

Front Control Dishwasher w/ Height Adjustable 3rd Rack

  • 15 Place Settings
  • 7 Cycles
  • Front Controls with Time Remaining LED Display
  • EasyRack™ Plus with Fully Adjustable Color-coded Tines

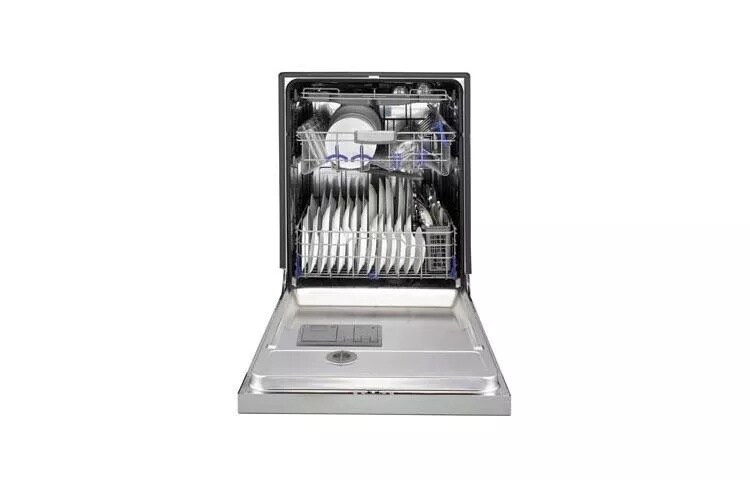

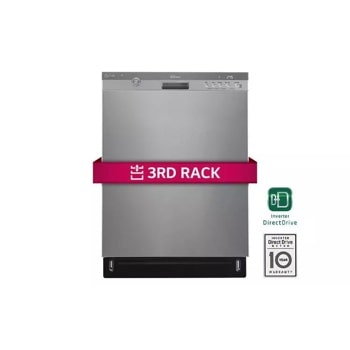

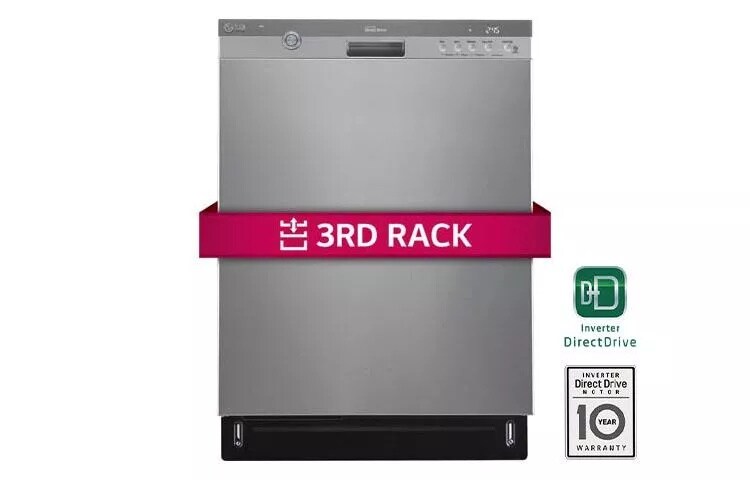

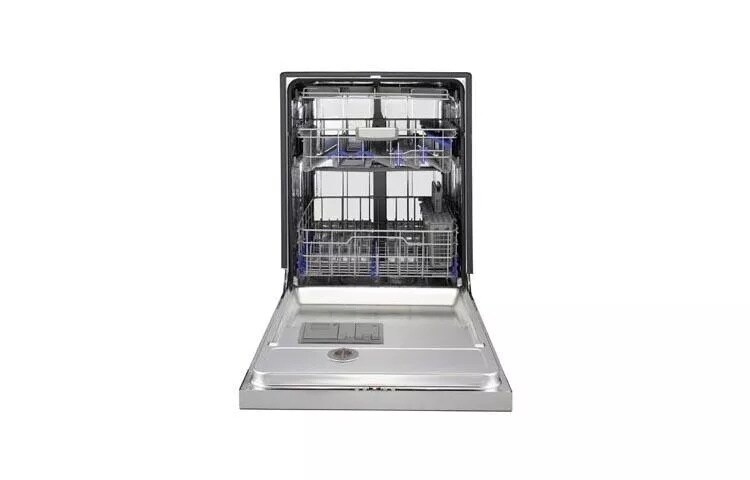

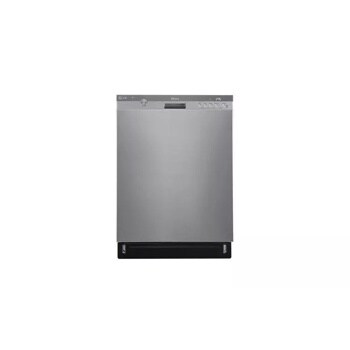

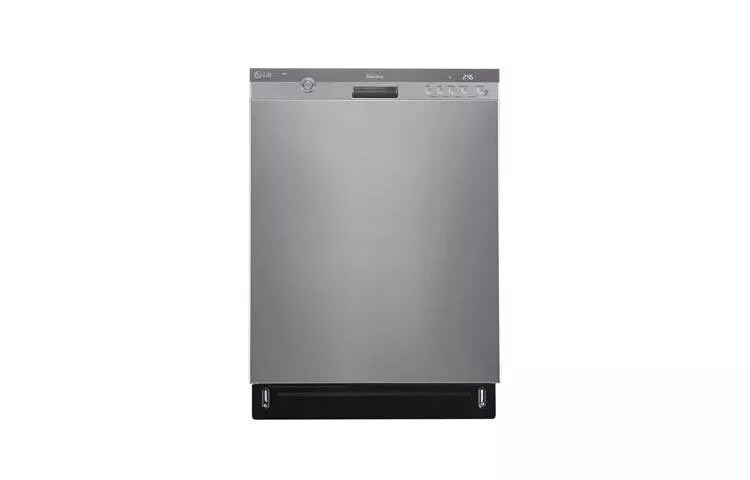

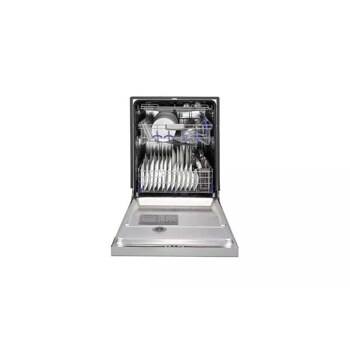

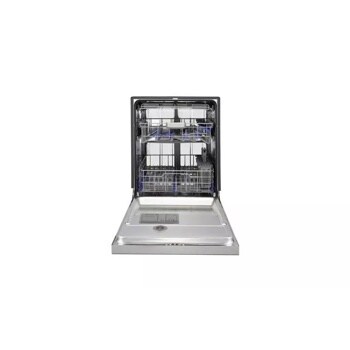

Front Control Dishwasher w/ Height Adjustable 3rd Rack

CAPACITY

    • Total Place Settings
    • 15
    • Upper Rack Dish Height Limit
    • 12"
    • Lower Rack Dish Height Limit
    • 14"

RACKS AND BASKETS

    • Cutlery Baskets
    • 3-in-1 Detachable Baskets
    • Stemware Holders
    • Yes
    • Racks and Tines
    • Nylon Coated with Rounded Tips
    • Height-Adjustable 3rd Rack
    • Yes
    • EasyRack™ Plus System
    • Yes
    • EasyRack™ Plus System: Upper Rack Color-Coded Foldable Tines
    • Yes
    • EasyRack™ Plus System: Lower Rack Color-Coded Foldable Tines
    • Yes
    • EasyRack™ Plus System: Height Adjustable Upper Rack
    • Yes

STYLE AND DESIGN

    • Electronic Controls
    • Front Controls with LED Display
    • Time Remaining Indicator
    • Yes
    • Rinse-Aid Indicator
    • Yes
    • Tub Material
    • Stainless Steel
    • Available Colors
    • Stainless Steel (ST)

FEATURES

    • LoDecibel™ Quiet Operation
    • Yes
    • Slim Direct Drive Motor
    • Yes
    • Overflow Detector
    • Yes
    • 120°F Inlet Water Capability
    • Yes
    • 3-Stage Filtration System
    • Yes
    • Delay Start
    • Up To 19 Hours
    • Child Lock
    • Yes

PERFORMANCE

    • Number of Wash Cycles
    • 7
    • Wash Cycles
    • Auto, Heavy, Delicate, Dual Control, Normal, Quick & Dry, Rinse Only
    • SenseClean™ Wash System
    • Yes
    • Dual Spray Intensity Feature
    • Yes
    • Variable Spray Intensities
    • Strong/Medium/Soft
    • Sanitary Rinse Option
    • Yes
    • Extra Rinse Option
    • Yes
    • Multi-Level Water Direction
    • 5
    • Hybrid Condensing Drying System
    • Yes
    • Noise Level
    • 44 dB

POWER SOURCE/RATING

    • Ratings/Requirements/Type
    • UL Listed/120 V, 12 Amps/60 Hz
    • Circuit Breaker Size
    • 15 Amps
    • ENERGY STAR® Qualified
    • Yes

DIMENSIONS

    • Unit Dimensions (WxHxD)
    • 23 3/4" x 33 1/2" x 24 5/8"
    • Required Clearances (WxHxD)
    • 24" x 33 1/2" x 24"
    • Carton Dimensions (WxHxD)
    • 27 1/5" x 35 1/10" x 29 3/5"
    • Weight (Unit/Carton)
    • 94.9 lbs / 105.6 lbs

WARRANTY/UPC

    • Limited Warranty
    • 1 Year Labor, 2 Year Parts, 5 Years on Control Board and Rack Parts, 10 Years Direct Drive Motor Lifetime on the Stainless Steel Tub and Door Liner
    • UPC
    • 048231014410

What people are saying

Rated 1 out of 5 by from Piece of junk Owned from new for 4 years and just barely out of 4 year warranty. Discontinued product by the way. Main power control board needs be replaced but of course discontinued part as well. Replacement parts should be made available for an extended period rather than a throw away. I guess now a days it is all about the profit margin. 4 years with gentle use is unacceptable for any dishwasher. Hopefully somewhere out there we can find the part, if not last LG product I will ever buy.
Date published: 2020-07-22
Rated 4 out of 5 by from LG DirectDrive dishwasher Good quality machine. The DirectDrive is quiet, has a digital read out which shows time remaining. Wish it had a plate warmer setting.
Date published: 2016-11-19
Rated 5 out of 5 by from Very Quiet I like the amount of space in the dish washer Plenty of options and very quiet which is the best feature
Date published: 2016-11-01
  • y_2020, m_9, d_24, h_15
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.12
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_24
  • loc_en_US, sid_MD05104520, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_lg
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getReviews, 222ms
  • REVIEWS, PRODUCT

ASK & ANSWER

Ask your questions. Share your answers.
Please review the detailed product information and help guides in the
Product Support section for this product prior to posting a question.

Where is the heating element locate on the LDS5774ST dishwasher?

Asked by: Kyle G
We appreciate your interest in this dishwasher. The heater assembly is located inside the Sump Motor Assembly. Access to this component is recommended only by a qualified service technician. To make service arrangements, you may either contact our Customer Interactive Center at 800-243-0000, or you can check our Repair Provider Lookup on our website, at http://www.lg.com/us/support/repair/support-repair-provider-lookup.jsp.
Answered by: NeilE
Date published: 2016-10-18

Have a AE error code

Asked by: Ms Ann
Hello, The AE code indicates that there is a leakage problem. Please contact 800-243-0000 for further assistance.
Answered by: NeilE
Date published: 2016-06-03

What is the cycle time for LDS 5774ST dishwashers

Asked by: Patricia4240
The LG 79 minutes, Quick about 34 minutesSemi-Integrated Dishwasher w/ Height Adjustable 3rd Rack, Model # LDS5774ST has a Steam Dual cycle, a Steam Delicate cycle, a Normal cycle, a Quick & Dry cycle, Dual Wash and a Quick cycle. Cycle times on the dishwasher will vary depending on the soil level of the dishes, the water temperature and the hardness of the water. The Steam Power cycle may take about 165 minutes, the Steam Dual cycle about 147 minutes, the Steam Delicate about 141 minutes, Normal cycle about 110~131 minutes, Quick & Dry about and the Rinse Only cycle about 22 minutes. Power Scrub will take about 165 minutes, Dual Wash about 147 minutes and delicate cycle will take about 141 minutes...^IFV
Answered by: LGJoel
Date published: 2017-02-16

My plates won't stand/stack, they topple over.  I'm using the lower rack. Also the lower rack slides completely off the rail.   Is there a "fix" for either of the above?

Asked by: Bvn88
We regret the inconvenience you have experienced with this dishwasher. If the dish rack comes off its track, then it is suggested not to pull it out of the cabinet quite so far. Check the basket tines to be certain they are properly in place. If they are not holding properly, even when used correctly, then it would be recommended to contact our Customer Interactive Center at 800-243-0000.
Answered by: NeilE
Date published: 2016-03-04

I have this model and the dishes come out dirty. Had a service call today and was told it is operating ñormal. Was advised to preheat the sink water in order for the water to be hot Technican stated this model has a small heater. What good is delay start?

Asked by: gunner30157
Generally the only time that the water will need to be preheated is if the water is not reaching 120 degrees in a timely manner. Allow the water to run just for a minute or two to build up the hot water temperature before starting the washing cycle.
Answered by: NeilE
Date published: 2016-02-17

My dishwasher keeps running. No water or anything but the machine is on and the load of dishes are washed and dried.  It's been 6.5 hours

Asked by: Terry Gman
We regret the trouble you have experienced with this dishwasher. This unit should not be operating with no water in the tub. If this is the case, then the unit will likely require service. To make service arrangements, you may either contact our Customer Interactive Center at 800-243-0000, or you can check our Repair Provider Lookup on our website, at http://www.lg.com/us/support/repair/support-repair-provider-lookup.jsp.
Answered by: NeilE
Date published: 2016-02-01

It seems that the powder in the dispenser does not get into the wash and a clump of it (usually around half) is left in the dispenser when the cycle is complete.  How do I get this to work properly?

Asked by: Jwein
If you are using a powdered dishwasher detergent that is specifically designed for use with automatic dishwashers like the LG Semi-Integrated Dishwasher w/ Height Adjustable 3rd Rack, Model # LDS5774ST, only an automatic dishwasher detergent can be used in an automatic dishwasher. These products come in either powder or gel form. What you also have to keep in mind is that powder automatic dishwasher detergents readily take up and retain moisture and carbon dioxide gas from the atmosphere which causes it to become lumpy. As long as it properly dissolves it can be used, but may be somewhat less effective. To help prevent this condition, the carton is specially designed to provide a moisture barrier. You should open the package as directed, avoiding unnecessary tearing of the overwrap and closing the box after each use. Always select undamaged packages and purchase only one or two at a time to ensure maximum product effectiveness. You may also want to check if you live in a hard water area, hard water contains dissolved mineral salts - like calcium and magnesium which can interfere with a detergent's ability to clean or dissolve, the easiest way to know if you have it is to call your local water company or public utility service department. Also check that your water is set at the recommended temperature, your water supply temperature should be a minimum of 120°F (49°C) for better washing and reasonable cycle time...^IFV
Answered by: LGJoel
Date published: 2015-11-19

can trhis be side mounted? I have granite counter above it.

Does it have provisions for side mounting? Can I download the installation instructions before I build cabinets?
Asked by: user2
Yes, that is how mine is mounted.
Answered by: DanielSATX
Date published: 2015-08-23
