Discontinued
LDT7797ST

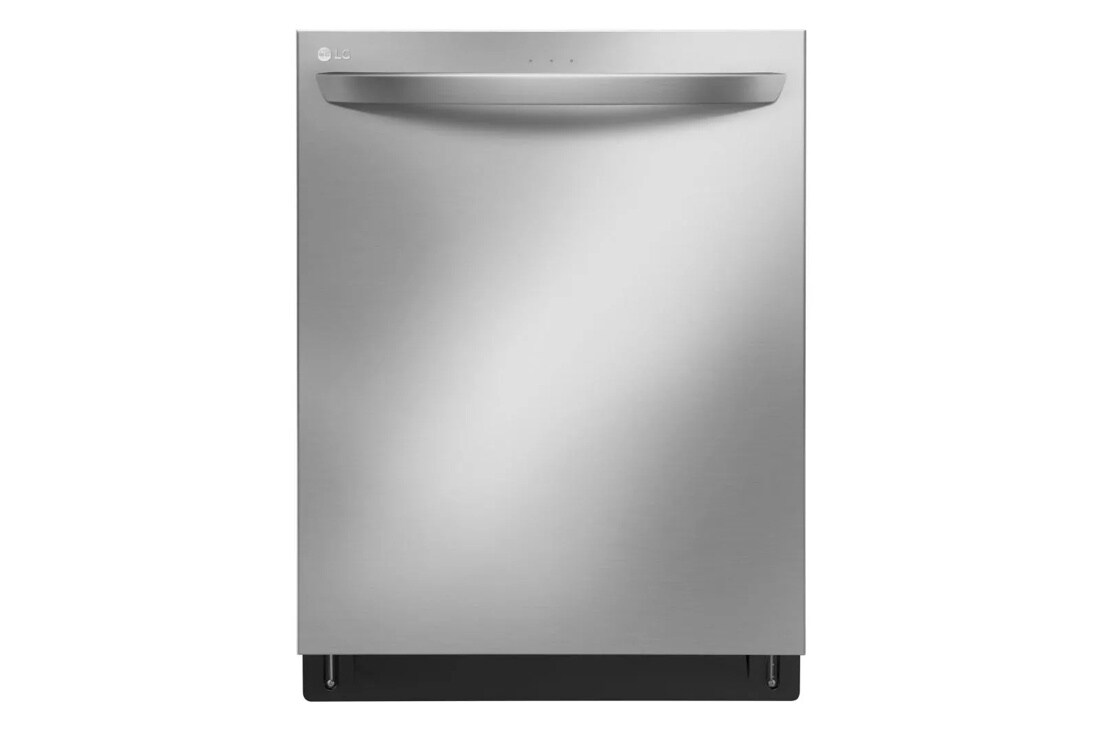

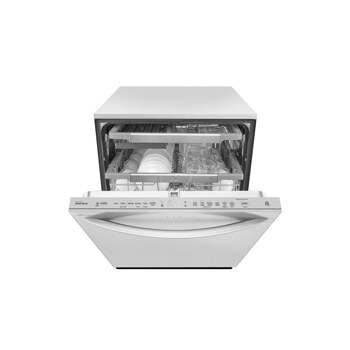

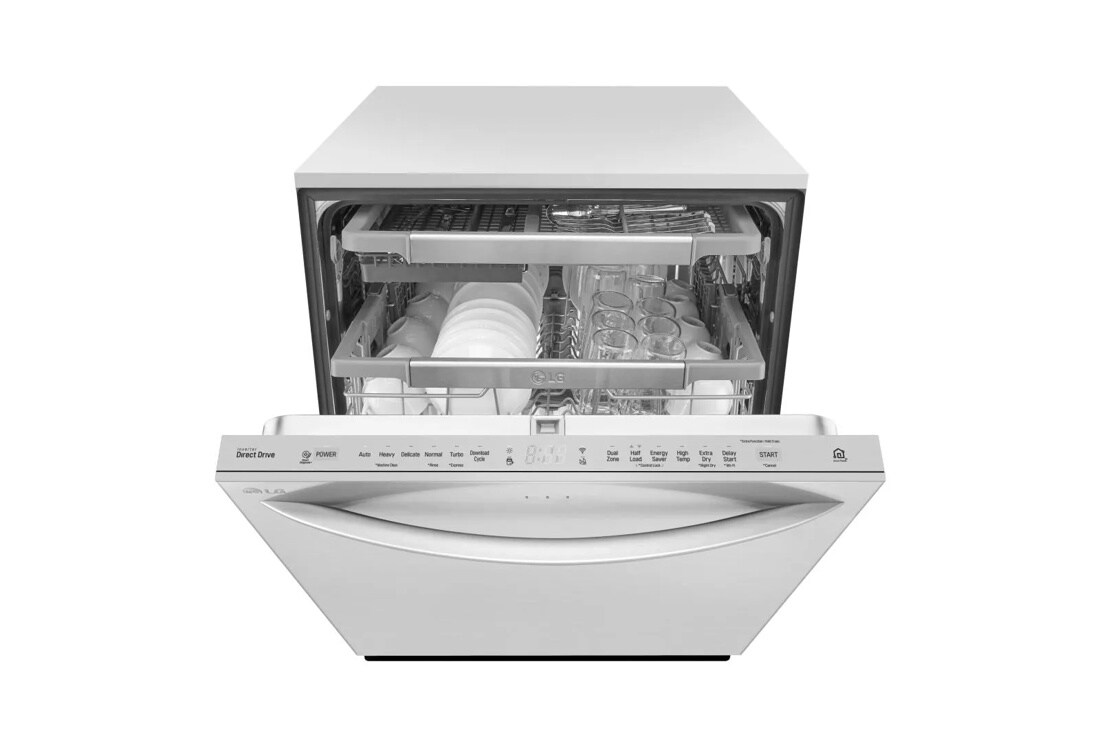

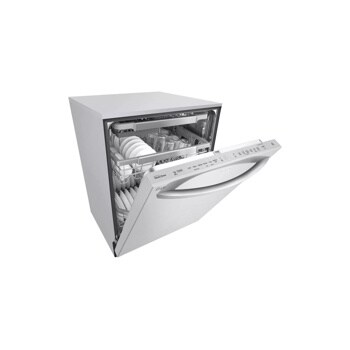

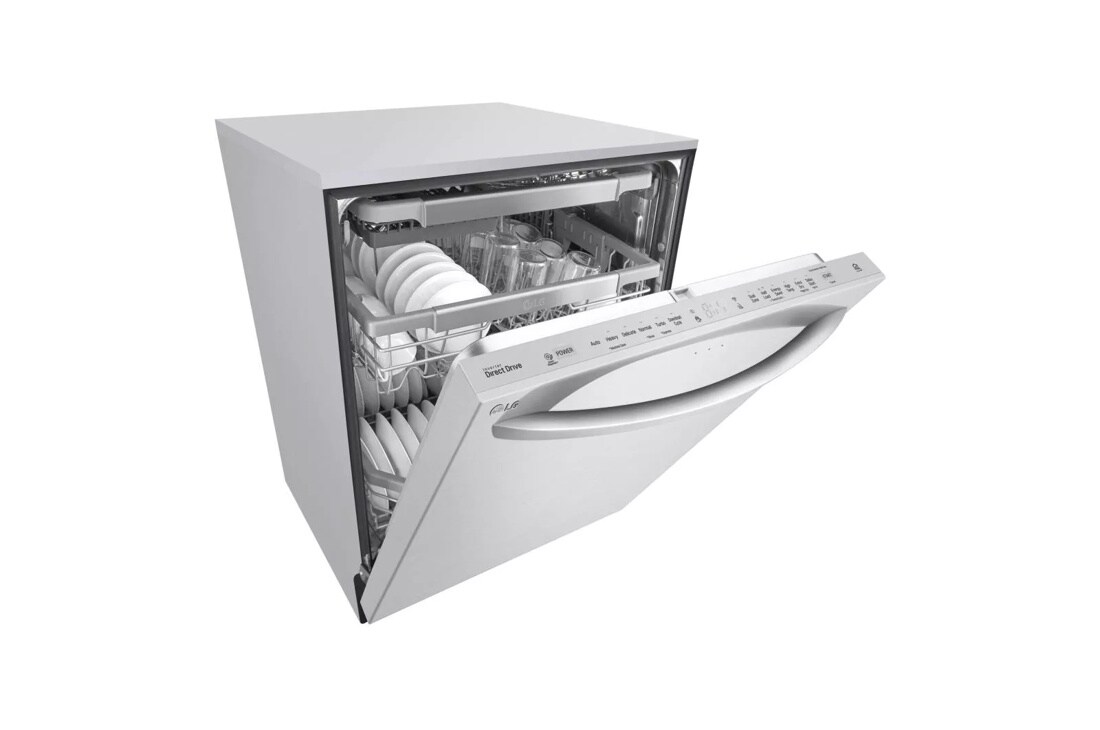

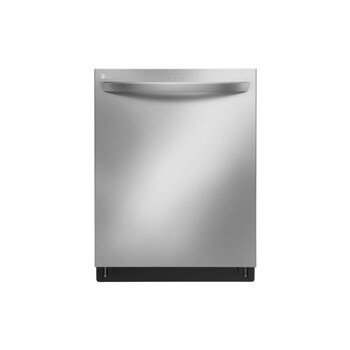

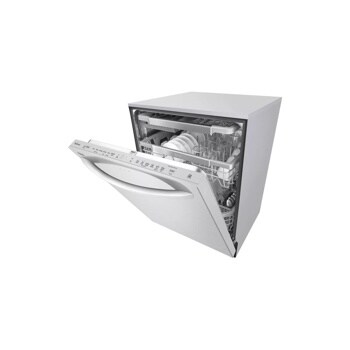

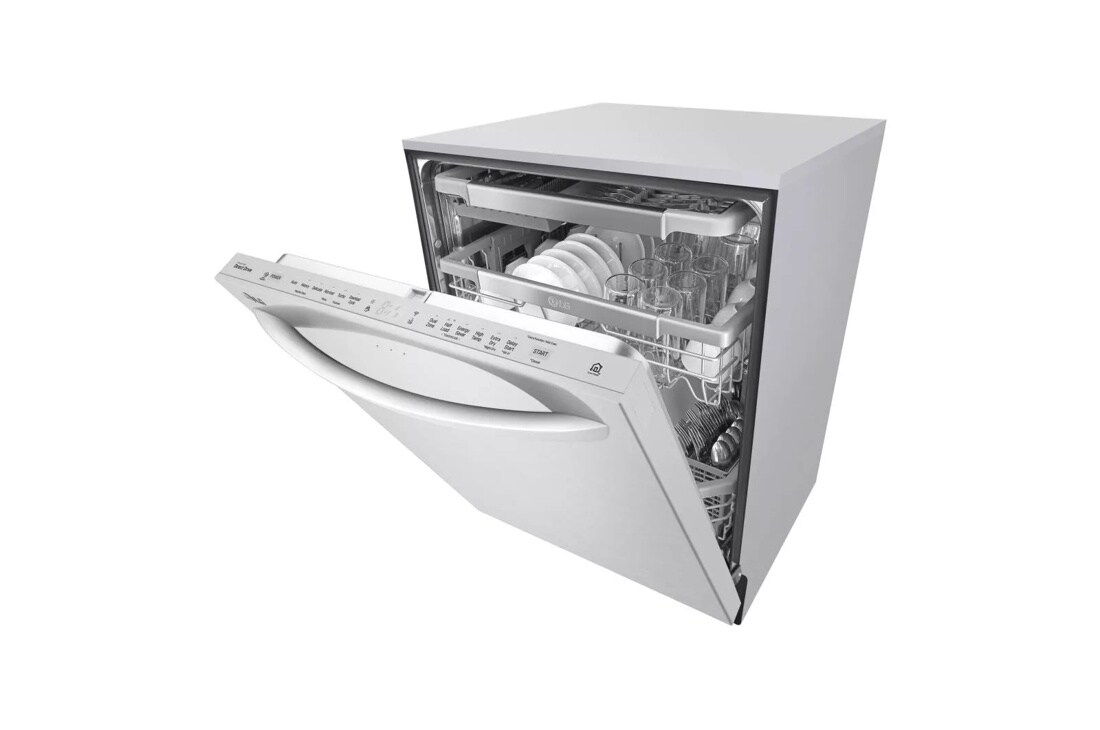

Top Control Smart wi-fi Enabled Dishwasher with QuadWash™

  • QuadWash™ System
  • SmartThinQ® Technology
  • LoDecibel™ Operation (44 dB)
  • LED Tub Light
  • Height Adjustable 3rd Rack
  • Glide Rail (Upper)
Top Control Smart wi-fi Enabled Dishwasher with QuadWash™

SUMMARY

    • SmartThinQ®
    • Yes
    • wi-fi Enabled
    • Yes
    • Control Panel
    • Top Control
    • Handle Design
    • Towel Bar Handle
    • QuadWash™ System
    • Yes
    • 3rd Rack
    • Yes
    • Height Adjustable 3rd Rack
    • Yes
    • LED Tub Light
    • Yes

CAPACITY

    • Total Place Settings
    • 15
    • Upper Rack Dish Height Limit
    • 7.1"
    • Lower Rack Dish Height Limit
    • 12.5"

RACKS AND BASKETS

    • Cutlery Baskets
    • Yes
    • Cup Rack
    • Yes
    • Stemware Holders
    • Yes
    • Fold Down Tines
    • Yes (Full Fold on Upper & Lower)
    • BPA-Free Nylon Coated Racks and Tines
    • Yes
    • Rack Handle
    • Yes (Upper/Lower)
    • Glide Rail
    • Yes (Upper)
    • EasyRack™ Plus System
    • Yes
    • Height Adjustable Upper Rack
    • Yes (One Touch; 3 Level)
    • Height-Adjustable 3rd Rack
    • Yes

STYLE AND DESIGN

    • Control Panel Location
    • Top
    • Electronic Controls
    • Hidden SmoothTouch™ Controls with LED Display
    • SignaLight™ Cycle Indicator Lights
    • 3
    • Time Remaining Indicator
    • Yes (LED)
    • Tub Material
    • NeveRust™ Stainless Steel
    • Tub Light
    • Yes
    • Handle
    • Matching Commercial Handle
    • Available Colors
    • Matte Black Stainless Steel, Black Stainless Steel, Stainless Steel
    • PrintProof™ Finish
    • Yes (only LDT7797BM & LDT7797BD)

FEATURES

    • QuadWash™
    • Yes
    • Inverter Direct Drive Motor
    • Yes
    • LoDecibel™ Quiet Operation
    • 44 dB
    • Number of Wash Cycles
    • 9 (Auto, Heavy, Delicate, Normal, Turbo, Download Cycle, Machine Clean, Rinse, Express)
    • Number of Options
    • 8 (Dual Zone, Half Load, Energy Saver, High Temp, Extra Dry, Delay Start, Control Lock, Night Dry)
    • No. of Spray Arms
    • 3 (Top, Upper, Lower)
    • SenseClean™ Wash System
    • Yes
    • Vario Wash
    • Yes
    • Detergent and Rinse-Aid Dispenser
    • Yes
    • Hybrid Condensing Drying System
    • Yes
    • End of Cycle Indicator
    • Beeper + END Indication on Display
    • Hidden Water Heater
    • Yes
    • Safety Float Switch (Leaks)
    • Yes
    • Soil (Turbidity) Sensor
    • Yes
    • Tub Insulation (Damping Sheet)
    • Yes
    • Sound Absorbing Material (felt), Base)
    • Yes
    • BPA-Free Nylon Coated Racks and Tines
    • Yes
    • Anti-Bacterial Treatment (Sump, Inner / Outer filter, Drain pump case, Drain hose)
    • Yes
    • Multi-Level (5) Water Direction
    • Yes (Top Nozzle (Down), Upper Nozzle (Up/Down), Lower Nozzle (Up/Down)
    • 3-Stage Filtration System
    • Yes

SmartThinQ® SMART FEATURES

    • wi-fi Enabled
    • Yes
    • Voice Activation
    • Yes
    • Works with
    • Google Assistant and Amazon Alexa
    • Cycle Complete Notification
    • Yes
    • Monitor Cycle Time
    • Yes

POWER RATINGS

    • ENERGY STAR® Qualified
    • Yes
    • CEE Tier
    • 1
    • Energy Use (kWh/Year)
    • 258 kWh
    • Water Factor (WF)
    • 2.8

DIMENSIONS / CLEARANCES / WEIGHT

    • Product Dimensions (in) (W x H x D)
    • 23 3/4" x 33 5/8" x 24 5/8"
    • Product Weight (lbs)
    • 86.2 lbs
    • Depth with Door Closed with Handle (in)
    • 26 7/8"
    • Depth with Door Open (in)
    • 50 1/2"
    • Clearances (W x H x D)
    • 24" x 33 1/2" x 24"
    • Carton Dimensions (in) (W x H x D)
    • 28" x 34 7/10" x 29 3/5"
    • Shipping Weight with Carton (lbs)
    • 99.5 lbs

LIMITED WARRANTY

    • Labor
    • 1 Year
    • Parts
    • 1 Year
    • Control Board and Rack Parts
    • 5 Years
    • Direct Drive Motor
    • 10 Years
    • Stainless Steel Door Liner or Tub
    • Lifetime

UPC CODES

    • UPC
    • 048231022194

What people are saying

Rated 1 out of 5 by from No Service Places Available! We bought this dishwasher two years ago. Yesterday there was an error code AE and water on the floor. I followed the website, but I couldn't get the code to go. I called LG who gave me a number of a repair place - which is not taking service calls. I've called two other places - the same thing. No where else in town will fix LG dishwashers. Please make sure there is a repair place in your community that will work on LG. Otherwise, I've got to replace a two year old dishwasher instead of fixing it.
Date published: 2020-07-21
Rated 3 out of 5 by from Great design but stopped drying after 3 years Love the look and flexibility of the washer but after only 3 years, our machine stopped drying the dishes. Also, I would have liked to have the option of a quicker express cycle. For dishes that are almost clean going in, it is annoying to have to wait over 2 hours for the “fastest” drying cycle available.
Date published: 2020-07-11
Rated 1 out of 5 by from Control panel issue I've had the this dishwasher for a year and half. Cracks have appeared at the control panel and now the buttons are completely non functional even though the tub light still powers on. Apparently, this is a common problem when researching this on the internet. Apparently I need a new control board and assembly due to the cracks. I've already removed the control panel (it took me two minutes). Trying to convince LG support to send me a new part under warranty is a non starter, they want to send out a technician (which will cost more than the parts) who will probably tell me I need a new part. Look, I get it, LG probably doesn't want people self diagnosing and getting free parts on our own claims. However, now I'm just going to grudgingly fix this myself, paying out of my pocket elsewhere for parts, and vowing not to buy anything else from LG again...
Date published: 2020-06-24
  • y_2020, m_8, d_12, h_15
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.10
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_284
  • loc_en_US, sid_MD05825090, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_lg
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getReviews, 4ms
  • REVIEWS, PRODUCT

ASK & ANSWER

Ask your questions. Share your answers.
Please review the detailed product information and help guides in the
Product Support section for this product prior to posting a question.

The touchscreen is not working. Model LDT7797BM

Asked by: Sharon85
We regret to read that the touch controls on your LG Top Control Smart wi-fi Enabled Dishwasher with QuadWash™, Model # LDT7797BM are not working and sincerely apologize for any inconvenience. Regrettably, the dishwasher will require a service repair and will have to be diagnosed and inspected by a qualified LG Authorized Service Technician or an LG Authorized Service Center to determine what the issue is. You can contact our Customer Support Center at (800) 243-0000 for assistance in arranging for a repair service, or you can visit us at https://www.lg.com/us/support/find-service-center to see if there are any LG Authorized Service Centers within a 50-mile radius of you zip code or address that you can arrange to repair the unit if they are able to in this current environment...^IFV
Answered by: Ivanf
Date published: 2020-04-29

When I try to start the cycle it shuts off

Asked by: Yui567
Hello Yui567. As per the instructions in your owner's manual for the LG Top Control Smart wi-fi Enabled Dishwasher with QuadWash™, Model # LDT779BM, when you use method 1 and press the Start button, the door must be closed within four seconds. If the door is not closed within four seconds, the white LED with time flashes, an audible tone is heard, and the cycle does not start. If you use Method 2., close the door first and then press the Start button to operate the dishwasher. If that is not the issue, please contact us via the AI-supported Chatbot, https://www.lgechat.com/us/index.html. Our Customer Interactive Center is again taking inbound calls and providing call-back support after a brief period of online-only service scheduling. As we work to respond to your inquiry as soon as possible, we appreciate your patience while we take care of our customers during this challenging time. The Chatbot will be the quickest option at this time but you can also contact us via email: https://www.lg.com/us/support/email-appointment...^IFV
Answered by: Ivanf
Date published: 2020-03-27

When I try to start the cycle is shuts off

Asked by: Yui567
We regret to read that the LG Top Control Smart wi-fi Enabled Dishwasher with QuadWash™, Model # LDT7797BD shuts down when you attempt to start a cycle and sincerely apologize for any inconvenience. When you press the Start button, the door has to be closed within four seconds to operate the dishwasher. If the door is not closed within four seconds, the white LED with time flashes and an audible tone is heard and the cycle does not start. You can close the door first then press the Start button to operate the dishwasher as instructed in the manual. If you need further assistance, please contact our Support Center. Our Customer Interactive Center is again taking inbound calls and providing call-back support after a brief period of online-only service scheduling. As we work to respond to your inquiry as soon as possible, we appreciate your patience while we take care of our customers during this challenging time. You may get quicker support from our AI-supported Chatbot at https://www.lgechat.com/us/index.html...^IFV
Answered by: Ivanf
Date published: 2020-03-27

Where can I find parts for this?   Lost the touchpanel in 14months. Out of warranty of course. I need a parts break down and parts for this discontinued product.

Asked by: NunaBussiness
That's not good! We're sorry to see that you've run into these issues with your dishwasher. We'll need to gather some additional details from you in order to see how we can best assist. Please reach out to a specialist via Twitter @LGUSSupport or via Facebook https://www.facebook.com/LGUSA/ ^CP
Answered by: ChrisPSM
Date published: 2020-01-02

Is there a short wash cycle?

Asked by: Jim Dugan
The LG Top Control Smart wi-fi Enabled Dishwasher with QuadWash™, Model # LDT7797BD has an EXPRESS cycle that is designed for lightly soiled dishes and will have a wash time with options that runs from 33-103 minutes. Your actual run time will depend on the soil level of the dishes and the hardness of your water...^IFV
Answered by: LGJoel
Date published: 2019-02-19

The light that indicates that a signal is done no longer goes on. How do you turn that feature back on so that the light shines until the door is opened after a cycle?

Asked by: Supersooz
Hello, hate to hear, sounds like you might need a technician. This may be done through our website: https://www.lg.com/us/support/repair-service/schedule-repair-continued or for a list of service centers in your area: https://www.lg.com/us/support/repair-service/find-repair-provider ^AC
Answered by: Amber C
Date published: 2019-01-10

Is there a way to control the time the tub light stays on in my new LG dishwasher?

Asked by: Chuck Sammis
Hello, there is not, it is on an auto timer. ^AC
Answered by: Amber C
Date published: 2018-11-12

Witch arrow on the half load is bottom rack?

Asked by: Kris 110
The arrow pointing down is for performing a half load cycle on the bottom rack. ^CP
Answered by: ChrisPSM
Date published: 2018-10-03
