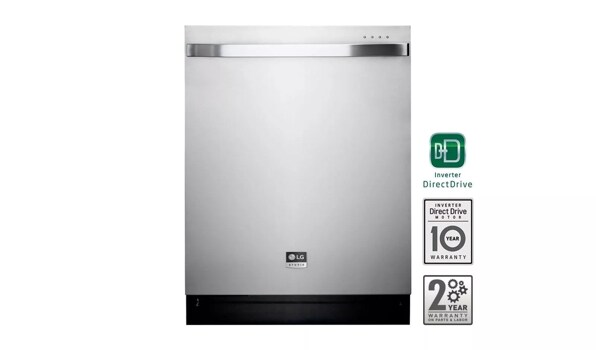

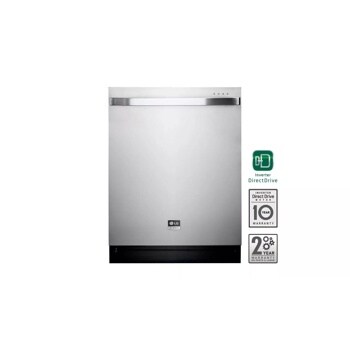

LSDF9962ST
LG STUDIO - Top Control Dishwasher with Flexible EasyRack™ Plus System
  • EasyRack™ Plus
  • Height Adjustable 3rd Rack
  • LoDecibel™ Operation
LG STUDIO - Top Control Dishwasher with Flexible EasyRack™ Plus System

SUMMARY

  • LG STUDIO
    Yes
    Handle Design
    Towel Bar Handle

CAPACITY

  • Total Place Settings
    14
    Upper Rack Dish Height Limit
    12"
  • Lower Rack Dish Height Limit
    14"

RACKS AND BASKETS

  • Cutlery Baskets
    3-in-1 Detachable Baskets
    Stemware Holders
    Yes
  • Racks and Tines
    Nylon Coated with Rounded Tips
    EasyRack™ Plus System
    Yes
  • EasyRack™ Plus System: Upper Rack Color-Coded Foldable Tines
    Yes
    EasyRack™ Plus System: Lower Rack Color-Coded Foldable Tines
    Yes
  • EasyRack™ Plus System: Height Adjustable 3rd Rack
    Yes

STYLE AND DESIGN

  • Electronic Controls
    Hidden SmoothTouch™ Controls with LCD Display
    Time Remaining Indicator
    Yes
  • Rinse-Aid Indicator
    Yes
    SignaLight™ Cycle Indicator Lights
    4: Wash, Rinse, Dry, Clean
  • Tub Material
    Stainless Steel
    Available Colors
    Stainless Steel (ST)

FEATURES

  • LoDecibel™ Quiet Operation
    Yes
    Slim Direct Drive Motor
    Yes
  • Overflow Detector
    Yes
    120°F Inlet Water Capability
    Yes
  • Delay Start
    Up To 19 Hours
    Child Lock
    Yes

PERFORMANCE

  • Number of Wash Cycles
    7
    Wash Cycles
    Steam Power, Normal, Quick & Dry, Quick Wash, Rinse Only, SteamDelicate™, Steam Dual
  • SenseClean™ Wash System
    Yes
    Sanitary Rinse Cycle
    Yes
  • Dual Spray Intensity Feature
    Yes
    Variable Spray Intensities
    Strong/Medium/Soft
  • Extra Rinse Option
    Yes
    Multi-Level Water Direction
    5
  • Hybrid Condensing Drying System
    Yes
    Noise Level
    42 dB

POWER SOURCE/RATING

  • Ratings/Requirements/Type
    UL Listed/120 V, 12 Amps/60 Hz
    Circuit Breaker Size
    15 Amps
  • ENERGY STAR® Qualified
    Yes

DIMENSIONS

  • Unit Dimensions (WxHxD)
    23 3/4" x 33 5/8" x 24 5/8"
    Required Clearances (WxHxD)
    24" x 34" x 25"
  • Carton Dimensions (WxHxD)
    27 1/5" x 35 1/10" x 29 3/5"
    Weight (Unit/Carton)
    110.2 lbs / 116.4 lbs

WARRANTY/UPC

  • Limited Warranty
    2 Years Parts and Labor, 5 Years on Control Board and Rack Parts, 10 Years Direct Drive Motor, Lifetime on the Stainless Steel Tub and Door Liner
    UPC
    048231012911
What people are saying
Rated 5 out of 5 by from I love the third rack! I bought this about a month ago to replace my broken dishwasher. I love the way my dishes come out so clean and sparkly. i
Date published: 2018-06-29
Rated 4 out of 5 by from Needed a better dishwasher - it delivered! We purchased this a few months ago because our home was remodeled with the cheapest one on the market and it didn’t clean. Our biggest priority was that it cleaned well! It absolutely does, even when the kids load it improperly. It is also just as quiet as the reviews said it would be. The only thing that could improve the product would be if the bottom rack stayed on the track. It doesn’t matter if you pull it open from the middle, slowly, while loaded so it’s weighed down, empty, it almost always comes off the bottom track. It’s annoying and frustrating for the kids but we are still happy with the product.
Date published: 2018-06-27
Rated 2 out of 5 by from Quiet and effective, but has significant issues This dishwasher does a great job of cleaning rinsed dishes and is very quiet. However, there are two major issues and one minor. The clamps that hold the tines in a vertical position are too weak. The clamp should hold the tines in position when loading dishes (see photos). Also, the plates are not held in place, so they tend to fold down (from vertical) with a "clack". For this reason, it is not protective of fine china. The bowls roll out of the position shown in the instructions. And, for both bowls and plates, the lower shelf does not have a sufficient "groove" to keep them in place. Finally, the completed cycle light stays on for ONLY 4 MINUTES. Since LED or LCD lights last for like 10k hours, why wouldn't you want it to remain illuminated until the door is opened?
Date published: 2018-04-13
  • y_2019, m_7, d_18, h_21
  • bvseo_bulk, prod_bvrr, vn_bulk_2.0.12
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_55
  • loc_en_US, sid_MD05025620, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_lg
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getReviews, 76ms
  • REVIEWS, PRODUCT
ASK & ANSWER

Ask your questions. Share your answers.
Please review the detailed product information and help guides in the
Product Support section for this product prior to posting a question.

I need to purchase two additional mounting brackets. Where do I do that?

Asked by: liverlips20
Parts and accessories can be obtained through our parts distributor, Encompass Parts. Their contact number, for placing orders and pricing information, is 866-779-7906. You can also use their website, at https://www.encompassparts.com/ ^CP
Answered by: ChrisPSM
Date published: 2017-12-18

IS THis dishwasher supposed to be flush with the cabinets or stick out a couple of inches (so the rubber seal is flush with the cabinets)?

Asked by: Confused45677726252427282
This will depend on your cabinets. The unit Required Clearances is (WxHxD) 24" x 34" x 25" ^AC
Answered by: amber
Date published: 2017-12-11

How much water per washing is using dishwasher ?

Asked by: Jeciii
Actual water consumption in the LG STUDIO - Top Control Dishwasher with TrueSteam® Technology and Flexible EasyRack™ Plus System, Model # LSDF9962ST, will vary depending on the soil level of the dishes, the chosen cycle, and your water hardness. the Steam Power cycle has a water usage of 6.1 gallons (23.0 L), the Steam Dual Cycle - 4.6 gal. (17.5 L), the Steam Delicate - 4.6 gal. (17.5 L), the Normal cycle - 1.7– 6.4 gal. (6.5–20.5 L), the Quick & Dry cycle - 7.6 gal. (29 L), the Quick cycle -5.0 gal. (19 L) and the Rinse Only cycle - 1.0 gal. (4 L)...^IFV
Answered by: LGJoel
Date published: 2017-08-31

I need replacement guide wheel for right bottom rack.  Where do you recommend I go to purchase this?

Asked by: Lila burns
Parts and accessories can be obtained through our parts distributor, MCM Electronics. Their contact number, for placing orders, is 800-824-9491. You can also use their website, at http://www.mcmelectronics.com/content/en-US/forms/lg_parts. The part number for this item is: 4581DD3003B.
Answered by: NeilE
Date published: 2016-12-16

I turned my dishwasher on for the first time and it shut off.....what should I do?

Asked by: BAMiles
We regret the trouble you have experienced with this dishwasher. It is suggested to, first, check the circuit breaker box for proper electrical flow. If this device will not remain active, then it may require service. To make service arrangements, you may either contact our Customer Interactive Center at 800-243-0000, or you can check our Repair Provider Lookup on our website, at http://www.lg.com/us/support/repair/support-repair-provider-lookup.jsp.
Answered by: NeilE
Date published: 2016-12-07

My dishwasher says e1 what does that mean? I think I was out of hot water but how do I reset it

Asked by: Rocketmail
We regret the trouble you have experienced with this dishwasher. According to page 28 of your owner’s manual, it would appear that the E1 error code signifies a Water Leakage Problem. The unit will likely require service. To make service arrangements, you may either contact our Customer Interactive Center at 800-243-0000, or you can check our Repair Provider Lookup on our website, at http://www.lg.com/us/support/repair/support-repair-provider-lookup.jsp.
Answered by: NeilE
Date published: 2016-02-23

LSDF9962ST I keep seeing  keep the filter clean to avoid problems. Does that mean that I have to clean the filter on a regular basis.

Asked by: Delane
What will determine how frequently you need to clean the filter will depend on a few factors such as how frequently you use the LG Studio - Fully Integrated Dishwasher with TrueSteam™ Technology and Flexible EasyRack™ Plus System, Model # LSDF9962ST. It is recommended that for the best wash performance, the filters should be cleaned after each load. If you have hard water, it is recommended to clean this filter at least once a month to prevent poor wash performance. Practises such as scraping the food off your plates will also help in reducing the frequency of having to clean the filter. According to the Recommended Filter Cleaning Chart for this unit, if you do 1-3 loads a week and you wash dishes before loading, the filter should be cleaned every 6 months. If you scrape and rinse the dishes before loading, then the filter should be cleaned every year. If you only scrape the dishes before loading, the filter should be cleaned four times a year and if you do not scrape the dishes or rinse them before loading, the filter should be cleaned once a month. The numbers are the same if you do 4-7 loads a week except for if you do not scrape or rinse the dishes before loading them. In that case you would need to clean the filter twice a month (every 1 days). If you do 8-12 loads a week, if you scrape and rinse the dishes before loading, then the filter should be cleaned every 6 months and if you only scrape the dishes before loading, then the filtyer should be cleaned every 1.5 months and if you do not scrape of rinse the dishes before loading, the filter needs to be cleaned every week. If you do 13 -14 loads a week, the need for cleaning the filter is the same as for when you do 8-12 loads a week and only is different for when you do not scrape or rinse the dishes before loading them, It that instance, the filter will need to be cleaned twice a week. Regardless of the number of loads a week that you do, if you wash the dishes before loading them, you will need to clean the filter every 6 months...^IFV
Answered by: LGJoel
Date published: 2017-01-27

Hard food disposer is missing in LSDF9962ST FULLY INTEGRATED DISHWASHER WITH TRUESTEAM™ TECHNOLOGY

Hard food disposer is missing in the specification of LSDF9962ST FULLY INTEGRATED DISHWASHER WITH TRUESTEAM™ TECHNOLOGY
Asked by: sraj49
It's in there, it just isn't a part of the dishwasher that you can manually check, as it is a part of a huge unit on the underside of the dishwasher (Part of the circulation pump and drain pump too) There are rotor blades, but it isn't mentioned as a 'cleaning part' in the manual. I do agree it's weird it isn't mentioned at all, but it is in there, and a part of the entire motor below.
Answered by: amiele
Date published: 2017-01-27
