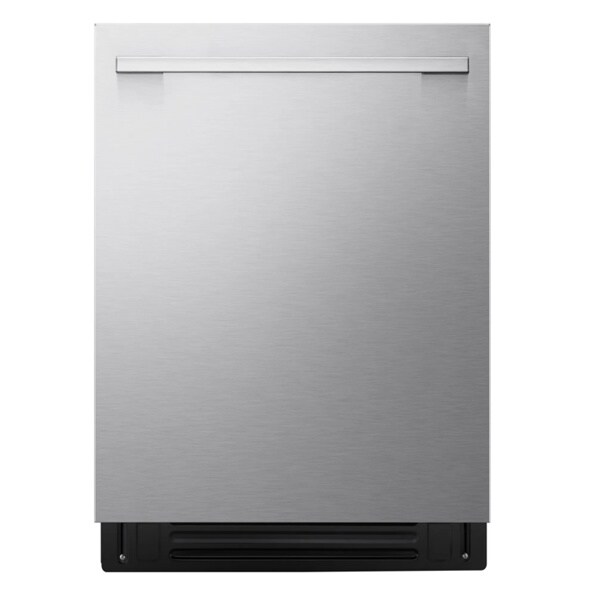

Smart FlushFit™ Top Control Dishwasher with 1-Hour Wash & Dry, QuadWash® Pro, and Dynamic Heat Dry™ w/AutoVent Dry™

1/4
Logo Image
1/4
LG Logo
Smart FlushFit™ Top Control Dishwasher with 1-Hour Wash & Dry, QuadWash® Pro,  and Dynamic Heat Dry™ w/AutoVent Dry™
Smart FlushFit™ Top Control Dishwasher with 1-Hour Wash & Dry, QuadWash® Pro,  and Dynamic Heat Dry™ w/AutoVent Dry™
Smart FlushFit™ Top Control Dishwasher with 1-Hour Wash & Dry, QuadWash® Pro, and Dynamic Heat Dry™ w/AutoVent Dry™
Smart FlushFit™ Top Control Dishwasher with 1-Hour Wash & Dry, QuadWash® Pro,  and Dynamic Heat Dry™ w/AutoVent Dry™
Coming Soon
New
Smart FlushFit™ Top Control Dishwasher with 1-Hour Wash & Dry, QuadWash® Pro,  and Dynamic Heat Dry™ w/AutoVent Dry™

Smart FlushFit™ Top Control Dishwasher with 1-Hour Wash & Dry, QuadWash® Pro, and Dynamic Heat Dry™ w/AutoVent Dry™

LDNTM545S

Key features

  • Enjoy a 2-year limited warranty on select appliances purchased through December 31, 2025 via the ThinQ® app. Terms apply.ᶲ

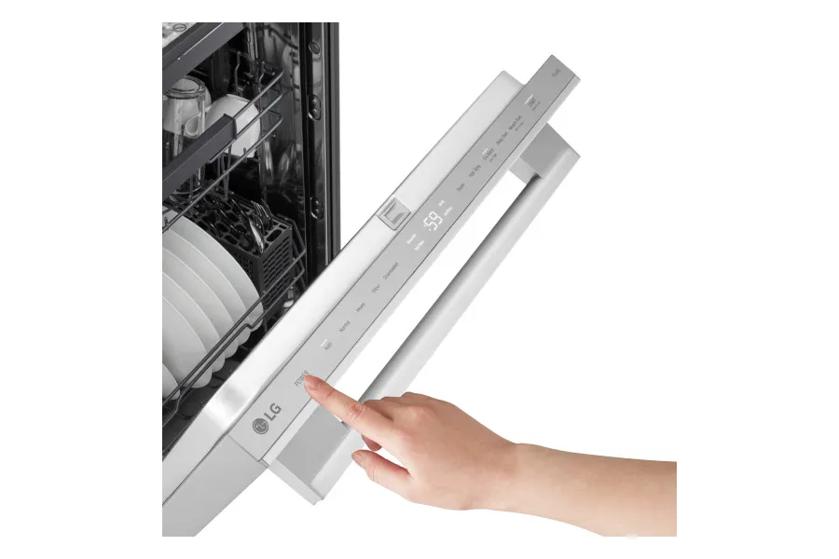

  • Sleek, FlushFit™ Design instantly upgrades your kitchen aesthetic
  • Our leading 1-hour wash and dry cycle gives you sparkling, table-ready dishes in less time

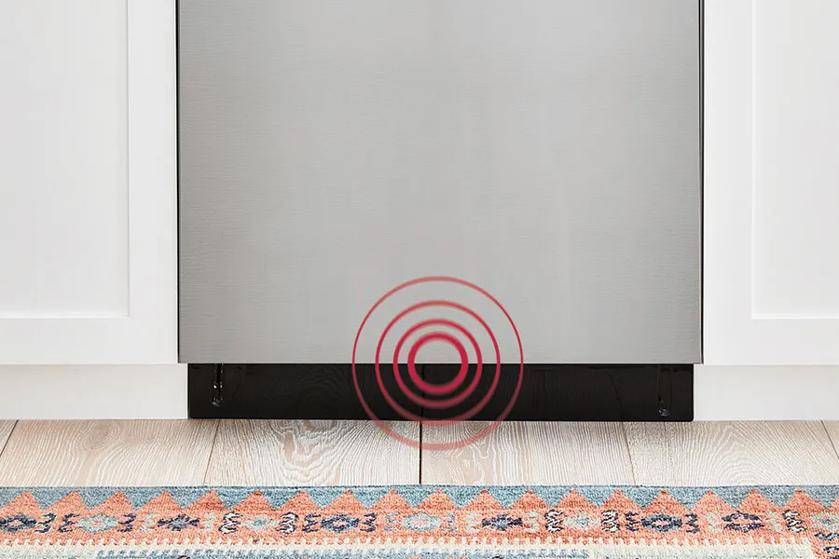

  • Built in leak detection for peace of mind
  • High-pressure jets with 38% more cleaning power, as compared to our standard QuadWash®
  • Dynamic Heat Dry™ with AutoVent Dry™ delivers a faster, more complete drying experience¹
  • Floor status indicator lets you know when your cyle is complete

Specifications

download-guide iconDownload Energy Guide
  • Capacity
  • Dimensions/Clearances/Weight
  • Features
  • Limited Warranty
  • Power Ratings
  • Racks and Baskets
  • Style and Design
  • Dishwasher ThinQ® Smart Features
  • See All
  • Capacity
    Lower Rack Dish Height Limit
    12.5"
    Total Place Settings
    16
    Upper Rack Dish Height Limit
    7.1"
    Capacity
    Lower Rack Dish Height Limit
    12.5"
    Total Place Settings
    16
    Upper Rack Dish Height Limit
    7.1"
    Dimensions/Clearances/Weight
    Carton Dimensions (in) (W x H x D)
    28 1/32" x 29 1/4" x 34 7/8"
    Clearances (WxHxD)
    24" x 24" x 33 5/8"
    Depth with Door Closed with Handle (in)
    23.75"
    Depth with Door Open (in)
    48.5"
    Product Dimensions (in) (W x H x D)
    23 3/4" x 33 5/8"x 26 1/8"
    Product Weight (lbs)
    86 lbs
    Features
    QuadWash® Pro
    Yes
    ADA Compliant
    No
    Anti-Bacterial Treatment (Drain hose)
    Yes
    Balanced Door
    Yes
    Detergent and Rinse-Aid Dispenser
    Yes
    Drying System
    Dynamic Heat Dry with AOD
    End of Cycle Indicator
    Yes (Beeper + END indication on display)
    Hidden Water Heater
    Yes
    LoDecibel™ Quiet Operation
    46 dBA
    Number of Options
    6 (Steam, High Temp, Dry Boost, AOD, Delay Start - Up to 12hrs, Remote)
    Number of Spray Arms
    3 (Top, Upper, Lower)
    Number of Wash Cycles
    5 (Auto, Heavy, Normal, 1-hour, Download Cycle)
    Safety Float Switch (Leaks)
    Yes
    SenseClean™ Wash System
    Yes
    Soil (Turbidity) Sensor
    Yes
    Tub Insulation (Damping Sheet, Sound Absorbing Material (felt), Base)
    Yes
    Vario Wash
    Yes
    Limited Warranty
    Control Board and Rack Parts
    Control Board and Rack Parts 2 Years Stainless Tub and Door Liner 2 Years
    Direct Drive Motor
    10 Years
    Labor
    1 Year
    Parts
    1 Year
    UPC
    048231348225
    Power Ratings
    ENERGY STAR® Qualified
    Yes
    Energy Use (kWh/Year)
    220 kWh/Year
    Racks and Baskets
    BPA-Free Nylon Coated Racks and Tines
    Yes
    Cutlery Baskets
    Yes
    Fold Down Tines
    Upper: Half Foldable Lower: Half Normal FD & Half Fixed
    Rack Handle
    Yes
    Style and Design
    All Available Colors
    Print Proof Stainless Steel, Black Stainless Steel
    Control Panel Location
    Top Control
    Handle
    Bar Handle
    Tub Material
    Stainless Steel

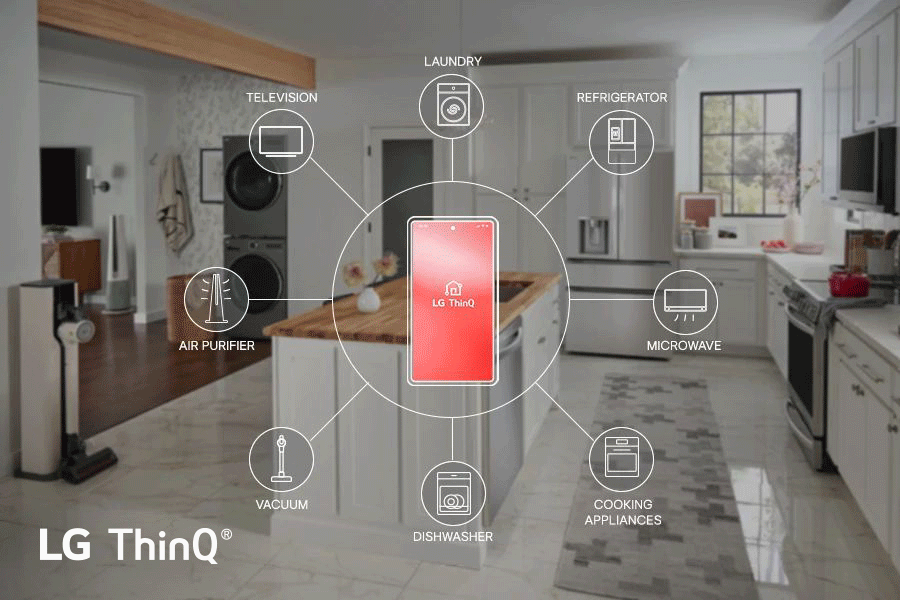

    Dishwasher ThinQ® Smart Features
    ThinQ Care™
    Yes
    SmartDiagnosis™
    Yes
    wi-fi Enabled
    Yes
    Features

    LG's exclusive QuadWash® Pro and Dynamic Heat Dry™ technologies combine to deliver our leading 1-hour wash and dry cycle for sparkling, table-ready dishes in less time. So you can spend more time on what matters.

    Tackle post-dinner cleanup like a pro with the enhanced cleaning power of QuadWash® Pro. High-pressure jets with 38% more cleaning power2, spray dishes from multiple angles, while soaking them with over one million microbubbles to help break down stubborn food residue and provide exceptional cleaning performance.

    Our Dynamic Heat Dry™ technology circulates hot air throughout the dishwasher for faster, more complete drying1. AutoVent™ Dry further adds to drying performance and energy efficiency by slightly opening the door at the end of the wash cycle to allow fresh air to circulate, delivering sparkling, table-ready dishes right off the rack.

    For owners

    Warranty Information

    1 As compared to LG dishwashers without Dynamic Heat Dry™ technology.

    2 As compared to our standard QuadWash®

    3 Available on select LG smart appliances with Wi-Fi enabled

    Purchases must be made between April 03, 2025 and December 31, 2025. Consumers must download the LG ThinQ® App and connect product to Wi-Fi to claim their promotional ThinQ® limited warranty. Redeem within 60 days of purchase. See terms at https://www.lgoffers.com


    Images may be simulated and dramatized for illustrative purposes. Actual features, functionality, and other product specifications may differ and are subject to change without notice. Prices, promotions, and availability may vary by model, store, and online. Prices subject to change without notice. Quantities are limited. Check with your local retailers for their final price and availability.
