Top Control Smart wi-fi Enabled Dishwasher with QuadWash™ and TrueSteam®
Top Control Smart wi-fi Enabled Dishwasher with QuadWash™ and TrueSteam®
Top Control Smart wi-fi Enabled Dishwasher with QuadWash™ and TrueSteam®
Top Control Smart wi-fi Enabled Dishwasher with QuadWash™ and TrueSteam®

Top Control Smart wi-fi Enabled Dishwasher with QuadWash™ and TrueSteam®

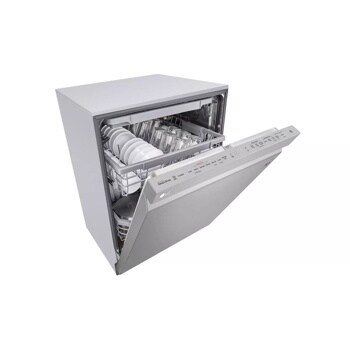

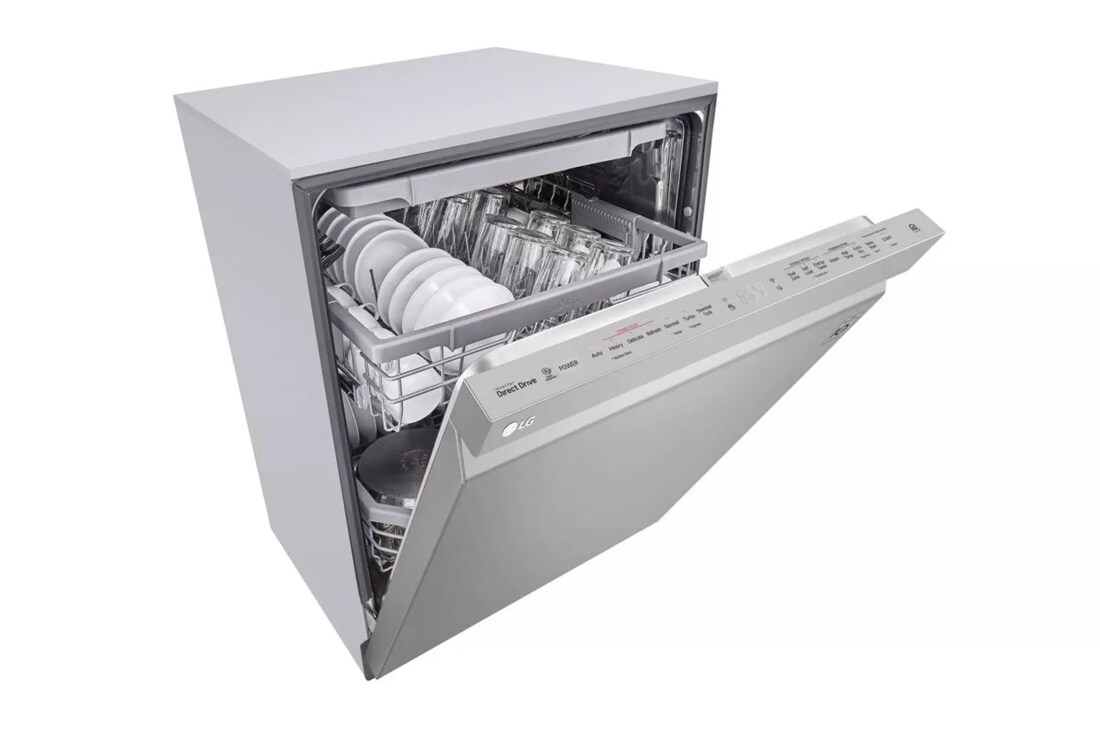

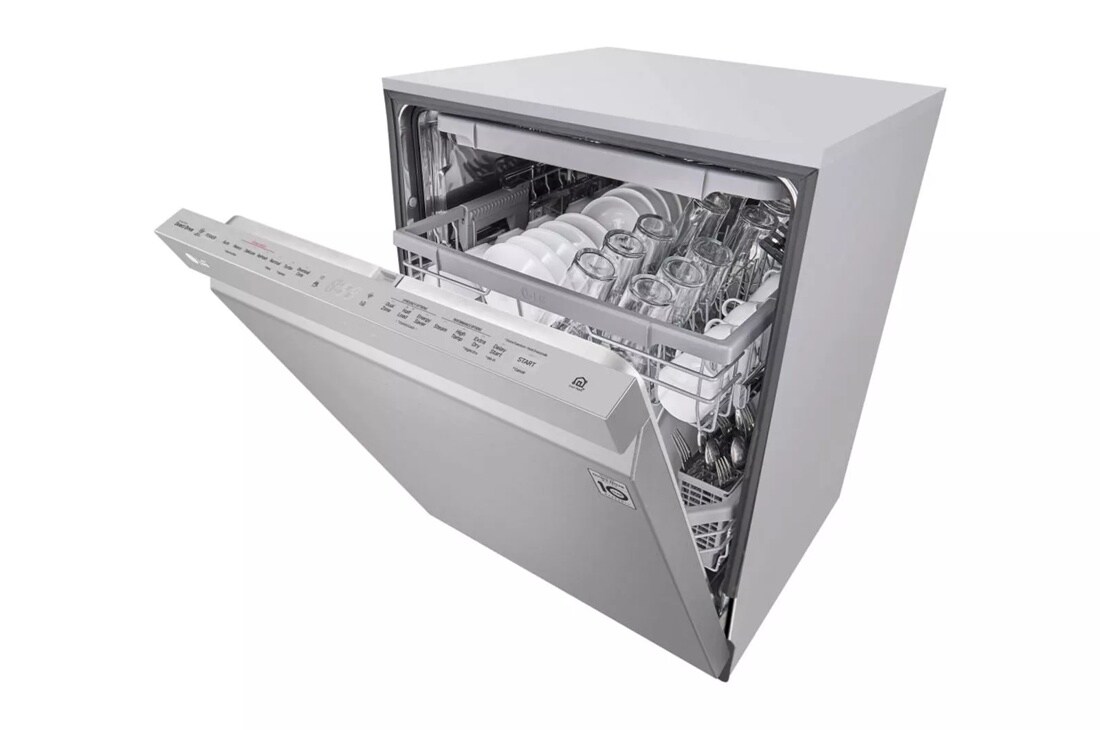

LDP6809SS

Key features

  • ThinQ Offer: Get an extra 1-year limited warranty (up to $185 value) through 12/31/25. Terms applyᶲ
  • With four spray arms instead of just two, QuadWash® technology cleans dishes from multiple angles
  • TrueSteam®

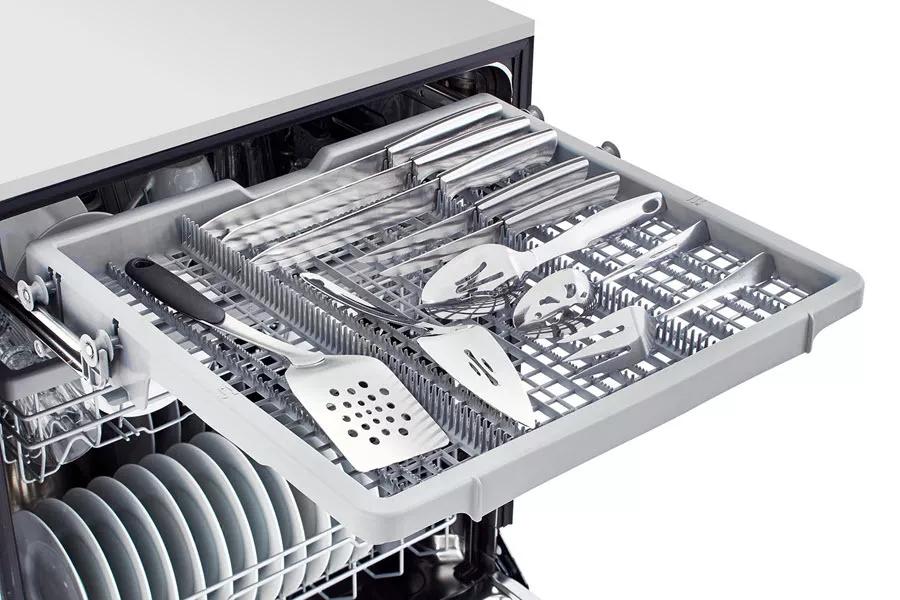

  • The 3rd rack is a convenient spot for hard-to-fit items
  • PrintProof™ Finish resists smudges and wipes clean with a damp cloth
  • LoDecibel™ Operation (44dB) is so quiet, you can use your indoor voice

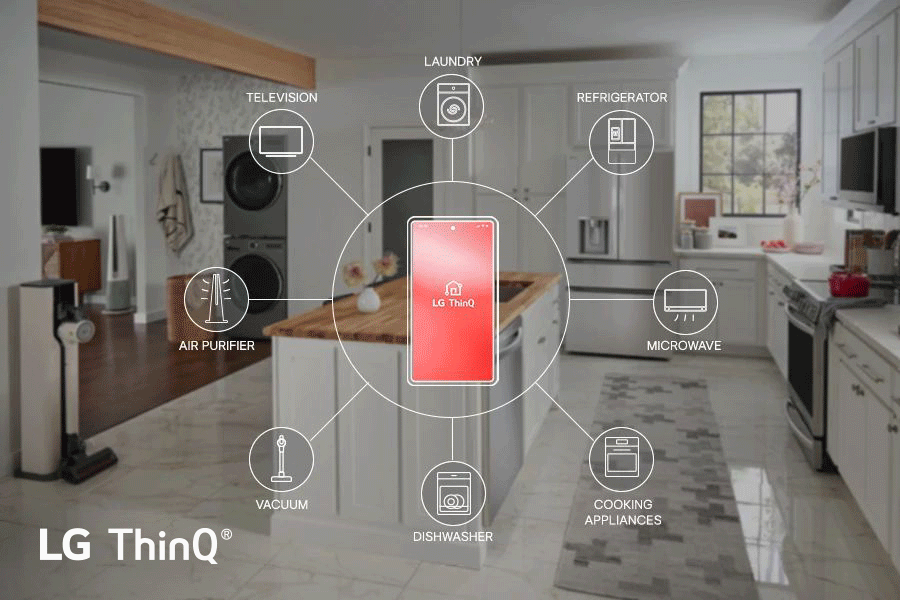

  • The ThinQ® app offers control & convenience to help you simplify life and enjoy the comforts of home

Specifications

Download Spec Sheetdownload-guide iconDownload Energy Guide
  • Capacity
  • Certifications
  • Dimensions/Clearances/Weight
  • Features
  • Limited Warranty
  • Power Ratings
  • Racks and Baskets
  • Style and Design
  • Summary
  • Dishwasher ThinQ® Smart Features
  • See All
  • Capacity
    Lower Rack Dish Height Limit
    12.5"
    Total Place Settings
    15
    Upper Rack Dish Height Limit
    9"
    Capacity
    Lower Rack Dish Height Limit
    12.5"
    Total Place Settings
    15
    Upper Rack Dish Height Limit
    9"
    Certifications
    NSF
    No
    Dimensions/Clearances/Weight
    Carton Dimensions (in) (W x H x D)
    28" x 34 7/10" x 29 3/5"
    Depth with Door Closed with Handle (in)
    24.6"
    Depth with Door Open (in)
    50.5"
    Product Dimensions (in) (W x H x D)
    23 3/4" x 33 3/5" x 24 3/5"
    Product Weight (lbs)
    84.7 lbs
    Shipping Weight with Carton (lbs)
    96.8 lbs
    Features
    Hidden Count Down Timer
    No
    Heated Dry Option
    No
    3-Stage Filtration System
    Yes
    ADA Compliant
    No
    Detergent and Rinse-Aid Dispenser
    Yes
    Drying System
    Dynamic Dry™
    End of Cycle Indicator
    Beeper + END Indication on Display
    Hidden Water Heater
    Yes
    Hybrid Condensing Drying System
    Yes
    Inverter Direct Drive Motor
    Yes
    LoDecibel™ Quiet Operation
    44 dBA
    Multi-Level (5) Water Direction
    No
    Number of Options
    9 (Dual Zone, Half Load, Energy Saver, Steam, High Temp, Extra Dry, Delay Start, Control Lock, Night Dry)
    Number of Spray Arms
    3 (Top, Upper, Lower)
    Number of Wash Cycles
    10 (Auto, Heavy, Delicate, Refresh, Normal, Turbo, Download Cycle, Machine Clean, Rinse, Express)
    Leak Detection
    Yes
    QuadWash®
    Yes
    Rinse-Aid Indicator
    Yes
    Safety Float Switch (Leaks)
    Yes
    SenseClean™ Wash System
    Yes
    SignaLight™ Cycle Indicator Lights
    3
    Soil (Turbidity) Sensor
    Yes
    Time Remaining Indicator
    Yes
    TrueSteam®
    Yes
    Variable Spray Intensities
    Yes
    Vario Wash
    Yes
    Dynamic Heat Dry™
    No
    1-Hour Wash & Dry
    No
    Limited Warranty
    Control Board and Rack Parts
    2 Years
    Direct Drive Motor
    10 Years
    Labor
    1 Year
    Parts
    1 Year
    Stainless Steel Door Liner or Tub
    1 Year
    UPC
    048231341141
    Power Ratings
    CEE Tier
    1
    ENERGY STAR® Qualified
    Yes
    Energy Use (kWh/Year)
    258 kWh/Year
    Water Factor (WF)
    2.9
    Racks and Baskets
    3rd Rack (Fixed)
    Yes
    BPA-Free Nylon Coated Racks and Tines
    Yes
    Cup Rack
    Yes
    Cutlery Baskets
    Yes
    EasyRack™ Plus System
    Yes
    Fold Down Tines
    Yes (Half Fold on Upper & Half (Smart), Half (Normal) Fold on Lower)
    Glide Rail
    Yes
    Height Adjustable Middle Rack
    No
    Height Adjustable Upper Rack
    Yes
    Height-Adjustable 3rd Rack
    No
    Rack Handle
    Yes
    Stemware Holder
    Yes
    Wheel Bearing
    No
    Style and Design
    All Available Colors
    PrintProof™ Black Stainless Steel, PrintProof™ Stainless Steel
    Control Panel Location
    Top Control
    Electronic Controls
    Fully Integrated Control Panel
    Fingerprint Resistant
    Yes
    Handle
    Pocket
    LED Tub Light
    No
    PrintProof™ Finish
    Yes
    Tub Light
    No
    Tub Material
    NeveRust™ Stainless Steel
    Summary
    Series
    LG
    Dishwasher ThinQ® Smart Features
    Monitor Cycle Time
    No
    ThinQ Care™
    Yes
    NFC Tag On
    No
    Remote Control
    No
    Remote Monitoring
    No
    SmartDiagnosis™
    Yes
    SmartThinQ®
    Yes
    ThinQ® Smart Technology
    Yes
    wi-fi Enabled
    Yes
    Works with
    Amazon Alexa, Google Assistant
    ThinQ UP™
    No
    Features

    Clean, and Reduce Water Spots

    LG TrueSteam® saves the time and headache of prewashing or rewashing dishes by hand. A blast of steam at the start of the cycle penetrates and dissolves tough caked-on food but is gentle enough for your favorite wine glasses. A second blast during drying helps eliminate water spots by up to 60%—no more having to wipe spotty glasses before guests arrive.

    LG’s exclusive QuadWash™ technology gets dishes clean the first time. With four spray arms instead of just two, QuadWash™ uses Multi-Motion arms that rotate back and forth while spinning to power-clean dishes from multiple angles throughout the entire cycle.

    For owners

    Warranty Information

    Discover the Top Control Smart wi-fi Enabled Dishwasher with QuadWash™ and TrueSteam® (LDP6809SS).

    1LG TrueSteam Dishwashers certified by NSF achieve a minimum 99.999 percent reduction of bacteria when operated on the Steam cycle. Other LG dishwashers are NSF certified when operated on the High Temp Cycle.


    Purchases must be made between July 11, 2024 and December 31, 2025. Consumers must download the LG ThinQ™ App and connect product to Wi-Fi to claim their extended manufacturer's limited warranty. See terms at https://appliance.lg-promos.com/lg-ha/thinq724/en-US.


    Images may be simulated and dramatized for illustrative purposes. Actual features, functionality, and other product specifications may differ and are subject to change without notice. Prices, promotions, and availability may vary by model, store, and online. Prices subject to change without notice. Quantities are limited. Check with your local retailers for their final price and availability.
