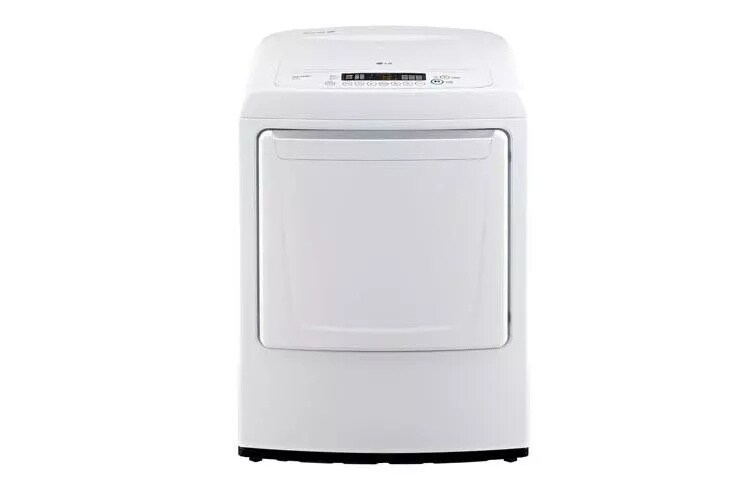

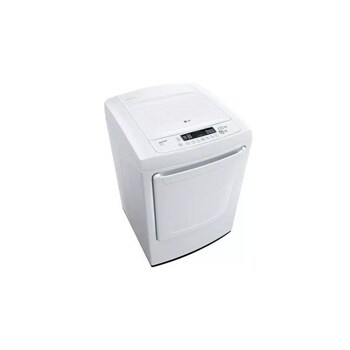

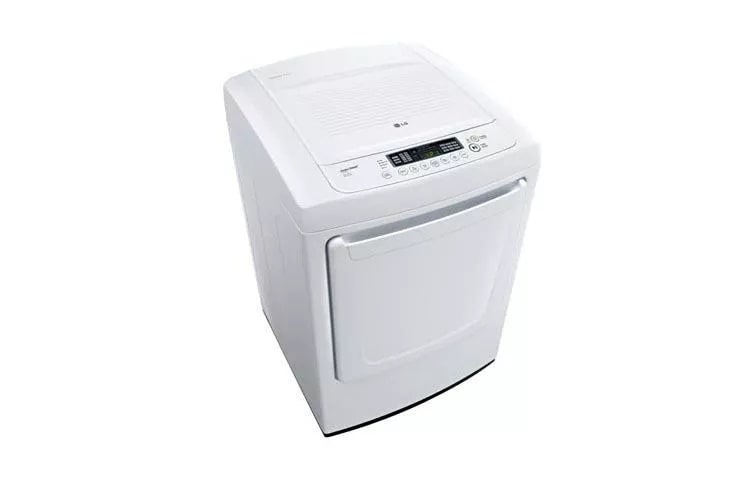

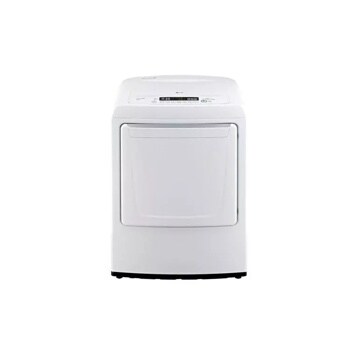

DLE1001W
7.3 cu. ft. Ultra Large Capacity Top Load Dryer with Distinct and Modern Front Control Design (Electric)
  • 7.3 cu. ft. Ultra Large Capacity
  • SmartDiagnosis™
  • Easy Front Control Panel with LED Display
  • FlowSense™ Duct Clogging Indicator
7.3 cu. ft. Ultra Large Capacity Top Load Dryer with Distinct and Modern Front Control Design (Electric)

SUMMARY

  • Dryer Type
    Electric

CAPACITY

  • Capacity
    7.3 cu. ft.

APPEARANCE

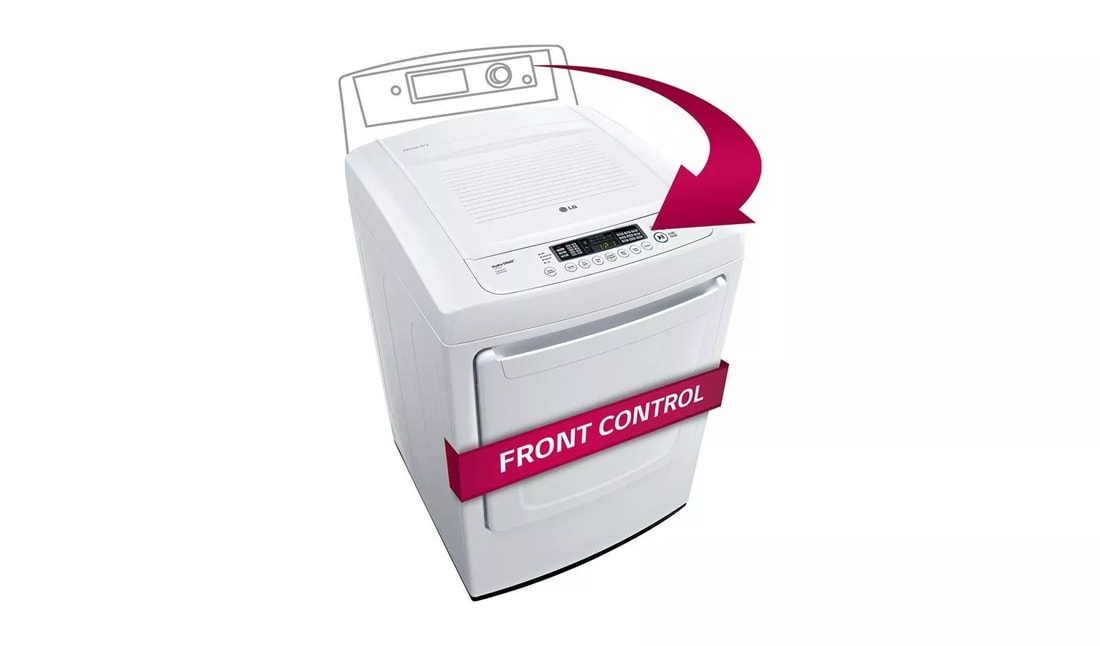

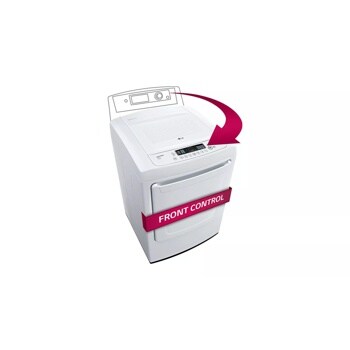

  • Design Look
    Front Control

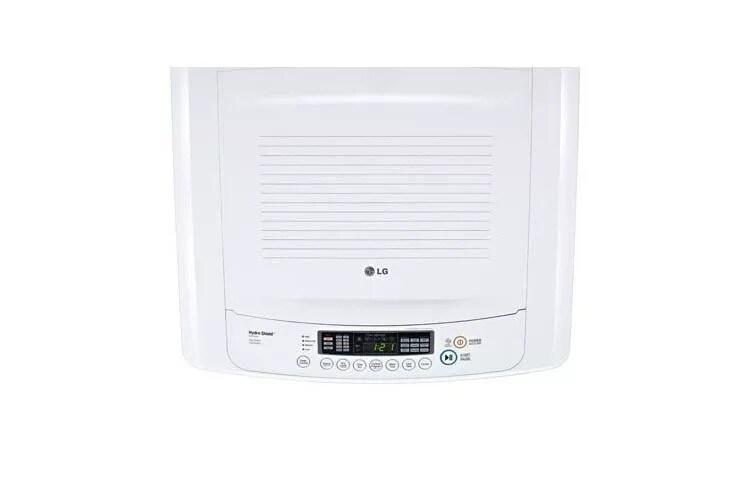

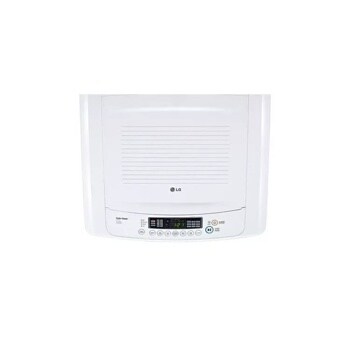

    Front Electronic Control Panel with LED Display
    Yes

DRYING PROGRAMS

  • No. of Programs
    9
    Programs (Sensor Dry)
    Cotton/Normal, Perm. Press/Casual, Heavy Duty, Delicates, Small Load, Towels
  • Programs (Manual Dry)
    Freshen Up, Speed Dry, Air Dry
    No. of Options
    7
  • Options
    More Time, Less Time, Wrinkle Care, Custom Program, Child Lock, Damp Dry Signal, End of Cycle Signal
    Temperature Settings
    High, Medium High, Medium, Low
  • Drying Levels
    Very Dry, More Dry, Normal Dry, Less Dry, Damp Dry
    Manual Dry Times
    60 min., 50 min., 40 min., 30 min., 20 min., More Time/Less Time

FABRIC CARE FEATURES

  • Sensor Dry
    Yes
    Precise Temperature Control with Variable Heater
    Yes

CONVENIENCE FEATURES

  • LoDecibel™ Quiet Operation
    Yes
    SmartDiagnosis™
    Yes
  • FlowSense™ Duct Clogging Indicator
    Yes
    Wrinkle Care Option
    Yes
  • Remaining Time Display/Status Indicator(s)
    Yes
    End of Cycle Signal
    Yes
  • Child Lock
    Yes
    Drum Light
    Yes
  • Reversible Door
    Yes
    Leveling Legs
    4 Adjustable Legs
  • Venting Option
    4 Way Venting
    3 Minute Installation Check
    Yes

MATERIALS AND FINISHES

  • Aluminized Alloy Steel Drum
    Yes
    Cabinet
    Painted Steel
  • Control Panel
    Plastic
    Top Cover
    Plastic
  • Body-Matching Solid Door
    Yes
    Available Colors
    White (W)

POWER SOURCE

  • Ratings
    CSA Listed
    Electrical Requirements
    240V, 30 Amps
  • Type
    Electric

OPTIONS

  • Dryer Rack
    3750EL0001C
    LP Conversion Kit
    4948EL4002B
  • Side Venting Kit
    3911EZ9131X

DIMENSIONS

  • Product (WxHxD)
    27" x 40 5/32" x 28 3/8" (50 1/4" D with door open)
    Carton (WxHxD)
    29 1/2" x 43 7/10" x 31 1/4"
  • Weight (Product/Carton)
    121.7 lbs. / 139.6 lbs.

Warranty/UPC

  • Limited Warranty
    1 Year Parts and Labor
    UPC
    048231013949
What people are saying
Rated 3 out of 5 by from My LG hydroshield dryer is not drying My dryer is not drying does not throw hot air it keeps blinking about checking the filter I have done it plenty of times does not want to dry it throws cold air I don't know what to do can someone help me
Date published: 2018-11-15
Rated 5 out of 5 by from Great Features I love that there is a drying sensor, and timing adjust to the dryness of the clothes. Saves time and energy on drying a load of clothes.
Date published: 2018-07-13
Rated 4 out of 5 by from Great Choice for Large Capacity Washer I bought this washer several weeks ago replacing an over and under single units washer and dryer system. I chose the 5.0 cubic ft washer because I wanted a larger capacity top load model capable of dealing with bukier items. This one works like a charm.
Date published: 2018-07-05
  • y_2019, m_7, d_17, h_9
  • bvseo_bulk, prod_bvrr, vn_bulk_2.0.12
  • cp_1, bvpage1
  • co_hasreviews, tv_6, tr_172
  • loc_en_US, sid_MD05065788, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_lg
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getReviews, 5ms
  • REVIEWS, PRODUCT
ASK & ANSWER

Ask your questions. Share your answers.
Please review the detailed product information and help guides in the
Product Support section for this product prior to posting a question.

How do I change the temperature control?

Asked by: Odaliz
For dryer operation instructions, please refer to the units owner's manual https://www.lg.com/us/support-product/lg-DLE1001W Not all cycles are able to have the temperature adjusted. If you need assistance, do not hesitate to connect with us directly via Twitter @LGUSSupport or Facebook https://www.facebook.com/LGUSA/ or you can give us a call at 800-243-0000. ^CP
Answered by: ChrisPSM
Date published: 2019-04-08

How do you turn off fluff cycle? My dryer finished during turns off but still tumbles with no heat. I think it is stuck in fluff

Asked by: Jenn72
Simply press the wrinkle care button to turn on or off the option to tumble the load periodically for up to 3 hours after the selected cycle, or until the door is opened. ^AC
Answered by: amber
Date published: 2018-01-15

Our dryer Model # DLE1001W will not turn on. Period.

Asked by: Sweet Richi
Hello Sweet Richi, please give us a call at 1-800-243-0000 so that we can walk through some troubleshooting steps while you are with the unit or set up service. ^AC
Answered by: amber
Date published: 2018-01-08

What does PS mean on the panel of the dryer

Asked by: Bonebone bone
We appreciate your interest in this dryer. The PS code means Electric dryer power cord is not connected correctly, or house power supply is incorrect. Check the power supply or the connection of power cord to the terminal block. Refer to the Connecting electric dryers section of this manual for complete instructions. If your require further assistance, please contact our Customer Interactive Center at 800-243-0000.
Answered by: NeilE
Date published: 2017-09-13

After several months of a burning smell during a dry cycle, it's now not receiving power. Interior light will not turn on. Any suggestions?

Asked by: DreamMessenger
We regret the trouble you have experienced with this dryer. If the unit is not operational, then it will likely require service. To make service arrangements, you may either contact our Customer Interactive Center at 800-243-0000, or you can check our Repair Provider Lookup on our website, at http://www.lg.com/us/support/repair/support-repair-provider-lookup.jsp.
Answered by: NeilE
Date published: 2017-09-05

Where is the wifi button to sync it to my app

Asked by: 71269
We appreciate your interest in this electric dryer. This model does not have a WiFi button available. The closest option available for this product would be the SMART DIAGNOSIS button. Information on this setup is found on page 38 of your owner’s manual.
Answered by: NeilE
Date published: 2017-06-29

Woke up in middle on night and dryer would not turn off?

Asked by: Donna Patt
We regret the trouble you have experienced with this electric dryer. It is suggested that the circuit breaker, to which this dryer is connected, be deactivated and left for about 45 seconds to a minute, before testing it again. If this does not resolve the matter, then the unit may require service. To make service arrangements, you may either contact our Customer Interactive Center at 800-243-0000, or you can check our Repair Provider Lookup on our website, at http://www.lg.com/us/support/repair/support-repair-provider-lookup.jsp.
Answered by: NeilE
Date published: 2017-04-14

How do I remove the cool icon on the dryer to get heat

Asked by: Diana m
We regret the trouble you have experienced with this electric dryer. It is not normal for the COOLING light to stay on constantly. Check the filter and the exhaust duct to make sure all air flow is unobstructed. Otherwise, the machine will require service. To make service arrangements, you may either contact our Customer Interactive Center at 800-243-0000, or you can check our Repair Provider Lookup on our website, at http://www.lg.com/us/support/repair/support-repair-provider-lookup.jsp.
Answered by: NeilE
Date published: 2017-03-16
