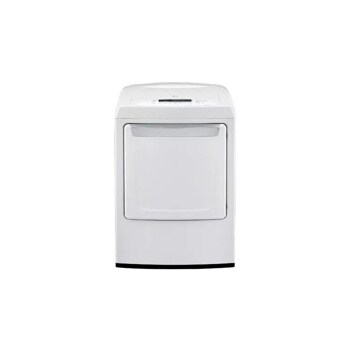

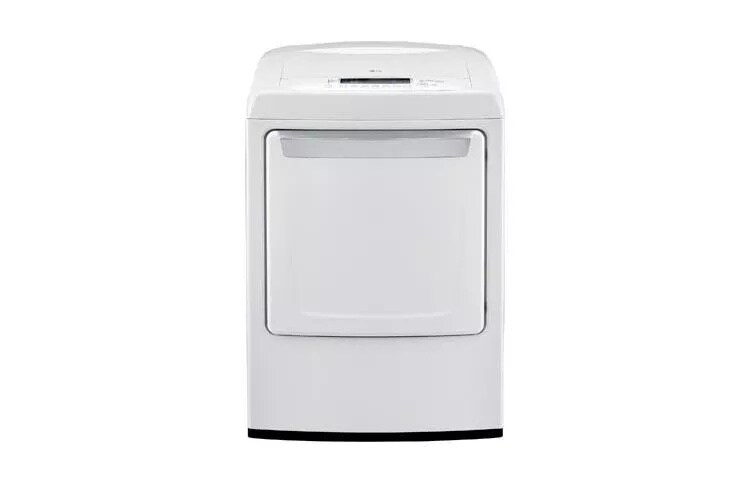

7.3 cu. ft. Ultra Large Capacity Dryer with Sleek Contemporary Design (Electric)

  • DLE1101W

  • White

Key Features

  • 7.3 cu. ft. Ultra Large Capacity
  • SmartDiagnosis™

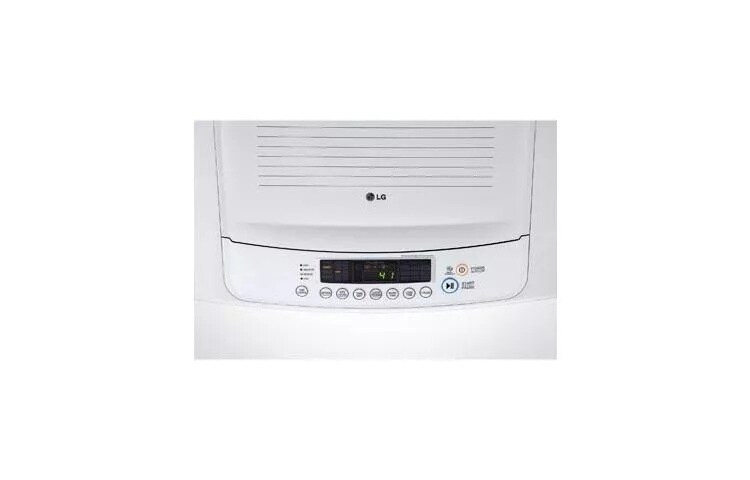

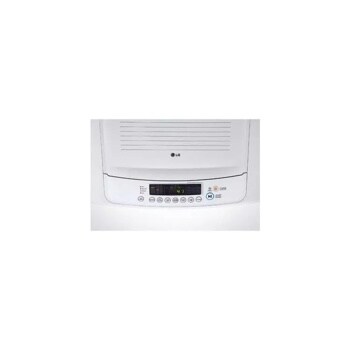

  • Easy Front Control Panel with LED Display
  • FlowSense™ Duct Clogging Indicator
Big time saver

Big time saver

Do laundry a little less often. With 7.3 cubic feet of capacity, this dryer handles really large loads. Saving you time and energy.

Get wise

Get wise

If you ever experience an issue with your LG dryer, you don't have to worry. The SmartDiagnosis™ feature helps the service center diagnose problems over the phone, or with a simple app on your smart phone, helping you minimize costly, inconvenient service calls.

A revolutionary spin on laundry.

A revolutionary spin on laundry.

LG puts a modern design spin on the traditional top load laundry pair. By moving the control panel from the back to the front, the buttons and LED display are easier to read and use. This simple change makes for a more intuitive and functional design and a look that is unlike anything you’ve ever seen.

Keep it quiet

Keep it quiet

There’s no need for laundry to be noisy. Thanks to LG's LoDecibel™ operation, chances are you may not even notice it.

CAPACITY
Capacity 7.3 cu. ft.
APPEARANCE

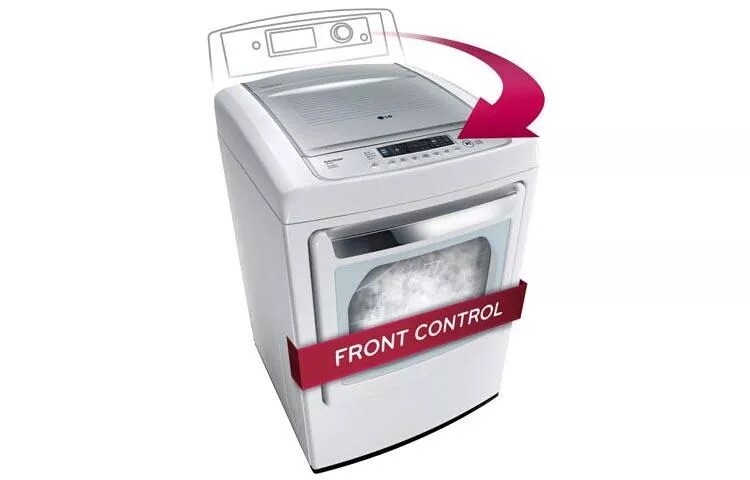

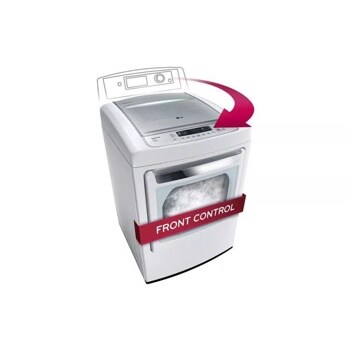

Design Look Front Control
Front Electronic Control Panel with LED Display Yes
DRYING PROGRAMS
No. of Programs 9
Programs (Sensor Dry) Cotton/Normal, Perm. Press/Casual, Heavy Duty, Delicates, Small Load, Towels
Programs (Manual Dry) Freshen Up, Speed Dry, Air Dry, Rack Dry
No. of Options 7
Options More Time, Less Time, Wrinkle Care, Custom Program, Child Lock, Damp Dry Signal, End of Cycle Signal
Temperature Settings High, Medium High, Medium, Low, Ultra Low
Drying Levels Very Dry, More Dry, Normal Dry, Less Dry, Damp Dry
Manual Dry Times 60 min., 50 min., 40 min., 30 min., 20 min., More Time/Less Time
FABRIC CARE FEATURES
Sensor Dry Yes
Precise Temperature Control with Variable Heater Yes
CONVENIENCE FEATURES
LoDecibel™ Quiet Operation Yes
SmartDiagnosis™ Yes
FlowSense™ Duct Clogging Indicator Yes
Wrinkle Care Option Yes
Remaining Time Display/Status Indicator(s) Yes
End of Cycle Signal Yes
Child Lock Yes
3 Minute Installation Check Yes
Drum Light Yes

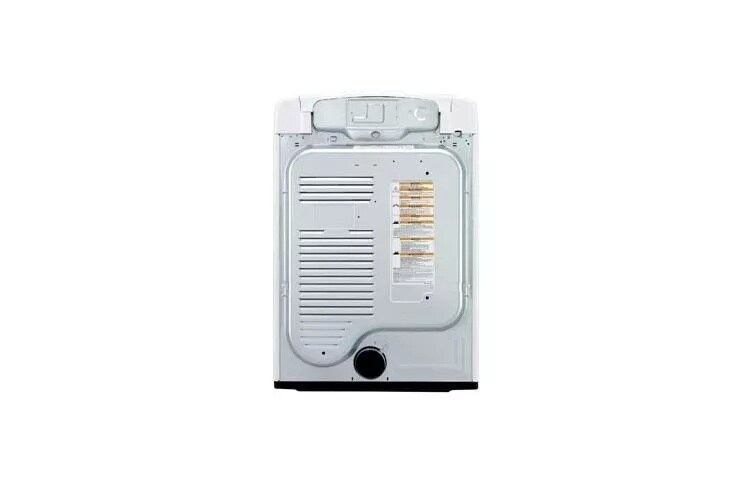

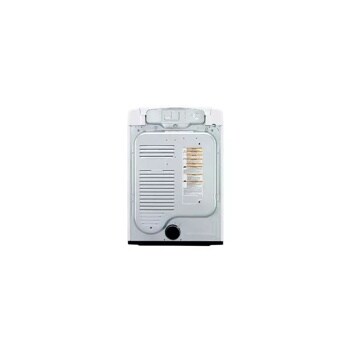

Venting Option 4 Way Venting
Leveling Legs 4 Adjustable Legs
Reversible Door Yes
MATERIALS AND FINISHES
Aluminized Alloy Steel Drum Yes
Top Plate Plastic
Body-Matching Solid Door Yes
Cabinet Painted Steel
Control Panel Plastic
Available Colors White
POWER SOURCE
Ratings CSA Listed
Electrical Requirements 240V, 30 Amps
Type Electric
OPTIONS
LP Conversion Kit 4948EL4002B
Side Venting Kit 3911EZ9131X
DIMENSIONS
Product (WxHxD) 27" x 40 5/32" x 28 3/8" (50 1/4" D with door open)
Carton (WxHxD) 29 1/2" x 43 7/10" x 31 1/4"
Weight (Product/Carton) 121.7 lbs. / 139.6 lbs.
WARRANTY/UPC
Limited Warranty 1 Year Parts and Labor
UPC 048231 013246

What People Are Saying

Rated 4.9 out of 5 by 496 reviewers.
Rated 5 out of 5 by Great Dryer Really like the dryer, it has excellent features and clothes come out wrinkle-free. Only thing I would change is to have a volume control as our dryer is in another room so when it goes off we don't usually hear it. August 25, 2015
Rated 5 out of 5 by Solid performance This machine has operated effectively since the day it was first used. Its features enable adjusting settings to match the size and sort of load. Its large capacity permits loads of many sizes. It has been easy to use and still makes washing clothes almost enjoyable. August 23, 2015
Rated 3 out of 5 by poor signal The signal isn't loud enough. Also, and very importantly to me, the signal doesn't work when using the wrinkle care feature. It eventually will work when the entire cycle is over, but that's three hours. Other dryers give the signal and then begins the wrinkle care if I can't get to the clothes in time. August 20, 2015
Rated 5 out of 5 Fast dry times I have had this dryer for over 1 month and I love it. Dry times are fast and the amount of clothes that can be loaded is very large. I would recommend this dryer to any one! August 19, 2015
Rated 5 out of 5 by Exactly what I wanted LG has done a great job in creating this dryer, the capacity is great. The only concern I have is when drying high lint items (towels) the filter becomes overloaded. I would feel more comfortable if the vent was larger. I love all the different settings. August 16, 2015
Rated 5 out of 5 by Excellent Product Purchased the washer/dryer set and find them to be very reliable. Looking forward to long and useful service. August 14, 2015
Rated 5 out of 5 by This product is really what i wanted. My LG washer and dryer both really have great features, and it is really big and wide i like all the cycles you can use especially the special cycles. Its the first time I have had an LG appliance, I also have an LG tablet that I like and everything was really easy to learn. So far so good. August 11, 2015
Rated 5 out of 5 by This dryer has AWESOME features ! LOVE IT! Our new dryer is GREAT!! I have never owned such a nice one!! I LOVE doing laundry and this machine has it ALL!! THANK-YOU LG!! August 10, 2015
  • 2015-08-27T13:35:36.357-05:00
  • bvseo_lps, prod_bvrr, vn_prr_5.6
  • cp-1, bvpage1
  • co_hasreviews, tv_496, tr_496
  • loc_en_US, sid_MD05015940, prod, sort_default
2 3 4 5 ... 17 Next>>

We're here to support you with our product.

Contact us for any purchasing inquiries.

Product Support

ASK & ANSWER

Ask your questions. Share your answers.

42 Questions & 68 Answers

Ask Your Questions, Share Your Answers

Ask your questions. Share your answers.



« Back


I am confused about the way the door opens. it looks like it would pull down to open, but there is a picture of the door opening to the right and the description says it is reversible? Can anyone please explain? Thanks much =0
Category: I do not own this product
Interested in: Specifications
2 years, 5 months ago
User Name:
Iwantitnow

Please wait while more information about Iwantitnow is loaded.
Additional information about Iwantitnow could not be loaded.
0points
0out of 0found this question helpful.
HelpfulNot Helpful

Answers

Answer:
The door is made to open from the left or right, and is reversible by the consumer.
Gender: male
5 months, 1 week ago
User Name:
holg8
Ohio

Please wait while more information about holg8 is loaded.
Additional information about holg8 could not be loaded.
0points
0out of 0found this answer helpful.
HelpfulNot Helpful

Answer:
You can open it to the right or switch it and open it to the left...depending which side your washer is on to make it easier to transfer clothes. It doesn't not fold down..just left or right.
Gender: female
2 years, 2 months ago
User Name:
smae84
Greenville, SC

Please wait while more information about smae84 is loaded.
Additional information about smae84 could not be loaded.
0points
0out of 0found this answer helpful.
HelpfulNot Helpful

Answer:
During installion you can decide what direction is best for your door to open. I bet you can move the hinges on the door to either side as it suits your needs.
2 years, 3 months ago
User Name:
raptr

Please wait while more information about raptr is loaded.
Additional information about raptr could not be loaded.
0points
0out of 0found this answer helpful.
HelpfulNot Helpful

Answer:
I purchased this dryer 6 weeks ago and I also tried to open it by pulling it down the first couple of times. It is a little deceiving but mine does open to the right and if you want to you can reverse it to open to the left. It really is a great dryer!
Gender: female
2 years, 5 months ago
User Name:
sienabell3
Aragon, GA, USA

Please wait while more information about sienabell3 is loaded.
Additional information about sienabell3 could not be loaded.
+3points
3out of 3found this answer helpful.
HelpfulNot Helpful

Answer:
Yes, it does open to the side... and reversible means that you can change the hinges - so if needed, the door can open to the other side :)
2 years, 5 months ago
User Name:
Nadine

Please wait while more information about Nadine is loaded.
Additional information about Nadine could not be loaded.
+2points
2out of 2found this answer helpful.
HelpfulNot Helpful
Category: I own this product
Interested in: How To use
2 years, 5 months ago
User Name:
pawzcat
Texas, USA

Please wait while more information about pawzcat is loaded.
Additional information about pawzcat could not be loaded.
+1point
1out of 1found this question helpful.
HelpfulNot Helpful

Answers

Answer:
I use them and have not had any issues.
Gender: female
2 years, 3 months ago
User Name:
lmilne
Rowlett, TX

Please wait while more information about lmilne is loaded.
Additional information about lmilne could not be loaded.
0points
0out of 0found this answer helpful.
HelpfulNot Helpful

Answer:
I have friend does repair he does recommend using them do they coat duct work and other area with residue. That can cause lint to catch on the residue this is main reason of dryer fires.
Gender: male
2 years, 5 months ago
User Name:
justmax
Fairview Heights, IL, USA

Please wait while more information about justmax is loaded.
Additional information about justmax could not be loaded.
0points
1out of 2found this answer helpful.
HelpfulNot Helpful

Answer:
The Sales Representative was correct. We do not recommend the use of dryer sheets in our washing machines as the fibers being pulled off the sheets can form a layer on the moisture sensors and not allow proper operation of the unit. If fabric softener is needed, we recommend using a liquid fabric softener in the appropriate compartment in the LG washing machine.
2 years, 5 months ago
User Name:
NeilE

Please wait while more information about NeilE is loaded.
Additional information about NeilE could not be loaded.
+2points
3out of 4found this answer helpful.
HelpfulNot Helpful
Has staff answer
Has expert answer

3 answers

Where is the lint filter on DLE1101W dryer

Category: I do not own this product
2 years, 2 months ago
User Name:
Margy

Please wait while more information about Margy is loaded.
Additional information about Margy could not be loaded.
0points
0out of 0found this question helpful.
HelpfulNot Helpful

Answers

Answer:
It is a front loading lint filter... inside the the dryer.. just in front of the door. It has a nice size filter screen as compared to my old dryer.
1 year, 5 months ago
User Name:
tlp54
Vancouver, WA, USA

Please wait while more information about tlp54 is loaded.
Additional information about tlp54 could not be loaded.
0points
0out of 0found this answer helpful.
HelpfulNot Helpful

Answer:
Right inside the door, at the bottom of the opening.
Gender: male
2 years, 2 months ago
User Name:
mar1701
Grove City, OH, USA

Please wait while more information about mar1701 is loaded.
Additional information about mar1701 could not be loaded.
0points
0out of 0found this answer helpful.
HelpfulNot Helpful

Answer:
We appreciate your interest in this electric dryer. The Lint Filter Screen is located just inside the door opening, along the lower edge of the door frame.
2 years, 2 months ago
User Name:
NeilE

Please wait while more information about NeilE is loaded.
Additional information about NeilE could not be loaded.
0points
0out of 0found this answer helpful.
HelpfulNot Helpful
I need to see installation diagrams for dryer DLE1101W, especially for side and bottom alternatives for vent. There is no information on your website and the manual and instructions are not listed in the "manuals" section. I would also like to know recommended clearances for space between washer + dryer. Thank you for your help.
Category: I do not own this product
Interested in: Specifications
2 years ago
User Name:
ApplianceEmpress
06831

Please wait while more information about ApplianceEmpress is loaded.
Additional information about ApplianceEmpress could not be loaded.
0points
0out of 0found this question helpful.
HelpfulNot Helpful

Answers

Answer:
I used a periscope style vent from the dryer's center bottom outlet to my house vent line off to the end of the dryer. It required about 2.5 inches of space to the rear of the dryer. Air flow is very good with this arrangement.

On the washer side of the dryer I have a half inch of clearance between them - no problems.
Gender: male
1 year, 3 months ago
User Name:
99Red
TX

Please wait while more information about 99Red is loaded.
Additional information about 99Red could not be loaded.
0points
0out of 0found this answer helpful.
HelpfulNot Helpful

Answer:
I have very little space between washer and dryer. They seem very solid and don't move at all when in operation, It appears that there is an area for a side vent, but I use the back vent. Do not see anything for a bottom vent.
Gender: female
2 years ago
User Name:
Hygienistinny
Churchville, NY

Please wait while more information about Hygienistinny is loaded.
Additional information about Hygienistinny could not be loaded.
0points
0out of 0found this answer helpful.
HelpfulNot Helpful

Answer:
The manual can be downloaded here:
http://www.lg.com/us/support-product/lg-DLE1101W
I checked the PDF for this model is available.

Page16 explains bottom/side venting. If you need further details than the manual is giving you, please contact LG Customer Service at (800) 243-0000 or visit the LG LiveChat Team at www.lg.com/us/support/message-customer-support for assistance.
2 years ago
User Name:
Nadine

Please wait while more information about Nadine is loaded.
Additional information about Nadine could not be loaded.
+1point
1out of 1found this answer helpful.
HelpfulNot Helpful
I'm not satisfied with the answer given to an earlier post regarding a pedestal for the DLE1101W.

LG states in the manual that if the dryer is installed in a garage, it should be placed on a pedestal 18" off the floor. Why would LG state that and not provide access to a pedestal?

While not 18", the WDP4W would appear to be the correct dimensions to fit the DLE1101W dryer.

Will the WDP4W work with this dryer? If not, what is the correct pedestal?
Category: I own this product
3 months, 4 weeks ago
User Name:
BC93LG

Please wait while more information about BC93LG is loaded.
Additional information about BC93LG could not be loaded.
0points
0out of 0found this question helpful.
HelpfulNot Helpful

Answers

Answer:
I forgot to add that the security clips that are supposed to be mounted to the bottom of the dryer and then screwed into pedestal mounts for added security have no mounting points on the underside of the DLE1101W.
3 months, 2 weeks ago
User Name:
BC93LG

Please wait while more information about BC93LG is loaded.
Additional information about BC93LG could not be loaded.
0points
0out of 0found this answer helpful.
HelpfulNot Helpful

Answer:
Well, I purchased the WDP4W and the dryer's front feet do not line up with front mounts on the pedestal.
3 months, 2 weeks ago
User Name:
BC93LG

Please wait while more information about BC93LG is loaded.
Additional information about BC93LG could not be loaded.
0points
0out of 0found this answer helpful.
HelpfulNot Helpful

Answer:
Hello BC93LG. Our apologies if the previous answer was not satisfactorily answered for you. In response to your inquiry as to whether or not the WDP4W pedestal will work with the LG 7.3 cu. ft. Ultra Large Capacity Dryer with Sleek Contemporary Design (Electric), Model # DLE1101W, the answer is yes, it will work. Just to clarify what LG meant by "For a garage installation, you will need to place the dryer at least 18 inches (46 cm) above the floor. If using a pedestal, you will need 18 inches (46 cm) to the bottom of the dryer.", it's not that you don't have access to a pedestal. If you are going to use the WDP4W pedestal which is 13 3/5" in height, you will need to get a platform under the WDP4W that raises the pedestal to a height that is 18 inches to the bottom of the dryer. In other words, you need to put the pedestal on a platform that is 4 2/5" in height...^IFV
Gender: male
3 months, 3 weeks ago
User Name:
LGJoel

Please wait while more information about LGJoel is loaded.
Additional information about LGJoel could not be loaded.
0points
0out of 0found this answer helpful.
HelpfulNot Helpful
  • 2015-08-27T13:36:32.221-05:00
  • bvseo_lps, prod_bvqa, vn_prr_5.6
  • cp-1, bvpage1
  • co_hasquestionsanswers
  • loc_en_US, sid_MD05015940, prod, sort_default
2 3 4 5 ... 9 Next>>
  • 2015-08-27T13:36:32.227-05:00
  • bvseo_lps, prod_bvqa, vn_prr_5.6
  • cp-1, bvpage1
  • co_hasquestionsanswers
  • loc_en_US, sid_MD05015940, prod, sort_default
2 3 4 5 ... 9 Next>>
